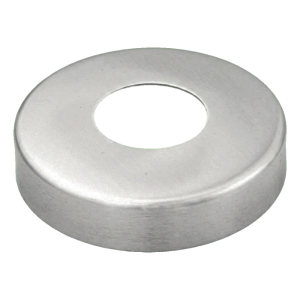

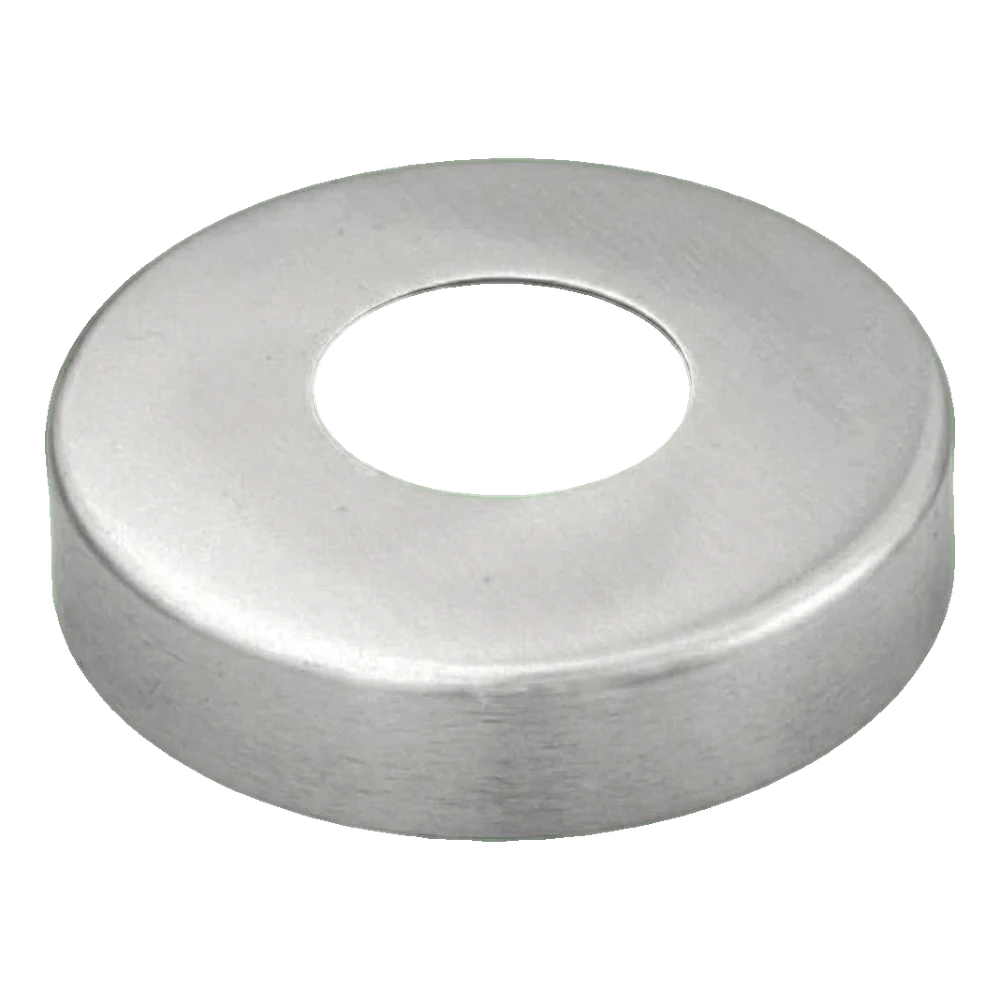

Stainless steel cover rosette for Ø42.4 mm pipe – satin finish, Ø96 mm
0
Description
Stainless steel cover rosette for Ø42.4 mm pipe – satin finish, Ø96 mm
Cover rosette made from AISI 304 stainless steel designed for aesthetic finishing of pipe passages with diameter Ø42.4 mm in stainless steel balustrades. The element effectively covers mounting holes, giving the structure a professional, clean appearance. The satin finish harmoniously complements matte surfaces of balustrade systems, ensuring consistent aesthetics throughout the installation.
The cover is lightweight (0.06 kg) and easy to install — simply slide it onto the pipe and press against the substrate. Thanks to precision pressing from 0.8 mm thick sheet metal, the element fits perfectly to the surface without requiring additional on-site processing.

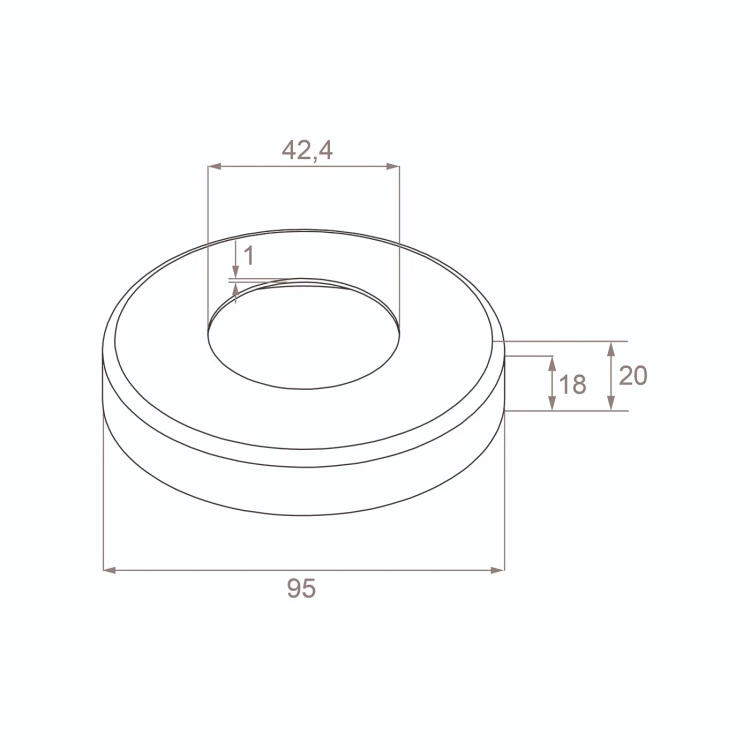

Dimensions and technical parameters
- External diameter: 95 mm (96 mm with tolerance)
- Hole diameter (for pipe): Ø42.4 mm
- Total height: 20 mm
- Internal height: 18 mm
- Wall thickness: 0.8 mm (sheet thickness 1 mm on top surface)
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.06 kg
- Balustrade system: Ø42.4 mm
- EAN: 5901289673815
Application
Rosette designed for masking mounting holes in stainless steel balustrades based on pipes with diameter 42.4 mm. Used wherever the pipe passes through floor, ceiling or other structural element — covers the gap around the passage and gives the installation a neat finish. Ideal for use in internal and external balustrade systems in residential, office and public buildings.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
