Square masking rosette for 40x40 mm profile – AISI 304 stainless steel satin finish
0
Description

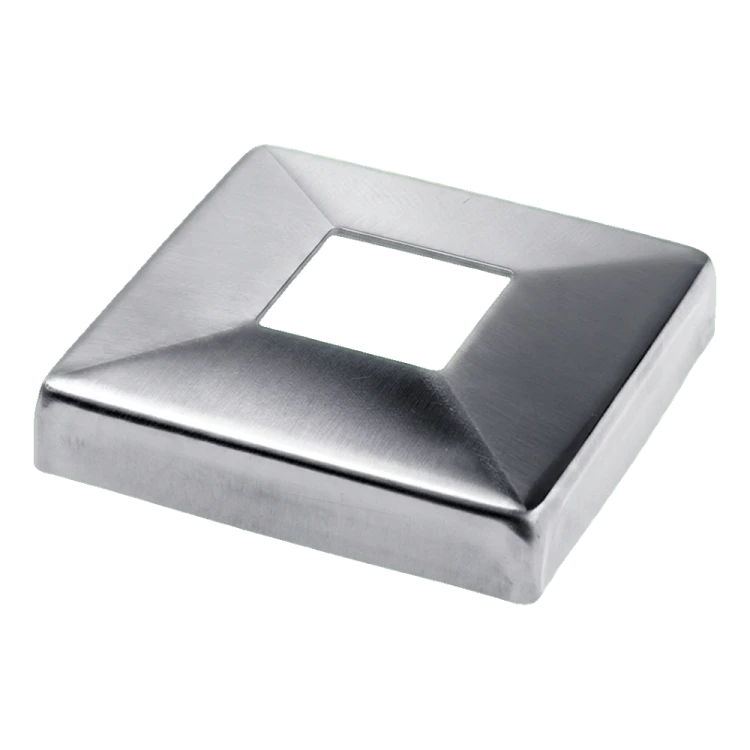

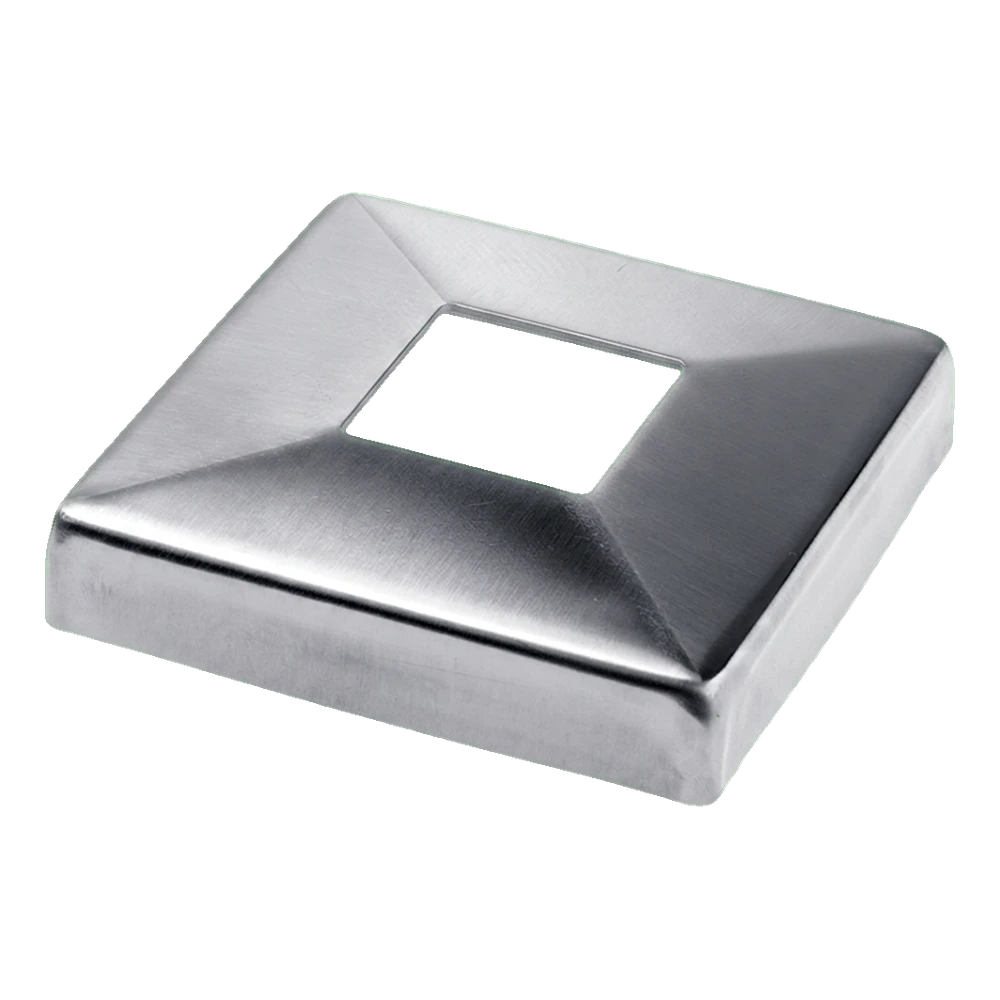

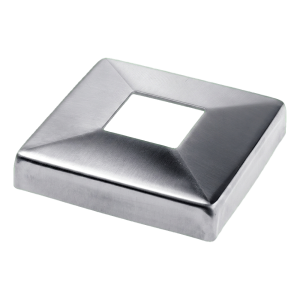

Square masking rosette for 40x40 mm profile – AISI 304 stainless steel satin finish
Square masking rosette 108×108 mm designed for balustrade profiles with 40×40 mm cross-section. Perfectly conceals mounting holes in stainless steel balustrades, giving the finish an aesthetic, professional appearance. Made from AISI 304 stainless steel with satin finish — resistant to scratches and easy to keep clean.
Thanks to precise matching to the 40×40 mm square profile, the cover fits quickly and securely, eliminating unsightly gaps around posts. This is a small but crucial element for the final visual effect of the entire balustrade construction — particularly important in prestigious buildings, hotels, office buildings and residential developments.

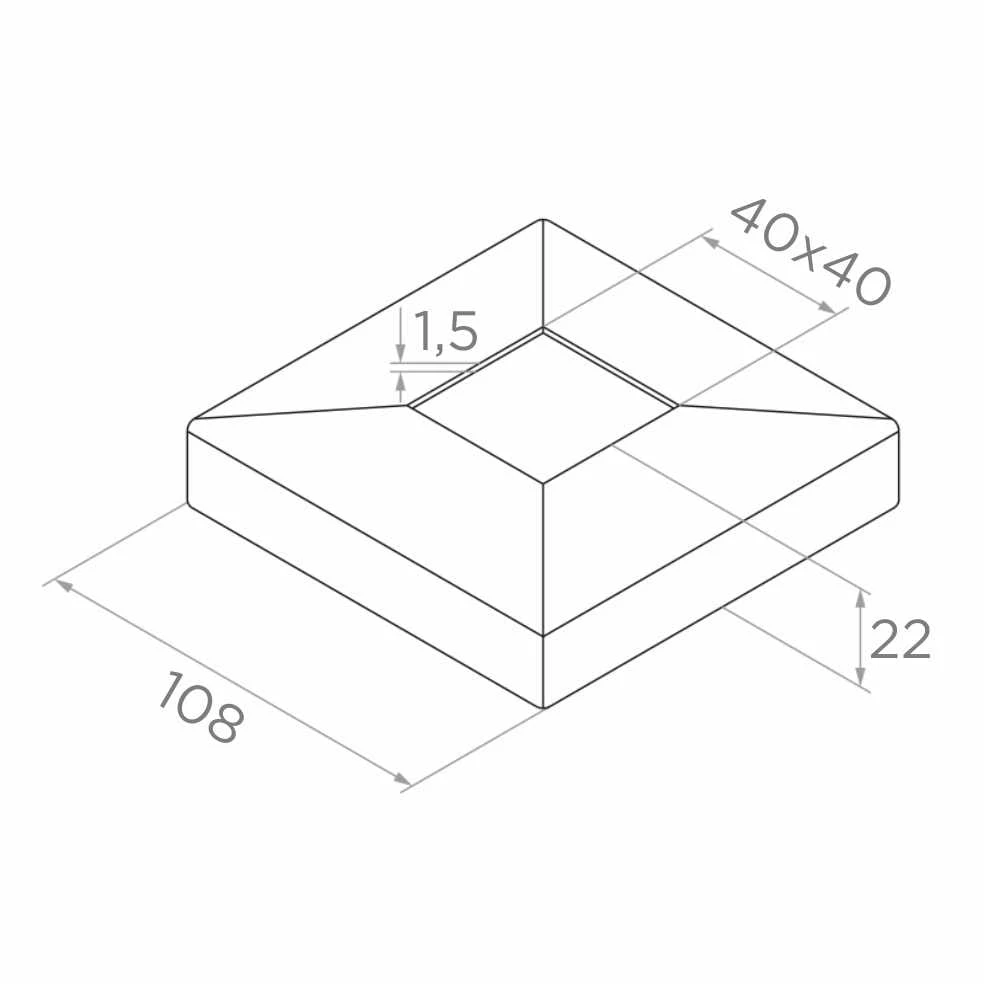

Dimensions and technical data
- External base dimension: 108 × 108 mm
- Internal opening (for profile): 40 × 40 mm
- Height: 22 mm (according to drawing) / 25 mm (according to manufacturer's specification)
- Material thickness: 1.5 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Shape: square
- Weight: 0.18 kg
- EAN: 5901289673914
Application

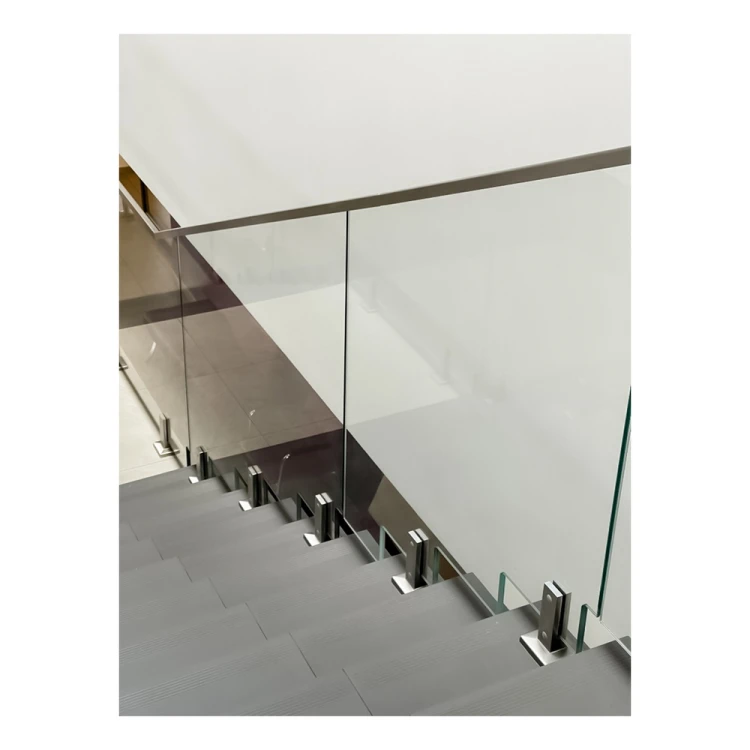

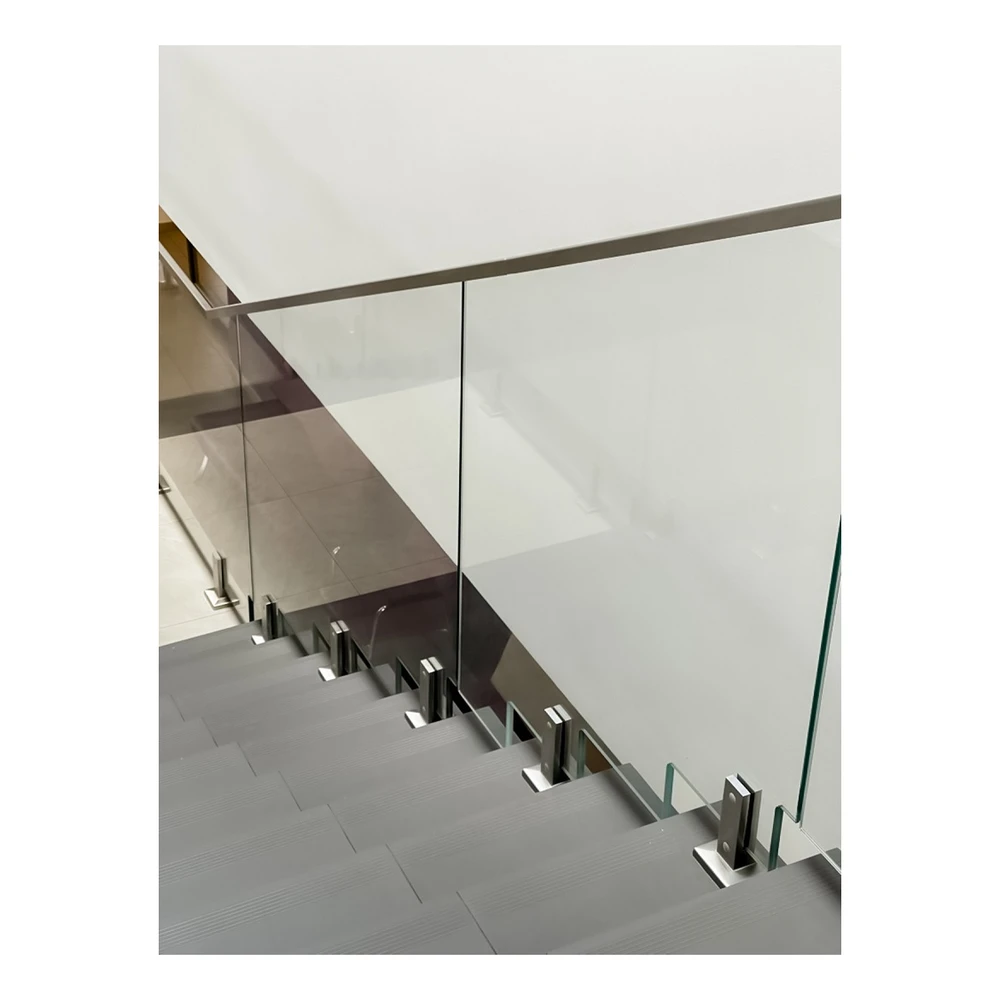

The rosette is designed for stainless steel balustrade systems based on 40×40 mm square profiles. Ideal for mounting glass and rod balustrades on staircases, balconies, terraces and mezzanines. Conceals the point where the post passes through the floor or structural element, ensuring a clean, tidy finish.
The satin surface of AISI 304 steel guarantees corrosion resistance in indoor conditions and outdoors under cover. The matt satin finish effectively hides minor scratches and fingerprints, reducing maintenance work on the finished construction.
Technical data
| Material | AISI 304 |
| Finish | Satin |
