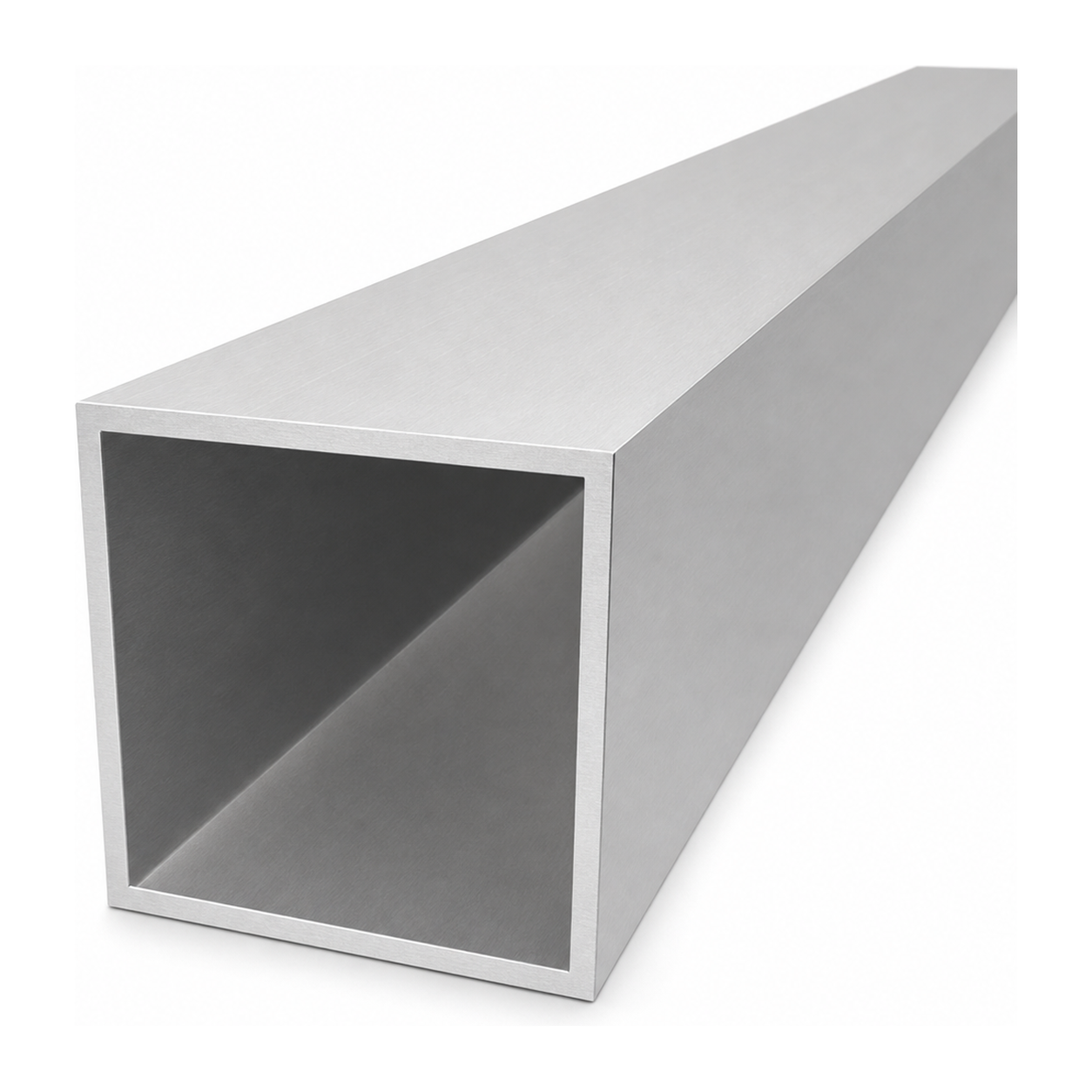

Square aluminium tube 90×90×4 mm – closed profile EN AW-6060, L=2000 mm
Leave feedback on the product
Square aluminium tube EN AW-6060 T6/T66 (PA38, AlMgSi0.5). Cross-section 90×90 mm, wall thickness 4 mm, length 2000 mm. Weight 7.44 kg. Raw, non-anodised surface.
Product code: 001-835
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 4
- Length [mm] 2000
- Height [mm] 90
Description
Square aluminium tube 90×90×4 mm – closed profile EN AW-6060, L=2000 mm
Square aluminium tube 90×90×4 mm is a robust closed profile with a square cross-section, made from aluminium alloy EN AW-6060 T6/T66 (PA38 / AlMgSi0.5). Thanks to its excellent stiffness-to-weight ratio and inherent corrosion resistance, the profile is suited to a wide range of applications — from load-bearing structures and balustrades to frames, shelving, decorative elements, and furniture components.
The raw, non-anodised aluminium surface is ready for any finishing treatment — anodising, powder coating, or leaving in its natural state. The profile is easy to cut, drill, bend, and join, significantly reducing fabrication time on site and in the workshop.
Technical Specification
- Cross-section: closed square tube
- Outer side (A): 90 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Dimensions (side × side × length): 90 × 90 × 2000 mm
- Weight: 7.44 kg (3.72 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Frames, supports, and frameworks
- Furniture and interior fittings
- Decorative and finishing elements
- Scale modelling and DIY projects
The profile is available in a range of sizes covering many cross-section dimensions and wall thicknesses, making it easy to select the optimum variant for the loads and design requirements of any project.
