Square aluminium tube 80×80×3 mm – closed profile EN AW-6060, L=2000 mm
Leave feedback on the product
Square aluminium tube EN AW-6060 T6/T66 (PA38, AlMgSi0.5). Cross-section 80×80 mm, wall thickness 3 mm, length 2000 mm. Weight 5 kg (2.5 kg/m). Raw, non-anodised surface.
Product code: 001-685
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 3
- Length [mm] 2000
- Height [mm] 80
Description
Square aluminium tube 80×80×3 mm – closed profile EN AW-6060, L=2000 mm

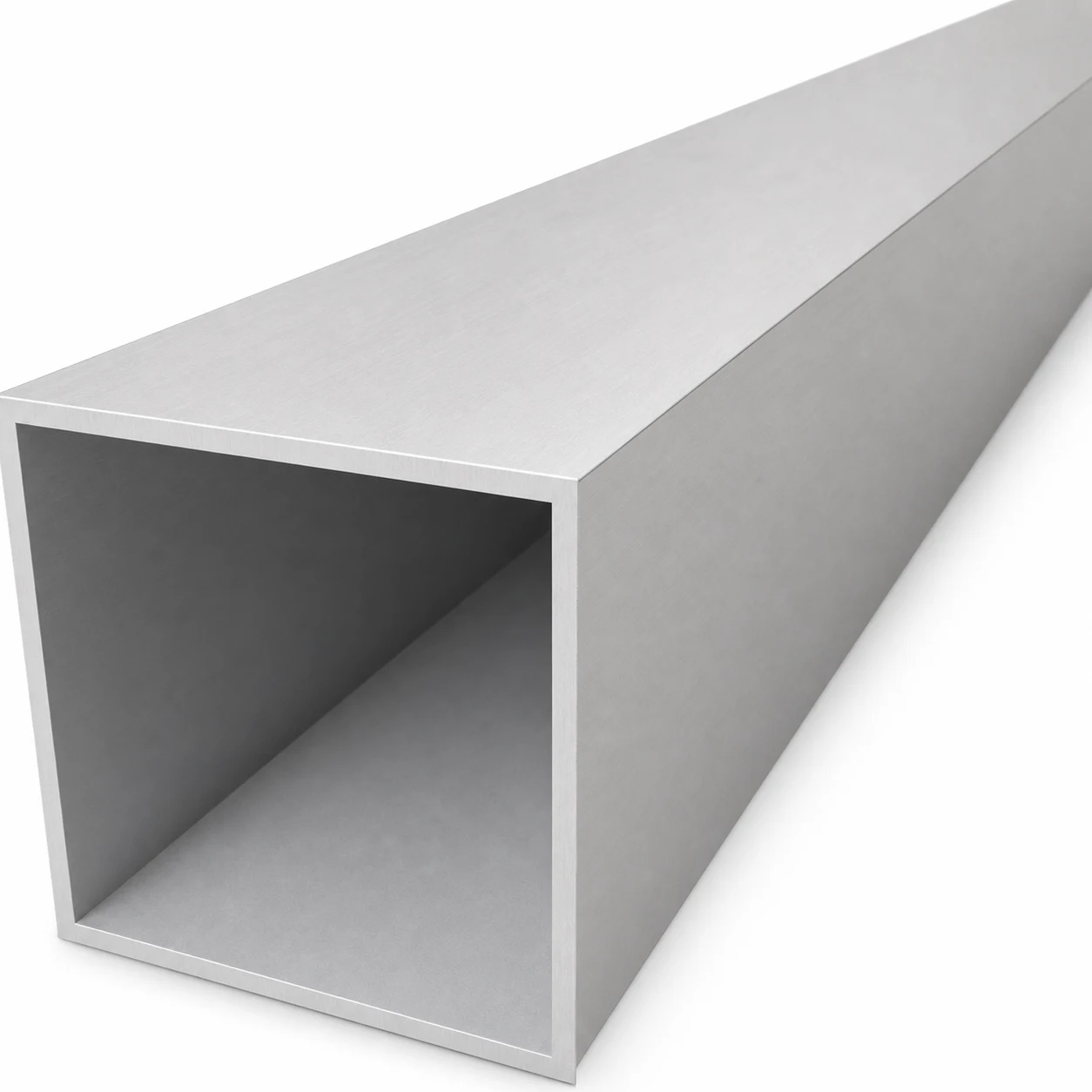

Square aluminium tube 80×80×3 mm is a sturdy closed profile with a square cross-section, made from EN AW-6060 T6/T66 aluminium (PA38, AlMgSi0.5). Thanks to its excellent stiffness-to-weight ratio, it is an ideal structural element wherever low weight, corrosion resistance, and ease of machining are required.
The profile, with a length of 2000 mm and a weight of just 5 kg (2.5 kg/m), significantly simplifies transport and installation compared with steel equivalents. PA38 aluminium requires no additional corrosion protection, which reduces operating costs and shortens project lead times.
Applications
The 80×80 square tube is suited to a wide range of uses — from aluminium structures, balustrades, and handrails, through frames, load-bearing structures, and furniture, to decorative elements and modelling or DIY projects. Its ease of cutting, drilling, bending, and joining allows the profile to be flexibly adapted to the individual requirements of any project.
Technical specification

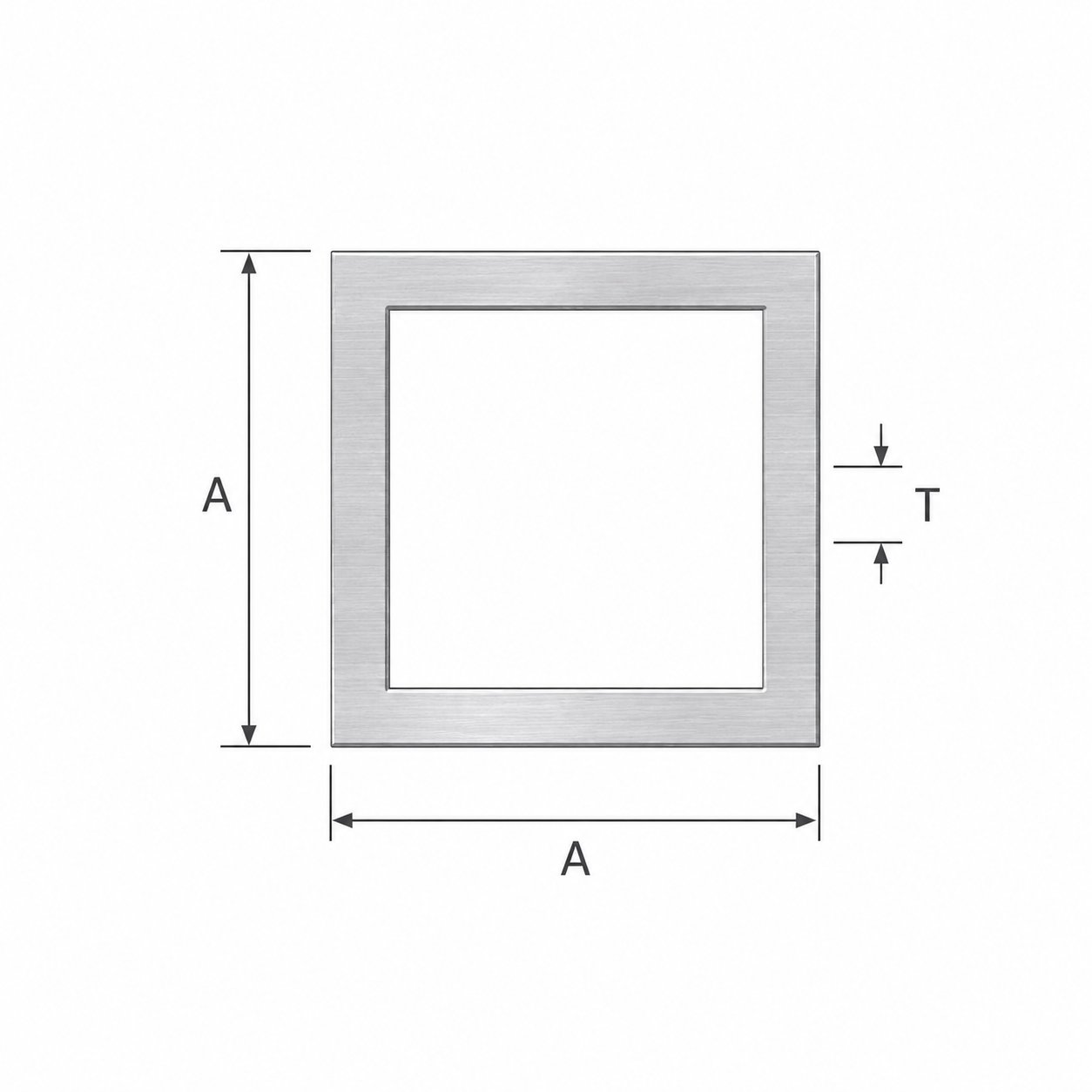

- Cross-section: closed square tube
- External side (A): 80 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (side × side × length): 80 × 80 × 2000 mm
- Weight: 5 kg (2.5 kg/m)
- Material: PA38 aluminium (EN AW-6060 T6/T66), AlMgSi0.5 alloy
- Alloy numerical designation: 3.3206
- Surface finish: raw (non-anodised)
The profile is available in a range covering many cross-section dimensions and wall thicknesses, enabling selection of the optimum variant for a specific load and project budget.
