Square aluminium tube 70×70×2 mm – closed profile L=2000 mm EN AW-6060
Leave feedback on the product

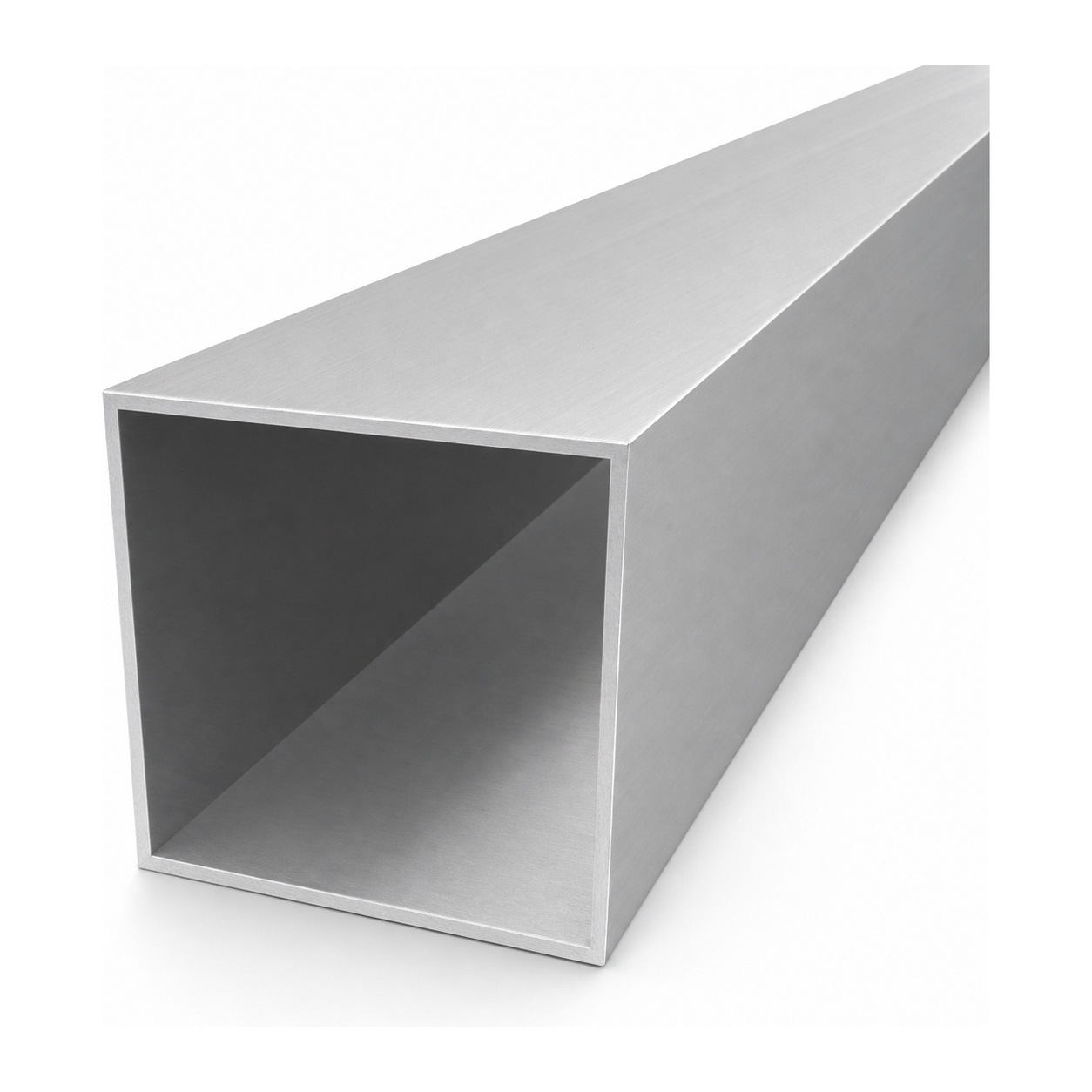

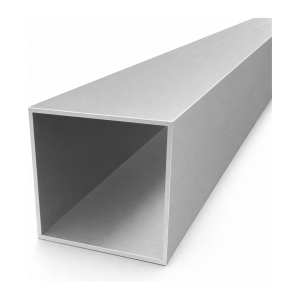

Square aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5). Cross-section 70×70 mm, wall thickness 2 mm, length 2000 mm. Weight 2.94 kg. Raw, non-anodised surface.
Product code: 001-834
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 2
- Length [mm] 2000
- Height [mm] 70
Description
Square aluminium tube 70×70×2 mm – closed profile L=2000 mm EN AW-6060
Square aluminium tube 70×70×2 mm is a versatile closed profile with a square cross-section, made from EN AW-6060 T6/T66 aluminium alloy (AlMgSi0.5 / PA38). Thanks to the combination of low weight, high rigidity, and natural corrosion resistance, this profile is an excellent choice for aluminium structures, balustrades, frames, and decorative elements.
The raw (non-anodised) surface allows for any finishing treatment — anodising, powder coating, or leaving in its natural state. Grade 6060 aluminium is easy to cut, drill, bend, and join, resulting in fast installation and reduced labour time for the installation team.
Technical specification

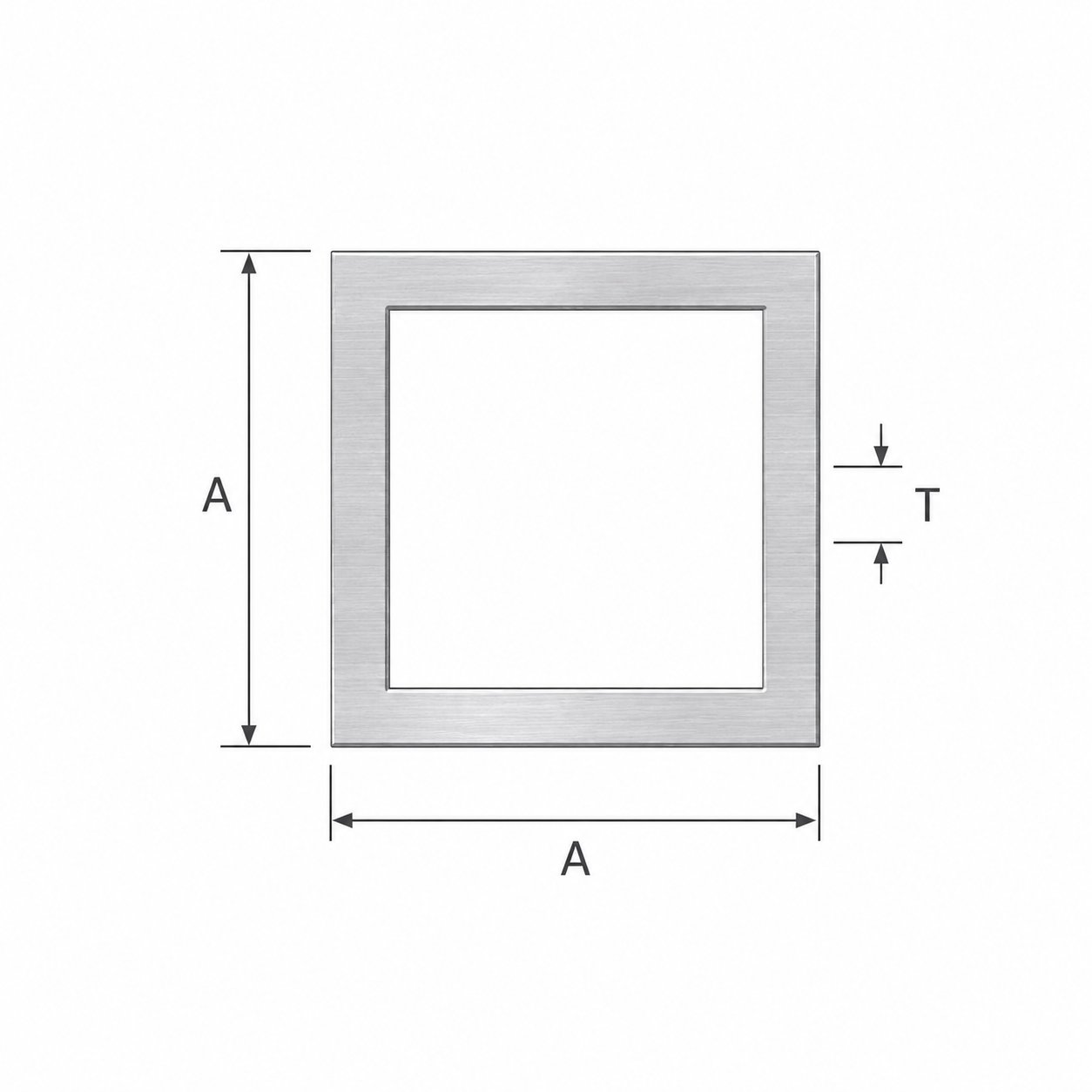

- Section type: closed square tube
- External side (A): 70 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (side × side × length): 70 × 70 × 2000 mm
- Weight: 2.94 kg (1.47 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Mounting frames and brackets
- Furniture and decorative elements
- Modelling and DIY projects
This profile belongs to the range of square tubes available in a variety of cross-section sizes and wall thicknesses, enabling the selection of the optimum variant for any specific project.
