Square aluminium tube 60×60×4 mm closed profile L=2000 mm
Leave feedback on the product
Square aluminium tube, closed profile EN AW-6060 T6/T66 (PA38, AlMgSi0.5 alloy). External side 60×60 mm, wall thickness 4 mm, length 2000 mm. Weight 4.84 kg. Raw (non-anodised) surface.
Product code: 001-683
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 4
- Length [mm] 2000
- Height [mm] 60
Description
Square aluminium tube 60×60×4 mm closed profile L=2000 mm

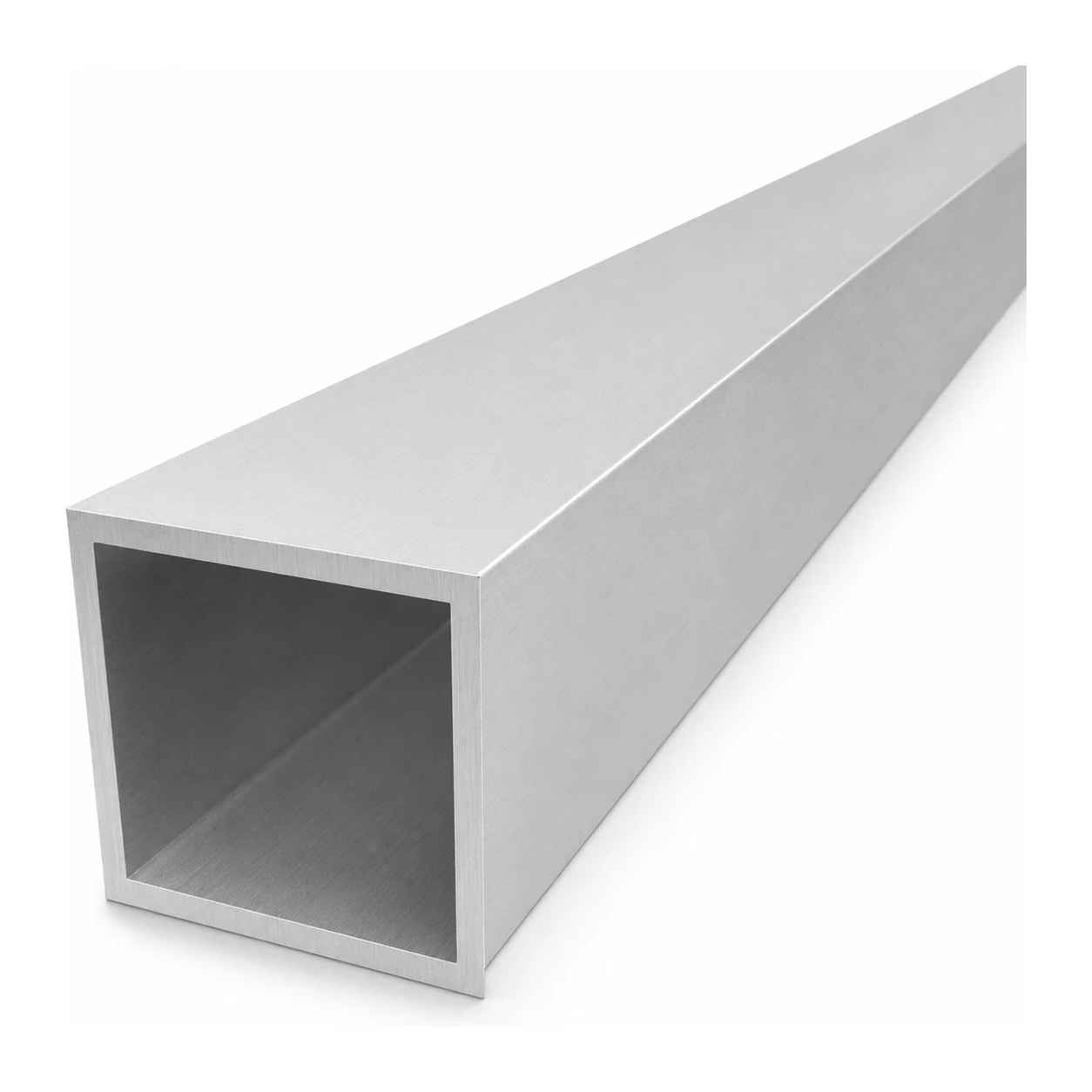

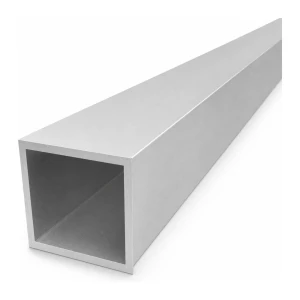

Square aluminium tube 60×60×4 mm is a robust closed profile with a square cross-section, manufactured from EN AW-6060 T6/T66 aluminium (PA38, AlMgSi0.5 alloy). Thanks to its excellent stiffness-to-weight ratio, the profile performs exceptionally well in structures requiring low weight and corrosion resistance — with no need for additional surface protection.
The profile is easy to machine — it can be cut, drilled, bent, and joined using standard tools, resulting in faster installation and lower labour costs on site. The raw (non-anodised) surface allows further processing or powder coating in accordance with project requirements.
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Mounting frames and brackets
- Furniture and decorative elements
- Modelling and DIY projects
Technical specifications

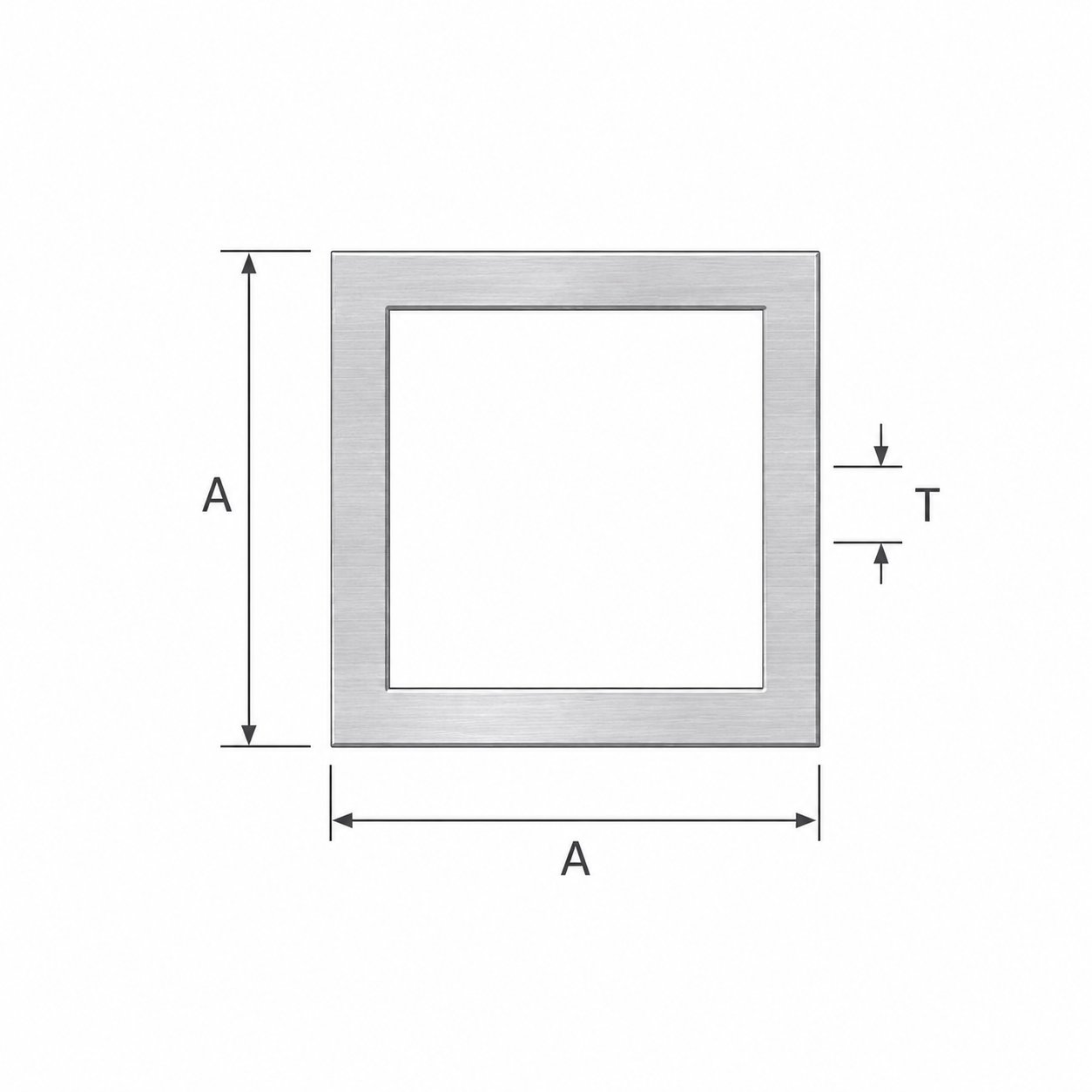

- Cross-section: closed square tube
- External side (A): 60 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Dimensions (side × side × length): 60 × 60 × 2000 mm
- Weight: 4.84 kg (2.42 kg/m)
- Material: aluminium PA38 (EN AW-6060 T6/T66), AlMgSi0.5 alloy
- Surface: raw (non-anodised)
The profile is available in a range of cross-sectional dimensions and wall thicknesses, allowing the optimum variant to be selected for any given project.
