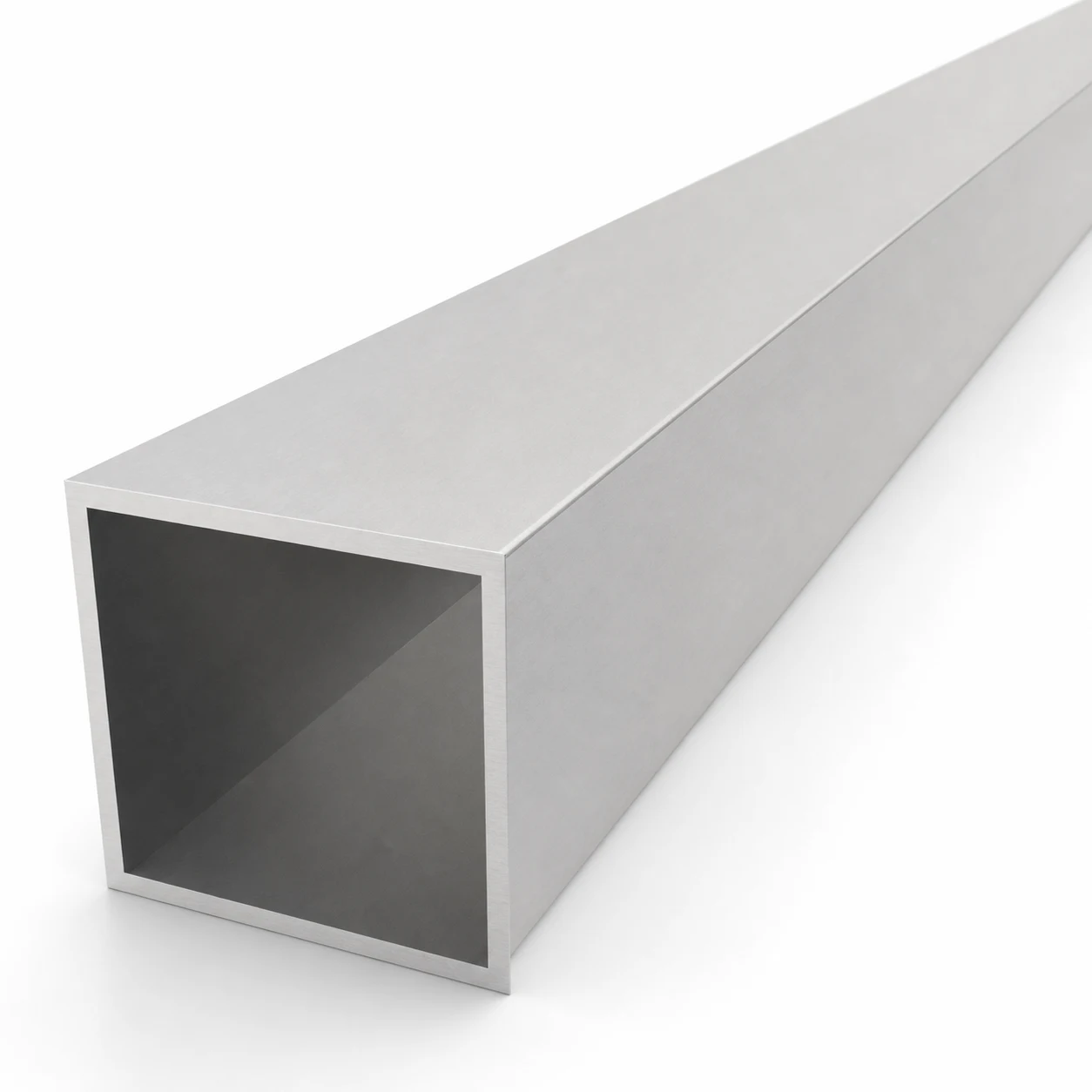

Square aluminium tube 60×60×3 mm – closed profile L=2000 mm EN AW-6060
Leave feedback on the product
Square aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5). Side 60×60 mm, wall thickness 3 mm, length 2000 mm. Weight 3.72 kg (1.86 kg/m). Raw surface, non-anodised.
Product code: 001-682
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 3
- Length [mm] 2000
- Height [mm] 60
Description
Square aluminium tube 60×60×3 mm – closed profile L=2000 mm EN AW-6060
Square aluminium tube 60×60×3 mm is a versatile closed profile with a length of 2000 mm, made from lightweight and corrosion-resistant aluminium alloy EN AW-6060 T6/T66 (AlMgSi0.5 / PA38). Thanks to its square cross-section and 3 mm wall thickness, the profile combines high rigidity with low self-weight — just 3.72 kg for the entire 2-metre section. It is a proven solution wherever a durable, lightweight and easy-to-work structure is required.
The raw (non-anodised) surface allows for any finishing treatment — anodising, powder coating, or leaving in its raw state. The profile is easy to cut, drill, bend and join, which significantly speeds up assembly work on site and in the workshop.
Technical Specification
- Section type: closed square tube
- External side (A): 60 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (side × side × length): 60 × 60 × 2000 mm
- Weight: 3.72 kg (1.86 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5 alloy)
- DIN designation: 3.3206
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails and fencing
- Furniture frames, subframes and supporting structures
- Decorative and finishing elements
- Photovoltaic installation support structures
- Modelling and workshop projects
The EN AW-6060 T6/T66 (AlMgSi0.5) alloy is characterised by excellent resistance to atmospheric corrosion, good weldability and high ductility — ideal for structural profiles requiring precise mechanical machining. The profile is available in a range covering many cross-section dimensions and wall thicknesses, allowing the optimum variant to be selected for every project.
