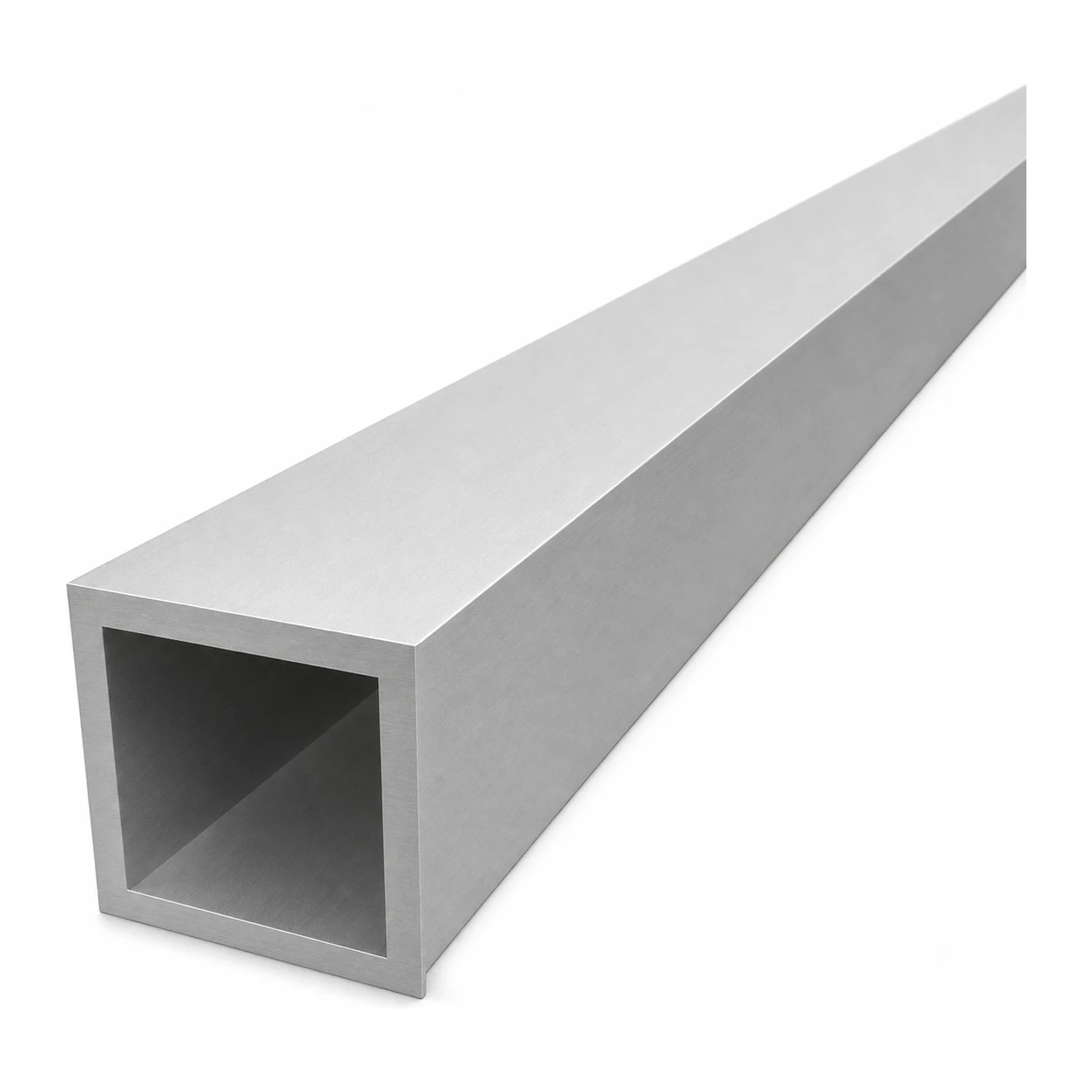

Square aluminium tube 50×50×5 mm – closed profile EN AW-6060, L=2000 mm
Leave feedback on the product
Square aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5). Cross-section 50×50 mm, wall thickness 5 mm, length 2000 mm. Weight 4.86 kg. Raw (unanodised) surface.
Product code: 001-681
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 5
- Length [mm] 2000
- Height [mm] 50
Description
Square aluminium tube 50×50×5 mm – closed profile EN AW-6060, L=2000 mm
Square aluminium tube 50×50×5 mm is a sturdy closed profile with a length of 2000 mm, made from EN AW-6060 T6/T66 aluminium alloy (AlMgSi0.5 / PA38). Thanks to its square cross-section with a side of 50 mm and a wall thickness of 5 mm, the profile provides high rigidity combined with low weight — just 4.86 kg for the full length. It is a versatile structural element suitable for professional installations as well as the construction of frames, supports, and balustrades.
The 6060 series aluminium features excellent corrosion resistance without the need for additional surface protection, resulting in long-term, maintenance-free use. The raw (unanodised) surface allows for further processing — anodising, powder coating, or leaving in its natural state depending on project requirements.
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails, and fencing
- Machine and equipment frames
- Furniture and decorative elements
- Model making and workshop projects
The profile is easy to work with — it can be cut, drilled, tapped, bent, and welded, making it a convenient material for custom projects without the need for specialist machinery.
Technical specification
- Cross-section: closed square tube
- Outer side (A): 50 mm
- Wall thickness (T): 5 mm
- Length: 2000 mm
- Dimensions (side × side × length): 50 × 50 × 2000 mm
- Total weight: 4.86 kg (unit weight: 2.43 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (unanodised)
