Square aluminium tube 50×50×3 mm EN AW-6060 – length 2000 mm
0
Description

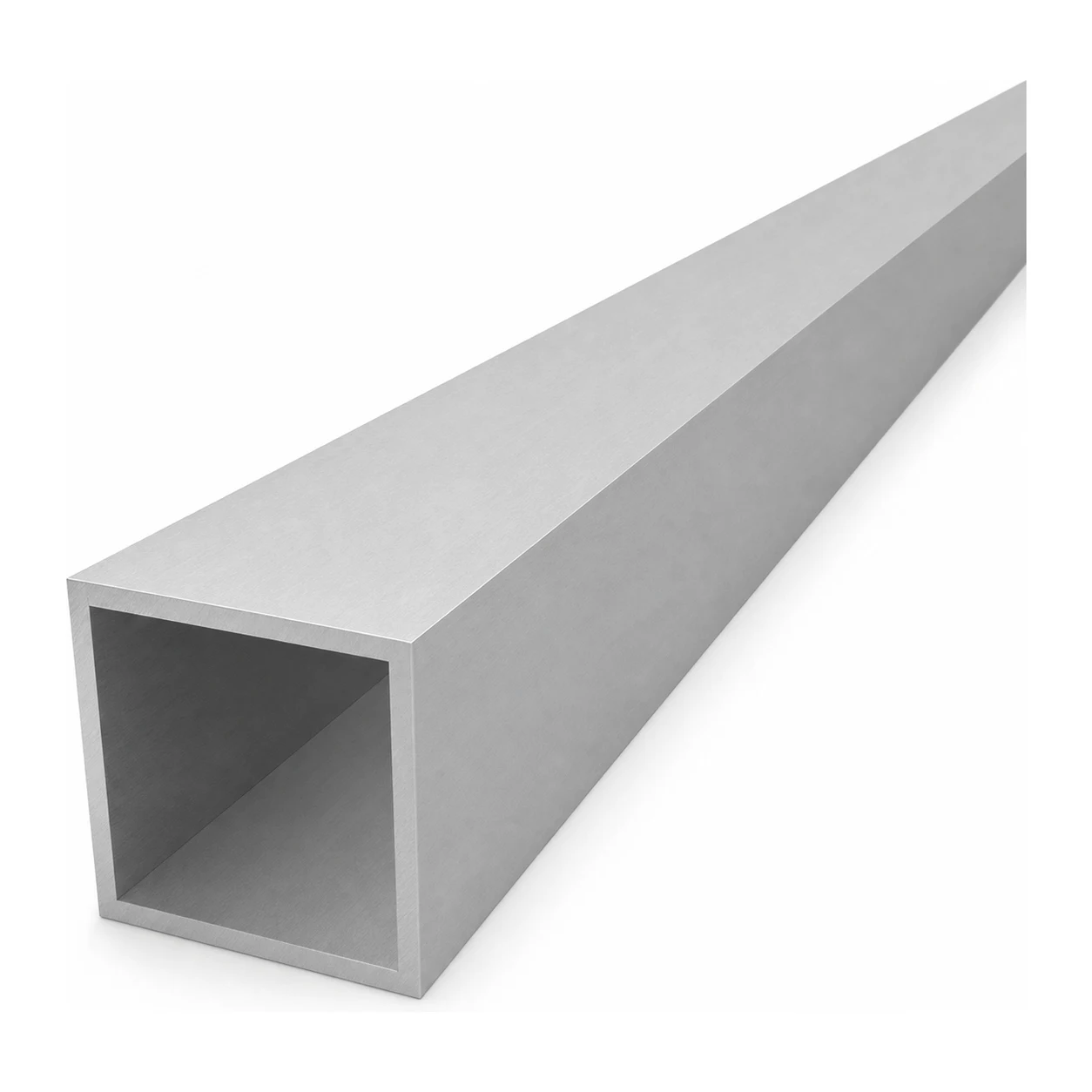

Square aluminium tube 50×50×3 mm EN AW-6060 – length 2000 mm
Square aluminium tube 50×50×3 mm is a versatile closed square-section profile made from EN AW-6060 T64 aluminium alloy (PA38, AlMgSi0.5). Thanks to its excellent strength-to-weight ratio and natural corrosion resistance, it is ideal for aluminium structures, balustrades, frames, load-bearing structures, and installation components.
The profile with an external side of 50 mm and wall thickness of 3 mm provides high rigidity at a low weight of just 3.16 kg per 2000 mm section (linear weight 1.58 kg/m). The raw (non-anodised) surface allows for further processing — anodising, powder coating, or leaving in its natural state.

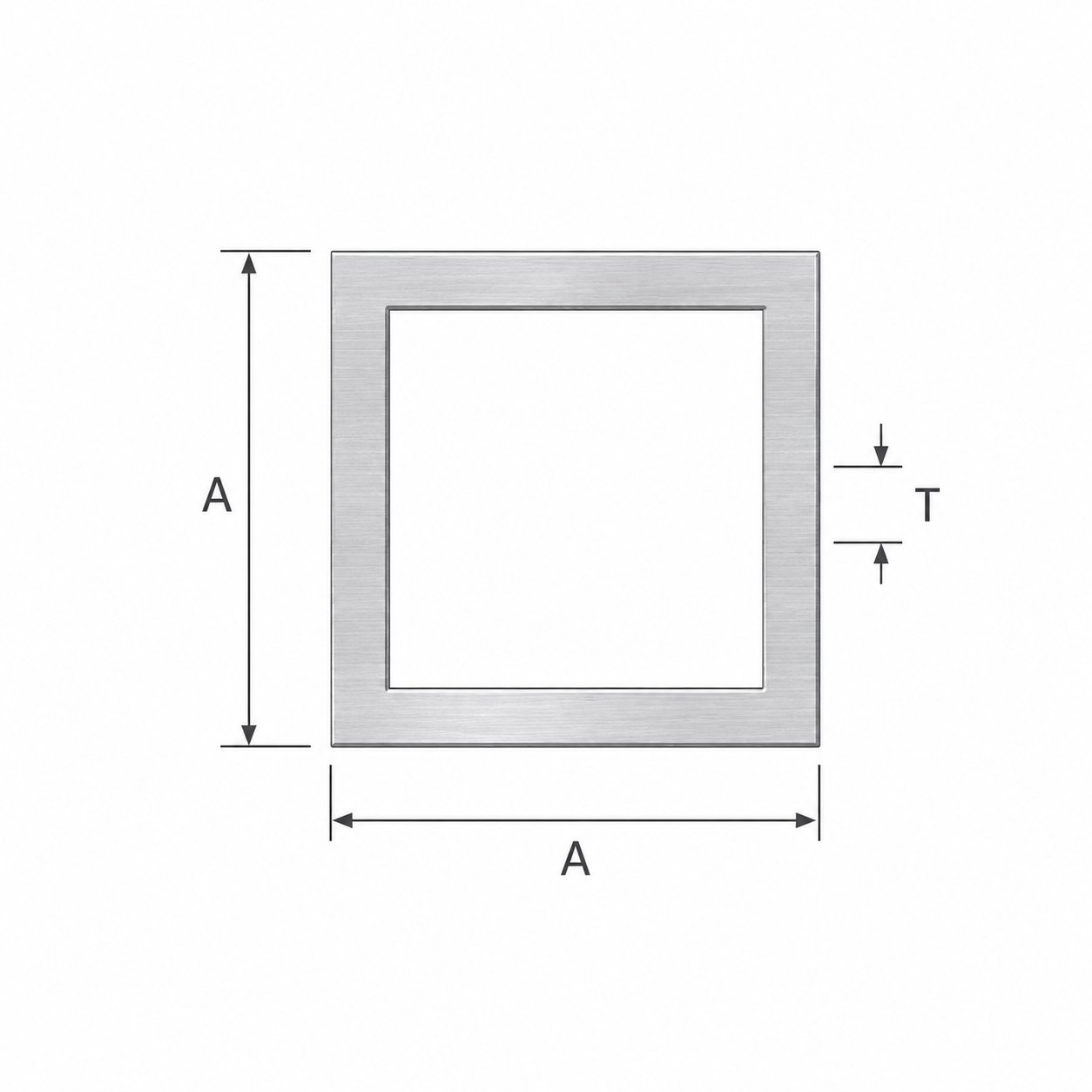

Dimensions and technical specification
- Cross-section: closed square tube
- External side (A): 50 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (side × side × length): 50 × 50 × 2000 mm
- Weight: 3.16 kg (1.58 kg/m × 2 m)
- Material: aluminium EN AW-6060 T64 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (non-anodised)
Properties and advantages
- Lightweight — aluminium is approx. 3× lighter than steel, making transport and installation easier
- Corrosion resistance — requires no additional corrosion protection under typical conditions
- High rigidity — the closed square cross-section provides excellent resistance to torsion and bending
- Easy to machine — the profile can be cut, drilled, bent, and joined using standard tools
- Versatility — EN AW-6060 alloy is suitable for both load-bearing structures and decorative elements
Applications
The profile is widely used in the installation and construction industries. Ideal for building aluminium structures, balustrades and handrails, mounting frames and racks, technical furniture, as well as in modelling and DIY projects. The profile is available in a range of cross-section sizes and wall thicknesses, allowing flexible selection for any specific project.
Technical data
| Length [mm] | 2000 |
| Height [mm] | 50 |
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
