Square aluminium tube 40×40×4 mm EN AW-6060 – length 2000 mm

Go to Product feedback

Square aluminium tube EN AW-6060 T6/T66 (PA38/AlMgSi0.5), raw finish. Cross-section 40×40 mm, wall thickness 4 mm, length 2000 mm. Weight 3.1 kg (1.55 kg/m). For load-bearing structures, balustrades, and frames.

Go to full description
with VAT without VAT
Price €34.62
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] Cat 144 #144

  • Material Aluminium
  • Wall Thickness [mm] 4
  • Length [mm] 2000
  • Height [mm] 40

Description

Square aluminium tube 40×40×4 mm EN AW-6060 – length 2000 mm

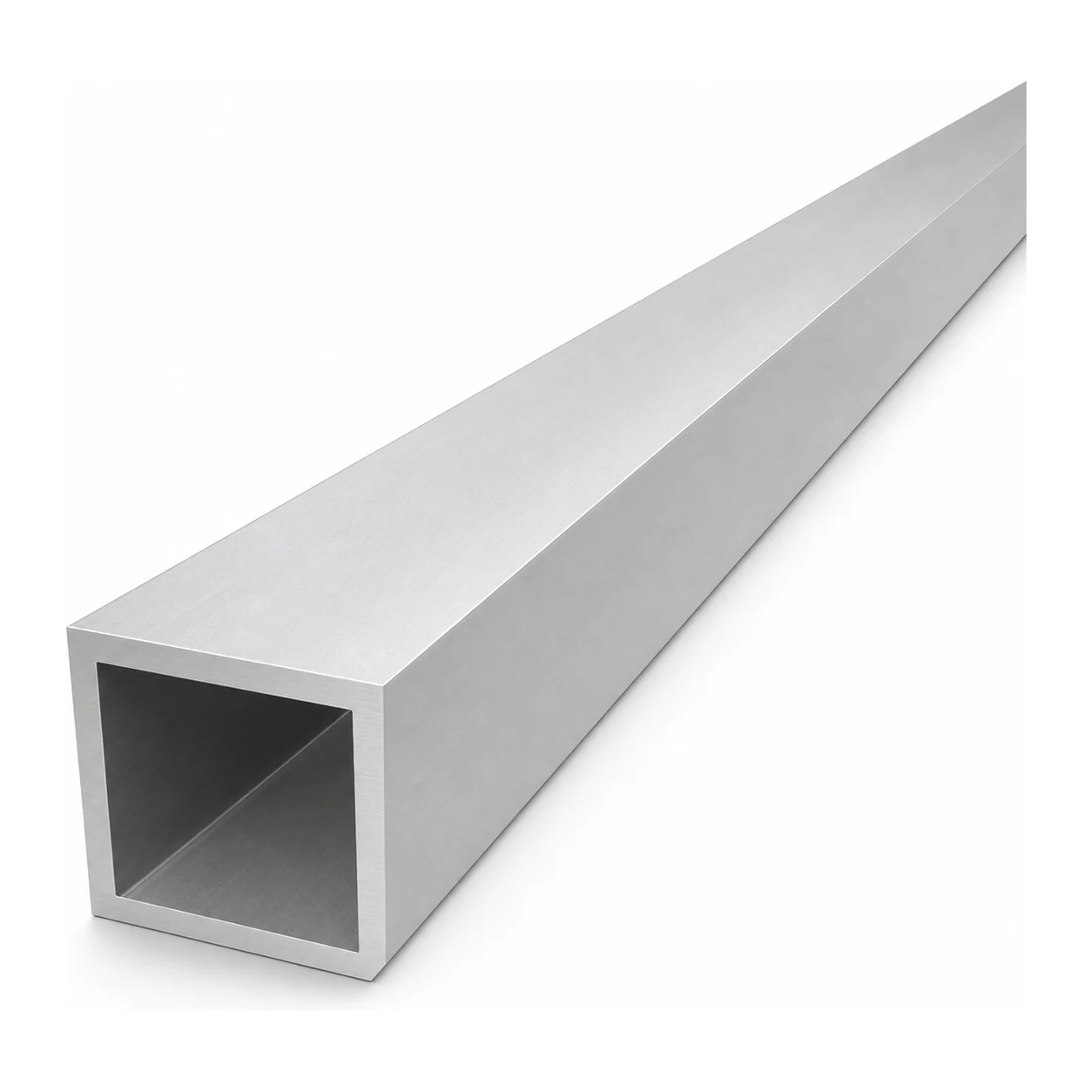

Square aluminium tube 40×40×4 mm – perspective view of the closed profile
Square aluminium tube 40×40×4 mm – perspective view of the closed profile

The square aluminium tube 40×40×4 mm is a robust closed-section profile with a square cross-section, made from EN AW-6060 T6/T66 aluminium alloy (PA38 / AlMgSi0.5). Combining low self-weight with high rigidity, this profile is ideally suited to structures requiring lightness and corrosion resistance. The profile length is 2000 mm, which facilitates transport and allows precise cutting to size directly on site.

The profile surface is raw (non-anodised), providing complete freedom for further processing — anodising, powder coating, or leaving unfinished for interior applications. Grade 6060 aluminium lends itself excellently to cutting, drilling, bending, and mechanical joining, resulting in speed and convenience for installation teams.

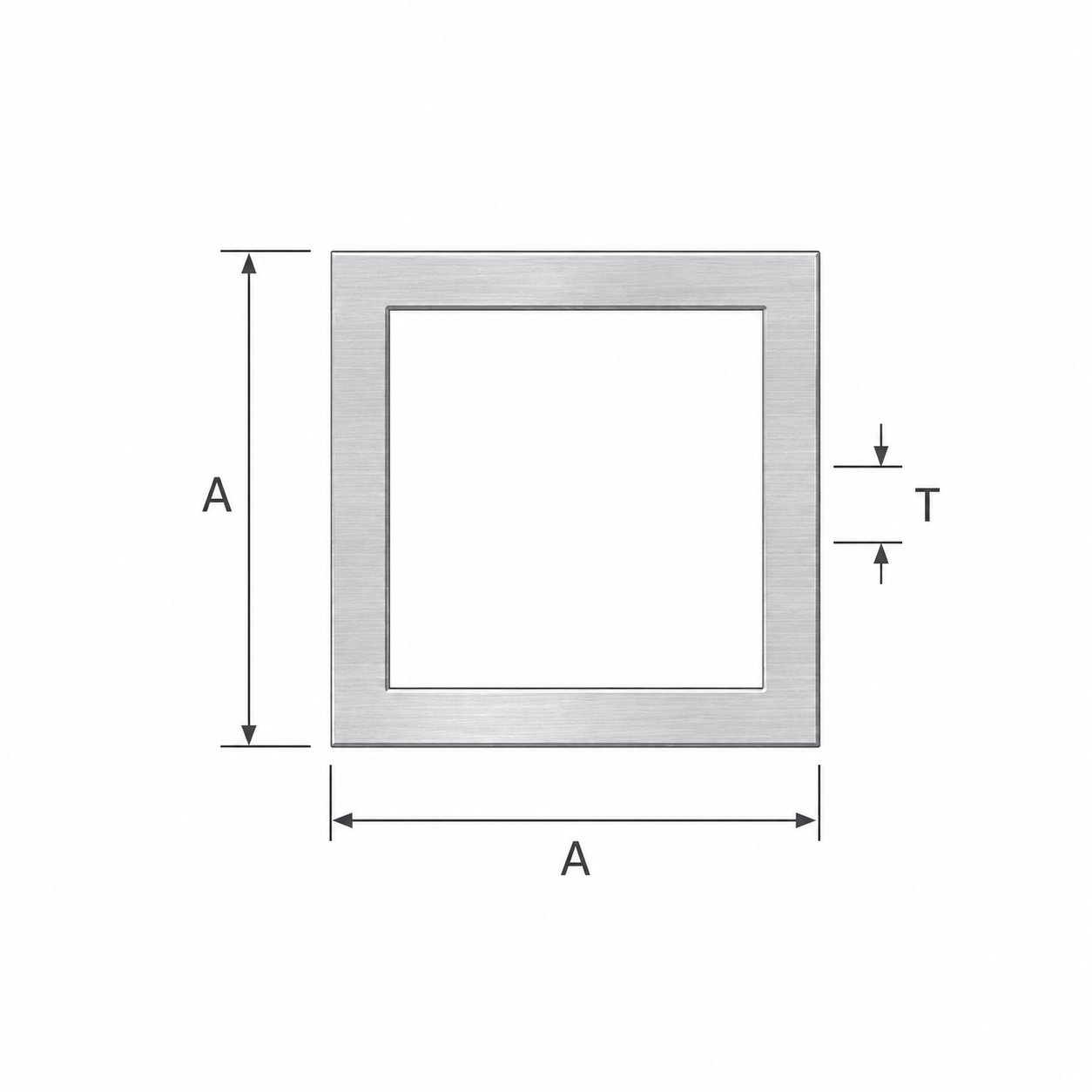

Cross-section of the square tube showing dimensions A (external side 40 mm) and T (wall thickness 4 mm)
Cross-section of the square tube showing dimensions A (external side 40 mm) and T (wall thickness 4 mm)

Technical specification

  • Section type: closed square tube
  • External side (A): 40 mm
  • Wall thickness (T): 4 mm
  • Length: 2000 mm
  • Dimensions (side × side × length): 40 × 40 × 2000 mm
  • Weight: 3.1 kg (linear weight 1.55 kg/m)
  • Material: aluminium PA38 (EN AW-6060 T6/T66), alloy AlMgSi0.5
  • Surface: raw (non-anodised)

Applications

This profile finds wide application in installation and construction work. It performs excellently as a load-bearing element in aluminium structures, frames and mounting assemblies, and in the construction of balustrades and handrails. Thanks to its aesthetic appearance and low weight, it can also be used in the manufacture of furniture, decorative elements, and in modelling and DIY projects. The profile is part of a product range available in many cross-sectional dimension and wall thickness variants, enabling the optimum solution to be selected for any project.
