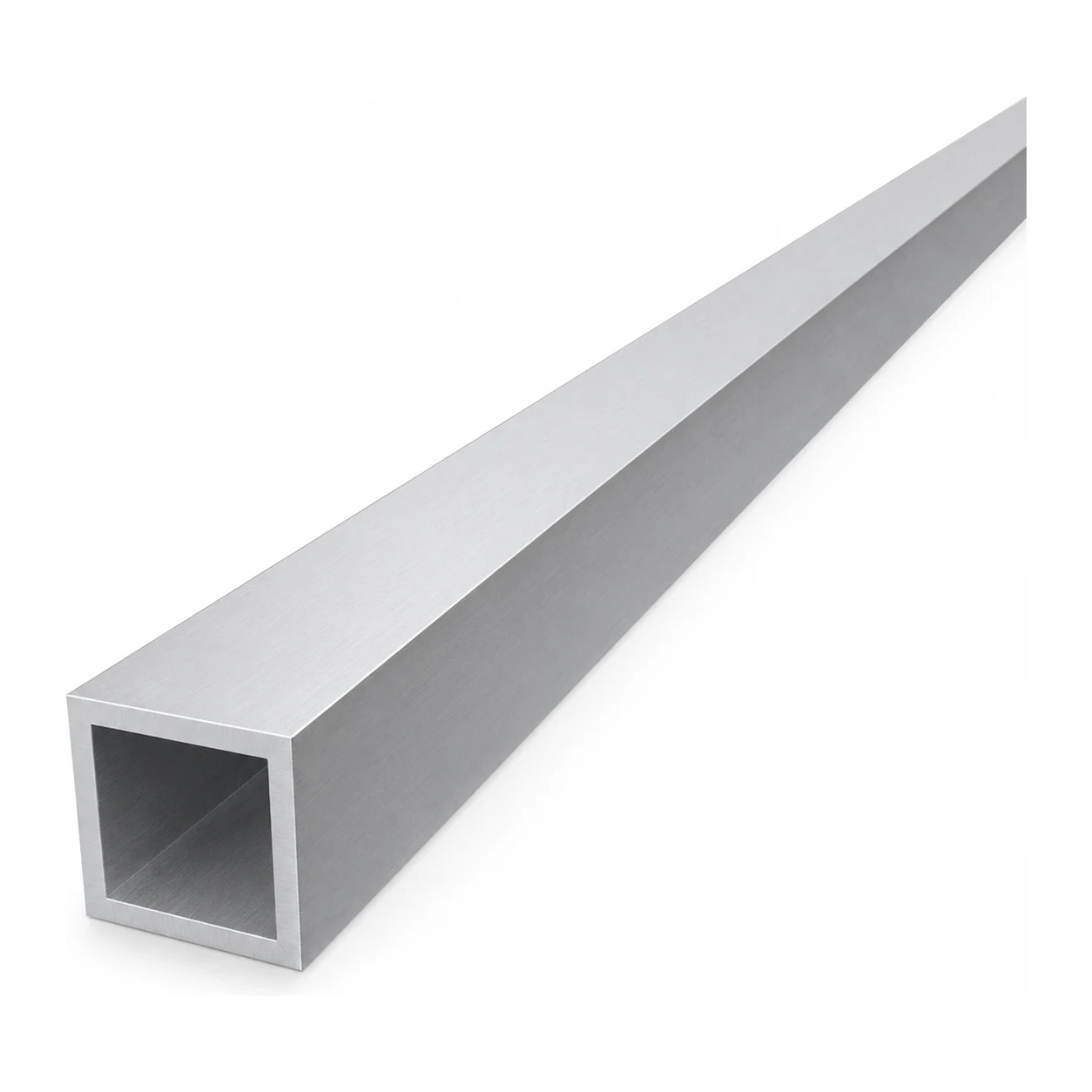

Square aluminium tube 30×30×3 mm – closed profile L=2000 mm
Leave feedback on the product
Square aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5), cross-section 30×30 mm, wall thickness 3 mm, length 2000 mm. Weight 1.74 kg. Raw, non-anodised surface.
Product code: 001-672
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 3
- Length [mm] 2000
- Height [mm] 30
Description
Square aluminium tube 30×30×3 mm – closed profile L=2000 mm
Square aluminium tube 30×30×3 mm with a length of 2000 mm is a versatile closed profile designed for constructing lightweight structures, frames, racks, and balustrades. Thanks to the use of the EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), the profile combines low weight with high rigidity and natural corrosion resistance, ensuring the durability of finished structures without the need for additional surface protection.
The raw, non-anodised surface allows for any finishing treatment — anodising, powder coating, or polishing — giving complete freedom to adapt the profile to the requirements of the project at hand. The profile is easy to cut, drill, bend, and join, reducing working time on site and in the workshop.
Technical specification

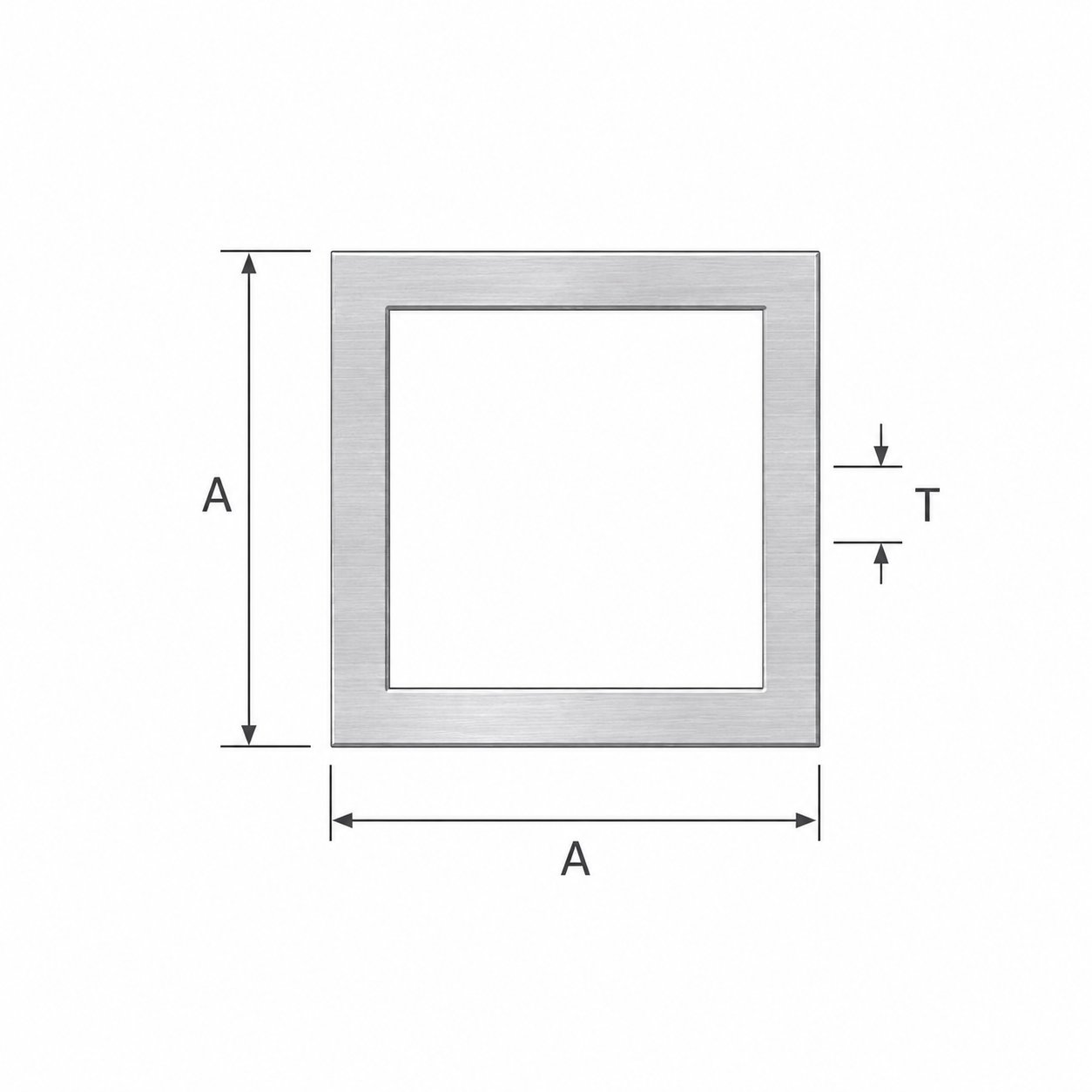

- Cross-section: closed square tube
- External side (A): 30 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (side × side × length): 30 × 30 × 2000 mm
- Weight: 1.74 kg (0.87 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (PA38), alloy AlMgSi0.5
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails, and fencing
- Furniture frames and skeletons
- Decorative and finishing elements
- Modelling and workshop projects
The profile is available in a range covering many cross-section sizes and wall thicknesses, allowing the optimum variant to be selected for the strength and dimensional requirements of any project.
