Square aluminium tube 25×25×2 mm – closed profile L=2000 mm EN AW-6060

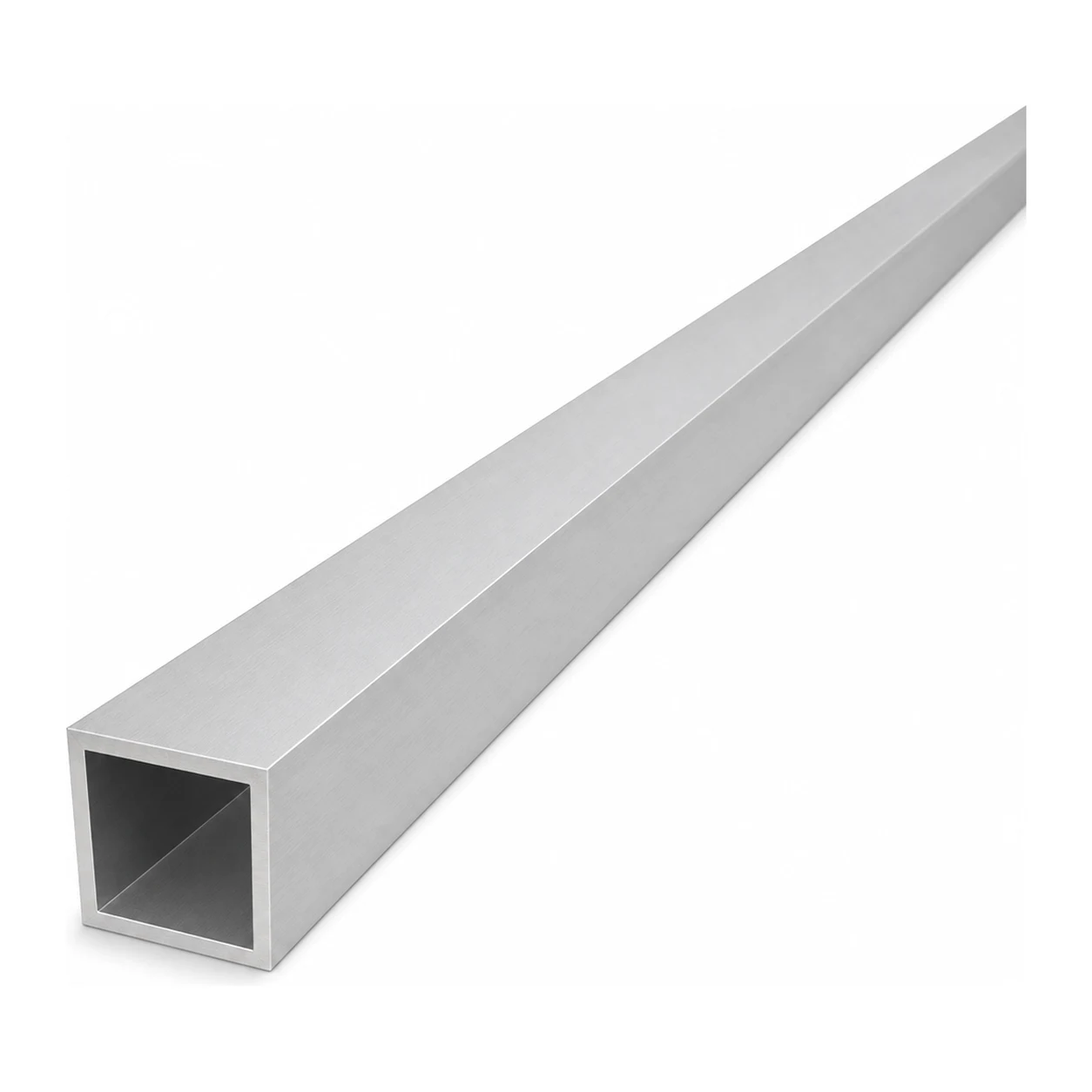

Square aluminium tube 25×25×2 mm with a length of 2000 mm is a versatile closed profile made from EN AW-6060 T64 aluminium alloy (PA38, AlMgSi0.5). Thanks to its excellent strength-to-weight ratio and natural corrosion resistance, this profile is suitable for both structural applications and finishing elements.
Applications
This lightweight yet rigid square profile is widely used by installation companies and workshops. PA38 aluminium is easy to cut, drill, bend and join, which speeds up project completion and reduces processing costs.
- Aluminium structures and load-bearing frames
- Balustrades, handrails and barriers
- Frames and supports for equipment
- Metal furniture and decorative elements
- Modelling and DIY projects
Technical specification

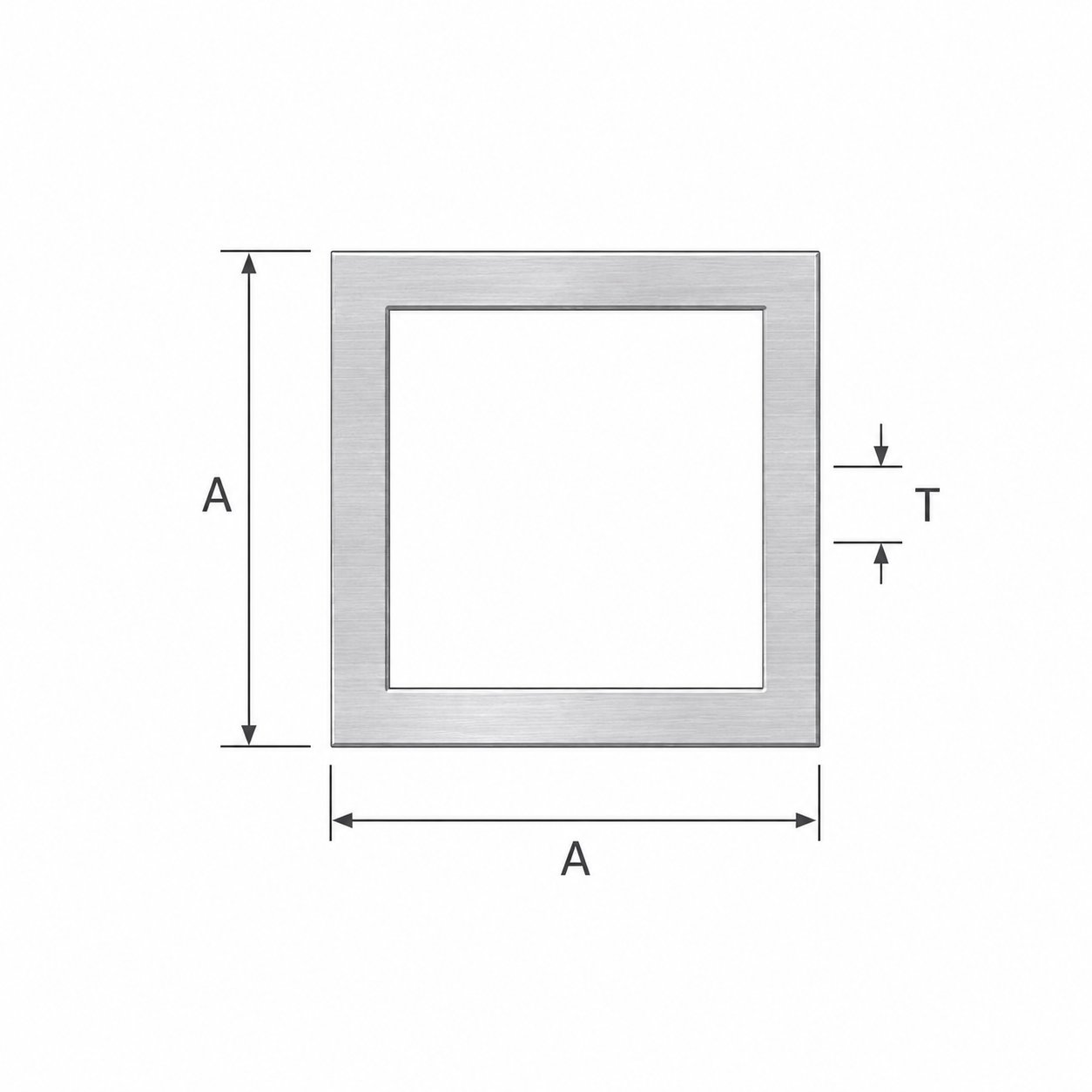

- Cross-section: closed square tube
- External side (A): 25 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (side × side × length): 25 × 25 × 2000 mm
- Weight: 1.0 kg (0.5 kg/m × 2 m)
- Material: aluminium PA38 (EN AW-6060 T64), alloy AlMgSi0.5 (material no. 3.3206)
- Surface: raw (unanodised)
Material properties
The EN AW-6060 alloy in T64 temper offers good mechanical strength, high resistance to atmospheric corrosion, and excellent machinability. The raw surface of the profile allows for further processing — anodising, powder coating, or leaving in its natural state depending on project requirements. The profile is available in a range covering many cross-section sizes and wall thicknesses, allowing the optimum variant to be selected for any specific application.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
| Height [mm] | 25 |
