Square aluminium profile 40x40x2 mm length 6 m PA38 EN AW-6060 T66
Description

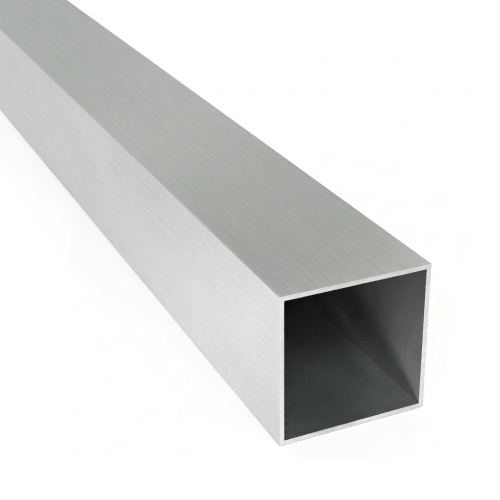

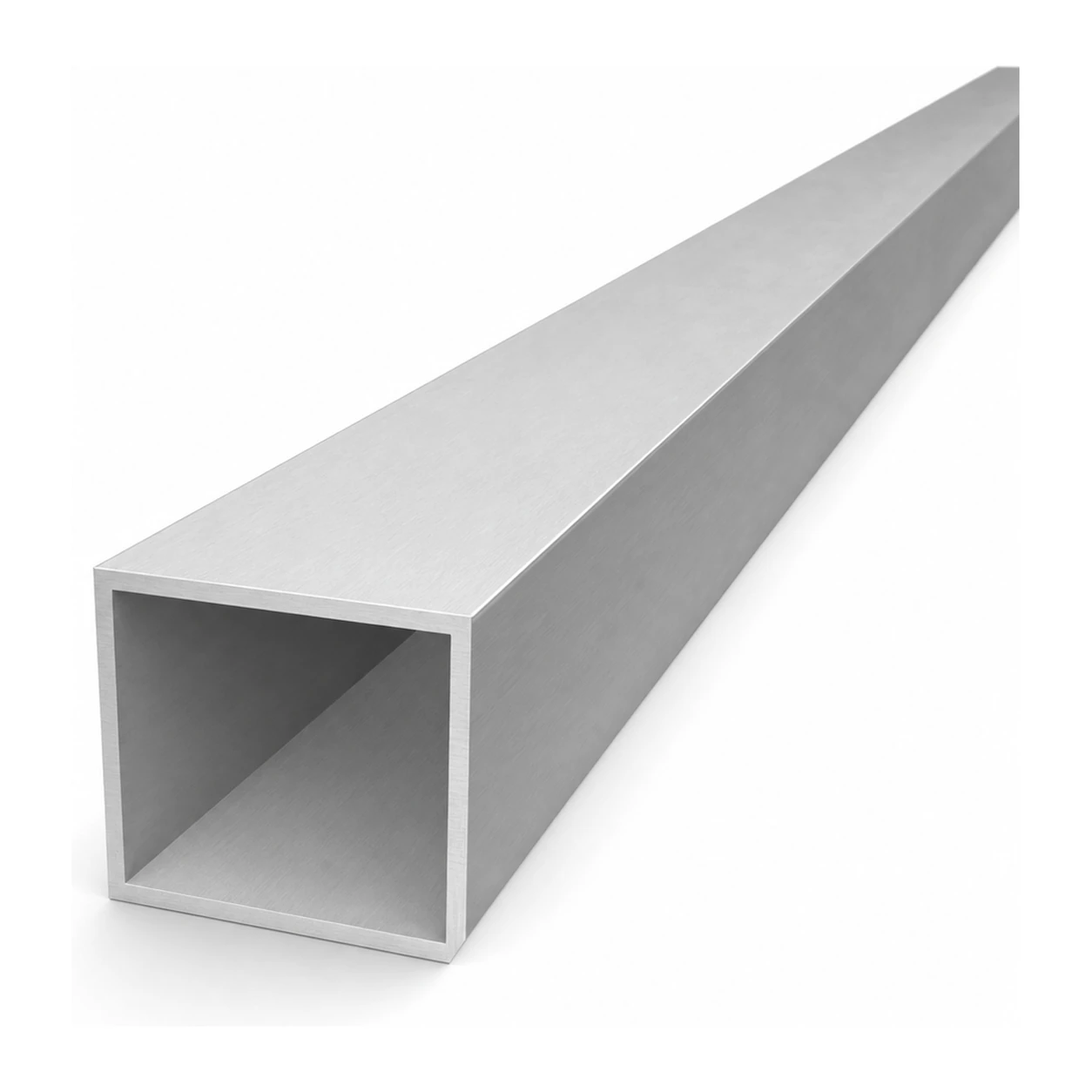

Square Aluminium Profile 40x40x2 mm – Section EN AW-6060 T66, 6 m
Closed aluminium square section 40×40 mm with a wall thickness of 2 mm is a versatile structural profile designed for load-bearing constructions, fencing, handrails, and mounting systems. Manufactured from EN AW-6060 alloy in the T66 temper, it combines high mechanical strength with excellent corrosion resistance — performing reliably in both indoor and outdoor applications.
Advantages for professional applications
The 40×40 mm square section is a popular choice among installation and construction companies due to its ease of fabrication — the profile can be readily cut, drilled, and welded using standard tools. The 6060-T66 alloy delivers enhanced hardness and tensile strength compared to standard T6 temper, ensuring the durability of finished structures. The profile is also suitable for anodising, allowing additional surface protection or a decorative finish to be achieved.
High corrosion resistance eliminates the need for additional protective coatings in most outdoor applications — saving both time and costs during installation.
Typical applications
- Load-bearing structures and mounting frames
- Fencing — panels, pickets, and posts
- Safety handrails and balustrades
- Truck body and trailer components
- Furniture frames and interior fit-out elements
- Support structures for photovoltaic and technical installations

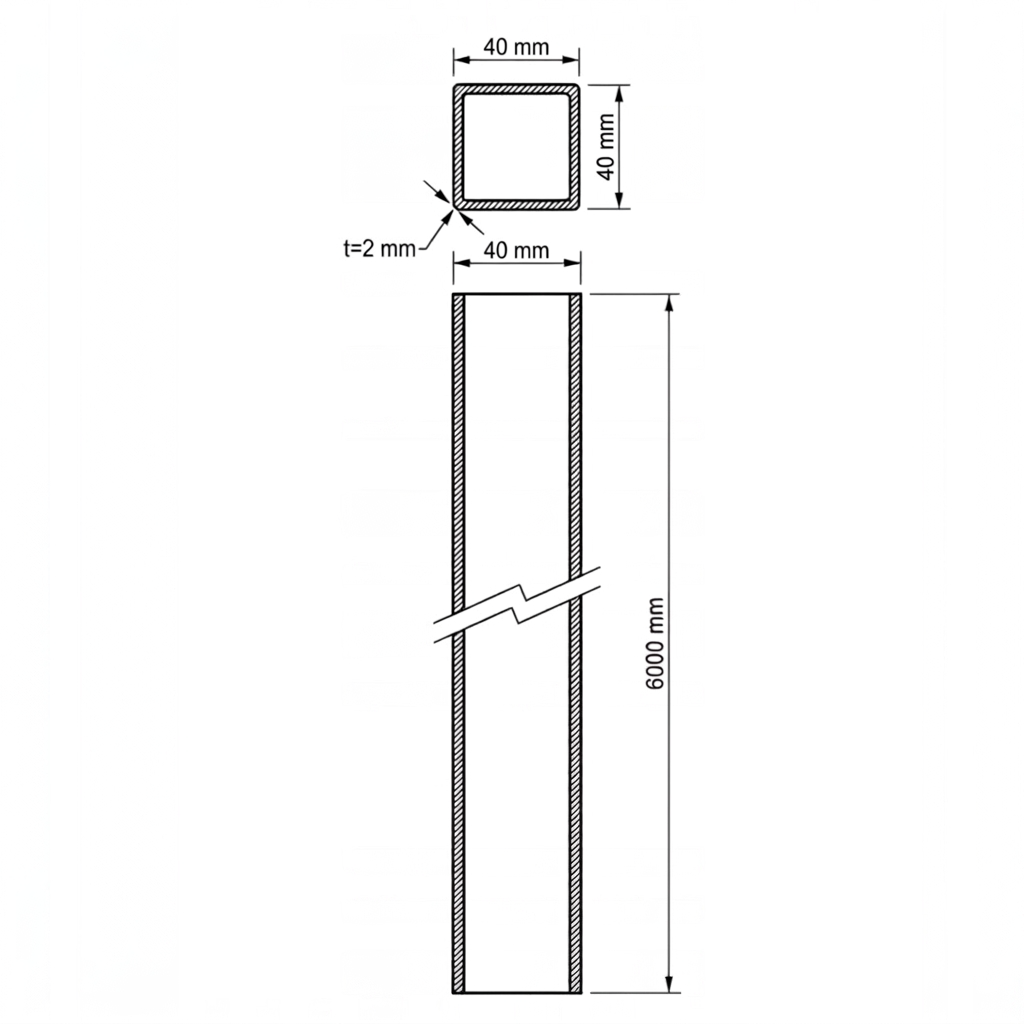

Technical specification
- Cross-section: 40 × 40 mm
- Wall thickness: 2 mm
- Length: 6000 mm (6 m)
- Profile type: closed square section
- Material: aluminium
- Alloy: EN AW-6060
- Temper: T66
- Corrosion resistance: high
- Anodising capability: yes
- Fabrication: cutting, drilling, welding
The profile is supplied in full-length bars of 6 metres, enabling optimal material utilisation when cutting to size and minimising waste on site.
Technical data
| Wall Thickness [mm] | 2 |
| Length [mm] | 6000 |
| Material | Aluminium |
| Profile [mm] | 40×40 |
