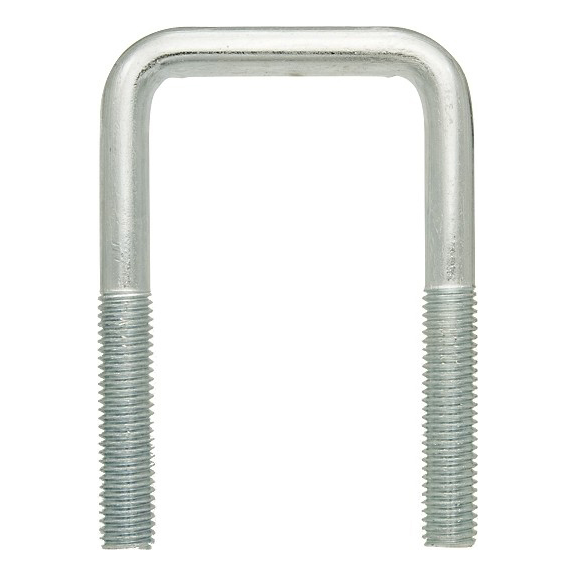

Square U-bolt (Type C), galvanised, M8 × 89 × 141 mm, for 3" pipe

Rectangular type C clamp made from a rod threaded at both ends – for securing pipes and sections; galvanised finish

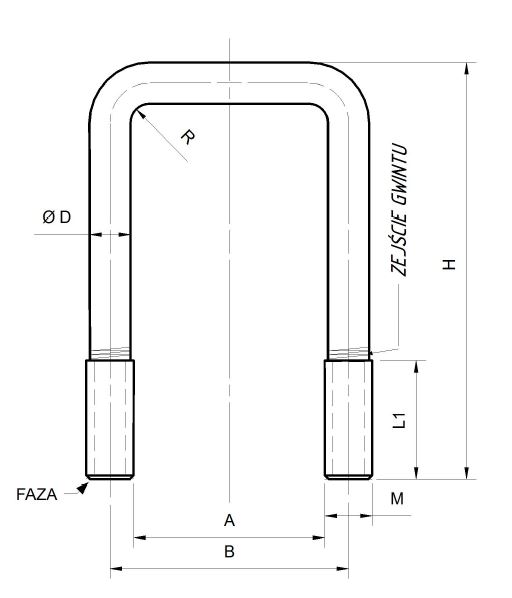

Open the dimension drawing in full size

About the product

A type C U-bolt is a rectangular clamp made from a rod threaded at both ends. It is used to secure pipes and sections, as well as masts and round bars, to beams, posts and structures.

This model is intended for pipe size 3", but check the pipe's outside diameter when selecting the size. The internal spacing between the legs A is 89 mm. The height H is 141 mm and the thread is M8. These are nominal values in accordance with the manufacturer's dimensional designation. During installation, pass the legs through the holes in the substrate or in a U-bolt backing plate of the same size. Tighten the M8 nuts alternately on both sides until the clamp sits evenly against the pipe.

Coating: zinc-coated. It protects the steel against corrosion under typical conditions. In the event of contact with salt, chemicals or constant moisture, choose a finish suitable for the exposure conditions. The load capacity of the fixing depends on the substrate, the pipe and the tightening force – it is determined by the design.

Dimensions

Material and coating

Unit of sale

Selection and installation

• ✓Select the U-bolt to suit the outside diameter of the pipe – the internal spacing between the legs is A = 89 mm.
• ✓Pass the legs through the holes in the substrate or in a U-bolt backing plate of the same size.
• ✓Tighten the M8 nuts alternately on both sides until the clamp sits evenly against the pipe.
