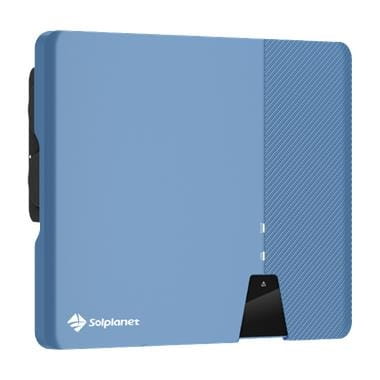

  • Grid-tied PV inverter Solplanet ASW LT 8K-LT-G2 PRO 3F 8KW 2MPPT GPV-400-65

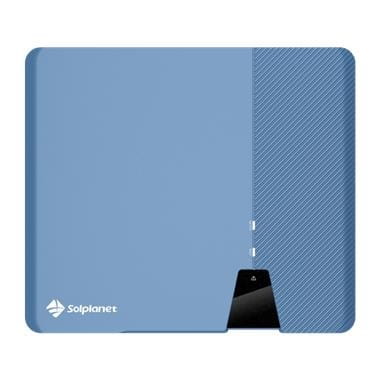

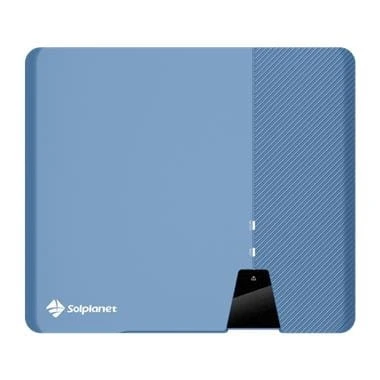

  • Grid-tied PV inverter Solplanet ASW LT 8K-LT-G2 PRO 3F 8KW 2MPPT GPV-400-65 (2)

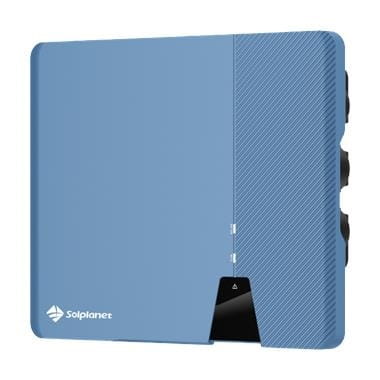

  • Grid-tied PV inverter Solplanet ASW LT 8K-LT-G2 PRO 3F 8KW 2MPPT GPV-400-65 (3)

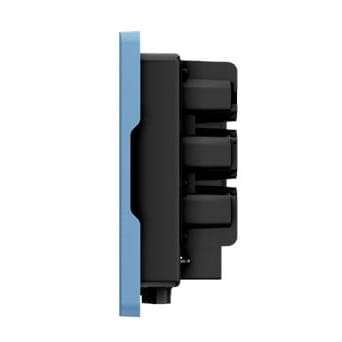

  • Grid-tied PV inverter Solplanet ASW LT 8K-LT-G2 PRO 3F 8KW 2MPPT GPV-400-65 (4)
SOLPLANET

Solplanet Grid-Tied PV Inverter 8kW 3-Phase 2MPPT

Go to Product feedback

3-phase 8kW inverter with 2 MPPT for PV systems. Maximum panel power 12000 Wp, input voltage up to 1100V, MPPT range 150-1000V. Efficiency 98.6%, protection class IP66, CE and VDE-AR-N4105 certified.

Go to full description
with VAT without VAT
Price €881.17
incl. 23% VAT
Availability:
Temporarily unavailable
Unavailable

Product features

Main parameters

  • Type On-grid
  • Power 6-10 kW
  • Number of phases Three-phase
  • Number of MPPT 2 MPPT
  • WiFi Yes
  • DC switch Yes

Description

Solplanet Grid-Tied PV Inverter 8kW 3-Phase 2MPPT

Solplanet ASW LT 8K-LT-G2 PRO 3F 8KW 2MPPT grid-tied PV inverter from the ASW 3-20K LT-G2 series is a modern and innovative solution for decentralised photovoltaic systems, suitable for residential applications, large commercial buildings and industrial installations.

These three-phase inverters are ideally matched to modern, larger photovoltaic modules.

Two independent maximum power point (MPP) tracking devices and a maximum input current of up to 32 A on each of the two MPPT channels allow for optimal utilisation of the photovoltaic installation, particularly when selecting bifacial modules with a larger surface area. The wide MPPT range enables the system to accommodate up to 150% DC oversizing, guaranteeing high efficiency and greater flexibility under varying conditions.

The compact wall-mounting bracket with IP66 protection class ensures system durability even in harsh weather conditions. Additionally, the intelligent cloud-based monitoring application enables users to track the performance of their photovoltaic system from anywhere.

Input (DC)

ParameterValue
Maximum PV panel power12000 Wp STC
Maximum input voltage1100 V
MPPT voltage range / Nominal input voltage150 V to 1000 V / 630 V
Minimum input voltage125 V
Start-up input voltage180 V
Maximum input operating current20 A / 16 A
Maximum short-circuit current30 A / 25 A
Number of MPPT inputs / PV strings per MPPT input2 / A:1; B:1

Output (AC)

ParameterValue
Rated power8000 W
Maximum AC apparent power8000 VA
Rated AC voltage220 V / 380 V; 230 V / 400 V; 240 V / 415 V
AC voltage range160 V to 300 V
AC grid frequency / Frequency range50 Hz / 45 Hz to 55 Hz; 60 Hz / 55 Hz to 65 Hz
Maximum output current12.8 A
Adjustable power factor0.8 leading to 0.8 lagging
Number of supply phases3 / 3-N-PE
Total harmonic distortion (THD) at rated output power< 3%

Efficiency and Protection

ParameterValue
Maximum efficiency / European efficiency98.6% / 98.2%
DC switch-disconnectorStandard feature
Insulation resistance monitoring / Grid monitoringStandard feature
DC reverse polarity protection / AC short-circuit protectionStandard feature
All-pole residual current monitoringStandard feature
Protection class (according to IEC 62109-1) / Overvoltage category (according to IEC 62109-1)1 / AC: III; DC: II

Standards

ParameterValue
Certificates and approvals (more available on request)[[CE, EN50549, G98/99, VDE-AR-N4105, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, NB/T 32004]]
