Solplanet Grid-Tied PV Inverter 20kW 3-Phase 2MPPT AFCI
Availability:
Temporarily unavailable
Weight:
18.6 kg
Description

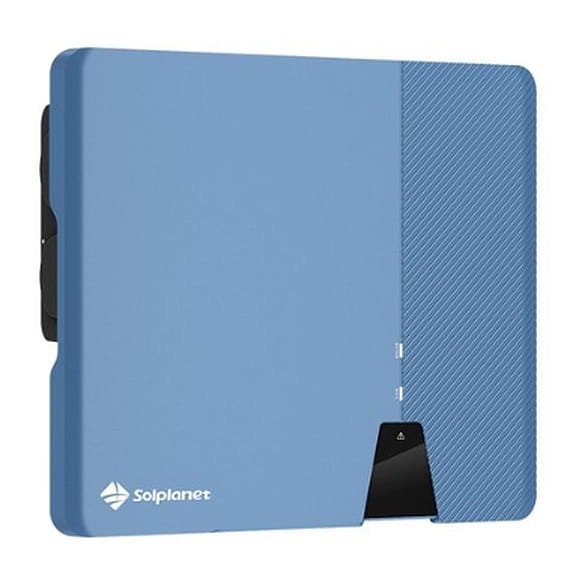

Solplanet ASW LT 20K-LT-G2 PRO AFCI 3-Phase 20kW 2MPPT Grid-Tied PV Inverter
Solplanet ASW LT 20K-LT-G2 PRO AFCI 3-Phase 20kW 2MPPT Grid-Tied PV Inverter is an advanced device designed for converting solar energy into electrical energy with a power output of 20 kW.
It is an ideal solution for larger photovoltaic installations, offering high efficiency and reliability. Thanks to advanced features such as WiFi interface and online monitoring, it enables continuous control and optimisation of system performance. Additionally, its resistance to weather conditions makes it perfect for outdoor installations.
Input (DC)
| Parameter | Value |
|---|---|
| Maximum PV panel power | 30000 Wp STC |
| Maximum input voltage | 1100 V |
| MPPT voltage range / Nominal input voltage | 150 V to 1000 V / 630 V |
| Minimum input voltage | 125 V |
| Start-up input voltage | 180 V |
| Maximum input operating current | 32 A |
| Maximum short-circuit current | 48 A |
| Number of MPPT inputs / PV module strings per MPPT input | 2 / A:2; B:2 |
Output (AC)
| Parameter | Value |
|---|---|
| Rated power | 20000 W |
| Maximum AC apparent power | 20000 VA |
| Nominal AC voltage | 220 V / 380 V - 230 V / 400 V - 240 V / 415 V |
| AC voltage range | 160 to 300 V |
| AC grid frequency / Frequency range | [[50 Hz / 45 Hz to 55 Hz; 60 Hz / 55 Hz to 65 Hz]] |
| Maximum output current | 31.9 A |
| Adjustable power factor | 1 / 0.8 leading … 0.8 lagging |
| Number of supply phases | 3 / 3-N-PE |
| Total harmonic distortion (THD) at rated output power | < 3% |
Efficiency and Protection
| Parameter | Value |
|---|---|
| Maximum efficiency / European efficiency | 98.6% / 98.2% |
| DC switch | Standard features |
| Insulation fault detection / Grid monitoring | Standard features |
| DC reverse polarity protection / AC short-circuit protection | Standard features |
| Multi-pole residual current monitoring | Standard features |
| Arc fault circuit interrupter (AFCI) | Optional features |
| Protection class (according to IEC 62109-1) / Overvoltage category (according to IEC 62109-1) | 1 / AC: III; DC: ll |
Features
| Parameter | Value |
|---|---|
| DC connector | Phoenix Contact |
| AC connector | Plug-in connector |
| Mounting method | Wall bracket |
| LED indicators (status / fault / communication) | Standard features |
| Communication interface (RS485 / Wi-Fi / LAN / 4G) | Standard features / standard features / optional features / optional features |
| Certifications and approvals (more available on request) | CE, EN50549, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, AS/NZS4777, C10/C11 |
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Type | On-grid |
| Power | 11-20 kW |
| Number of phases | Three-phase |
| Number of MPPT | 2 MPPT |
| WiFi | Yes |
| DC switch | Yes |
