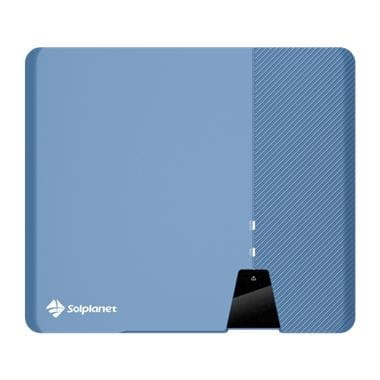

  • Grid-tied PV inverter Solplanet ASW LT 17K-LT-G2 PRO 3F 17KW 2MPPT GPV-400-70 (2)

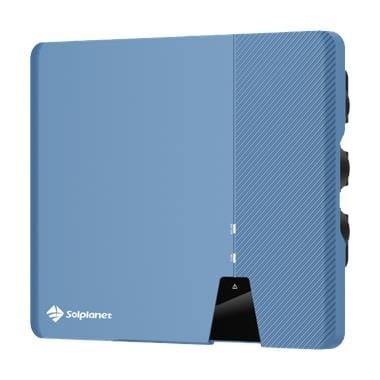

  • Grid-tied PV inverter Solplanet ASW LT 17K-LT-G2 PRO 3F 17KW 2MPPT GPV-400-70 (3)

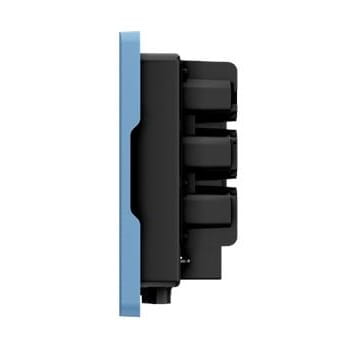

  • Grid-tied PV inverter Solplanet ASW LT 17K-LT-G2 PRO 3F 17KW 2MPPT GPV-400-70 (4)
SOLPLANET

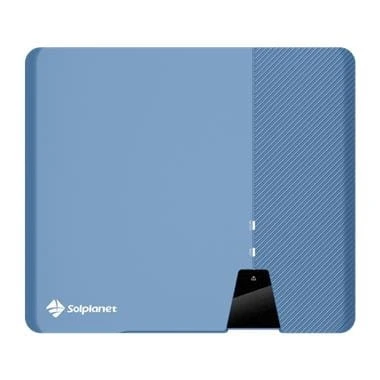

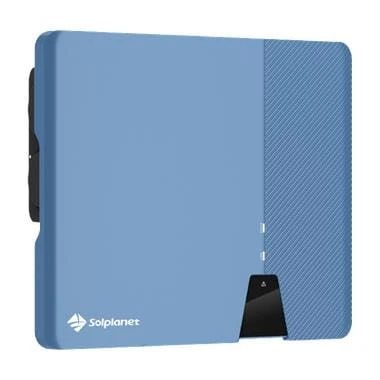

Solplanet Grid-Tied PV Inverter 17kW 3-Phase 2MPPT

Go to Product feedback

3-phase 17kW inverter with 2 MPPT trackers, maximum PV power 25500 Wp, input voltage up to 1100V. MPPT range 150-1000V, maximum efficiency 98.6%, protection class IP66. Ideal for large commercial and industrial installations.

Go to full description
with VAT without VAT
Price €1,109.08
incl. 23% VAT
Availability:
Temporarily unavailable
Unavailable

Product features

Main parameters

  • Type On-grid
  • Power 11-20 kW
  • Number of phases Three-phase
  • Number of MPPT 2 MPPT
  • WiFi Yes
  • DC switch Yes

Description

Solplanet Grid-Tied PV Inverter 17kW 3-Phase 2MPPT

Solplanet ASW LT 17K-LT-G2 PRO 3F 17KW 2MPPT grid-tied PV inverter from the ASW 3-20K LT-G2 series is a modern and innovative solution for decentralised photovoltaic systems, suitable for residential properties, large commercial buildings and industrial applications.

These three-phase inverters are perfectly matched to modern, larger photovoltaic modules.

Two independent maximum power point (MPP) tracking devices and a maximum input current of up to 32 A on each of the two MPPT channels enable optimal utilisation of the photovoltaic installation, particularly when selecting larger bifacial modules. The wide MPPT range allows the system to accommodate up to 150% DC oversizing, guaranteeing high efficiency and greater flexibility under varying conditions.

The compact wall-mounting bracket with IP66 protection class ensures system durability even in harsh weather conditions. Additionally, the intelligent cloud-based monitoring application enables users to track the performance of their photovoltaic system from anywhere.

Input (DC)

ParameterValue
Maximum PV module power25500 Wp STC
Maximum input voltage1100 V
MPPT voltage range / Nominal input voltage150 V to 1000 V / 630 V
Minimum input voltage125 V
Start-up input voltage180 V
Maximum input operating current32 A / 32 A
Maximum short-circuit current48 A / 48 A
Number of MPPT inputs / PV strings per MPPT input2 / A:2; B:2

Output (AC)

ParameterValue
Rated power17000 W
Maximum AC apparent power17000 VA
Nominal AC voltage220 V / 380 V - 230 V / 400 V - 240 V / 415 V
AC voltage range160 to 300 V
AC grid frequency / Frequency range50 Hz / 45 Hz to 55 Hz; 60 Hz / 55 Hz to 65 Hz
Maximum output current / Nominal output current27.1 A
Adjustable power factor0.8 leading to 0.8 lagging
Number of supply phases3 / 3-N-PE
Total harmonic distortion (THD) at rated output power< 3%

Efficiency and Protection

ParameterValue
Maximum efficiency / European efficiency98.6% / 98.2%
DC disconnectStandard function
Insulation fault detection / Grid monitoringStandard functions
DC reverse polarity protection / AC short-circuit protectionStandard functions
All-pole residual current monitoringStandard function
Protection class (according to IEC 62109-1) / Overvoltage category (according to IEC 62109-1)1 / AC: III; DC: II

Standards

ParameterValue
Certificates and approvals (more available on request)CE, EN50549, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, AS/NZS4777, C10/C11
