Solplanet Grid-Tie Inverter PV 80kW 3-Phase 8MPPT
Leave feedback on the product
3-phase 80kW grid-tied inverter with 8 MPPT inputs, maximum PV power 120kWp. MPPT voltage range 200-1000V, efficiency 98.6%. WiFi/RS485 interface, Type II AC/DC protection, IP65 rating.
Product code: GPV-400-74
Product features
Main parameters
- Type On-grid
- Power > 20 kW
- Number of phases Three-phase
- Number of MPPT > 2 MPPT
- WiFi Yes
- DC switch Yes
Description
Solplanet Grid-Tied PV Inverter 80kW 3-Phase 8MPPT

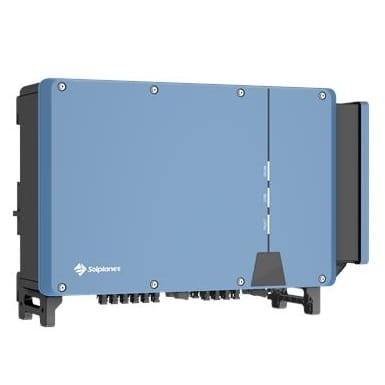

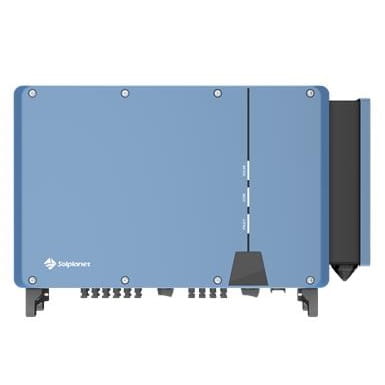

The Solplanet ASW LT 80K-LT 3F 80KW 8MPPT grid-tied PV inverter is an advanced solution for converting solar energy from photovoltaic panels into electrical energy with a maximum power output of 80 kW.
It is an excellent choice for installations with higher solar energy demands. Thanks to its advanced features, such as WiFi interface and online monitoring capability, it enables continuous control and optimisation of system performance. Additionally, its weather resistance makes it an ideal solution for outdoor photovoltaic installations.
Input (DC)
| Parameter | Value |
|---|---|
| Maximum PV panel power | 120000 Wp STC |
| Maximum input voltage | 1100 V |
| MPPT voltage range / Nominal input voltage | 200V to 1000 V / 630 V |
| Minimum input voltage | 200 V |
| Start-up input voltage | 250 V |
| Maximum input operating current | 32 A |
| Maximum short-circuit current | 48 A |
| Number of MPPT inputs / PV module strings per MPPT input | 8/2 |
Output (AC)
| Parameter | Value |
|---|---|
| Rated power | 80000 W |
| Maximum AC apparent power | 88000 VA2 |
| Rated AC voltage | 220 V / 380 V | 230 V / 400 V |
| AC voltage range | 180 V to 305 V / 312 V to 528 V |
| AC grid frequency / Frequency range | 50 Hz / 45 Hz to 55 Hz | 60 Hz / 55 Hz to 65 Hz |
| Rated AC output current | 115.8 A |
| Maximum output current | 127.0 A |
| Adjustable power factor | 0.8 leading to 0.8 lagging |
| Number of supply phases | 3 / 3-N-PE |
| Total harmonic distortion (THD) at rated output power | <3% |
Efficiency and Protection
| Parameter | Value |
|---|---|
| Maximum efficiency / European efficiency | 98.6 % / 98.4 % |
| DC disconnect | Standard features |
| Ground fault detection / Grid monitoring | Standard features |
| DC reverse polarity protection / AC short-circuit protection | Standard features |
| Multi-pole residual current monitoring | Standard features |
| DC surge protection | Type II |
| AC surge protection | Type II |
| All-pole sensitive residual current monitoring unit | Standard features |
| Anti-islanding protection | Standard features |
| Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | 1 / AC: III; DC: ll |
Features
| Parameter | Value |
|---|---|
| DC connector | Phoenix Contact |
| AC connector | OT/DT Terminal (Max. 240 mm2) |
| Mounting method | Wall bracket |
| LED indicators (status / fault / communication) | Standard features |
| Communication interface | Wi-Fi / RS485 |
| Certificates and approvals (more available on request) | CE, IEC 62109-1/2, IEC 61727, IEC 62116 |
