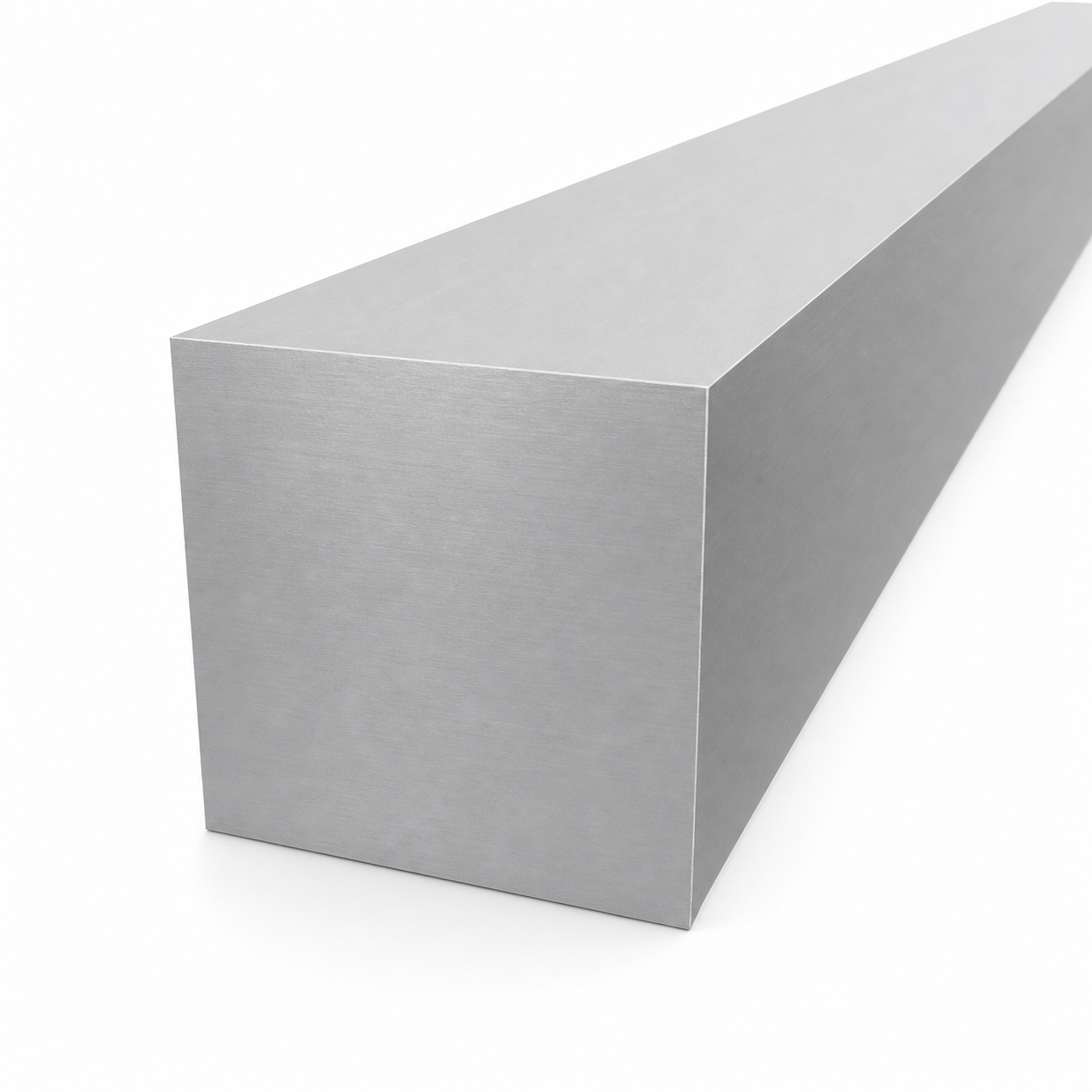

Solid square aluminium bar 70×70 mm – duralumin 2017A T4, L=2000 mm
Leave feedback on the product
Solid square aluminium bar 2017A T4 (EN AW-2017A, AlCu4MgSi). Side dimension: 70×70 mm, length 2000 mm. Weight 27.44 kg, linear density 13.72 kg/m. Raw, non-anodised surface.
Product code: 001-922
Product features
[PIM] prety-kwadratowe #168
- Material Aluminium
- Length [mm] 2000
Description
Solid square aluminium bar 70×70 mm – duralumin 2017A T4, L=2000 mm
The solid square aluminium bar 70×70 mm made from duralumin 2017A T4 alloy (EN AW-2017A, AlCu4MgSi) is a structural material with very high mechanical strength, excellently suited for machining. The duralumin alloy combines the lightness of aluminium with increased hardness and rigidity, making it an ideal choice wherever precision machine components, load-bearing elements, or mechanically stressed structures are required.
The bar with a solid cross-section and raw (non-anodised) surface is ready for further processing — turning, milling, and drilling. The substantial self-weight (27.44 kg at a length of 2000 mm) reflects the solidity of the material and the full cross-sectional fill. The bar is available in a range of side dimensions, making it easy to select for a specific project.
Applications
- Machine parts, shafts, and pins with a square cross-section
- Components for aluminium and steel-aluminium structures
- Metalworking and toolmaking
- Model making and prototyping
- DIY projects and applications requiring precise CNC machining
Technical Specification
- Cross-section type: solid square bar

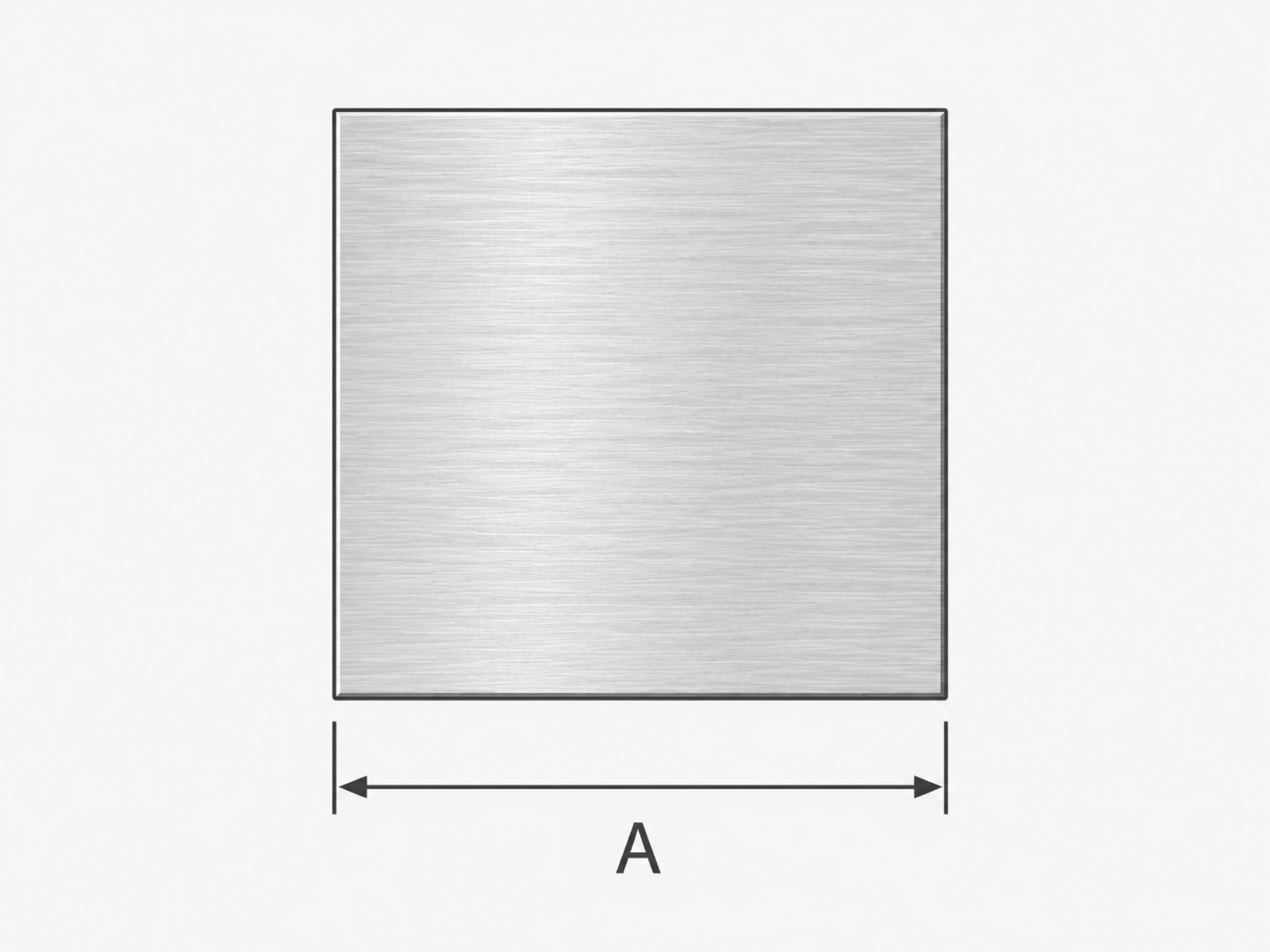

- Side dimension (A): 70 mm
- Dimensions (side × side × length): 70 × 70 × 2000 mm
- Length: 2000 mm
- Weight: 27.44 kg (linear density 13.72 kg/m)
- Material: aluminium 2017A T4 (EN AW-2017A)
- Alloy designation: AlCu4MgSi (PA6, duralumin, 3.1325)
- Surface: raw (non-anodised)
Properties of 2017A T4 Alloy
- High mechanical strength — comparable to some structural steels
- Excellent machinability — turning, milling, drilling
- Low weight compared to steel whilst maintaining high rigidity
- Good corrosion resistance under atmospheric conditions
- T4 condition — solution heat-treated and naturally aged, optimal for machining and further forming
