Solid square aluminium bar 50×50 mm duralumin 2017A T4, L=2000 mm
Leave feedback on the product
Solid square aluminium bar, alloy 2017A T4 (EN AW-2017A, AlCu4MgSi). Dimensions: 50×50×2000 mm. Weight: 14.00 kg (7.00 kg/m). Raw (unanodised) surface. For CNC machining, turning, milling, drilling.
Product code: 001-921
Product features
[PIM] prety-kwadratowe #168
- Material Aluminium
- Length [mm] 2000
Description
Solid square aluminium bar 50×50 mm duralumin 2017A T4, L=2000 mm
Square aluminium bar 50×50 mm is a solid profile made from duralumin 2017A T4 alloy (EN AW-2017A) with a length of 2000 mm. The material combines the lightness of aluminium with the high mechanical strength characteristic of 2000-series alloys, making it an ideal choice for the manufacture of heavily loaded machine parts, shafts, pins and structural components.
The AlCu4MgSi alloy (alternative designations: PA6, 3.1325) is distinguished by its excellent machinability — it responds superbly to turning, milling and drilling, enabling precise shaping of components without the need for specialist tooling. The bar surface is raw (unanodised), ready for further machining or direct use in structures.
Applications
- Machine and equipment components — shafts, pins, bushings with square cross-section
- Structural and load-bearing elements
- Metalwork and precision CNC machining
- Modelling and prototyping
- DIY projects requiring a rigid solid profile
Technical Specification
- Cross-section type: solid square bar

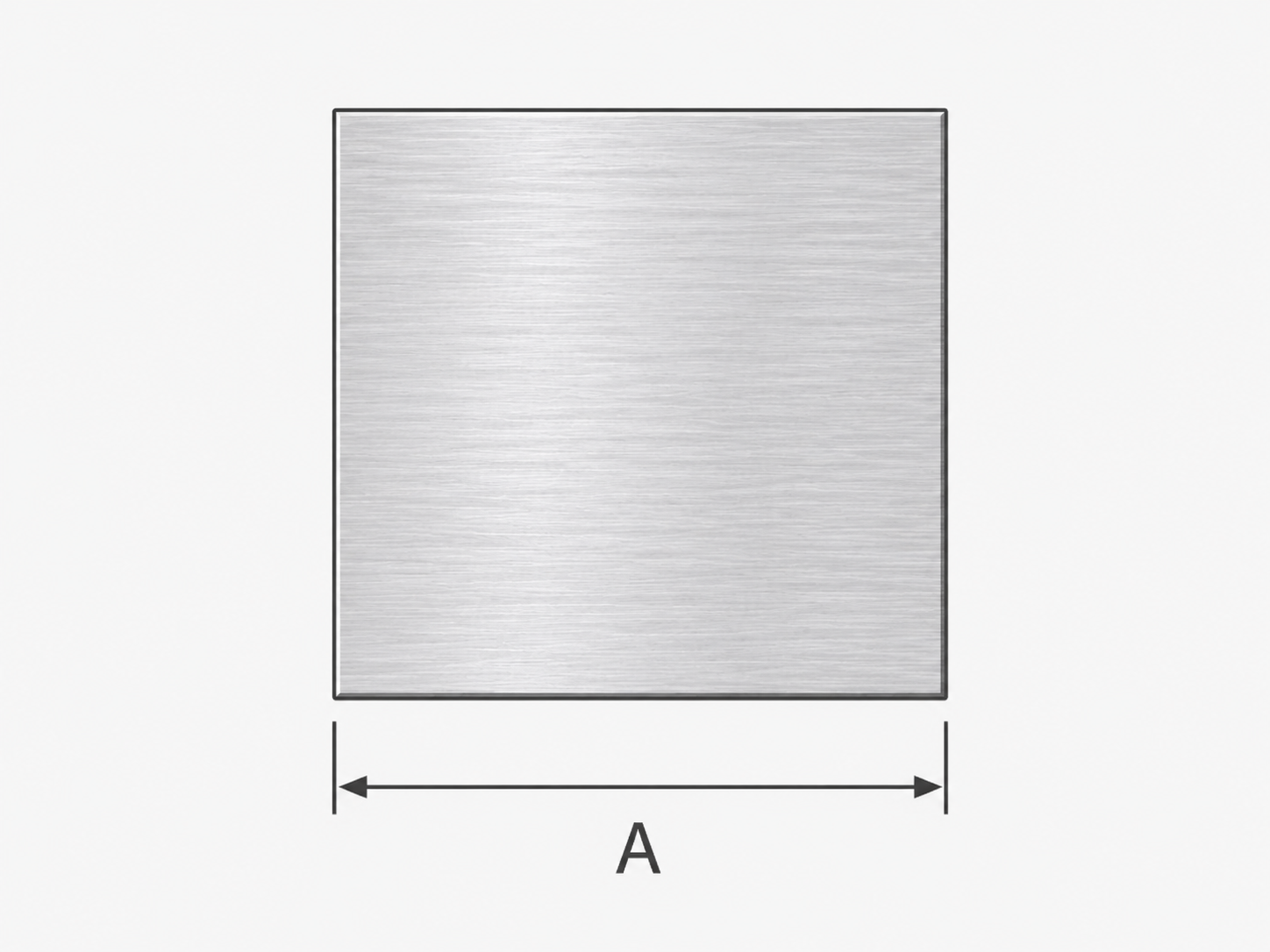

- Side dimension (A): 50 mm
- Dimensions (side × side × length): 50 × 50 × 2000 mm
- Length: 2000 mm
- Weight: 14.00 kg (7.00 kg/m)
- Material: aluminium 2017A T4 (EN AW-2017A, AlCu4MgSi, PA6, 3.1325)
- Alloy type: duralumin (2000 series — aluminium-copper alloy)
- Surface: raw (unanodised)
- Machinability: excellent (turning, milling, drilling)
