Solid square aluminium bar 30×30 mm EN AW-6060 – length 2000 mm
0
Description

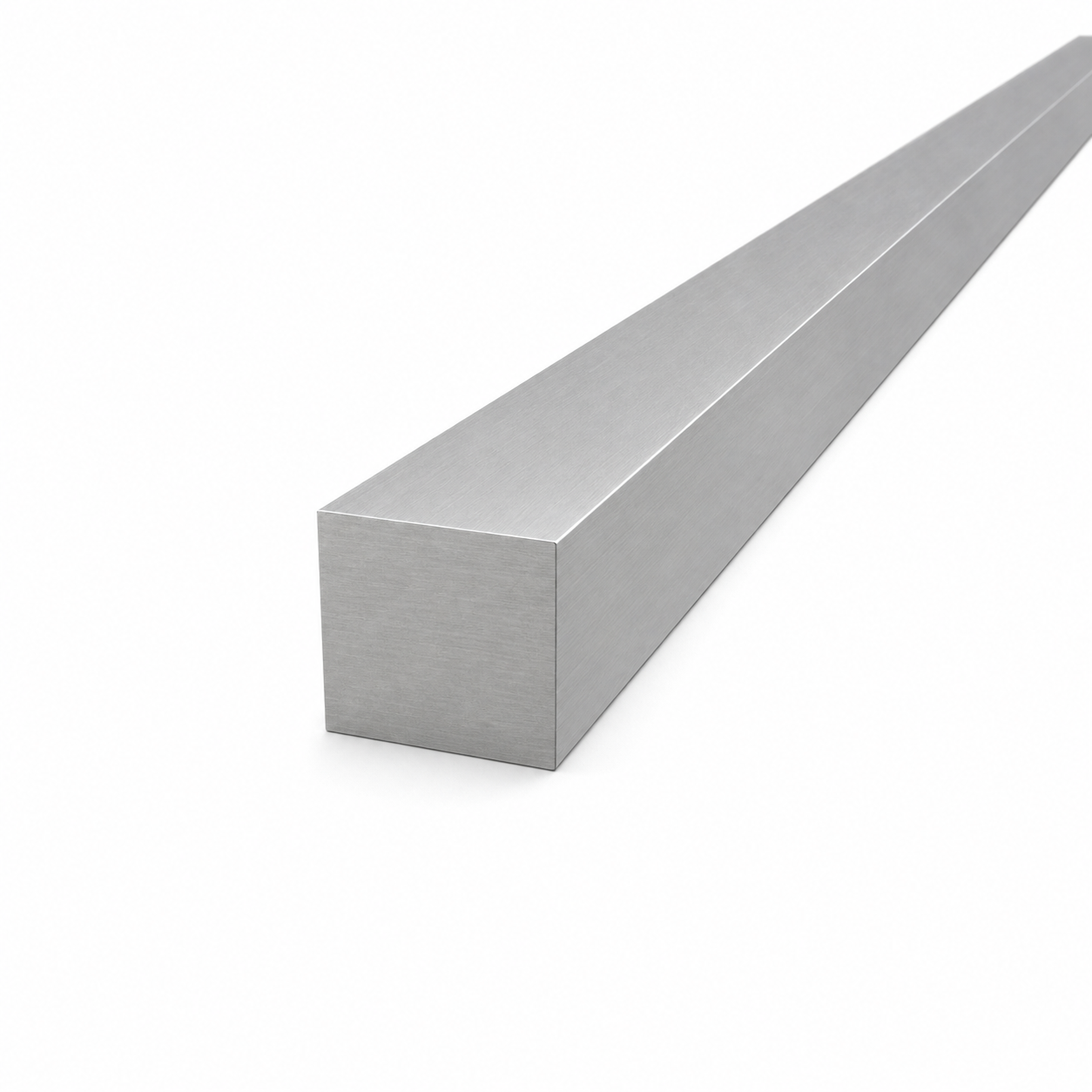

Solid square aluminium bar 30×30 mm EN AW-6060 – length 2000 mm
Solid square aluminium bar 30×30 mm in alloy EN AW-6060 T64 (PA38 / AlMgSi0.5), length 2000 mm. This product combines low self-weight with high rigidity and excellent corrosion resistance — without the need for additional protective coatings. The raw (non-anodised) surface allows for further machining or anodising as required by the project.
The AlMgSi0.5 alloy offers excellent machinability — turning, milling, and drilling are all straightforward, enabling quick and precise adaptation of the bar to individual assembly requirements. The solid square cross-section ensures even stress distribution and stable fastening of components.
Technical Specification
- Cross-section: solid square

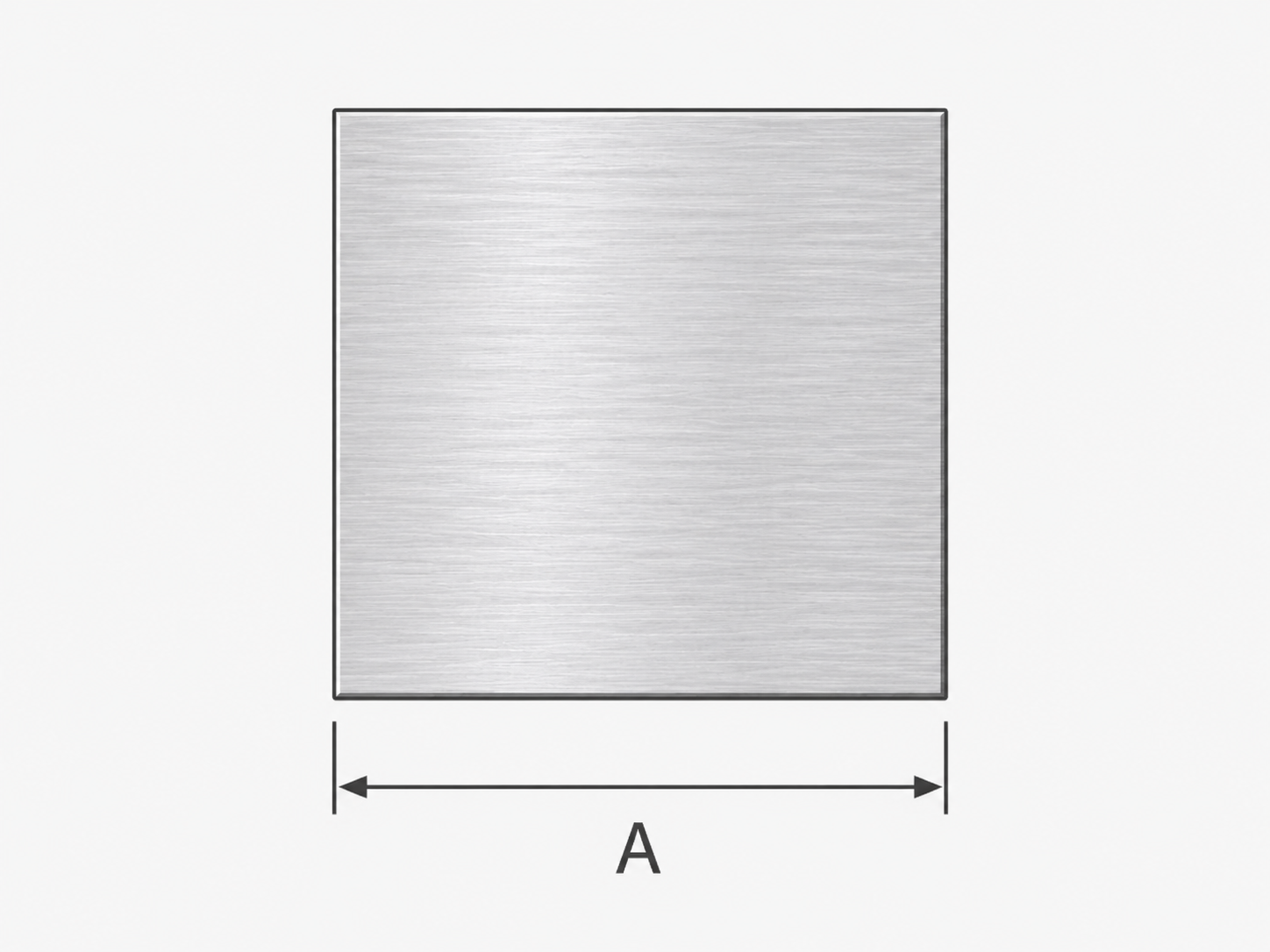

- Side dimension (A): 30 mm
- Dimensions (side × side × length): 30 × 30 × 2000 mm
- Length: 2000 mm
- Weight: 4.86 kg (2.43 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (non-anodised)
Applications
The square aluminium bar is suitable wherever a lightweight yet strong and corrosion-resistant structure is required. Typical applications include:
- Machine components — shafts, pins, and drive elements with a square cross-section
- Aluminium structures and load-bearing frames
- Metalwork and assembly components
- Modelling and prototyping
- Sub-structure elements for photovoltaic and industrial installations
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
