Solid square aluminium bar 10×10 mm – EN AW-6060, L=2000 mm
0
Description

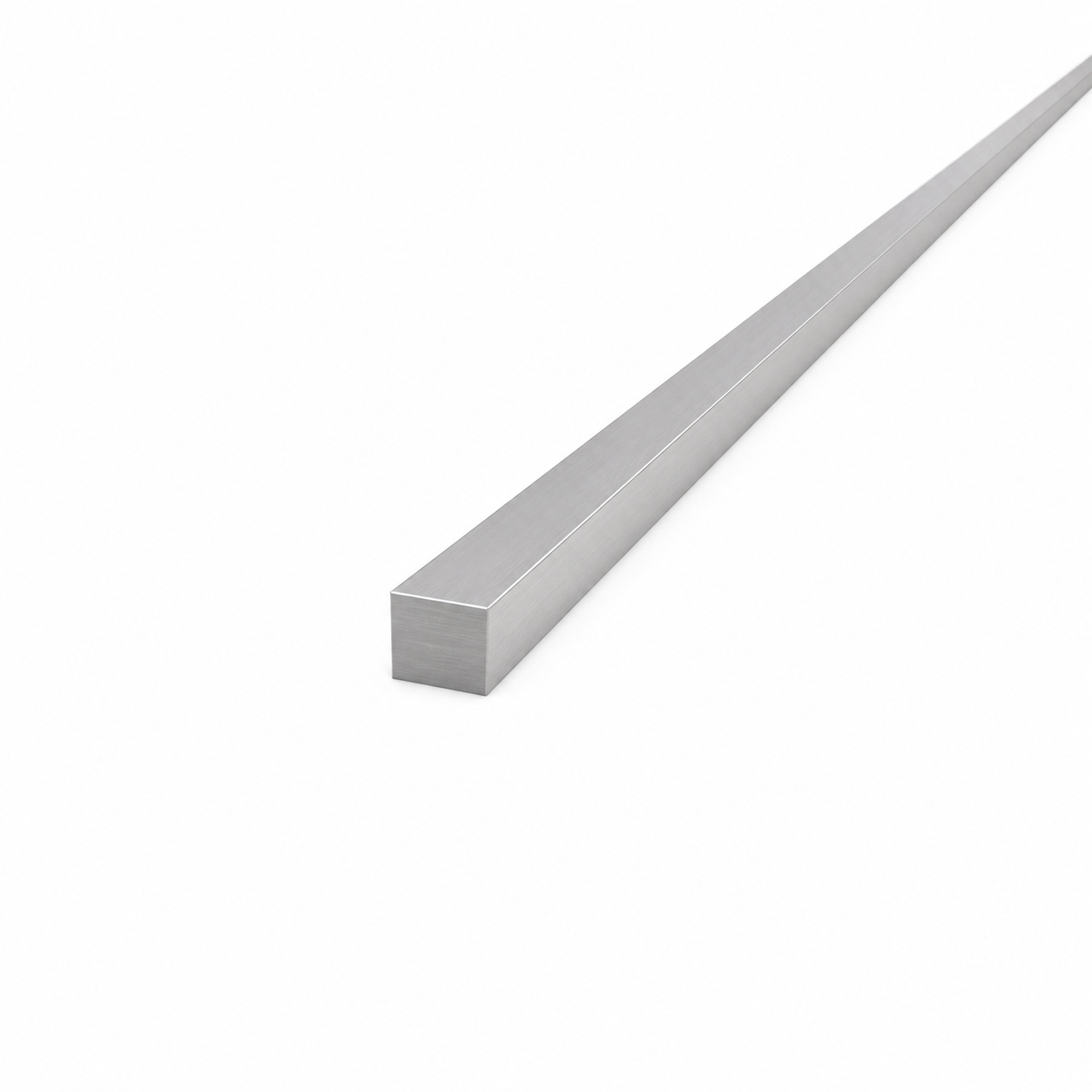

Solid square aluminium bar 10×10 mm – EN AW-6060, L=2000 mm
Square aluminium bar 10×10 mm is a solid-profile product made from EN AW-6060 T64 alloy (PA38, AlMgSi0.5) with a length of 2000 mm. Thanks to its solid square cross-section, it combines high rigidity with low self-weight, making it an excellent structural element, shaft or pin in technical installations and machine construction.
The AlMgSi0.5 alloy guarantees excellent machinability — the bar can be freely turned, milled and drilled without specialist tooling. Aluminium also provides natural corrosion resistance, eliminating the need for additional protective coatings in most indoor applications.
Applications
- Machine parts — shafts, pins and spindles with a square cross-section
- Aluminium structures and metalwork components
- Model making, prototyping and DIY projects
- Reinforcements, spacers and distance elements in installations
Technical specification
- Cross-section: solid square bar

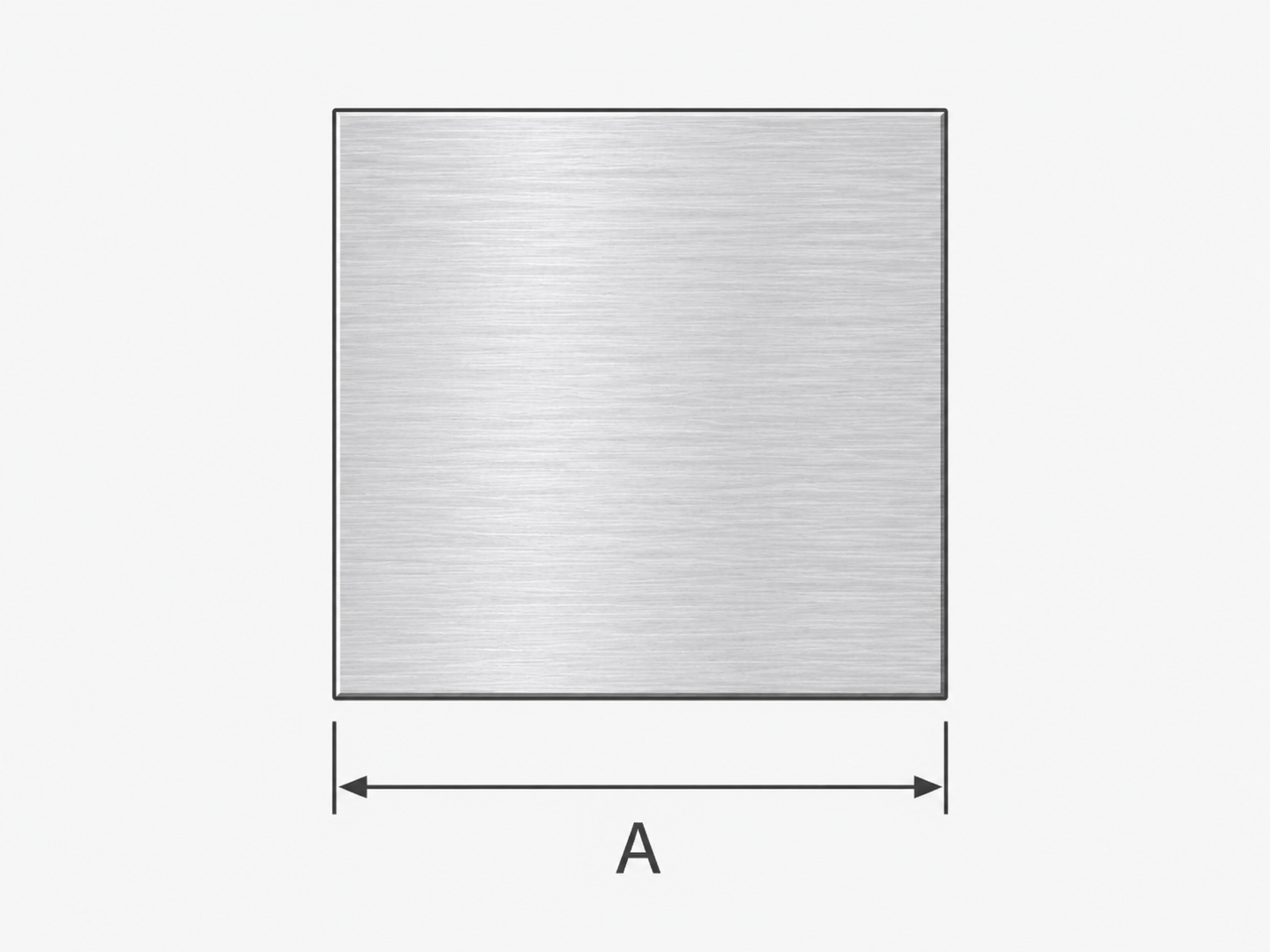

- Side dimension (A): 10 mm
- Dimensions (side × side × length): 10 × 10 × 2000 mm
- Length: 2000 mm
- Weight: 0.54 kg (0.27 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (non-anodised)
The bar is available in a range of side dimensions, allowing you to select the appropriate profile for a specific application without the need for additional dimensional machining.
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
