Solid round aluminium bar Ø140 mm duralumin 2017A T4, L=2000 mm
Leave feedback on the product

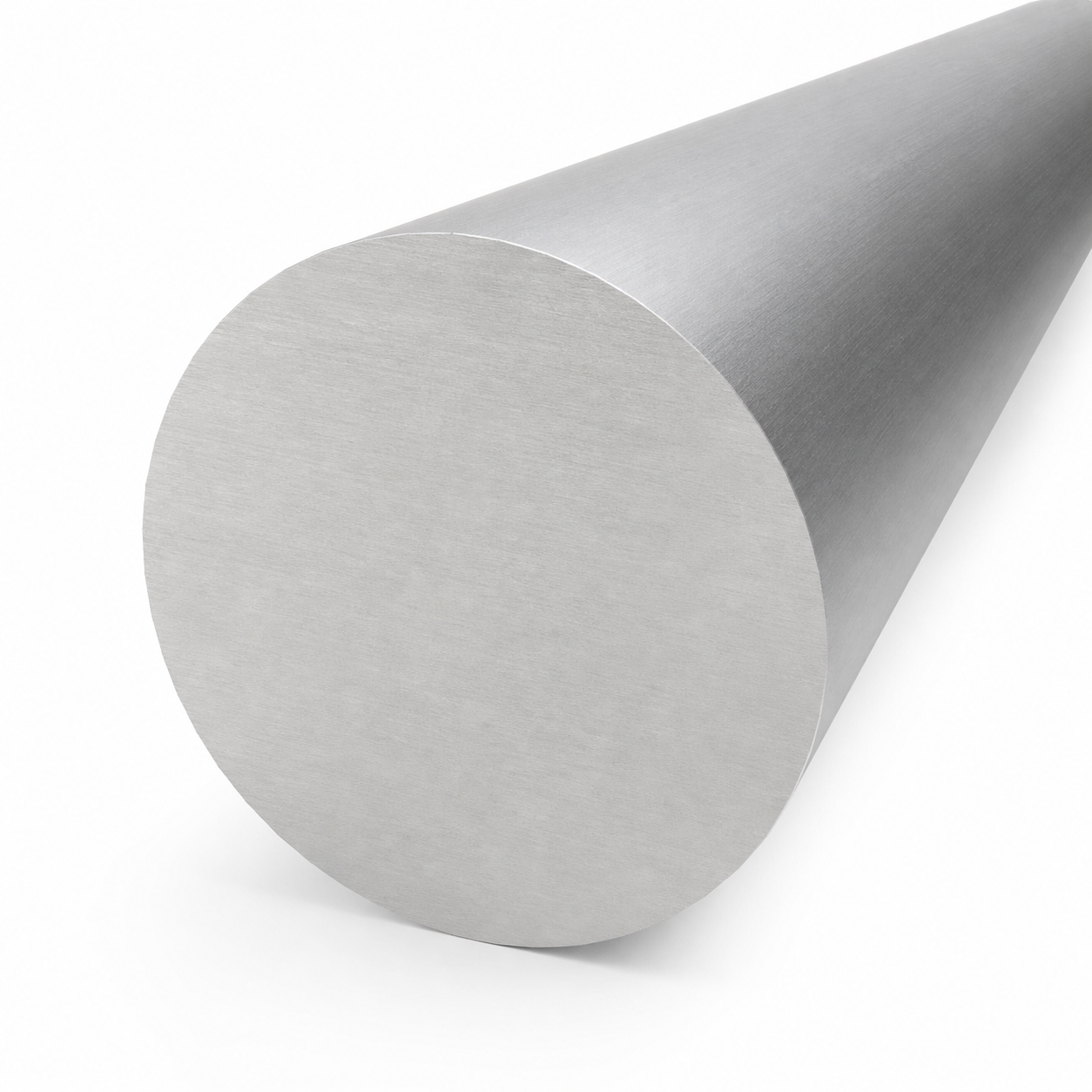

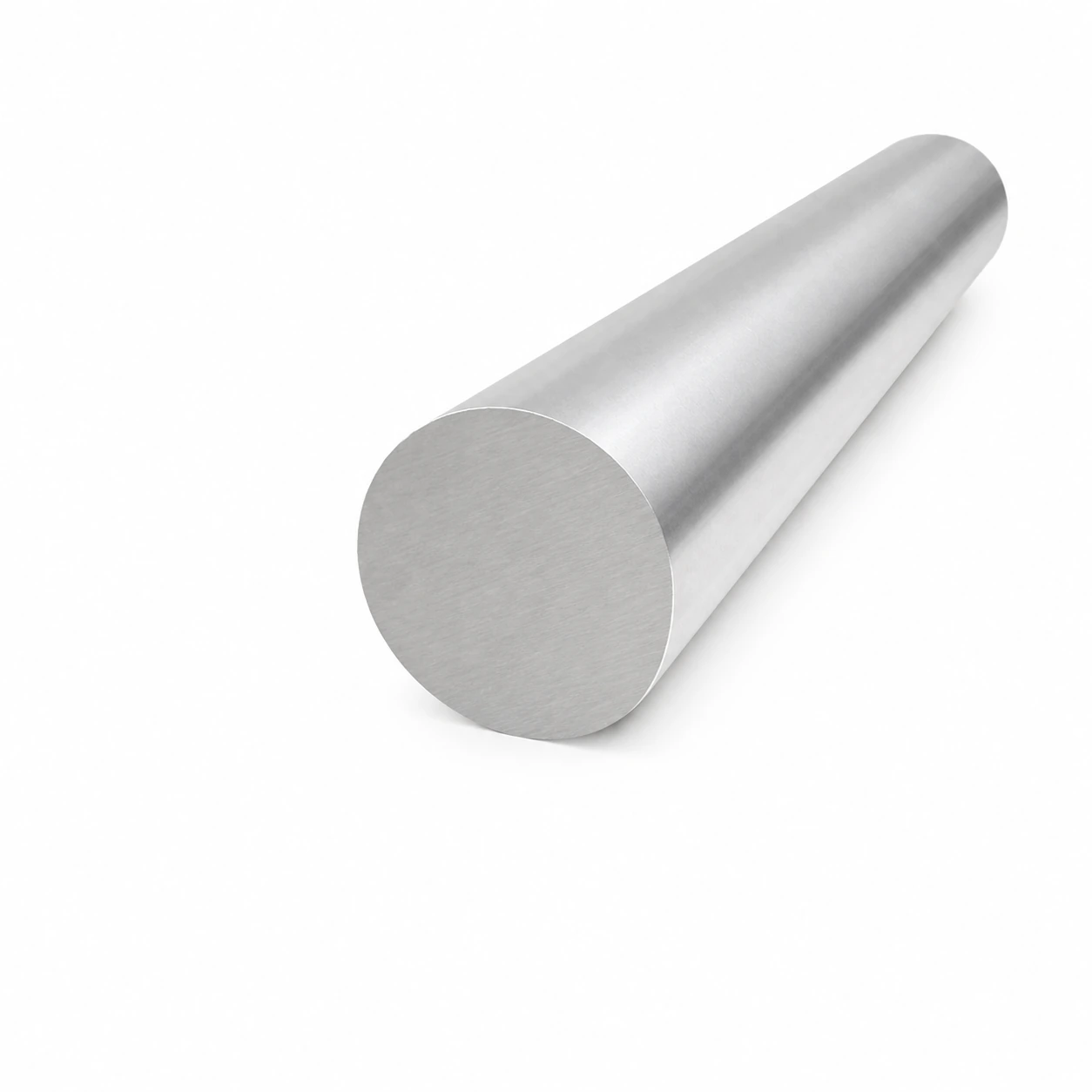

Solid round aluminium bar EN AW-2017A T4 (AlCu4MgSi), Ø140 mm, length 2000 mm, weight 86.20 kg (43.10 kg/m). Raw, non-anodised surface. Duralumin alloy PA6 / 3.1325.
Product code: 001-908
Product features
[PIM] prety-okragle #167
- Material Aluminium
- Diameter 140
- Length [mm] 2000
Description
Solid round aluminium bar Ø140 mm duralumin 2017A T4, L=2000 mm
Solid round aluminium bar Ø140 mm in EN AW-2017A T4 alloy (duralumin) is a semi-finished product intended for professional machining. This solid bar, 2000 mm in length and weighing 86.20 kg, offers high mechanical strength and excellent machinability — an ideal combination for CNC workshops, manufacturing facilities, and companies producing precision machine components.
The 2017A T4 alloy (AlCu4MgSi) belongs to the duralumin group — aluminium-copper alloys distinguished by increased hardness and strength compared to pure aluminium. As a result, this bar is perfectly suited for turning shafts, pins, bushings, and all machine parts requiring dimensional precision and resistance to mechanical loads.
Technical Specification
- Section: solid round bar

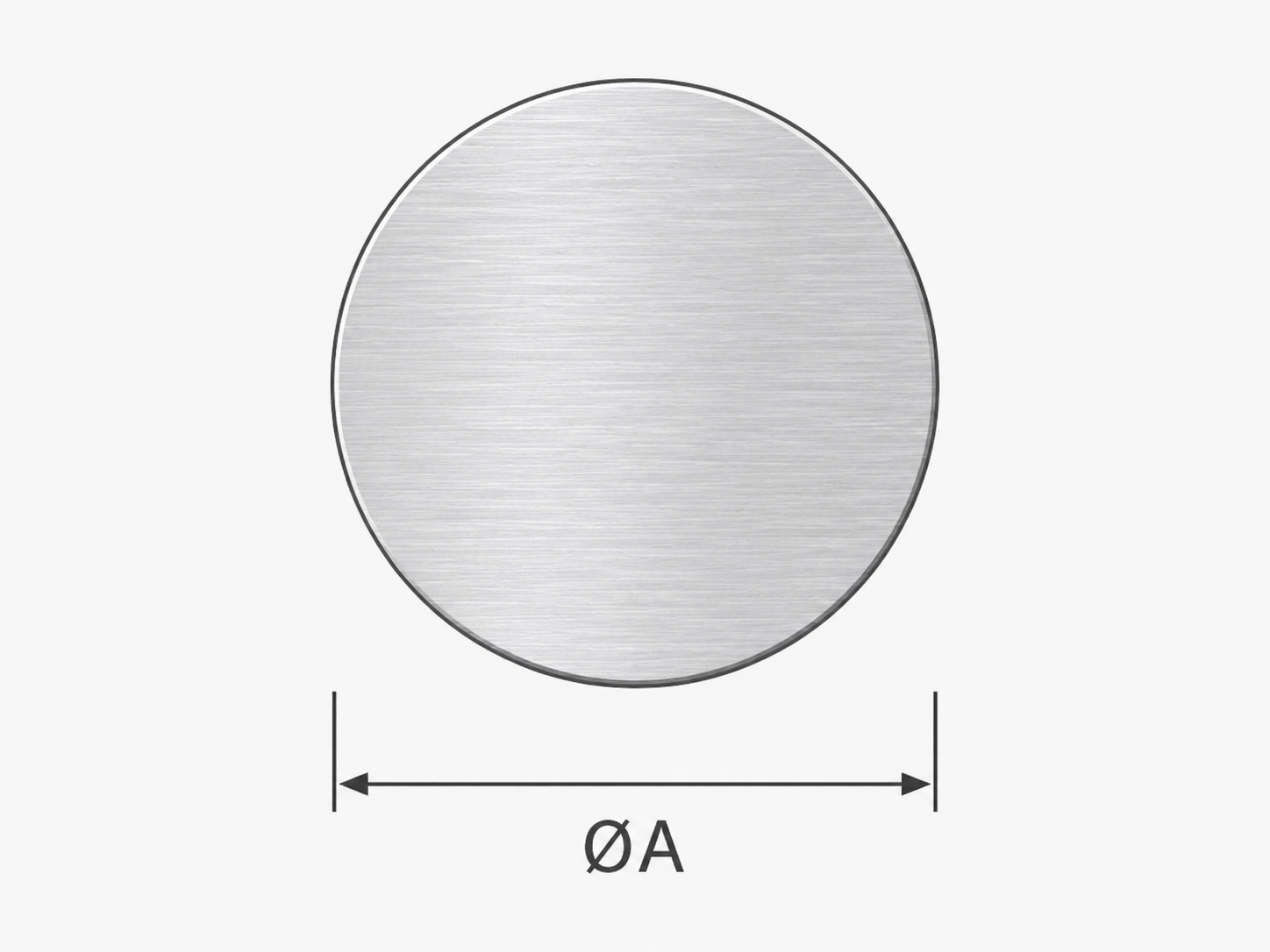

- Diameter (ØA): 140 mm
- Length: 2000 mm
- Dimensions (Ø × length): Ø140 × 2000 mm
- Weight: 86.20 kg (43.10 kg/m)
- Material: aluminium EN AW-2017A T4 (AlCu4MgSi)
- Alternative alloy designations: PA6, 3.1325, duralumin
- Surface: raw (non-anodised)
Applications
- Turning and CNC machining — excellent machinability of 2017A alloy
- Production of shafts, pins, and bushings for machinery
- Components for mechanical structures and equipment
- Machine parts with elevated strength requirements
- Industrial prototyping and modelling
The bar is supplied in a raw state, ready for further processing — turning, milling, drilling, or cutting to size. The 2017A alloy in T4 condition (solution heat-treated and naturally aged) guarantees an optimal balance between strength and ease of machining, resulting in shorter processing times and reduced tool wear.
