Solid Square Aluminium Bar 15×15 mm EN AW-6060 – Length 2000 mm
0
Description
Solid Square Aluminium Bar 15×15 mm EN AW-6060 – Length 2000 mm

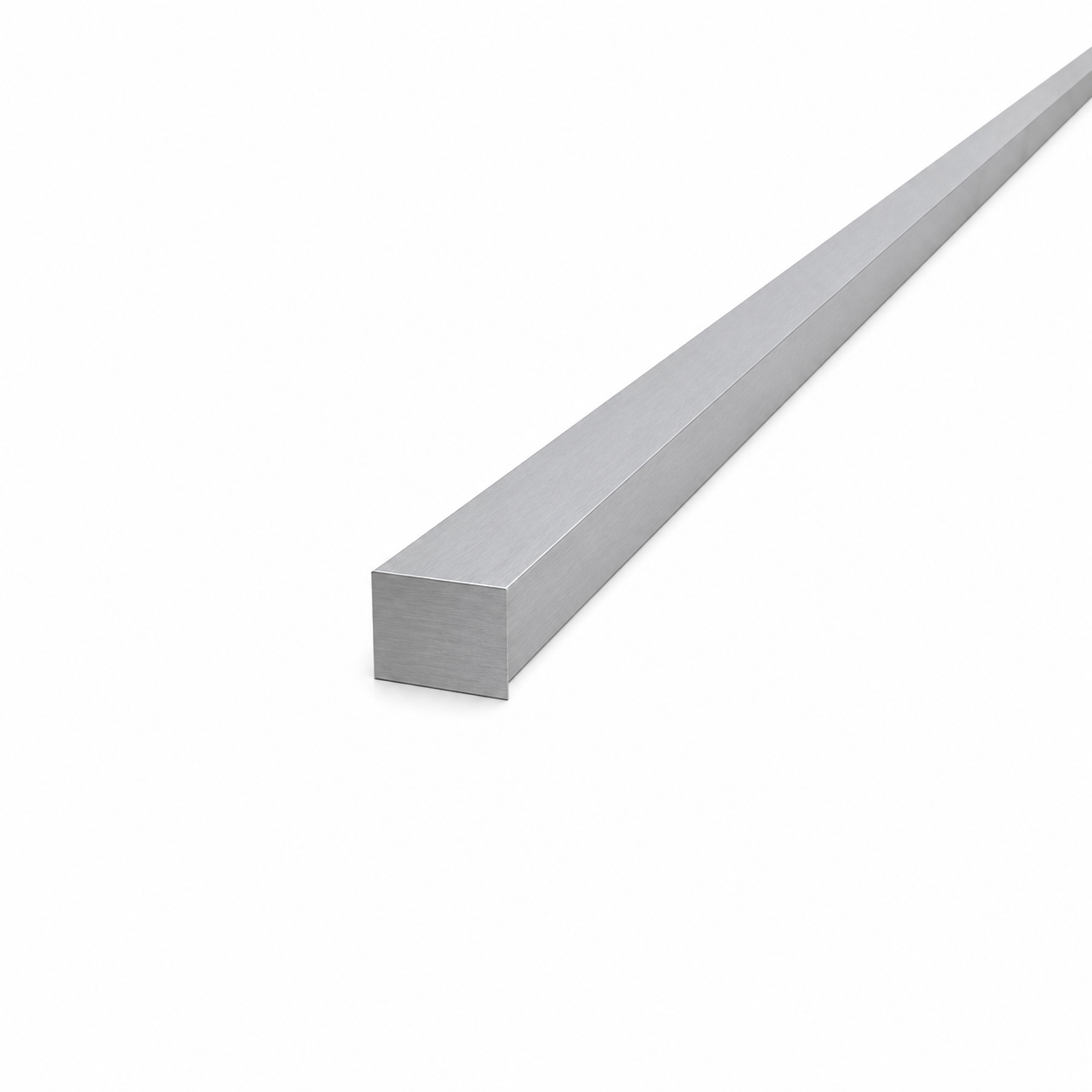

Square aluminium bar 15×15 mm is a solid-section profile made from EN AW-6060 T64 alloy (PA38 / AlMgSi0.5) with a length of 2000 mm. Thanks to its square cross-section and excellent machinability, it is a versatile material for constructing structural components, machine parts, and precision details requiring turning, milling, and drilling.
EN AW-6060 aluminium provides low self-weight while maintaining adequate rigidity, as well as natural corrosion resistance — without the need for additional surface protection. This makes the bar suitable for both workshop conditions and outdoor applications.
Technical Specifications
- Cross-section: square (solid)

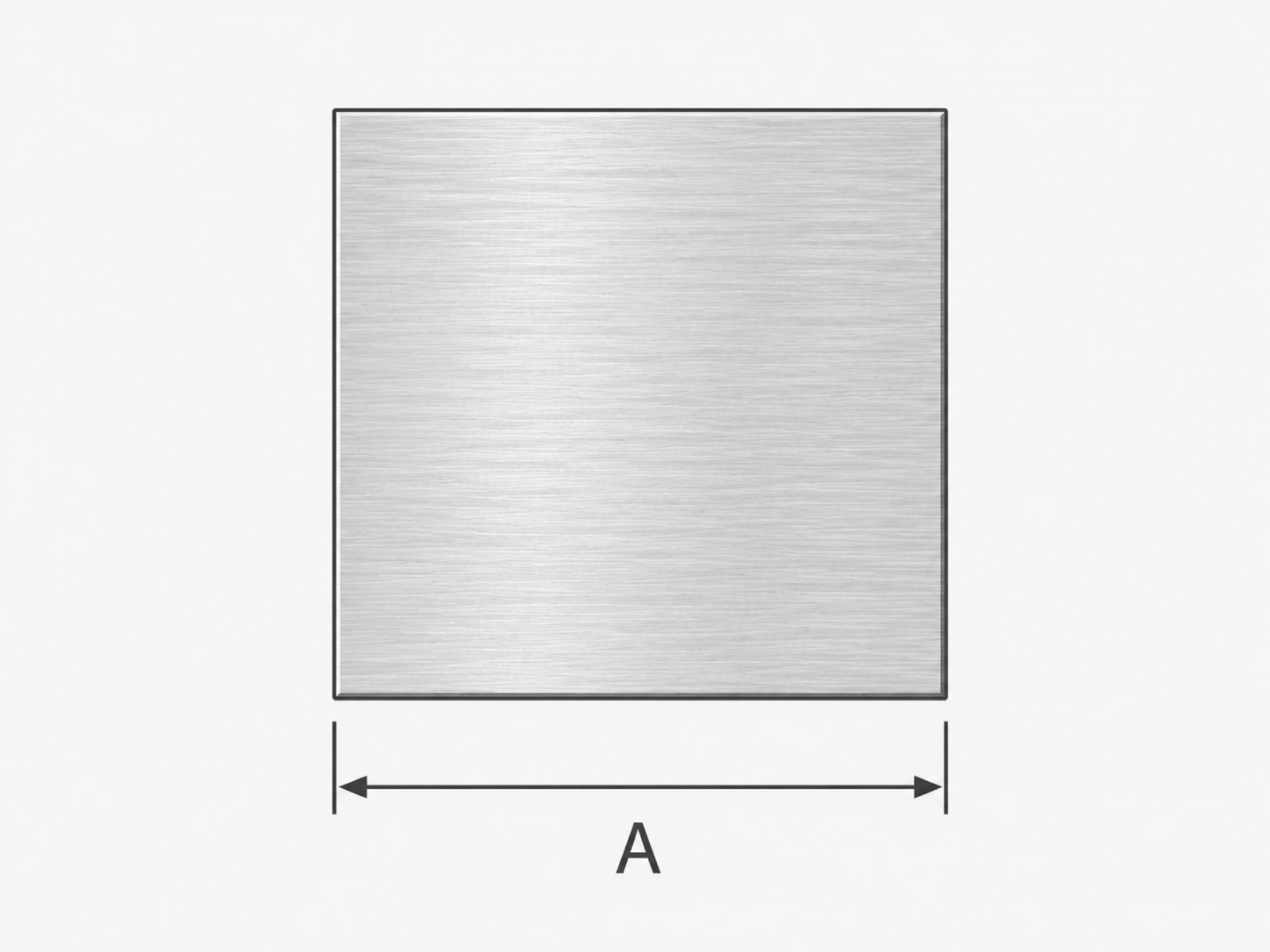

- Side dimension (A): 15 mm
- Dimensions (side × side × length): 15 × 15 × 2000 mm
- Length: 2000 mm
- Weight: 1.22 kg (0.61 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38 / AlMgSi0.5 / 3.3206)
- Surface: raw (non-anodised)
Applications
The 15×15 mm square aluminium bar is widely used in professional projects and workshop applications:
- Machine parts — shafts, pins, and drive components with a square cross-section
- Aluminium structures — frames, brackets, and stiffeners
- Metalwork — components for connectors, hinges, and clamps
- Modelling and prototyping — precision mechanical machining
- DIY and hobby projects — easy to cut and assemble
Machinability and Alloy Properties
The AlMgSi0.5 (EN AW-6060) alloy in T64 temper is characterised by excellent machinability — it is suitable for turning, milling, drilling, and tapping. The material accepts anodising and powder coating exceptionally well, enabling subsequent surface finishing in accordance with project requirements. The bar is available in a range of side dimensions, allowing the optimal cross-section to be selected for any given application.
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
