Solid Round Aluminium Bar Ø180 mm – Duralumin 2017A T4, L=2000 mm
0
Description
Solid Round Aluminium Bar Ø180 mm – Duralumin 2017A T4, L=2000 mm

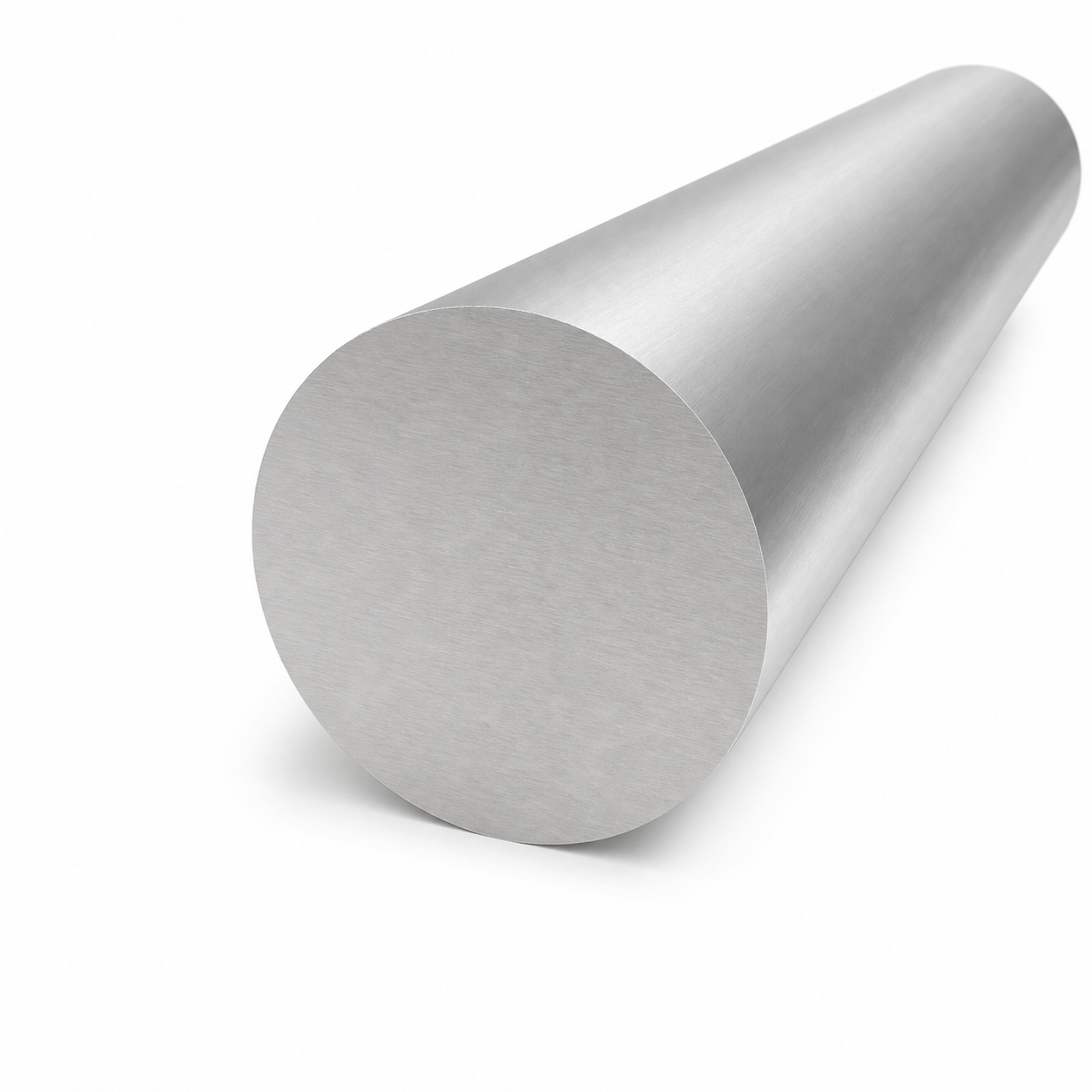

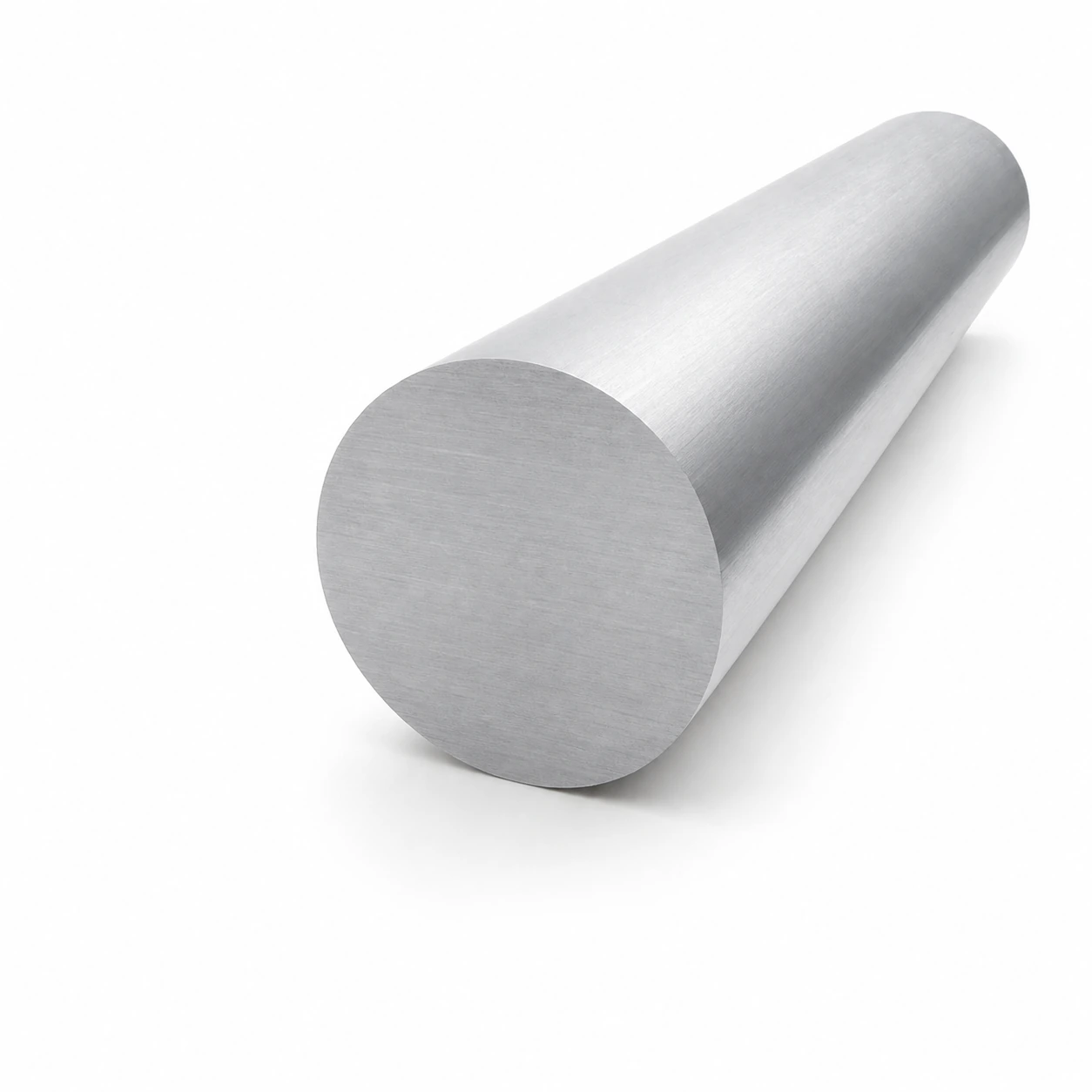

Solid round aluminium bar Ø180 mm made from EN AW-2017A T4 alloy (duralumin), with a length of 2000 mm. This is a premium-grade mill product designed for machining — ideal for CNC turning, milling, and the production of precision machine components. The 2017A T4 alloy is distinguished by its high mechanical strength and excellent machinability, resulting in faster order fulfilment and reduced tool wear.
Duralumin 2017A T4 (EN designation: AlCu4MgSi) is one of the most widely used aluminium alloys in the mechanical engineering industry. Thanks to its high copper content, this alloy achieves strength parameters comparable to some structural steels, whilst retaining the low density characteristic of aluminium. The bar surface is raw (non-anodised), ready for further mechanical or thermal processing.
Applications
- Turning and CNC machining — shafts, pins, bushings, axial components
- Machine parts — gears, plain bearings, housings, adapters
- Mechanical structures — load-bearing elements, frames, supports
- Modelling and prototyping — rapid production of components from solid material
Technical Specification
- Section: solid round bar

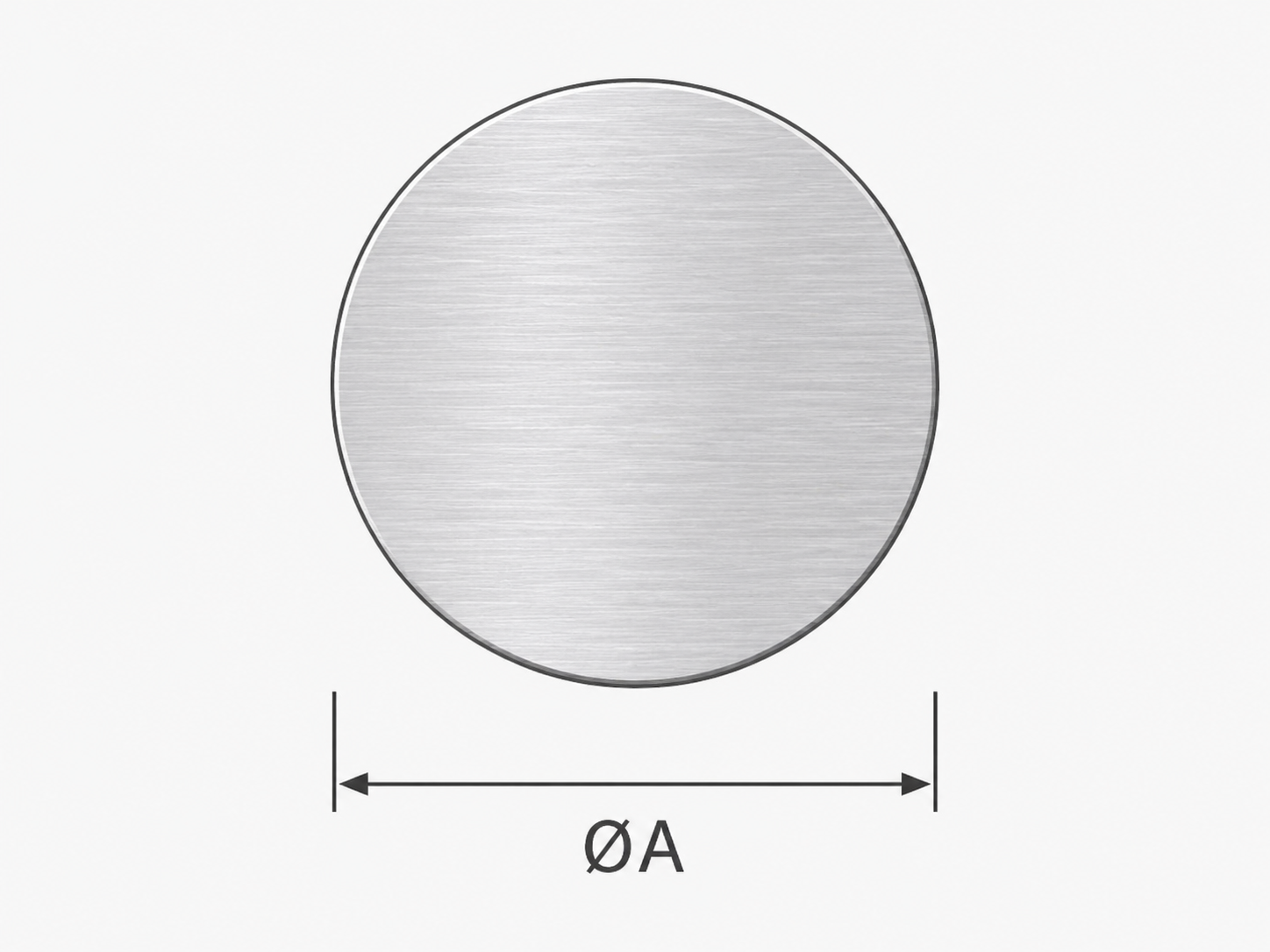

- Diameter (ØA): 180 mm
- Length: 2000 mm
- Dimensions (Ø × length): Ø180 × 2000 mm
- Weight: 142.50 kg (71.25 kg/m)
- Material: aluminium 2017A T4 (EN AW-2017A)
- Alloy designation: AlCu4MgSi
- Material number: 3.1325
- Polish designation: PA6
- Surface: raw (non-anodised)
Alternative Alloy Designations
This alloy appears in technical documentation under various designations: EN AW-2017A, AlCu4MgSi, PA6 (Polish standard), 3.1325 (DIN material number), and commonly as duralumin. Regardless of the nomenclature used, it refers to the same material with identical mechanical properties and chemical composition.
Technical data
| Material | Aluminium |
| Diameter | 180 |
| Length [mm] | 2000 |
