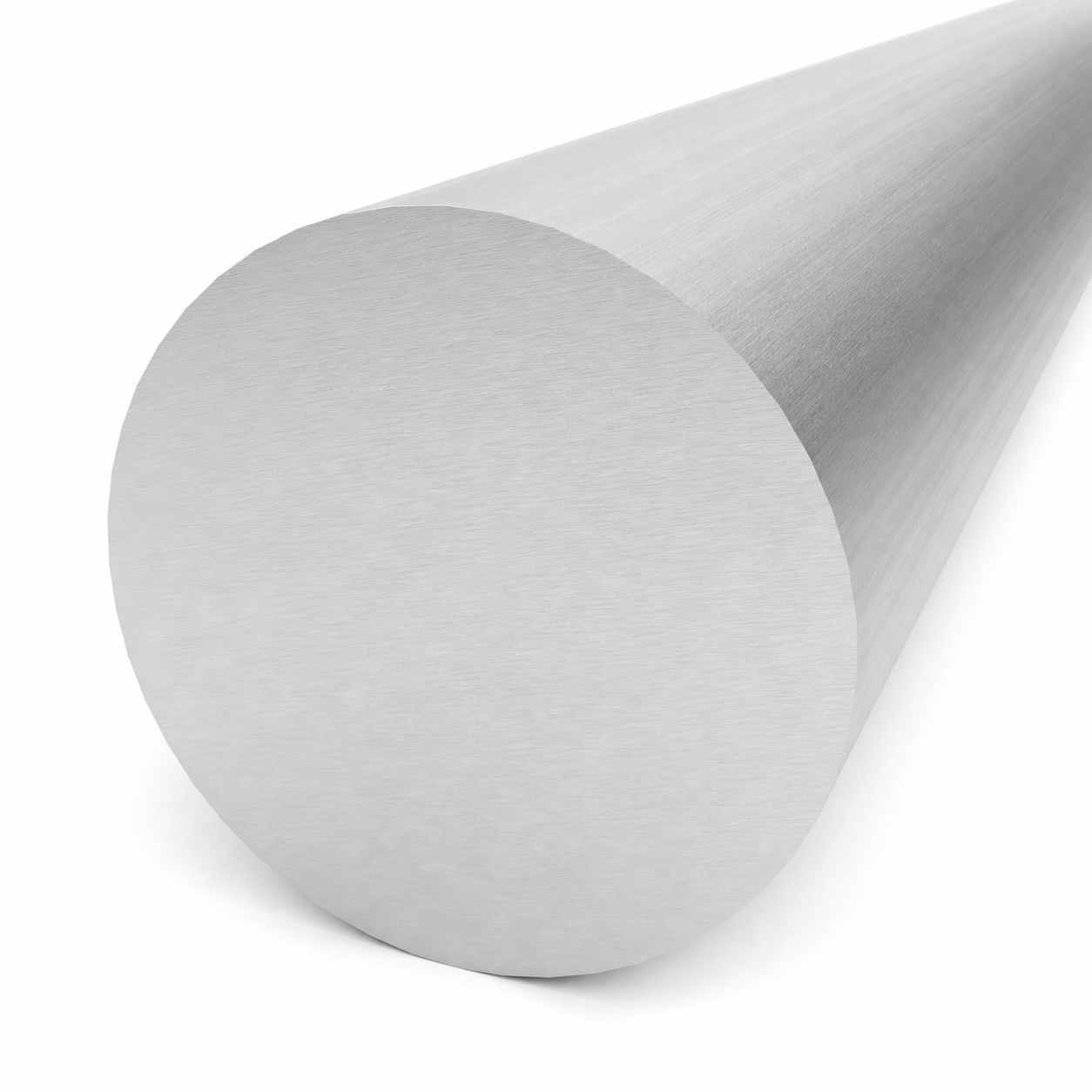

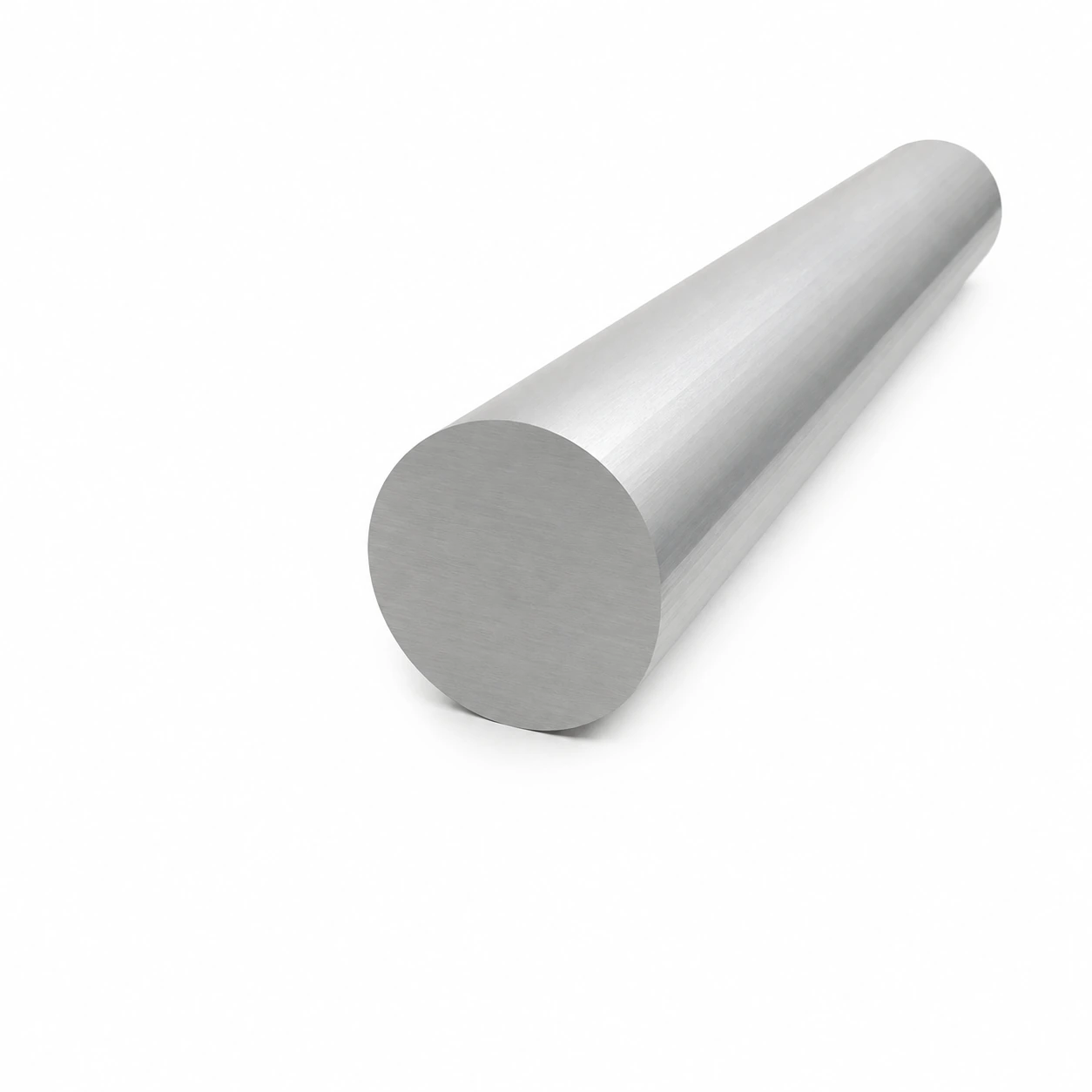

Solid Round Aluminium Bar Ø130 mm – Duralumin 2017A T4, L=2000 mm
Solid round aluminium bar Ø130 mm in alloy 2017A T4 (duralumin) is a semi-finished product with high mechanical strength, designed for precision machining and CNC turning. Thanks to its excellent machinability and homogeneous material structure, it is an ideal raw material for the production of shafts, pins, bushings, and machine and structural components.
The EN AW-2017A alloy (chemical designation AlCu4MgSi) belongs to the group of duralumin alloys — aluminium-copper alloys — characterised by very good mechanical strength comparable to structural steels, whilst maintaining a significantly lower weight. The heat treatment condition T4 (solution heat treatment + natural ageing) provides an optimal balance of hardness and ductility, which facilitates machining on CNC lathes and milling machines.
Applications
- CNC turning and machining — production of components with high dimensional precision
- Shafts, pins and bushings — drive transmission and bearing elements
- Machine and equipment parts — components with high strength requirements
- Mechanical structures — load-bearing elements and connectors
- Modelling and prototyping — easy machining and good surface quality after cutting
Technical Specification
- Cross-section: round, solid

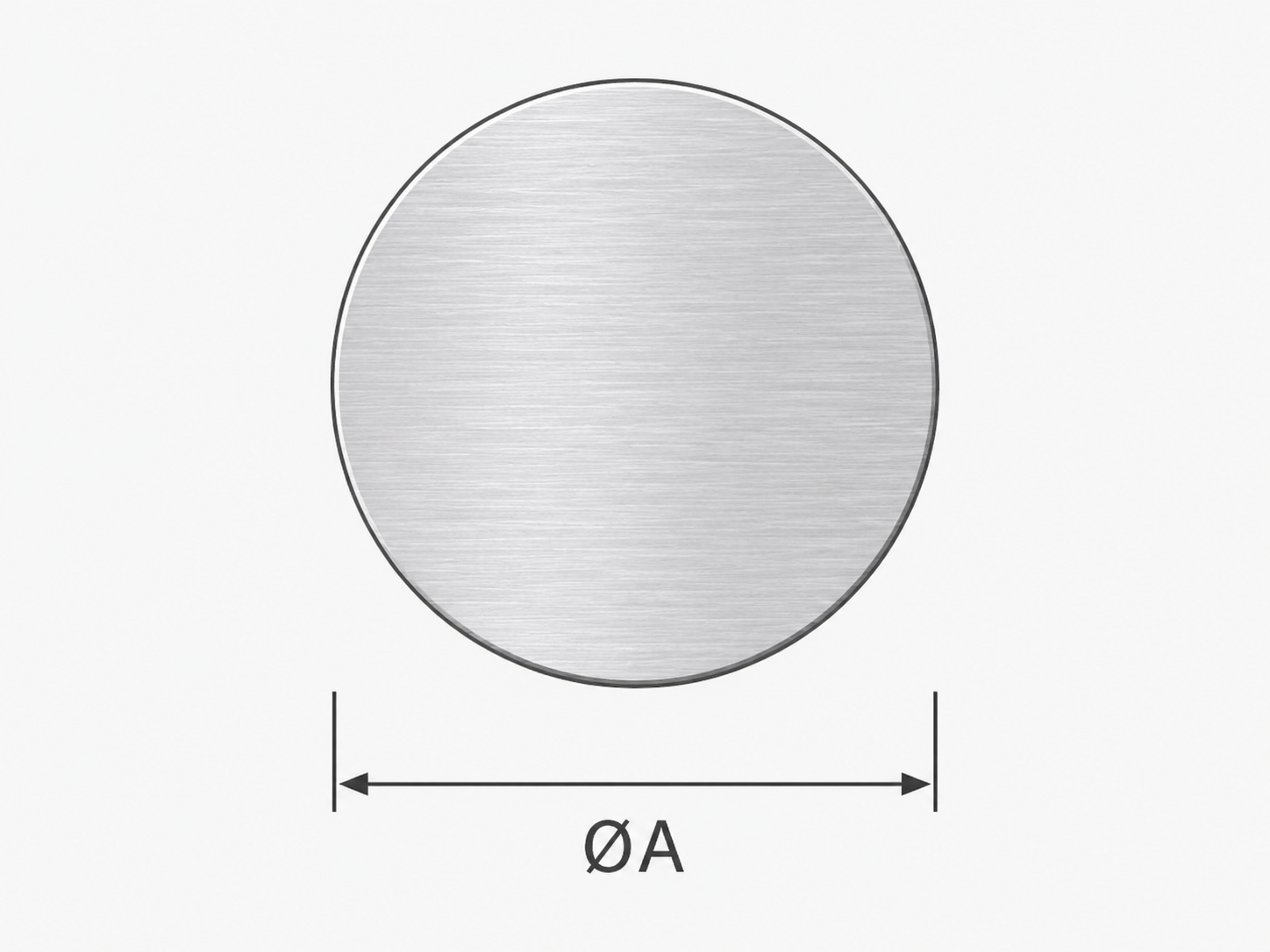

- Diameter (ØA): 130 mm
- Length: 2000 mm
- Dimensions (Ø × length): Ø130 × 2000 mm
- Weight: 74.34 kg (37.17 kg/m)
- Material: aluminium 2017A T4 (EN AW-2017A)
- Alloy: AlCu4MgSi (duralumin)
- Surface: raw (non-anodised)
The bar is supplied in a length of 2000 mm with a raw surface, ready for further processing. The material is available in a size range covering many diameters, allowing the appropriate dimension to be selected for a specific project without the need for excessive machining allowance.
Technical data
| Material | Aluminium |
| Diameter | 130 |
| Length [mm] | 2000 |
