Solar cable with anti-rodent additive (AR) 10mm² Red
Description

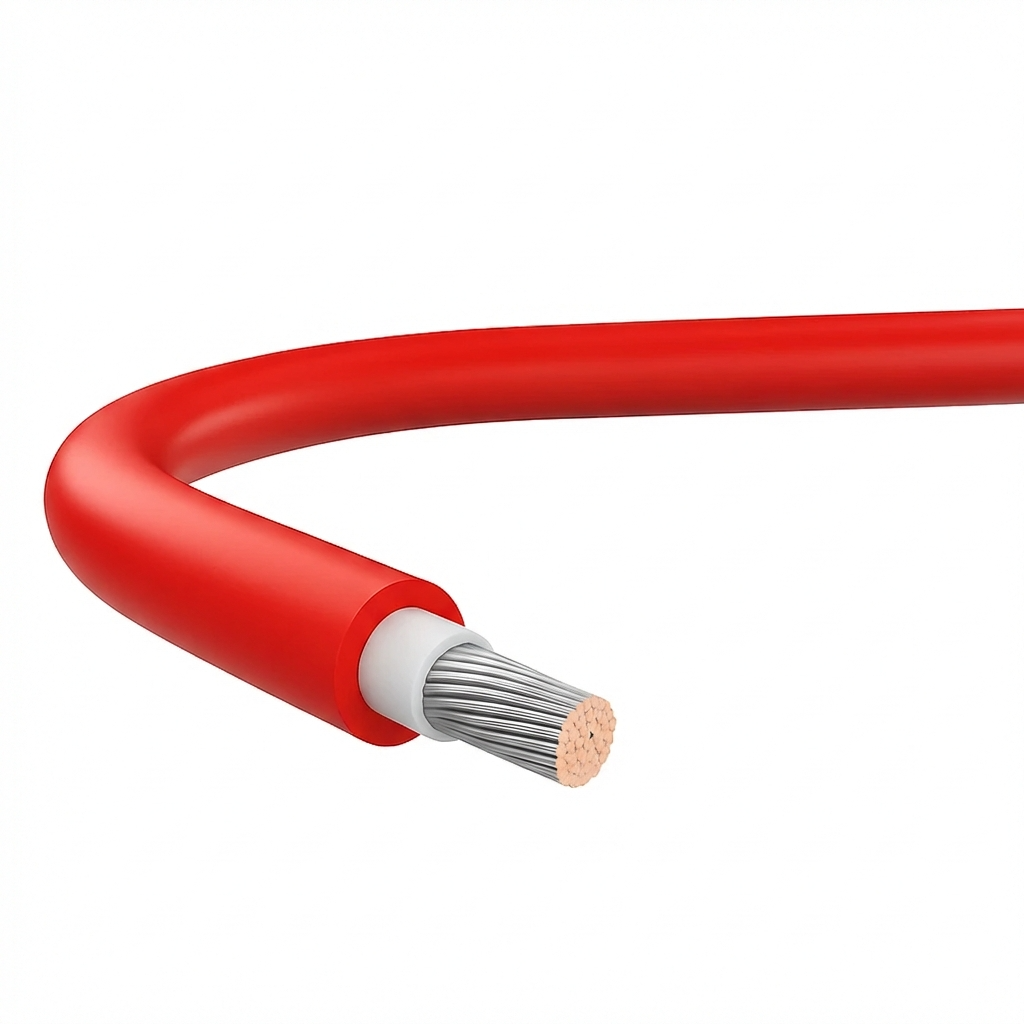

Solar cable H1Z2Z2-K AR 1×10 mm² red – with anti-rodent protection
Photovoltaic cable H1Z2Z2-K AR 1×10 mm² red is a single-core solar cable with anti-rodent additive (AR) in the outer sheath. Thanks to a special agent that repels rodents, insects and termites, this cable provides a reliable solution wherever traditional cables are exposed to mechanical damage caused by pests.
10 mm² cross-section ensures low resistance and the ability to transmit higher currents, making this cable an ideal choice for longer cable runs in ground-mounted power plants, higher-power roof installations and for connections between strings and inverters.

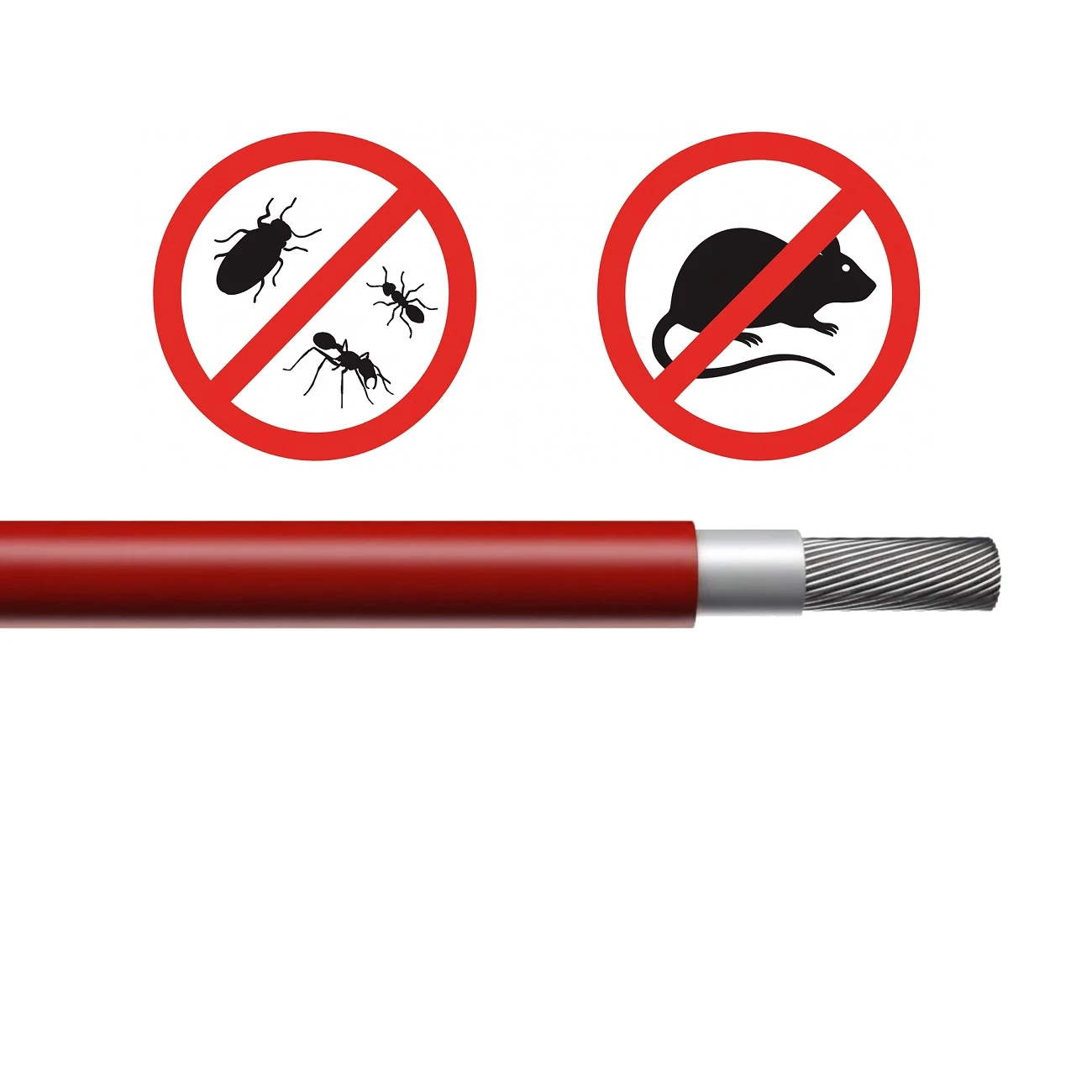

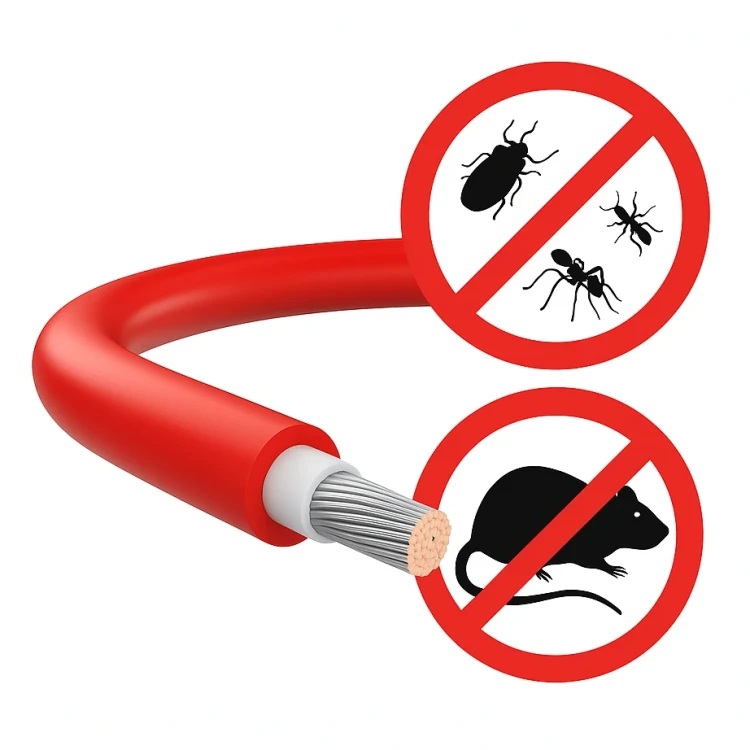

Why does AR protection matter? Cable damage caused by rodents is one of the most common causes of PV installation failures, especially in rural areas and near farm buildings. The anti-rodent additive in the outer sheath effectively repels pests, eliminating the risk of costly downtime and repairs.
Cable construction
- Conductor: copper, multi-wire, tinned, class 5 according to PN-EN 60228
- Insulation: cross-linked halogen-free compound, white colour
- Sheath: cross-linked halogen-free compound with AR additive, red colour
- Optional: screen of CuSn wires or armouring of FeZn steel wires
Technical parameters
- Nominal conductor cross-section: 10 mm²
- Max. wire diameter in conductor: 0.41 mm
- Max. cable outer diameter: 8.8 mm
- Min. insulation resistance at 20°C: 420 MΩ·km
- Rated voltage: 1.0/1.0 kV AC
- DC operating voltage: 1.5 kV (1.8 kV) according to EN 50618
- Operating temperature: from -40°C to +90°C (up to +120°C / 20,000 h)
- Short-circuit temperature: +250°C (max. 5 s)
- Test voltage 50 Hz: 6,500 V AC
- Min. bending radius (permanent): 4 × cable O
Standards and certificates
- Compliant with PN-EN 50618:2015-03
- Flame retardancy according to EN 60332-1 / PN-EN 60332-1 / IEC 60332-1
- Low smoke and halogen gas emission according to PN-EN 61034-2, PN-EN 60754-2
- Reaction to fire: class Dca according to PN-EN 50575 (CPR)
- Suitable for underground installation – compliant with UL 854 (Impact and Crushing Resistance Test)
- Resistant to UV, ozone, atmospheric conditions, hydrolysis, ammonia, acids and alkalis
Application: cable designed for photovoltaic installations — connections between PV panels and between strings and inverters. Suitable for installation inside buildings, on roofs and in ground-mounted power plants. Expected service life is 25 years.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Application | Solar DC |
| Cross-section [mm²] | 10 |
| Colour | Red |
| Conductor Material | Copper |
| CPR Class | D |
| Rodent Protection | Yes |
| Cable type | H1Z2Z2-K |
| Brand | MG WIRES |
