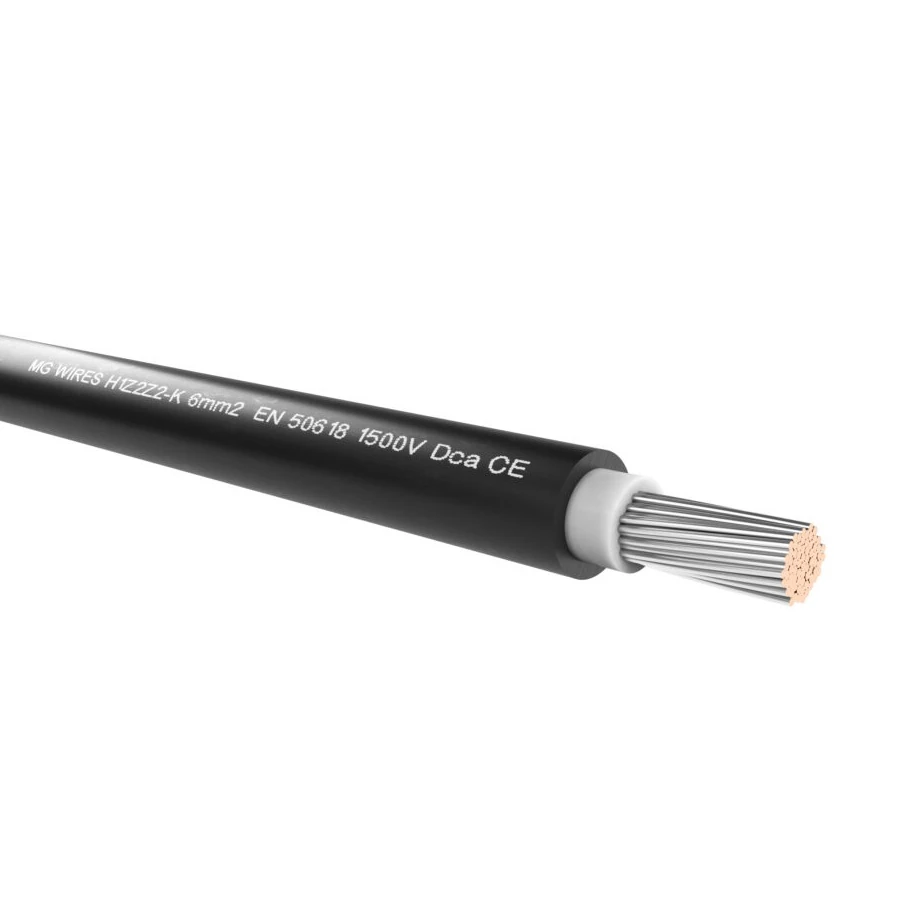

  • DC solar cable 1x6mm2 red MG wires Class D - CPR PV-200-dc1x6-02

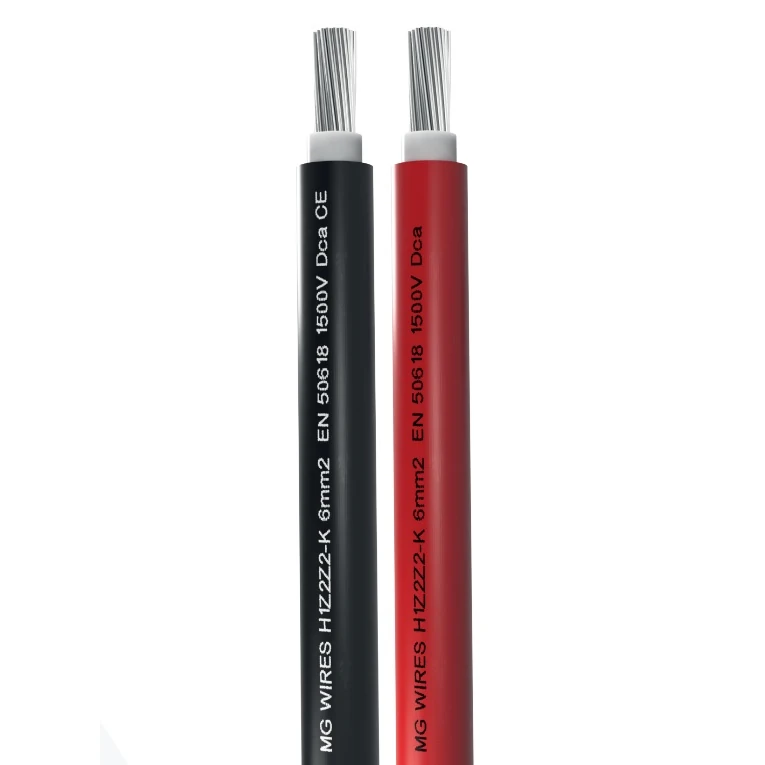

  • DC solar cable 1x6mm2 red MG wires Class D - CPR PV-200-dc1x6-02 (2)
MG Wires

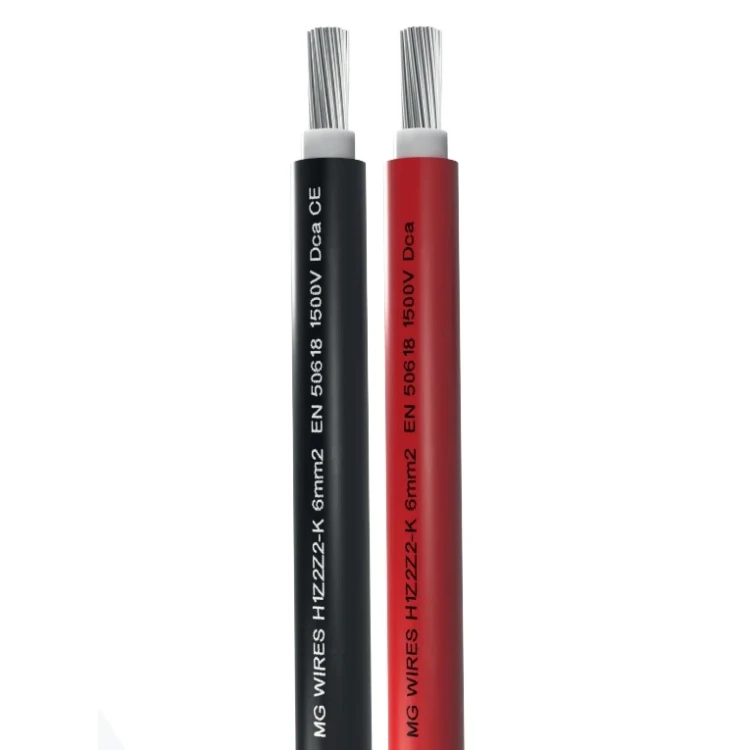

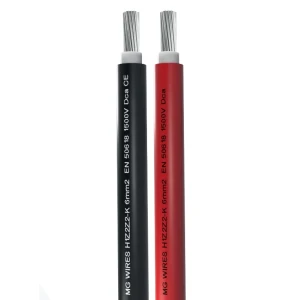

Solar DC cable 1x6mm² red MG Wires class D – CPR

Go to Product feedback

1x6mm² solar cable for photovoltaic installations, operating voltage 1.5kV DC, operating temperature -40°C to +90°C. Tinned copper conductor class 5, cross-linked halogen-free insulation, compliant with EN 50618:2015-03 standard. Suitable for direct burial.

Go to full description
with VAT without VAT
Price €1.61
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Lengths

m
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] Cat 92 #92

  • Application Solar DC
  • Cross-section [mm²] 6
  • Colour Red
  • Conductor Material Copper
  • CPR Class D
  • Rodent Protection No
  • Cable type H1Z2Z2-K
  • Brand MG WIRES

Description

DC Solar Cable 1x6mm2 Red MG Wires Class D – CPR

DC solar cable 1x6mm2 red MG Wires H1Z2Z2-K (class D – CPR) for photovoltaic systems.

MG Wires DC solar cable is a professional single-core cable designed specifically for use in photovoltaic installations. High-quality workmanship and compliance with the PN-EN 50618:2015-03 standard ensure durability, safety and reliability in all conditions.

Application:

  • Connections between photovoltaic modules and module strings
  • Connections from modules to inverter
  • Roof-mounted, ground-mounted and indoor installations
  • Direct burial capability (in accordance with UL 854)

Construction:

  • Conductor: tinned copper, multi-wire, class 5 according to PN-EN 60228 / VDE 0295
  • Insulation: halogen-free cross-linked compound (white colour)
  • Outer sheath: halogen-free cross-linked compound (black colour)
  • Outer diameter: 7.4 mm
  • Insulation thickness: 0.7 mm
  • Sheath thickness: 0.8 mm
  • Minimum insulation resistance at 20°C: 500 MΩ·km

Features:

  • Rated voltage: 0.6/1kV AC
  • Operating voltage: 1.5 kV DC (according to EN 50618)
  • Insulation resistance: 1000 MΩ/km
  • Maximum conductor temperature during cable operation: +90°C
  • Maximum conductor temperature during cable operation (Long-term): +120°C/20000h
  • Minimum ambient temperature for permanently installed cables: -40°C
  • Minimum cable installation temperature: -25°C
  • 50Hz Test voltage: 4000V
  • Resistance to UV radiation, ozone, atmospheric conditions: In accordance with EN 50618
  • Flame retardancy: In accordance with DIN EN 60332-1
  • No aggressive fumes during combustion
  • Min. bending radius for fixed installation: 4 x Ø
  • Expected service life: 25 years
  • Diameter: 35 cm x 22 cm H.
  • Direct burial capability: Yes – in accordance with UL 854

Cable cut to length – important information before you buy

This cable is sold by the metre: we cut it from the drum or coil to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and cross-section carefully.

This does not affect your statutory rights: if the cable is faulty, or the length or cross-section delivered does not match your order, please let us know – we will handle your complaint under the general rules.
