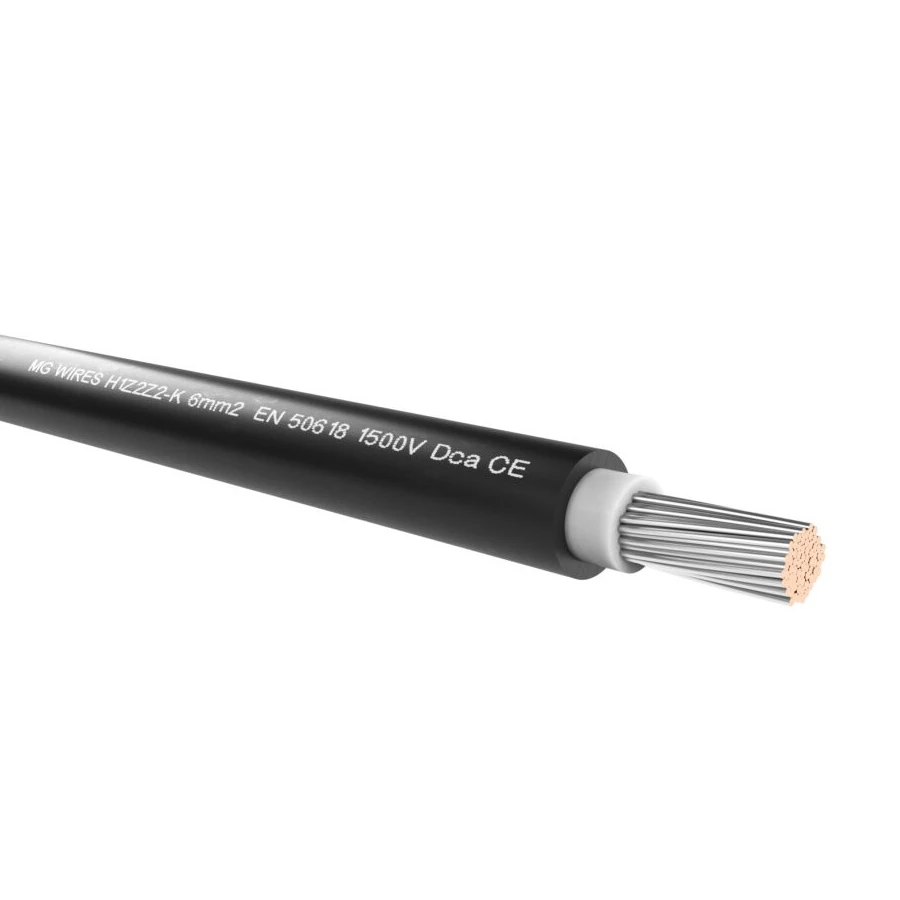

Solar DC cable 1x6mm² black MG Wires class D – CPR
Leave feedback on the product
1x6mm² solar cable for PV installations, 1.5kV DC voltage rating, tinned copper conductor class 5. Halogen-free cross-linked insulation and sheath, operating temperature -40°C to +90°C. Compliant with EN 50618:2015, CPR class D, suitable for direct burial.
Choose a variant:
Individual variants may differ in price
Lengths
Product code:
Product features
[PIM] Cat 92 #92
- Application Solar DC
- Cross-section [mm²] 6
- Colour Black
- Conductor Material Copper
- CPR Class D
- Rodent Protection No
- Cable type H1Z2Z2-K
- Brand MG WIRES
Description

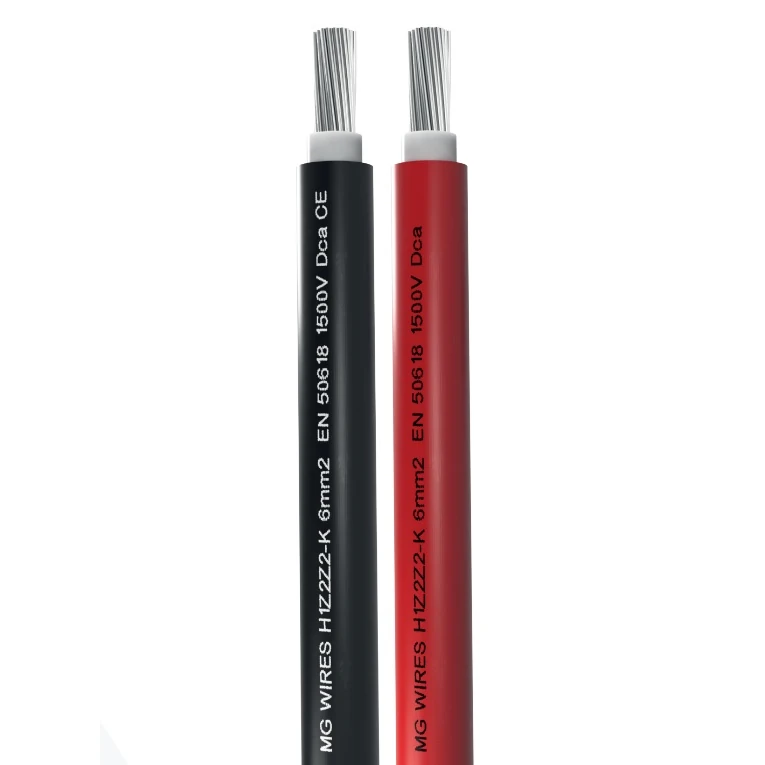

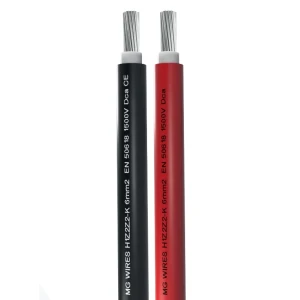

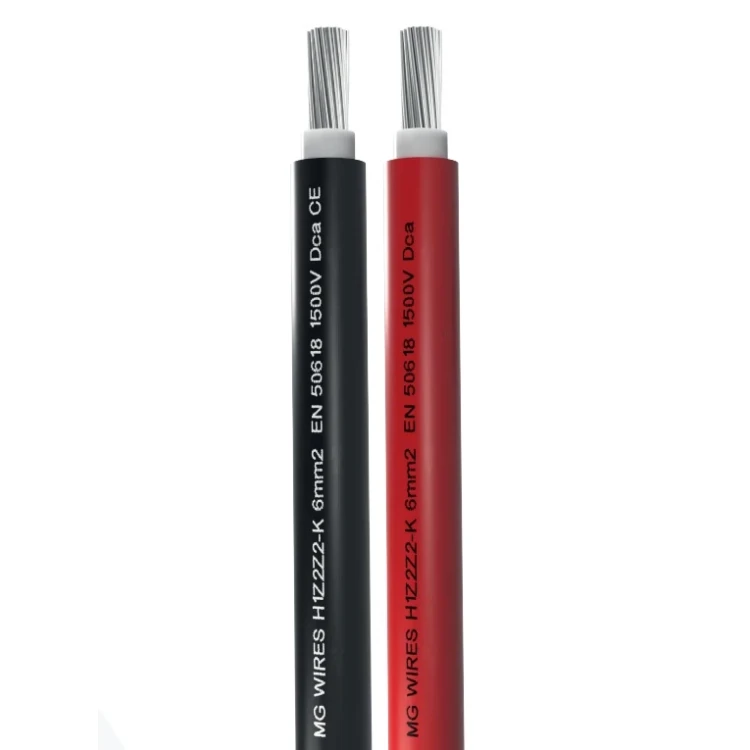

DC solar cable 1x6mm2 black MG Wires class D – CPR
DC solar cable 1x6mm2 black MG Wires H1Z2Z2-K (class D – CPR) for photovoltaic systems.
MG Wires DC solar cable is a professional single-core cable designed specifically for use in photovoltaic installations. High-quality workmanship and compliance with PN-EN 50618:2015-03 standard ensure durability, safety and reliability in all conditions.
Application:
- Connections between photovoltaic modules and module strings
- Connections of modules to inverter
- Roof-mounted, ground-mounted and indoor installations
- Possibility of direct burial (in accordance with UL 854)
Construction:
- Conductor: copper, tinned, stranded, class 5 according to PN-EN 60228 / VDE 0295
- Insulation: halogen-free cross-linked compound (white colour)
- Outer sheath: halogen-free cross-linked compound (black colour)
- Outer diameter: 7.4 mm
- Insulation thickness: 0.7 mm
- Sheath thickness: 0.8 mm
- Minimum insulation resistance at 20°C: 500 MΩ·km
Features:
- Rated voltage: 0.6/1kV AC
- Operating voltage: 1.5 kV DC (according to EN 50618 standard)
- Insulation resistance: 1000 MΩ/km
- Maximum conductor temperature during cable operation: +90°C
- Maximum conductor temperature during cable operation (Long-term): +120°C/20000h
- Minimum ambient temperature for permanently installed cables: -40°C
- Minimum cable installation temperature: -25°C
- 50Hz Test voltage: 4000V
- Resistance to UV radiation, ozone, atmospheric conditions: In accordance with EN 50618 standard
- Flame retardancy: In accordance with DIN EN 60332-1 standard
- No aggressive fumes during combustion
- Min. bending radius for fixed installation: 4 x Ø
- Expected service life: 25 years
- Diameter: 35 cm x 22 cm H.
- Possibility of direct burial: Yes – in accordance with UL 854
Cable cut to length – important information before you buy
This cable is sold by the metre: we cut it from the drum or coil to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and cross-section carefully.
This does not affect your statutory rights: if the cable is faulty, or the length or cross-section delivered does not match your order, please let us know – we will handle your complaint under the general rules.
