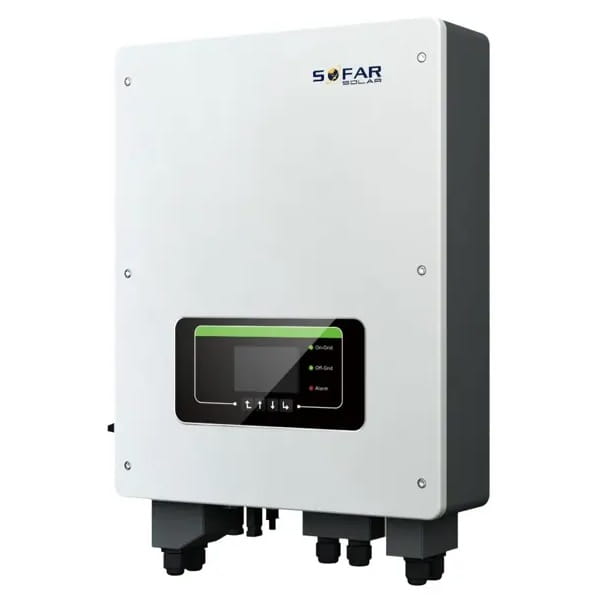

Sofar Hybrid Inverter 3.6kW Single-Phase 16A
Availability:
Temporarily unavailable
Weight:
20.5 kg
Description
Sofar Hybrid Inverter 3.6kW 1-Phase 16A
Hybrid inverter 3.6kW 1-Phase 16A HYD 3600-ES Hybrid inverter 2MPPT DC switch EPS HYD3600ES SOFAR
The inverter does not include a battery
Technical Parameters
| Parameter | Value |
|---|---|
| Series and Type | Hybrid inverter 3.6kW 1-Phase 16A HYD 3600-ES Hybrid inverter 2MPPT DC switch EPS HYD3600ES SOFAR |
| Warranty | 5 years |
Battery Parameters
| Parameter | Value |
|---|---|
| Battery Type | lithium-ion battery, lead-acid battery |
| Nominal Battery Voltage | 48 V |
| Battery Voltage Range | 42 - 58 V |
| Battery Capacity | 50 - 2000 Ah |
| Maximum Charge/Discharge Power | 3000 W |
| Maximum Charging Current | 65 A (programmable) |
| Maximum Discharge Current | 70 A (programmable) |
| Charging Current (lithium-ion battery) | BMS |
| Charging Current (lead-acid battery) | 3-stage, adaptive with float |
| Discharge Level | lithium-ion battery - 0-90% DOD adjustable; lead-acid battery - 0 - 50% DOD adjustable |
DC Input (PV Side)
| Parameter | Value |
|---|---|
| Recommended Maximum PV Input Power | 4790 Wp |
| Maximum DC Power per MPPT | 2400 W |
| Maximum Input Voltage | 600 V |
| Start-up Voltage | 120 V |
| Nominal DC Voltage | 360 V |
| MPPT Operating Voltage Range | 90 - 580 V |
| Full Power MPPT Voltage Range | 180 - 520 V |
| Number of MPPTs | 2 |
| Maximum DC Output Current | 12 A / 12 A |
| Maximum DC Short Circuit Current | 15 A / 15 A |
AC Output (Grid Side)
| Parameter | Value |
|---|---|
| Rated Power | 3680 W |
| Maximum Output Power | 3680 VA |
| Nominal Grid Voltage | L/N/PE, 220, 230, 240 |
| Number of Phases | single (L-N-PE) |
| Maximum Input/Output Current | 16 A |
| AC Voltage Range | 180 ~ 276 V (according to local standard) |
| Grid Frequency Range | 44 - 55 Hz / 54 - 66 Hz (according to local standard) |
| THDi | < 3 % |
| Power Factor | 1 (adjustable +/- 0.8) |
AC Output (Backup Power Supply)
| Parameter | Value |
|---|---|
| Rated Backup Power | 3000 VA |
| Operating Phase | single (L-N-PE) |
| Nominal Backup Power Voltage | 13.2 A |
| Maximum Apparent Power Draw | 4000 VA, 10 s |
| THDi | 180 - 276 Vac (according to local standard) |
| Switching Time | 10 ms |
Efficiency
| Parameter | Value |
|---|---|
| MPPT Efficiency | 99.9 % |
| Maximum Efficiency | 97.6 % |
| European Efficiency | 97.2 % |
| Maximum Battery Charging Efficiency | 94.6 % |
| Maximum Battery Discharge Efficiency | 94.6 % |
Protection
| Parameter | Value |
|---|---|
| PV Reverse Polarity Protection | Yes |
| PV Isolation | Yes |
| Residual Current Monitoring | Yes |
| Surge Protection | Yes |
| Overvoltage Protection | Yes |
| Battery Soft Start Protection | Yes |
| SPD Protection | III |
General Data
| Parameter | Value |
|---|---|
| Ambient Temperature Range | -25°C ~ +60°C (derating above 45°C) |
| Standby Power Consumption | < 10 W |
| Topology | high-frequency isolation (for battery) |
| DC Switch | Yes |
| Protection Rating | IP65 |
| Permissible Humidity Range | 0 ~ 100 % |
| Communication | RS485, Wi-Fi/Ethernet/GPRS, SD, CAN2.0 |
| Protection Class | Class I |
| Maximum Operating Altitude | 2000 m above sea level |
| Current Sensor Connection | external |
| Noise | < 25 dB |
| Weight | 20.5 kg |
| Cooling | natural |
| Dimensions | 566 x 394 x 173 mm |
| Display | LCD |
| Warranty | 5 years (extendable) |
Standards
| Parameter | Value |
|---|---|
| EMC | EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11, EN 61000-3-12 |
| Safety Standards | IEC62109-1/2, IEC62040-1, IEC62116, IEC61727, IEC-61683, IEC60068(1,2,14,30) |
| Grid Standards | AS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21, EN50549, G83/G59/G98/G99, UTE C15-712-1, UNE 206 007-1 |
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Type | Hybrid |
| Power | 3-5 kW |
| Number of phases | Single-phase |
| Number of MPPT | 2 MPPT |
| WiFi | Yes |
| DC switch | Yes |
