Sofar Battery Module 5kWh BTS 5K
Leave feedback on the product
LFP battery module 5.12 kWh with usable energy 4.75 kWh and rated power 2.5 kW. Compatible with BTS 5K-BDU control unit and Sofar, HYD, ME inverters. Rated voltage 400V, depth of discharge 90%.
Product code: GPV-402-01
Product features
Compare all battery modules
- Usable capacity [kWh] 4.75
- Continuous power [kW] 2.50
- Peak power 10 s [kW] 5.00
- Maximum current [A] 50
- Chemistry LFP
- Lifespan [cycles] 6000
- IP rating 65
- Min. charging temp. [°C] 0
- Max. charging temp. [°C] 55
- Min. discharge temp. [°C] ‑20
- Max. discharge temp. [°C] 55
- Min. modules [pcs] 1
- Max modules [pcs.] 8
Description

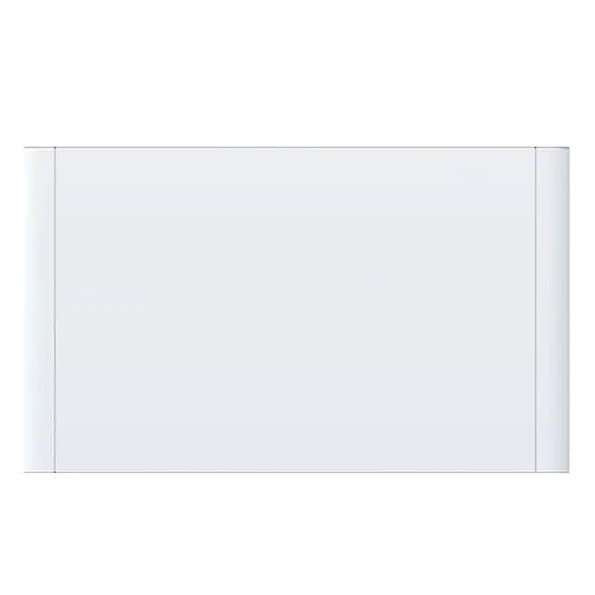

Sofar Battery Module 5kWh BTS 5K
5 kWh BTS 5K battery module for BTS5K SOFAR energy banks
BTS 5K is an innovative high-voltage battery module forming the foundation of modern BTS E5-E20 energy storage systems. Offering usable capacity from approximately 5 to nearly 20 kWh, this advanced system enables efficient electrical energy storage. It works with the BTS 5K-BDU control unit, ensuring optimal performance and functionality.
Designed for use as a home energy storage system, BTS 5K features a compact size and simple operation. Thanks to compatibility with hybrid inverters from renowned brands such as Sofar, HYD and ME, this system offers flexibility and versatility in integration with existing infrastructure.
Key features:
- Modular and integrated design for easy transport and installation
- Flexible battery capacity with expansion capability
- User-friendly one-button battery operation
- Maximum battery energy through pack optimisation
- Exceptionally low battery self-consumption in sleep mode
- Dedicated energy storage for ME / HYD 5K ... 20 KTL-3PH inverters
Technical Parameters
| Parameter | Value |
|---|---|
| Series and type | 5 kWh BTS 5K battery module for BTS5K SOFAR energy banks |
| Battery type | LFP |
| Battery distribution module | BTS 5K-BDU |
| Number of battery distribution units | 1 |
| Battery module | BTS 5K |
| Number of battery modules | 1 |
| Total battery energy | 5.12 kWh |
| Usable energy | 4.75 kW |
| Rated power | 2.5 kW |
| Rated voltage | 400 V |
| Rated discharge current | 7 A |
| Rated charge current | 7 A |
| Installation | floor stand |
| Cooling | natural |
| Display | LED indicators |
| Communication | CAN |
Battery Module
| Parameter | Value |
|---|---|
| Battery module energy | 5.12 kWh |
| Depth of discharge | 90% |
| Rated power | 2500 W |
| Certifications | UN38.3, IEC62619, IEC62040-1, SAA, etc. |
