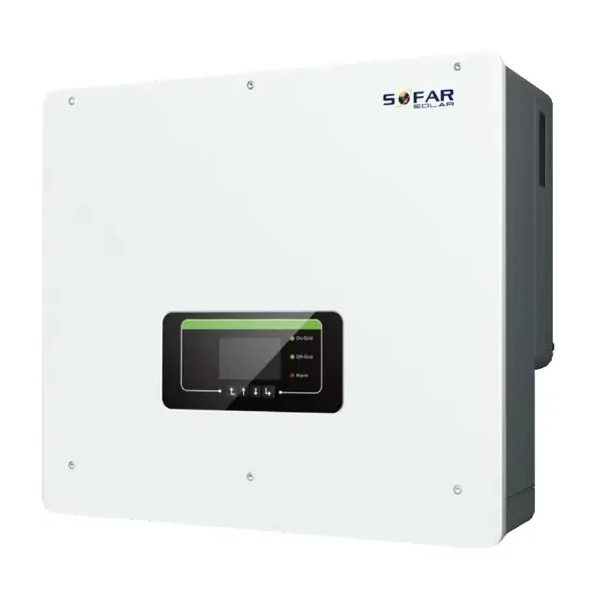

Sofar 6kW Hybrid Inverter 3-Phase 17A 2MPPT APF Mode 1 Battery Input
Leave feedback on the product
3-phase 6kW hybrid inverter with 2 MPPT trackers and battery input. Output power 6600 VA, current 17A, MPP voltage range 180-960V. Efficiency 98%, WiFi module, APF mode. Dimensions 571x515x264mm, weight 33kg.
Product code: GPV-400-27
Product features
Main parameters
- Type Hybrid
- Power 6-10 kW
- Number of phases Three-phase
- Number of MPPT 2 MPPT
- WiFi Yes
- DC switch Yes
Description
Hybrid inverter 6kW 3-phase 17A HYD 6KTL-3PH 2MPPT APF mode 1 battery input HYD6KTL-3PH SOFAR
Hybrid inverter 6kW 3-phase 17A HYD 6KTL-3PH 2MPPT APF mode 1 battery input HYD6KTL-3PH SOFAR is an advanced device for solar energy conversion.
This advanced inverter is designed for efficient solar energy utilisation. The inverter is equipped with numerous protection features, ensuring safe and reliable operation. Additionally, it offers high energy efficiency, compact dimensions and various monitoring options such as Bluetooth, RS485, Wi-Fi and GPRS, making it an ideal solution for your photovoltaic system.
SPECIFICATION
| Parameter | Value |
|---|---|
| Rated AC power [W] | 6000W |
| Number of phases | 3-phase |
| Installation type | Hybrid |
| Max. output power [VA] | 6600 VA |
| AC output current [A] | 17 A |
| AC voltage range [V] | 184 VAC~276 VAC |
| Frequency [Hz] | 50 / 60 Hz |
| Frequency range [Hz] | 45Hz-55Hz/54Hz-66Hz (according to national standard) |
| Number of MPP trackers | 2 |
| Start-up voltage [V] | 200 V |
| MPP voltage range [V] | 180 V - 960 V |
| WiFi module | Yes |
| WLAN / Ethernet LAN | NO |
| USB | No |
| DC insulation monitoring | Yes |
| DC switch disconnector | Yes |
| Max. efficiency (PV installation – grid) | 98 % |
| Dimensions [mm] | 571.4 x 515 x 264.1 mm |
| Weight [kg] | 33 kg |
| Max. altitude above sea level | 4000 m |
STANDARDS
| Parameter | Value |
|---|---|
| EMC: | EMC: EN61000-6-1, EN61000-6-3 |
| Safety standards: | Safety standards: IEC62109-1, IEC62109-2, NB-T32004/IEC62040-1 |
| Grid standards: | Grid standards: AS/NZS 4777, VDE V 0124-100, V0126-1-1, VDE-AR-N 4105, CEI 0-16/CEI 0-21, EN50549, G98/G99, UTE C15-712-1 |
