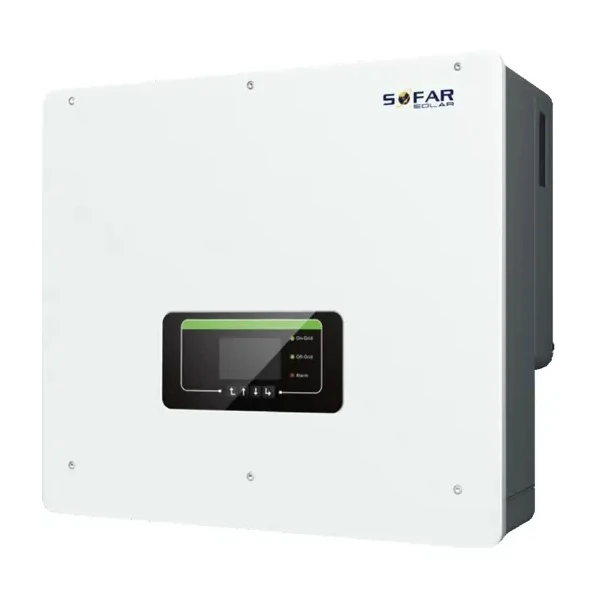

Sofar 5kW 3-Phase Hybrid Inverter 15A 2MPPT APF Mode 1 Battery Input
Leave feedback on the product
3-phase 5kW hybrid inverter with 2 MPPT trackers and battery input. Output power 5500 VA, current 15A, MPP voltage range 250-850V. Efficiency 98%, dimensions 571x515x264mm, weight 33kg. Equipped with WiFi module, DC insulation measurement and DC disconnect switch.
Product code: GPV-400-26
Product features
Main parameters
- Type Hybrid
- Power 3-5 kW
- Number of phases Three-phase
- Number of MPPT 2 MPPT
- WiFi Yes
- DC switch Yes
Description
Hybrid Inverter 5kW 3-Phase 15A HYD 5KTL-3PH 2MPPT APF Mode 1 Battery Input HYD5KTL-3PH SOFAR
Hybrid Inverter 5kW 3-Phase 15A HYD 5KTL-3PH 2MPPT APF Mode 1 Battery Input HYD5KTL-3PH SOFAR is an advanced device for solar energy conversion.
This advanced inverter is designed for efficient utilisation of solar energy. The inverter is equipped with numerous protection features, ensuring safe and reliable operation. Additionally, it offers high energy efficiency, compact dimensions and various monitoring options such as Bluetooth, RS485, Wi-Fi and GPRS, making it an ideal solution for your photovoltaic system.
SPECIFICATION
| Parameter | Value |
|---|---|
| Rated AC power [W] | 5000W |
| Number of phases | 3-Phase |
| Installation type | Hybrid |
| Max. output power [VA] | 5500 VA |
| AC output current [A] | 15 A |
| AC voltage range [V] | 184 VAC–276 VAC |
| Frequency [Hz] | 50 / 60 Hz |
| Frequency range [Hz] | 45Hz–55Hz/54Hz–66Hz (according to national standard) |
| Number of MPP trackers | 2 |
| Start-up voltage [V] | 200 V |
| MPP voltage range [V] | 250 V–850 V |
| WiFi module | Yes |
| WLAN / Ethernet LAN | NO |
| USB | No |
| DC insulation measurement | Yes |
| DC disconnect | Yes |
| Max. efficiency (PV installation – mains supply) | 98% |
| Dimensions [mm] | 571.4 x 515 x 264.1 mm |
| Weight [kg] | 33 kg |
| Max. altitude above sea level | 4000 m |
STANDARDS
| Parameter | Value |
|---|---|
| EMC: | EMC: EN61000-6-1, EN61000-6-3 |
| Safety standards: | Safety standards: IEC62109-1, IEC62109-2, NB-T32004/IEC62040-1 |
| Grid standards: | Grid standards: AS/NZS 4777, VDE V 0124-100, V0126-1-1, VDE-AR-N 4105, CEI 0-16/CEI 0-21, EN50549, G98/G99, UTE C15-712-1 |
