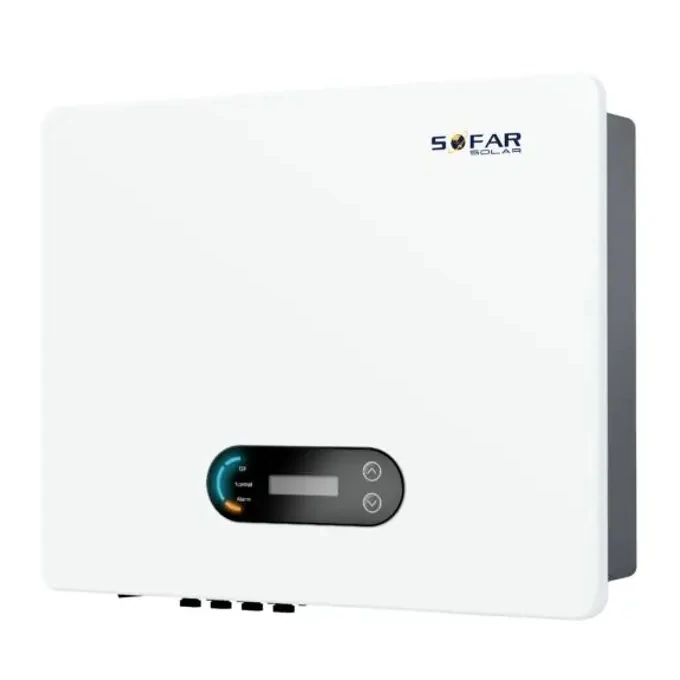

Sofar 50kW 3-Phase Inverter 83.3A 4MPPT DC Isolator WiFi Module
Leave feedback on the product
3-phase 50kW inverter with 4 MPPT trackers and maximum efficiency 98.4%. Aluminium housing IP65 with integrated WiFi module and DC disconnect switch. Start voltage 200V, MPP range 180-1000V.
Product code: GPV-400-23
Product features
Main parameters
- Type On-grid
- Power > 20 kW
- Number of phases Three-phase
- Number of MPPT 2 MPPT
- WiFi Yes
- DC switch Yes
Description
Inverter 50kW 3-Phase 83.3A KTLX-G3 3-4MMPT WiFi communication DC switch 50KTLX-G3 SOFAR
Inverter 50kW 3-Phase 83.3A KTLX-G3 3-4MMPT WiFi communication DC switch 50KTLX-G3 SOFAR is part of a series of inverters with power ratings from 25kW to 50kW, designed for use in residential photovoltaic installations of various sizes.
Sofar inverters are characterised by high quality, thanks to the use of components from renowned suppliers and a meticulous production process. The product offers reliability and excellent quality at an affordable price, with a 12-year warranty confirming the high quality of Sofar brand devices. The units are equipped with a WiFi module, enabling remote management and monitoring of the installation's operation. Additionally, Sofar inverters feature an aluminium, corrosion-resistant housing with IP 65 protection class, allowing them to be mounted outdoors.
The latest G3 series of Sofar inverters features low start-up voltage, high maximum efficiency, and new software with remote update capability.
SPECIFICATION
| Parameter | Value |
|---|---|
| Rated AC power [W] | 50000W |
| Number of phases | 3-Phase |
| Installation type | On-grid |
| Max. output power [VA] | 55000 VA |
| AC output current [A] | 83.3 A |
| AC voltage range [V] | 310 - 480 V AC (according to local standard) |
| Frequency [Hz] | 50 / 60 Hz |
| Frequency range [Hz] | 45Hz-55Hz/54Hz-66Hz (according to national standard) |
| Number of MPP trackers | 4 |
| Start-up voltage [V] | 200 V |
| MPP voltage range [V] | 180 - 1000 V |
| Number of DC connections | 2/2 |
| WiFi module | Yes |
| WLAN / Ethernet LAN | NO |
| USB | No |
| DC insulation measurement | Yes |
| DC switch | Yes |
| Max. efficiency (PV installation – mains supply) | 98.4% |
| Dimensions [mm] | 585×480×220 mm |
| Weight [kg] | 37 kg |
| Max. altitude above sea level | 4000 m |
STANDARDS
| Parameter | Value |
|---|---|
| EMC: | EMC: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 |
| Safety standards: | Safety standards: IEC62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068(1,2,14,30) |
| Grid standards: | Grid standards: AS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21/CEI 0-16, UNE 206 007-1, EN50549, G98/G99, EN50530, NB/T32004 |
