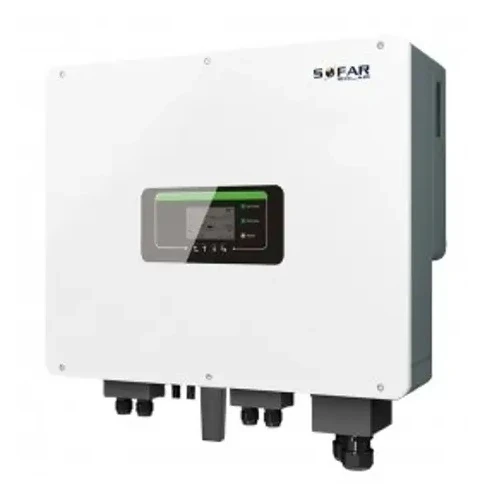

Sofar 10kW 3-Phase Hybrid Inverter 16A 2MPPT DC Switch APF Mode
Leave feedback on the product
10kW 3-phase hybrid inverter with 2 MPPT trackers and integrated DC switch. Maximum output power 11000 VA, output current 16A. MPP voltage range 180V-960V, efficiency 98.2%. Equipped with WiFi module, protection systems and monitoring. Compliant with IEC62109-1/2 and EN61000 standards.
Product code: GPV-400-29
Product features
Main parameters
- Type Hybrid
- Power 6-10 kW
- Number of phases Three-phase
- Number of MPPT 2 MPPT
- WiFi Yes
- DC switch Yes
Description
Hybrid inverter 10kW 3-phase 16A HYD 10000-3PH 2MPPT DC switch APF HYD10KTL-3PH SOFAR
Hybrid inverter 10kW 3-phase 16A HYD 10000-3PH 2MPPT DC switch APF HYD10KTL-3PH SOFAR is an advanced device for solar energy conversion.
This advanced inverter is designed for efficient solar energy utilisation. The inverter is equipped with numerous safety features, ensuring safe and reliable operation. Additionally, it offers high energy efficiency, compact dimensions and various monitoring options, such as Bluetooth, RS485, Wi-Fi and GPRS, making it an ideal solution for your photovoltaic system.
SPECIFICATION
| Parameter | Value |
|---|---|
| Rated AC power [W] | 10000W |
| Number of phases | 3-phase |
| Installation type | Hybrid |
| Max. output power [VA] | 11000 VA |
| AC output current [A] | 16 A |
| AC voltage range [V] | 184 VAC~276 VAC |
| Frequency [Hz] | 50 / 60 Hz |
| Frequency range [Hz] | 45Hz-55Hz/54Hz-66Hz (according to national standard) |
| Number of MPP trackers | 2 |
| Start-up voltage [V] | 200 V |
| MPP voltage range [V] | 180 V - 960 V |
| WiFi module | Yes |
| WLAN / Ethernet LAN | NO |
| USB | No |
| DC insulation measurement | Yes |
| DC switch | Yes |
| Max. efficiency (photovoltaic installation – mains supply) | 98.2% |
| Dimensions [mm] | 571.4 x 515 x 264.1 mm |
| Weight [kg] | 37 kg |
| Max. altitude above sea level | 4000 m |
STANDARDS
| Parameter | Value |
|---|---|
| EMC: | EMC: EN61000-6-1, EN61000-6-3 |
| Safety standards: | Safety standards: IEC62109-1, IEC62109-2, NB-T32004/IEC62040-1 |
