Snap hook with screw lock galvanised 14×180 mm – locking nut, DIN 5299 D
Leave feedback on the product

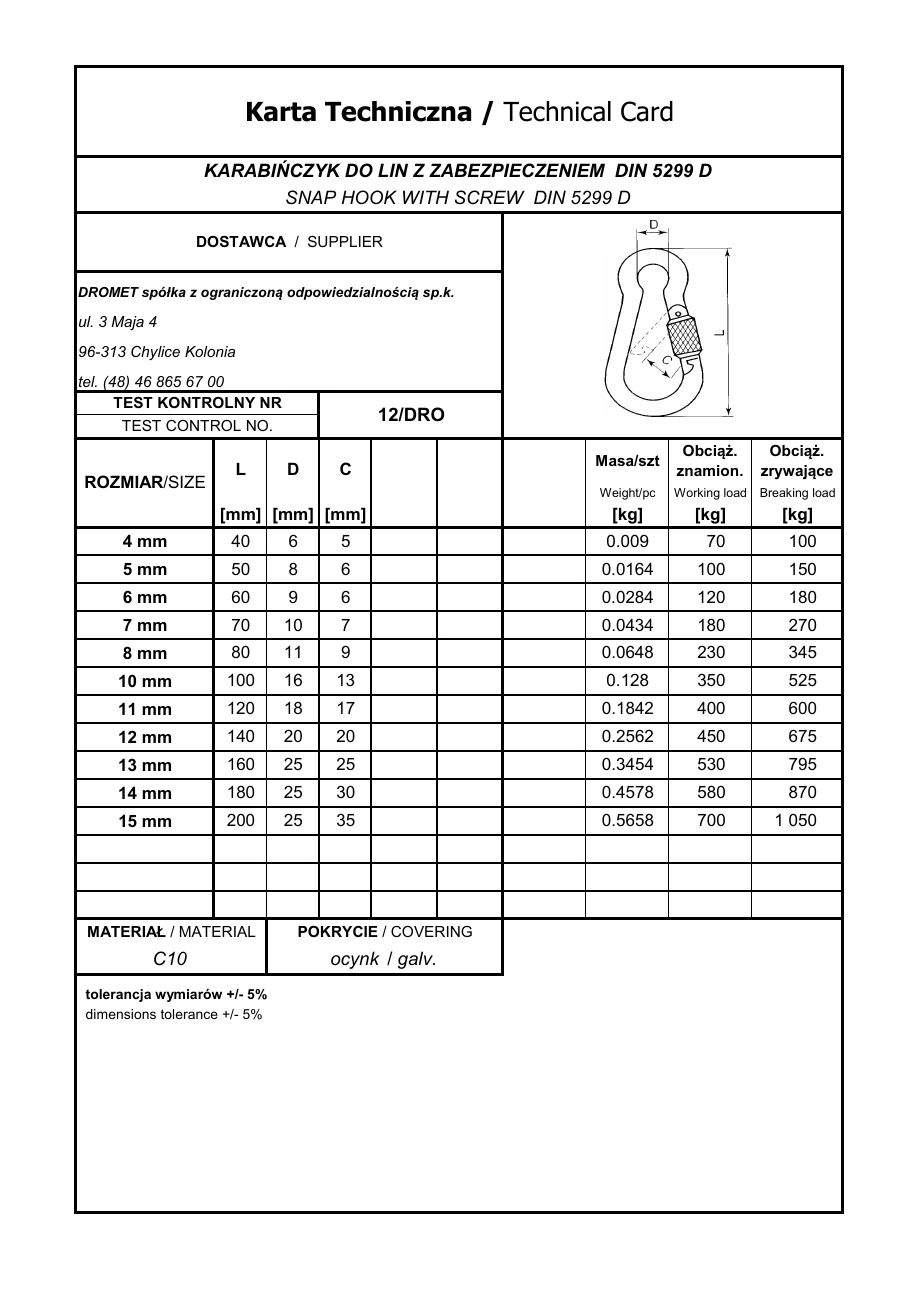

Snap hook with screw lock 14×180 mm, galvanised, C10 steel. DIN 5299 D standard. Outer diameter 25 mm, opening 30 mm, weight 0.4578 kg. Rated load 580 kg, breaking load 870 kg. For steel wire ropes and chains.
Product code: 002-427
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Snap hook with screw lock
- Diameter 14
- Max. load capacity [kg] 580
Description
Snap hook with screw lock galvanised 14×180 mm – locking nut, DIN 5299 D

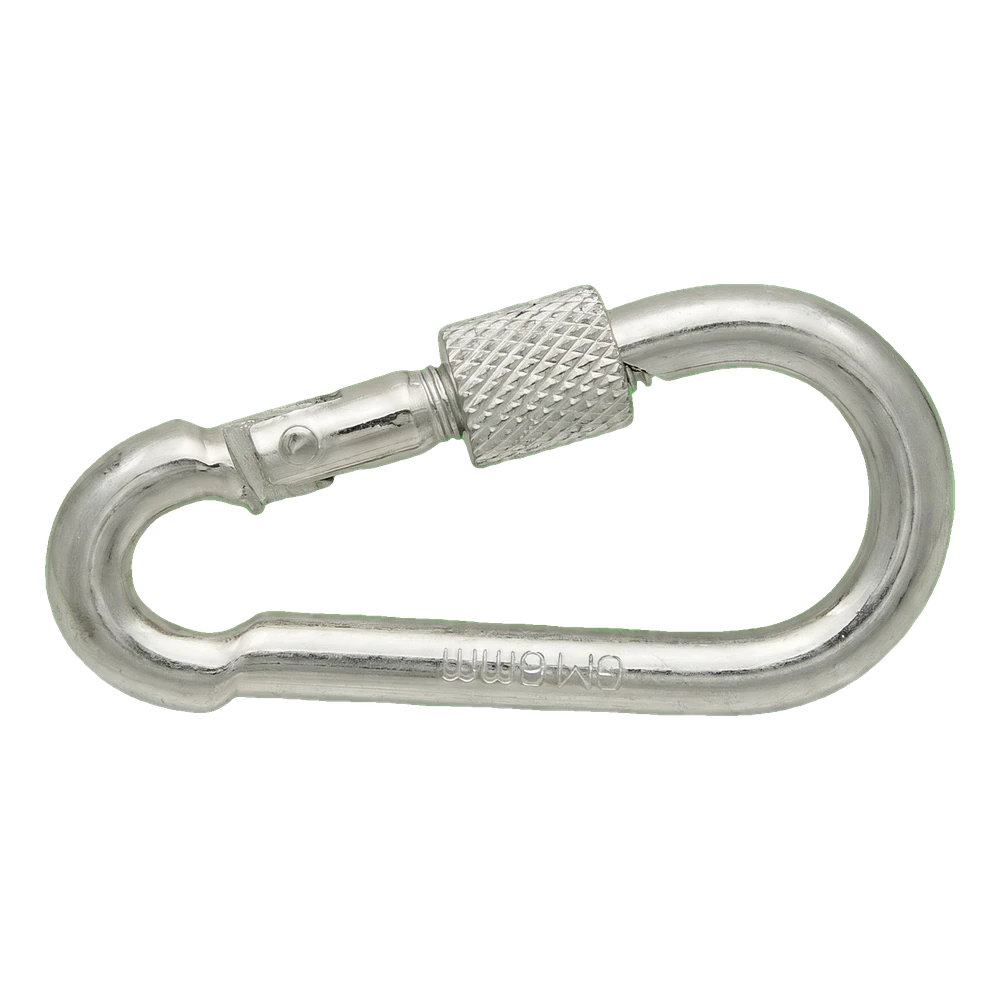

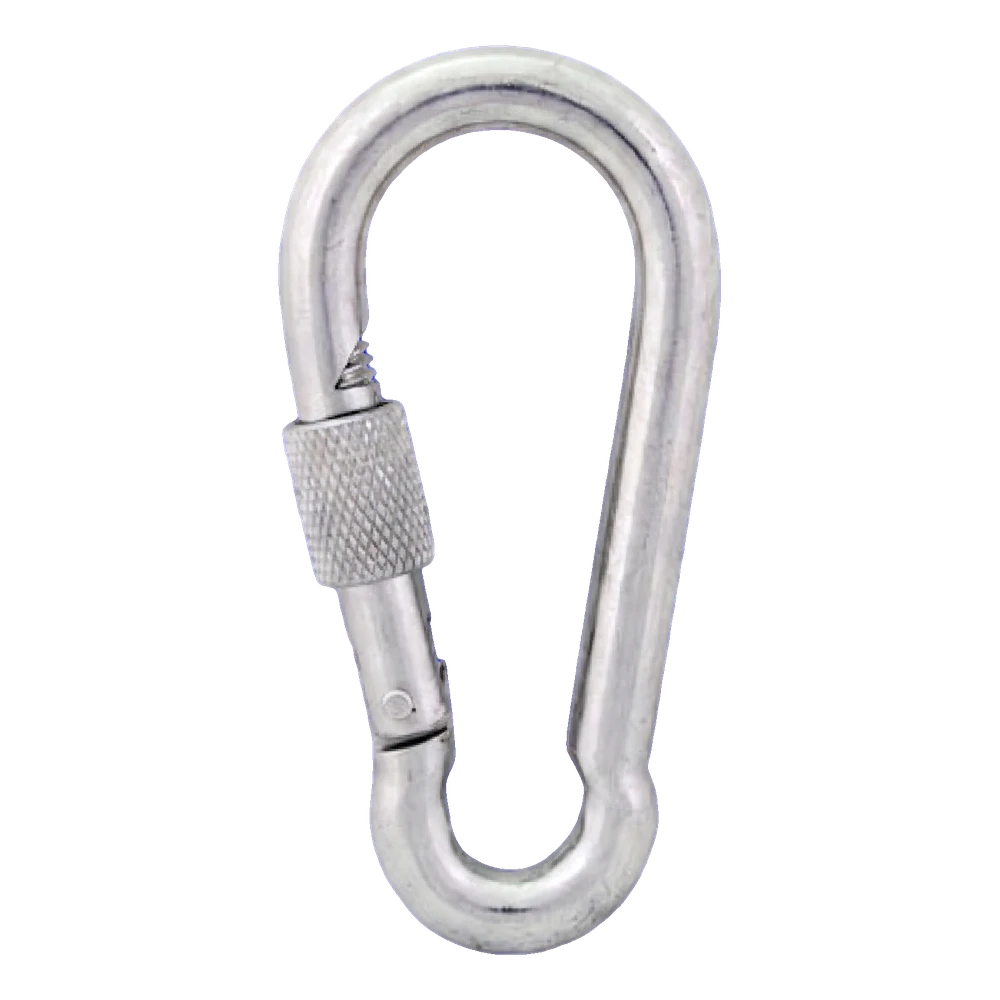

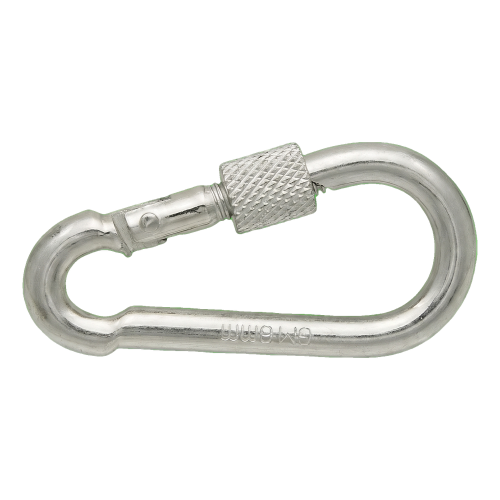

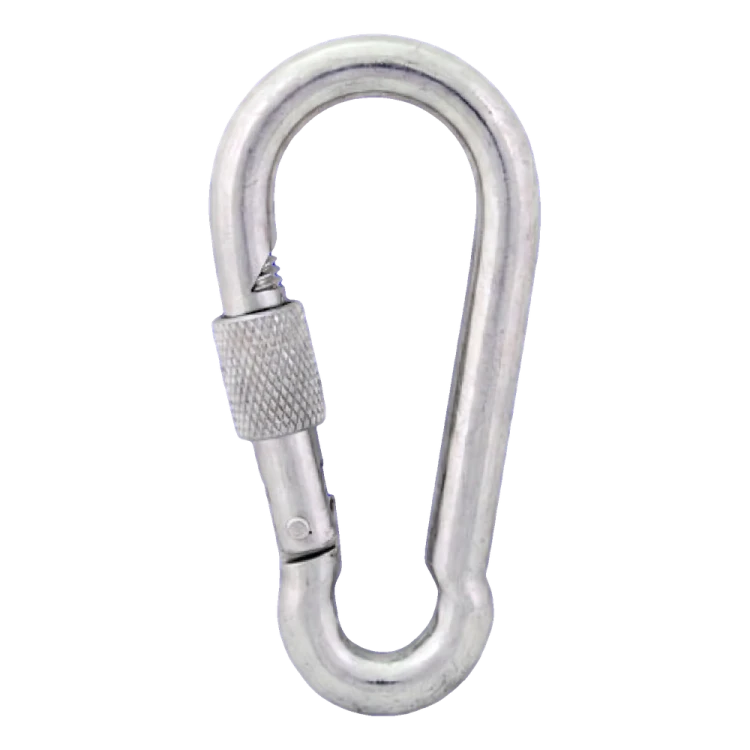

Snap hook with screw lock in size 14×180 mm is a durable piece of rope rigging hardware designed for professional installation and assembly applications. Made of carbon steel with a galvanised coating, it provides effective protection against corrosion, even in demanding weather conditions. The screw-down locking sleeve prevents the snap hook from opening accidentally when working under load, which ensures safe rope and chain connections on the building site. The high load capacity allows safe work with heavy steel wire ropes, chains and transport slings. The product is manufactured in accordance with the recognised standard for snap hooks with screw lock.
Key advantages for the installer
- The screw-down locking sleeve prevents accidental opening when working under load
- The galvanised coating provides lasting corrosion protection in outdoor conditions
- Manufacture in accordance with DIN 5299D guarantees repeatable dimensions and strength parameters
- Dimensions fall within a strict tolerance, enabling a secure connection with standard rope hardware
- Versatile use — steel wire ropes, chains, slings, assembly hardware
