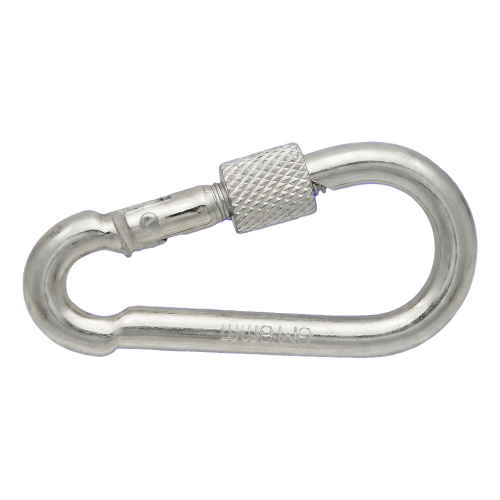

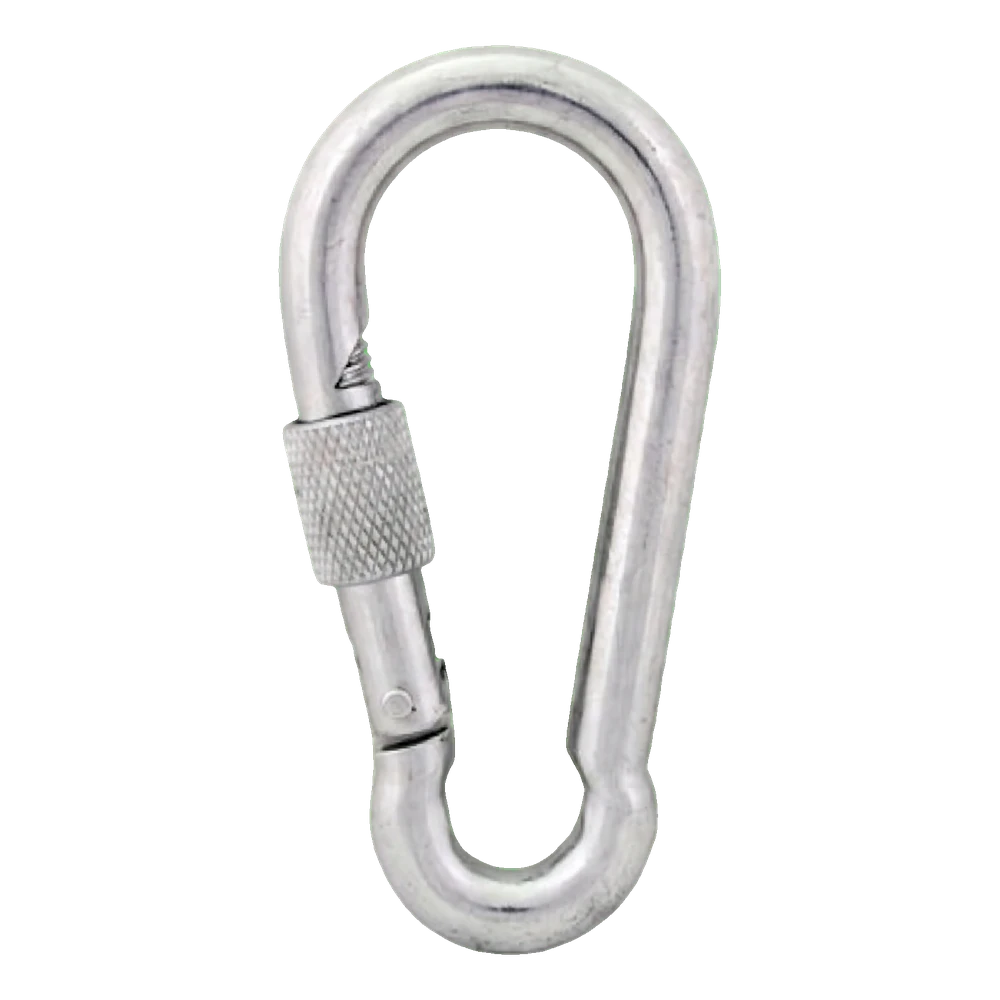

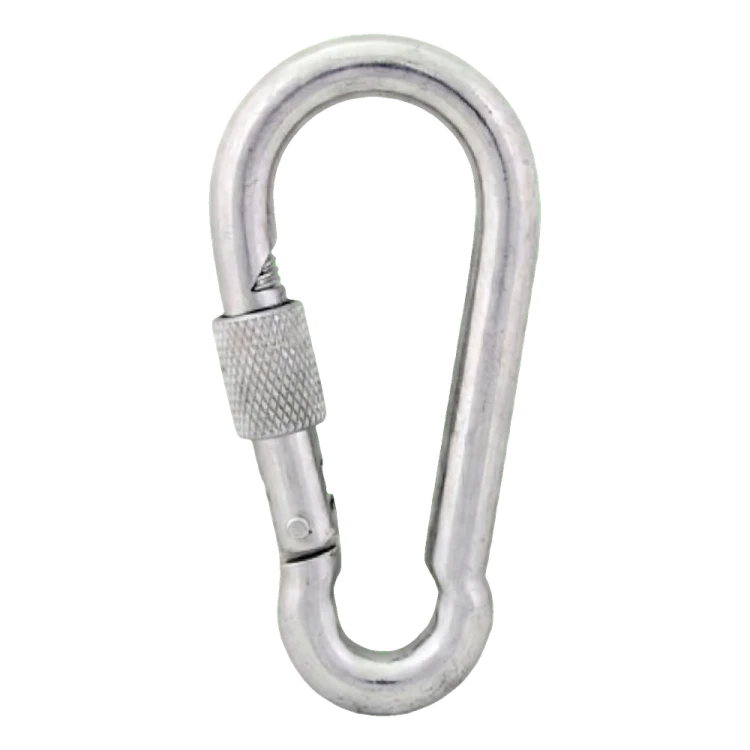

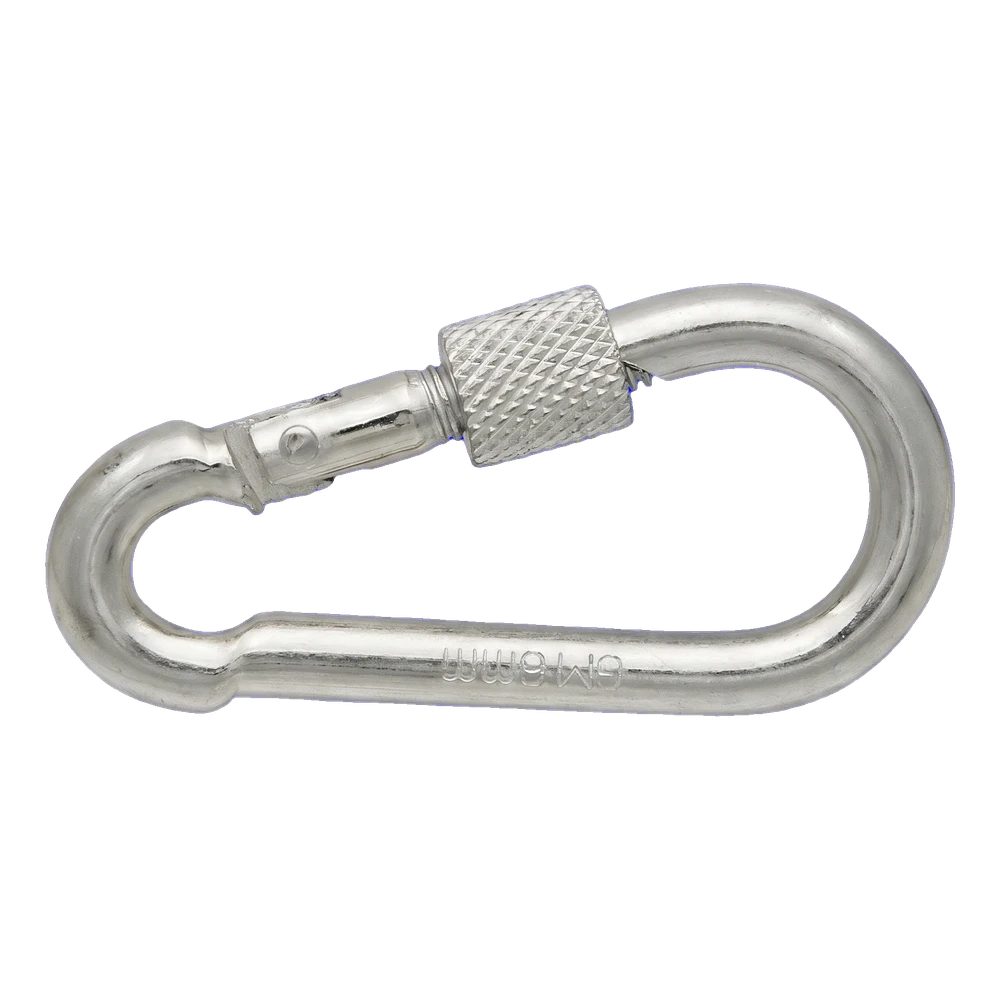

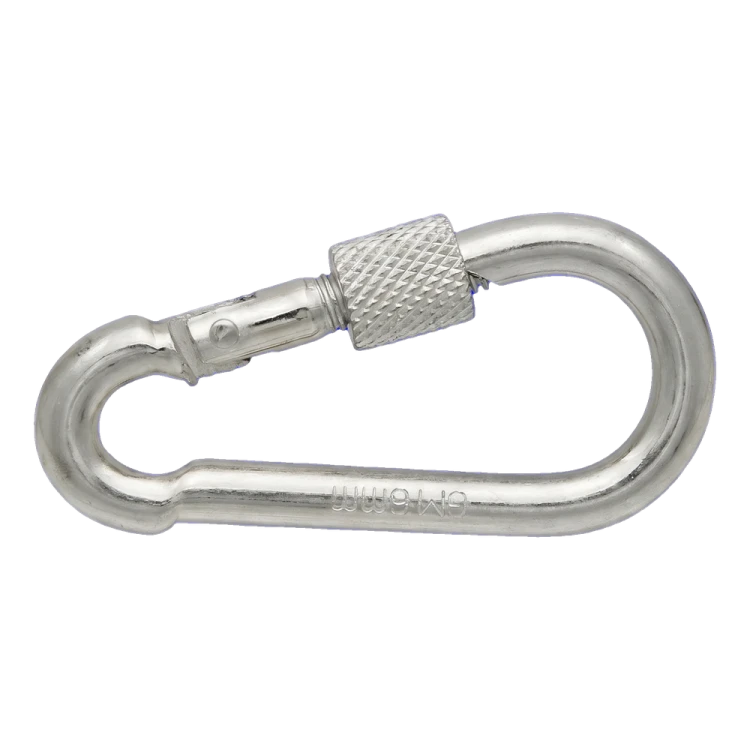

Snap hook with screw lock, galvanised, 15×200 mm – locking nut, DIN 5299 D
Leave feedback on the product
Snap hook with locking nut, galvanised, C10 steel, to DIN 5299 D. Dimensions 15×200 mm, gate opening 35 mm. Rated load 700 kg, breaking load 1050 kg. Weight 0.5658 kg.
Product code: 002-428
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Snap hook with screw lock
- Diameter 15
- Max. load capacity [kg] 700
Description
Snap hook with screw lock, galvanised, 15×200 mm – locking nut, DIN 5299 D
Snap hook with screw lock is a durable item of rope hardware made in accordance with DIN 5299D. The knurled locking nut holds the gate in the closed position, eliminating the risk of accidental opening when working under load. The snap hook is designed for professional connection of steel wire ropes, slings and chains, wherever connection reliability and speed of handling matter. The galvanised coating on the structural steel provides corrosion protection, so the snap hook retains full functionality even during long-term outdoor use in damp conditions and varying temperatures.
Design advantages
- Knurled nut — secure grip even in work gloves, quick one-handed closing and opening
- Fire-brigade style (type D to DIN 5299) — the asymmetric shape makes it easier to clip into rope eyes and sling lugs
- Galvanised coating — corrosion protection that extends service life in outdoor use
- Largest size in the KSZ series — the highest load capacity in the range, suitable for heavy slings and large-diameter ropes

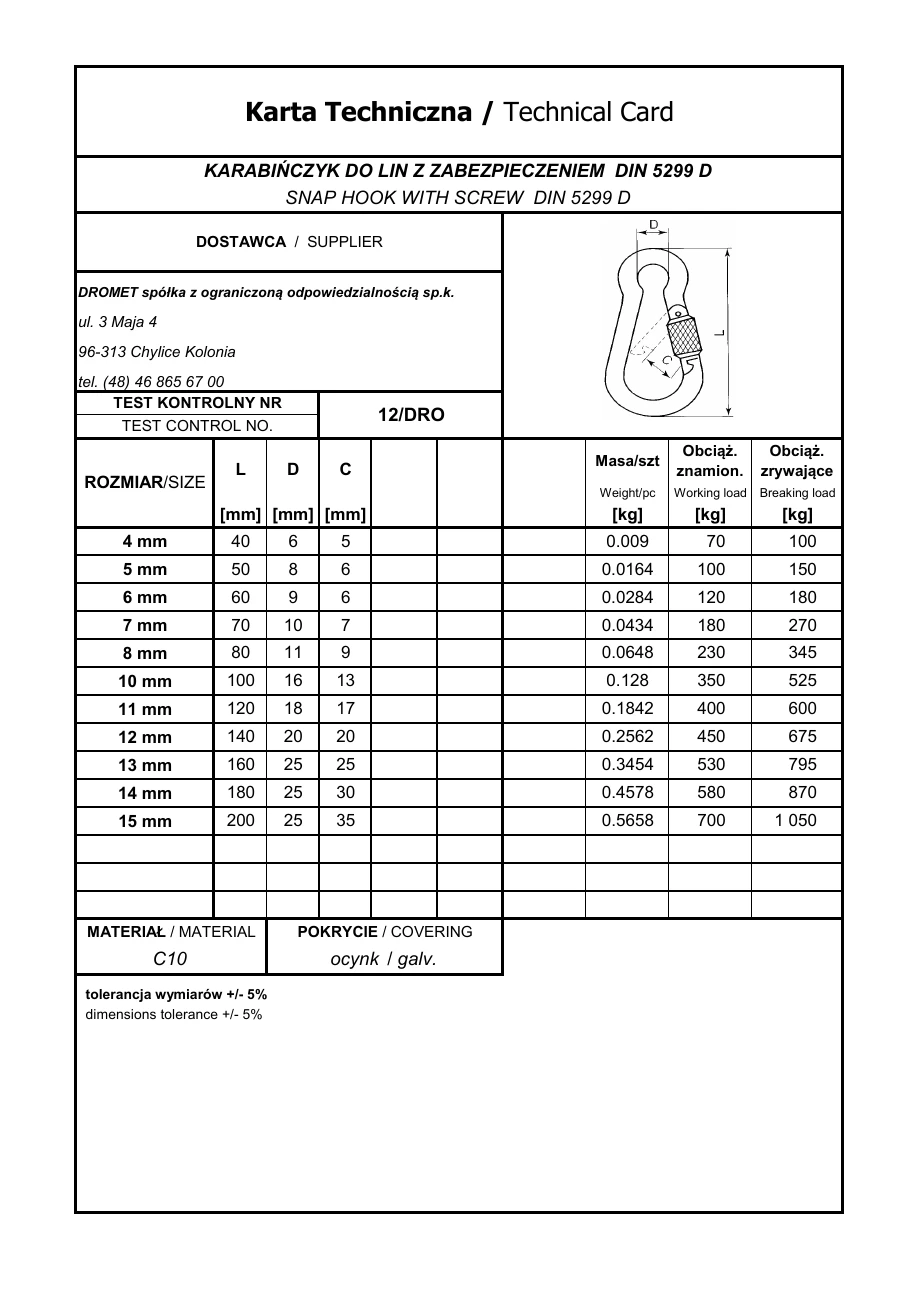

The manufacturer's data sheet (inspection test 12/DRO) presents the full range of KSZ series snap hooks, from size 4 mm to 15 mm. The 15×200 variant described here is the largest model in the series, offering the highest load capacity and the widest gate opening, which allows it to be used with components of considerable cross-section.
