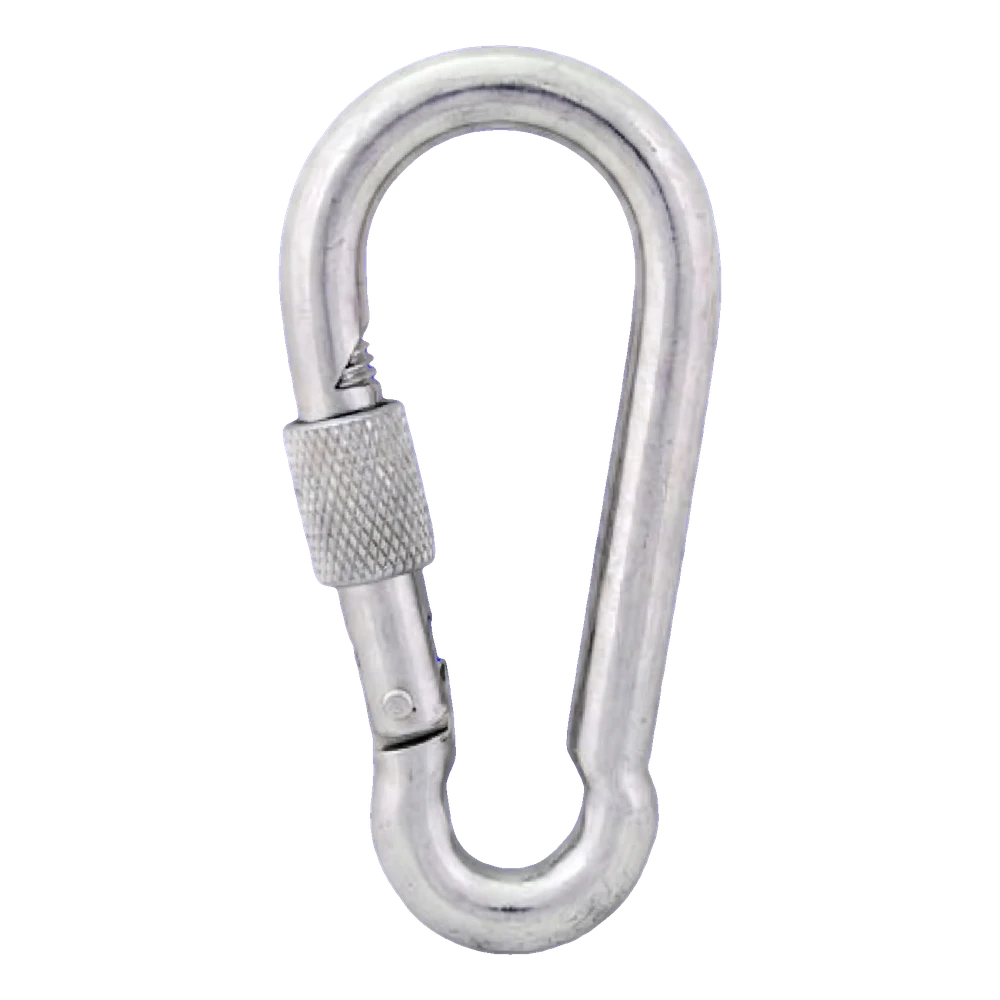

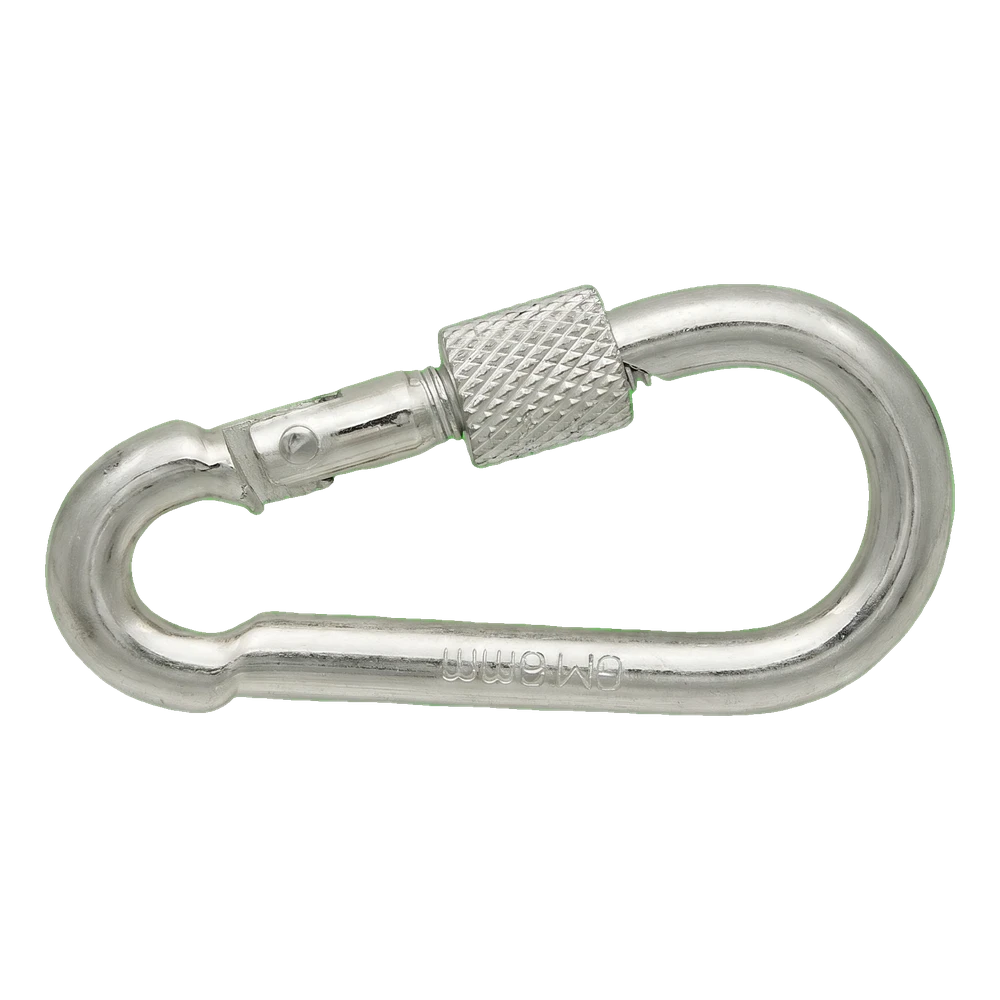

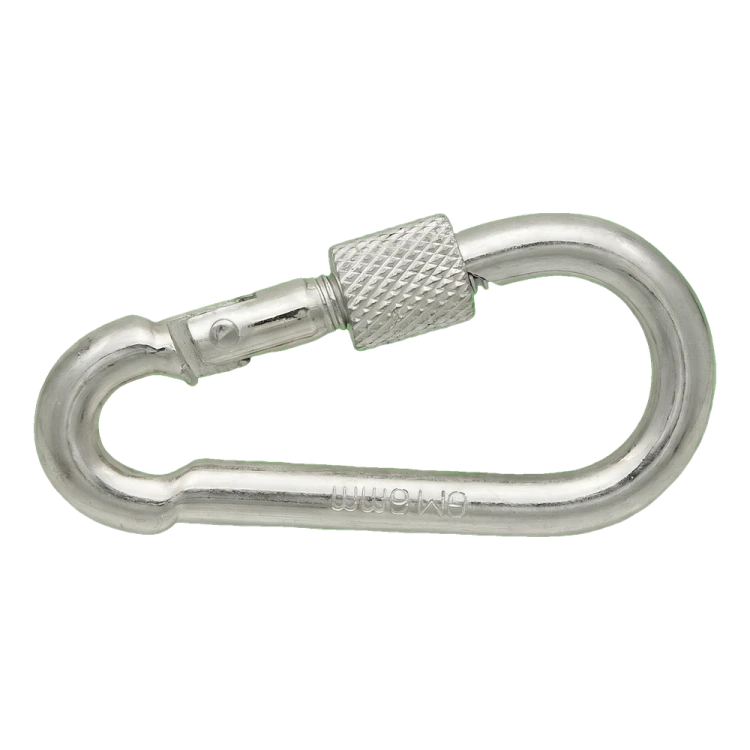

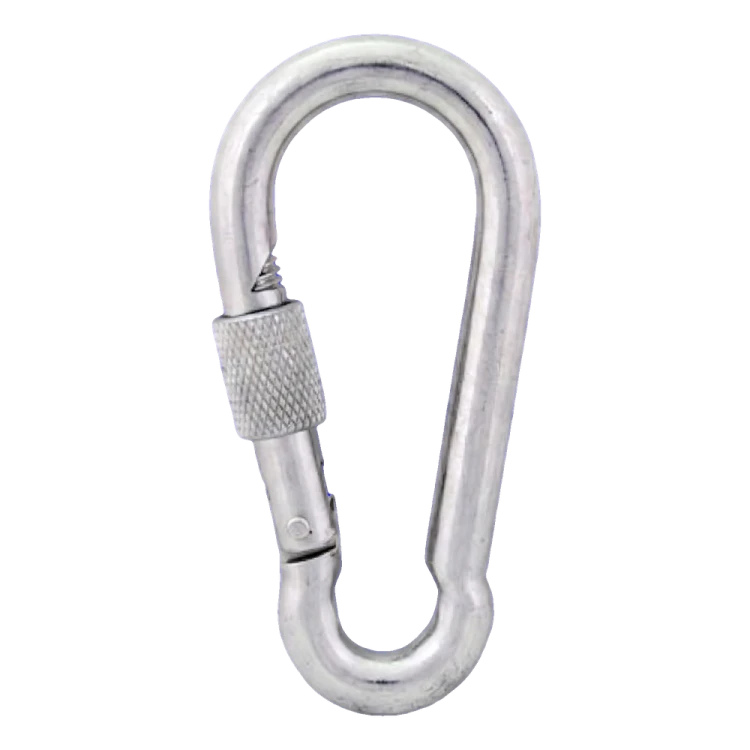

Snap hook with screw lock, galvanised, 13×160 mm – locking nut, DIN 5299 D
Leave feedback on the product
Snap hook with locking nut, galvanised, C10 steel. Dimensions 13 × 160 mm, outer diameter 25 mm, opening 25 mm. DIN 5299 D standard. Rated load 530 kg, breaking load 795 kg. Weight 0.3454 kg.
Product code: 002-426
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Snap hook with screw lock
- Diameter 13
- Max. load capacity [kg] 530
Description
Snap hook with screw lock, galvanised, 13×160 mm – locking nut, DIN 5299 D
The Snap hook with screw lock is a durable connecting fitting designed for the professional joining of wire ropes, chains and slings. The product is manufactured in accordance with DIN 5299D, which guarantees consistent strength parameters confirmed by the manufacturer's testing. The snap hook is closed by a knurled nut that effectively prevents accidental opening under load — an important feature for work at height and lifting operations. The galvanised surface of the body protects the element against corrosion in changeable weather conditions, allowing long-term use both indoors and outdoors.
Applications and advantages
- Connecting wire ropes, chains and slings in assembly and lifting installations
- Knurled locking nut protects against accidental opening when working under load
- Galvanised surface allows use in outdoor conditions

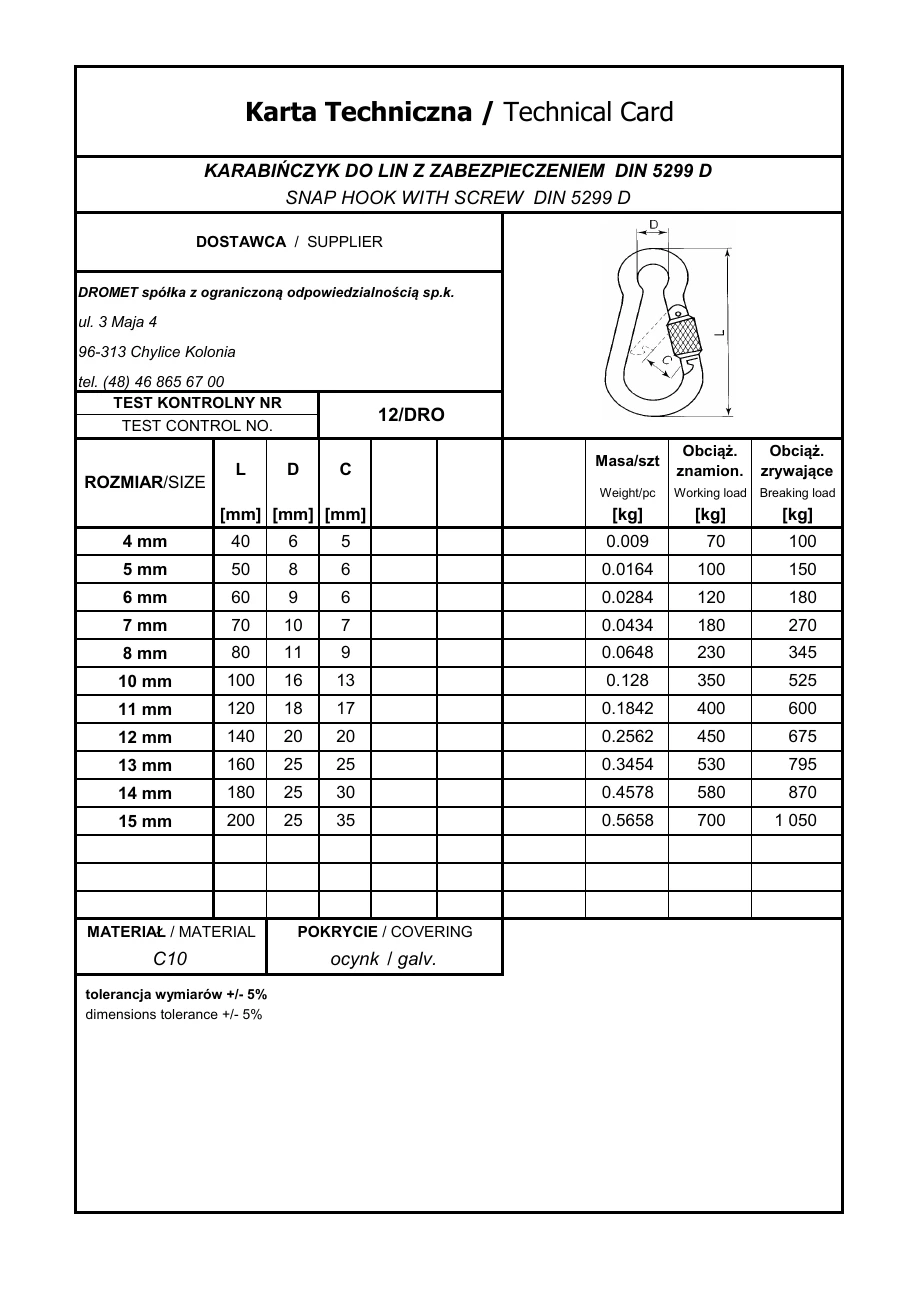

- Compliance with DIN 5299D confirmed by the manufacturer's technical data sheet
