Set of 5-roller trolleys for self-supporting sliding gates with accessories

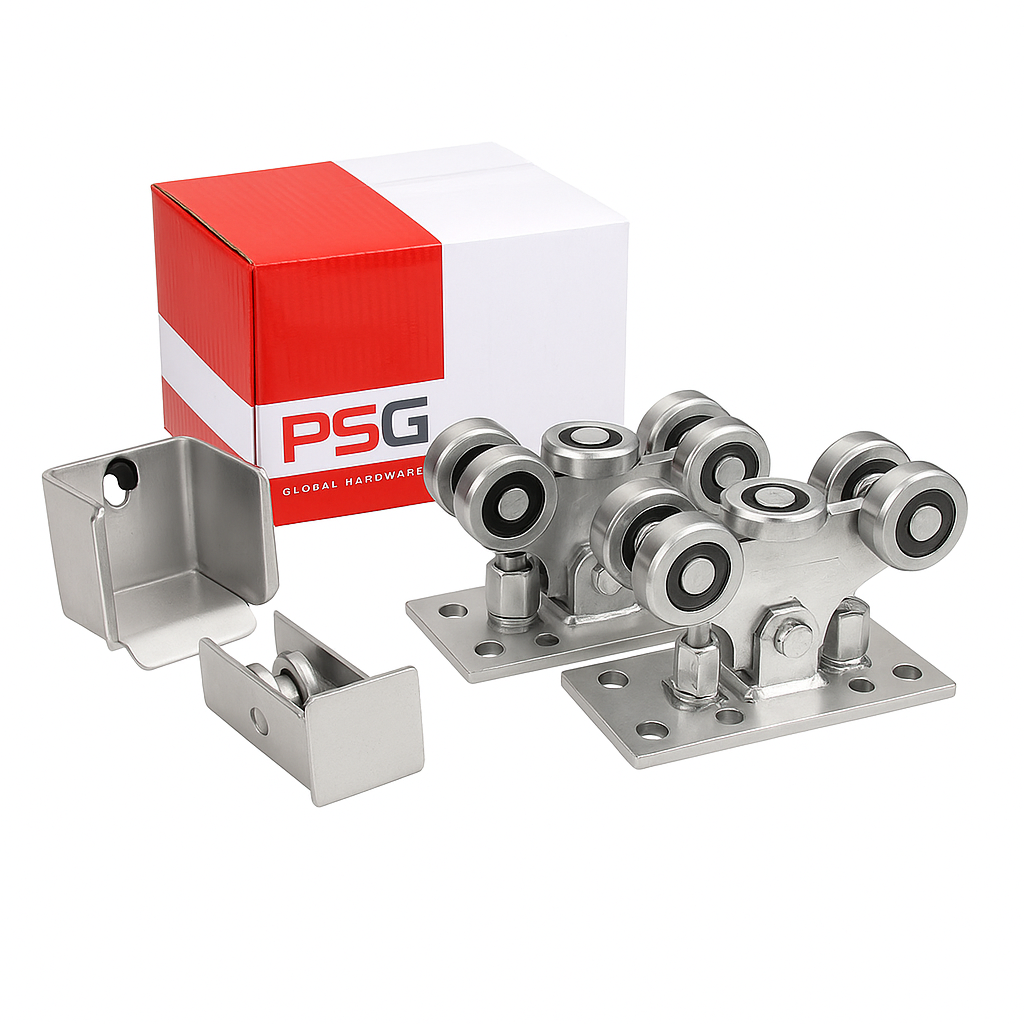

Set Contents

• Gate trolley with 5 metal rollers — 2 pcs.
• Guide roller with protective end cap — 1 pc.
• Steel guide roller bracket with rubber buffer — 1 pc.
• Mounting screws included

General Set Specifications

• Set weight: 12.24 kg
• Packaging volume: 10,500 cm³
• EAN: 5901289674720

Gate Trolley — Construction and Operation

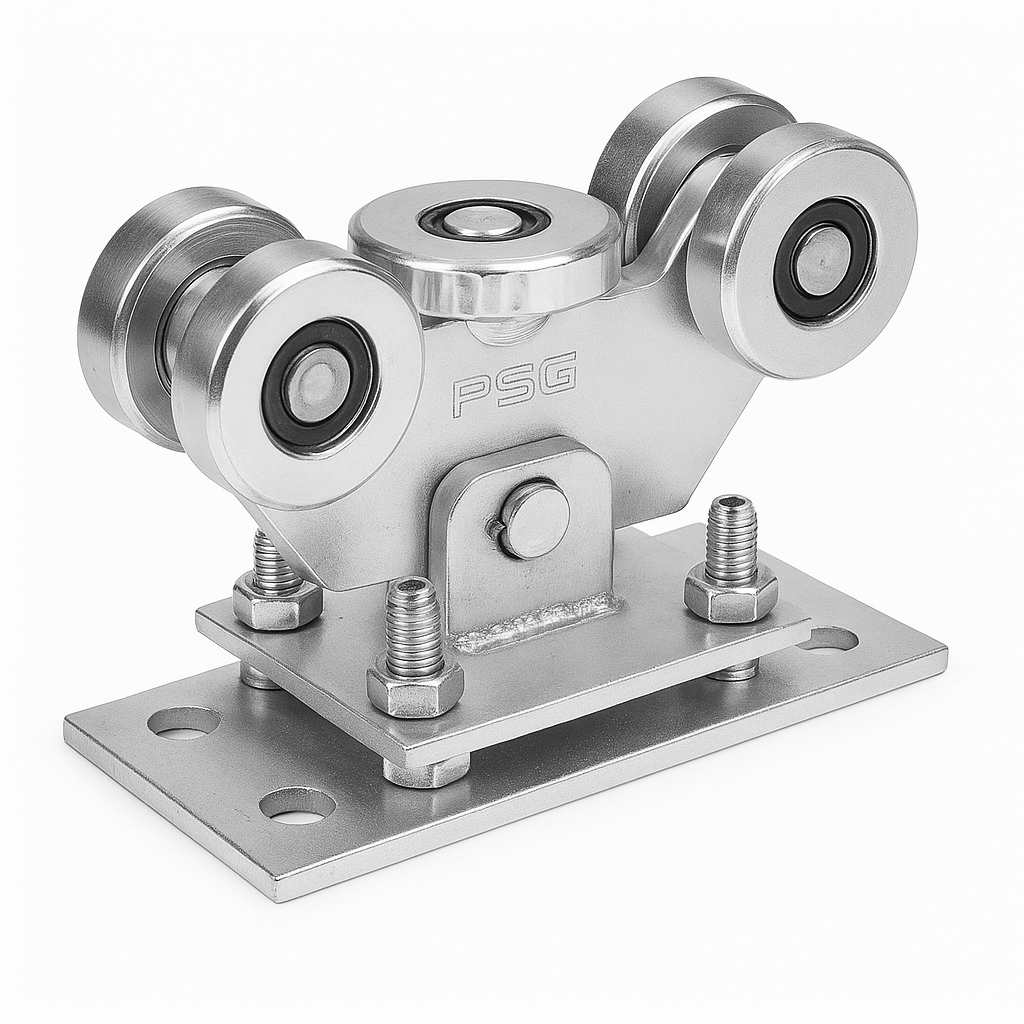

The gate trolley is fitted with 5 metal rollers, including 1 horizontal roller, ensuring stable guidance of the gate along the track. The swivel construction — the trolley is connected to the base plate via a pivot pin — means it automatically adjusts to the sliding gate, compensating for any unevenness or deviation in the track. The trolley height is adjustable via screws, facilitating precise gate alignment during installation.

• Number of rollers: 5 (including 1 horizontal)
• Construction: swivel (pivot pin connecting to base plate)
• Height adjustment: screw-type
• Compatible track: 70×70×4 mm
• Corrosion protection: electrogalvanised

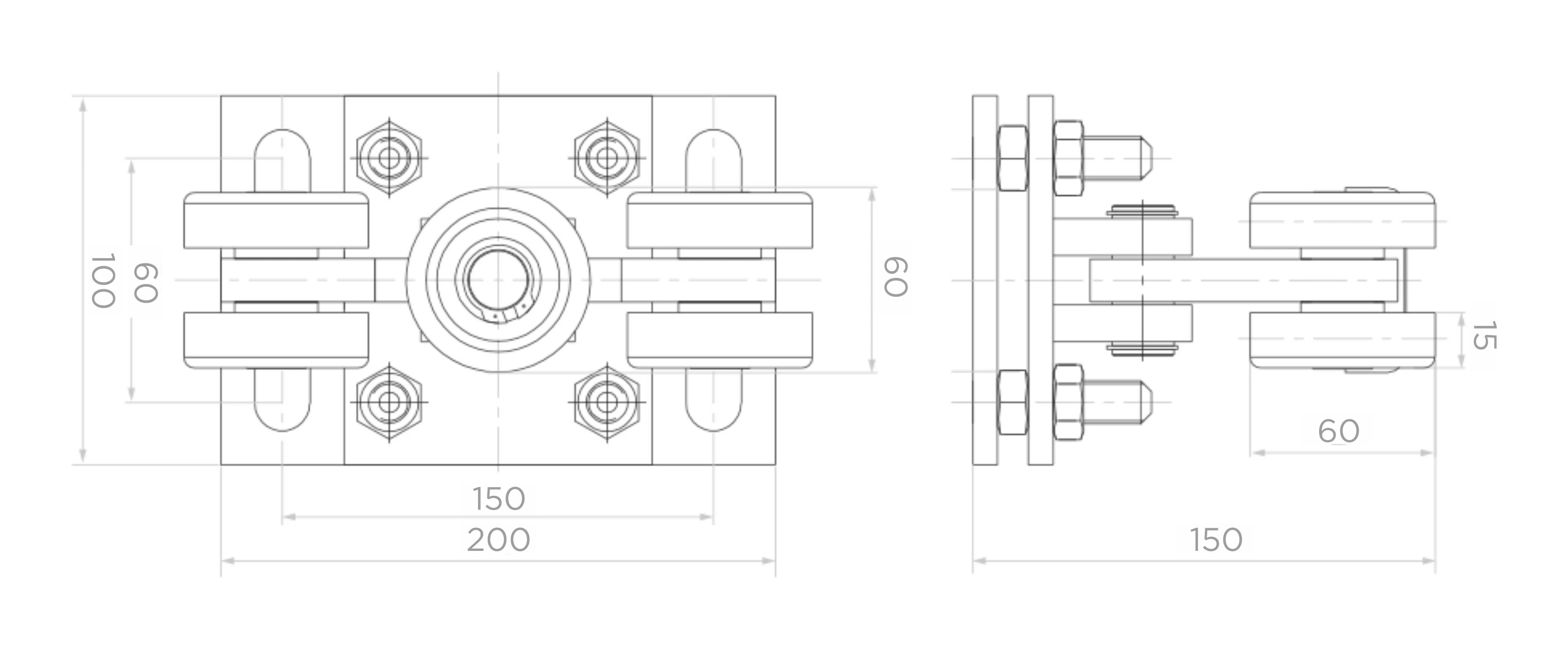

Gate Trolley Dimensions

• Base plate dimensions (L × W): 200 × 100 mm
• Mounting hole spacing: 150 × 60 mm
• Overall height: 150 mm
• Roller height above base plate: 60 mm
• Mounting base plate thickness: 15 mm

Guide Roller with Protective End Cap

A steel guide roller mounted at the beginning of the track on a self-supporting sliding gate. Fitted with a protective end cap that shields the inside of the track from the ingress of snow, ice and debris — particularly important for installations operating in harsh weather conditions. Mounting screws are included.

• Material: steel
• Compatible track: 70×70×4 mm
• Protective end cap: yes (protection against snow and ice)
• Mounting screws: included
• Corrosion protection: electrogalvanised

Steel Guide Roller Bracket

The guide roller bracket is fixed to the gate post and receives the guide roller as the gate closes. This design means the gate's weight is distributed across a greater number of components, stabilising the gate in the closed position and significantly extending the service life of the gate trolleys. The rear face features 2 mounting holes and a rubber buffer to absorb impact.

• Material: steel
• Compatible tracks: 70×70×4 mm and 80×80×5 mm
• Mounting holes: 2 pcs. (rear face)
• Buffer: rubber
• Corrosion protection: electrogalvanised

Selecting the Trolley Spacing

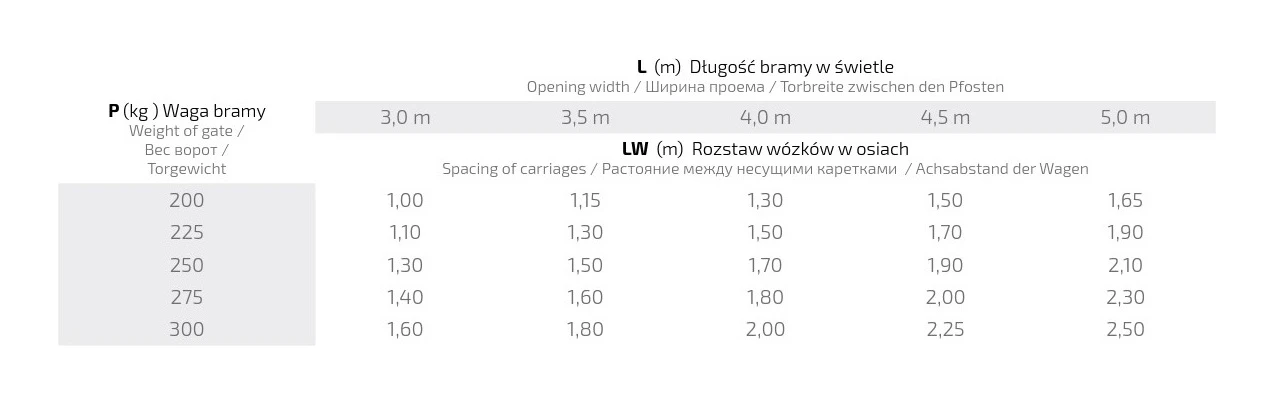

The correct trolley spacing (LW) depends on the clear opening width of the gate (L) and the gate weight (P). The table below shows the recommended trolley spacing values in metres, ensuring optimal performance and system longevity:

• Gate weight 200 kg: spacing from 1.00 m (L=3.0 m) to 1.65 m (L=5.0 m)
• Gate weight 225 kg: spacing from 1.10 m (L=3.0 m) to 1.90 m (L=5.0 m)
• Gate weight 250 kg: spacing from 1.30 m (L=3.0 m) to 2.10 m (L=5.0 m)
• Gate weight 275 kg: spacing from 1.40 m (L=3.0 m) to 2.30 m (L=5.0 m)
• Gate weight 300 kg: spacing from 1.60 m (L=3.0 m) to 2.50 m (L=5.0 m)

Clear opening widths covered by the table: 3.0 m, 3.5 m, 4.0 m, 4.5 m and 5.0 m.

All components in the set are electrogalvanised, providing effective corrosion protection and long-term durability in both indoor installations and those exposed to variable weather conditions. The complete package allows an installation company to order all the required hardware in a single line item — with no risk of overlooking any component.
