SE800 Ballast System for Horizontal Mounting of Photovoltaic Panels on Flat Roofs - 16 pcs
Leave feedback on the product
Prefabricated concrete ballast block C40/50 for horizontal mounting of PV panels on flat roofs. Non-invasive installation without drilling, compatible with modules up to 2000 mm.
Product code: GPV-600-01
Description

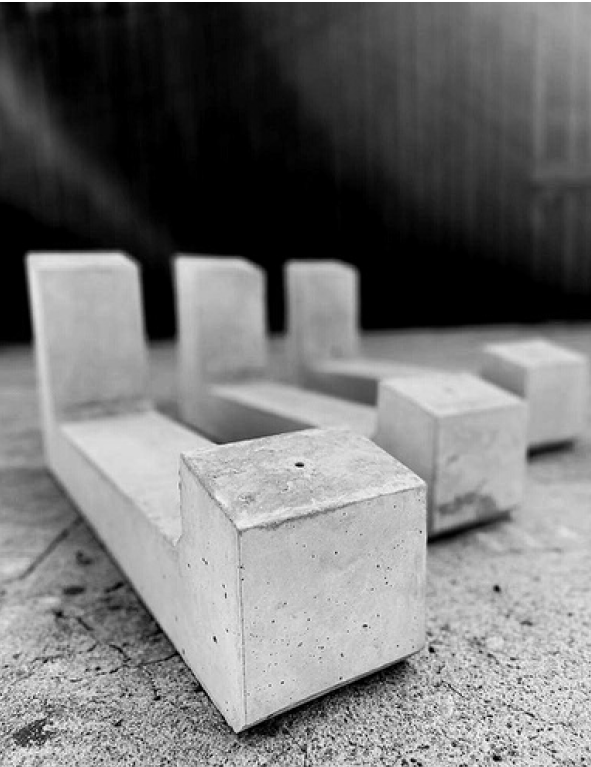

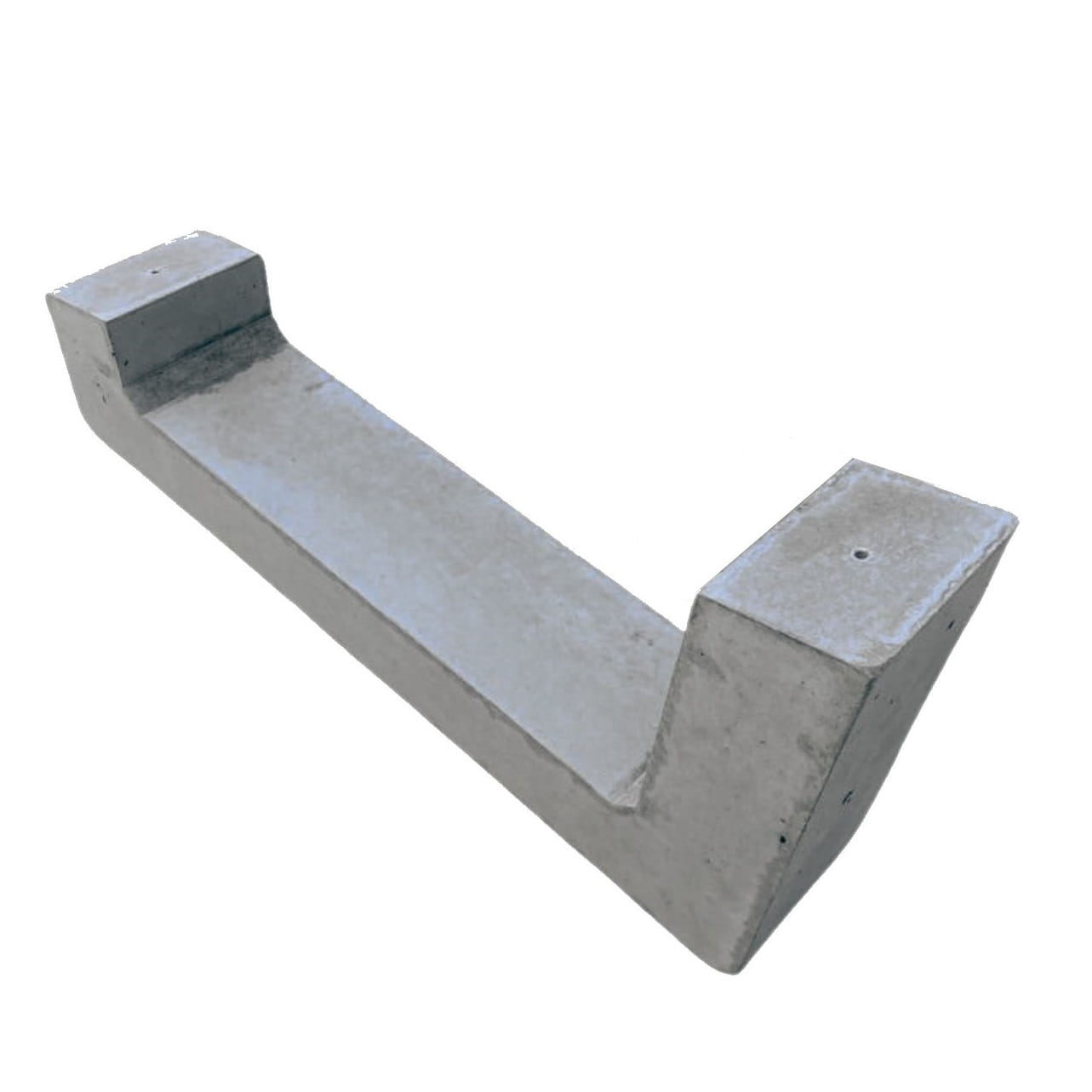

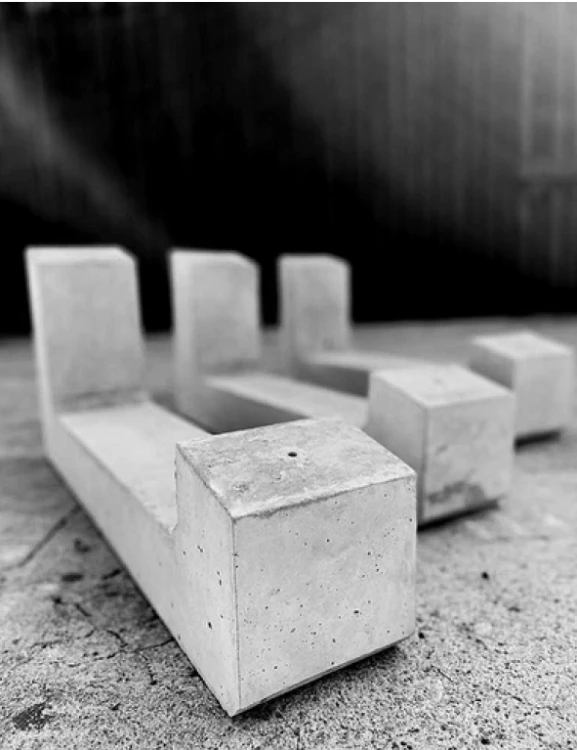

Concrete ballast block for horizontal PV mounting on flat roofs
The GPV-600-01 ballast block is a prefabricated concrete element designed for horizontal mounting of photovoltaic panels on flat roofs. An ideal solution for installers who need a fast, safe and non-invasive mounting system – without the need to drill into the roof covering.
Why choose a ballast system? Non-invasive installation means no penetration of the roof membrane and full preservation of the covering's integrity. The weight of the concrete blocks stabilises the installation even in strong winds, whilst the well-designed shape of the elements enables optimal panel positioning in a horizontal orientation.
Key product features
- C40/50 grade concrete: high strength and resistance to weather conditions

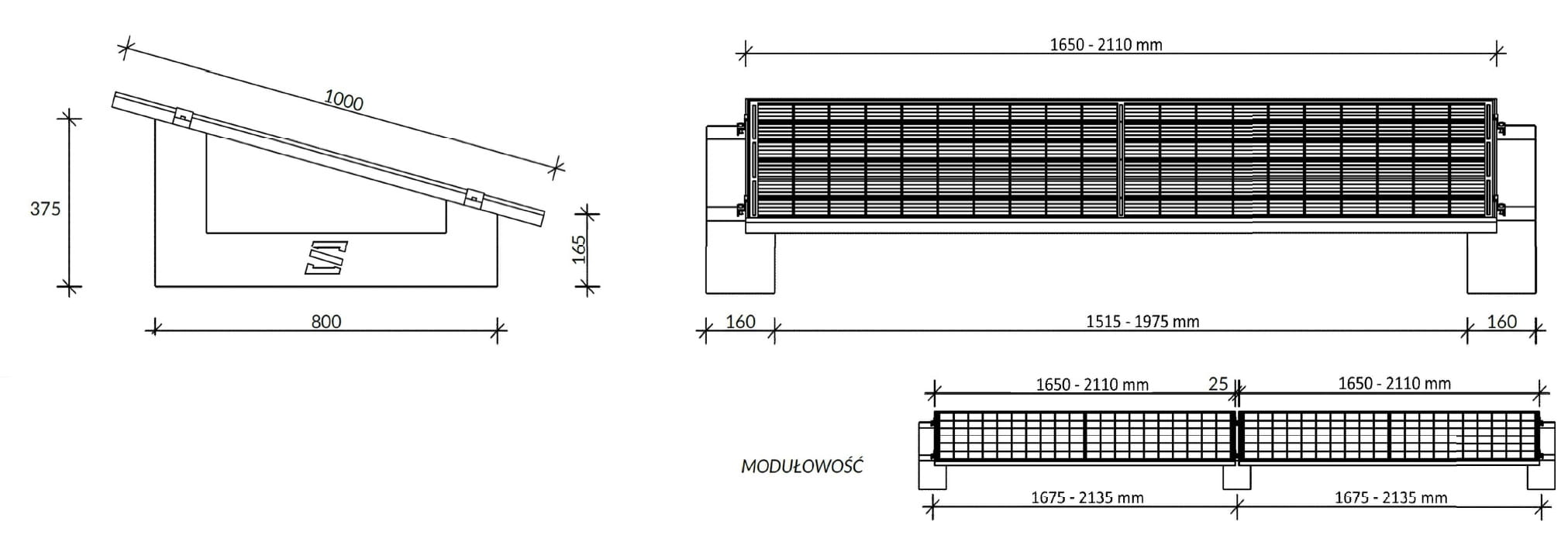

- Versatility: compatible with PV modules up to 2000 mm in length
- Installation without drilling: preservation of the roof's structural integrity
- Optimal weight: stable anchoring of panels in strong winds
- Durability: designed for many years of maintenance-free operation
Quick installation is one of the system's main advantages. The prefabricated blocks simply need to be positioned on the roof and the photovoltaic modules mounted on them. A two-person team can complete the installation in significantly less time than with traditional systems requiring mechanical anchoring.
Benefits for installation companies
- Reduced installation time: ready-made elements eliminate the need to prepare structures on site
- Design flexibility: maximum utilisation of available roof area
- Minimal maintenance: system designed for years of service-free operation
- Easy cleaning: simple access to panels during servicing

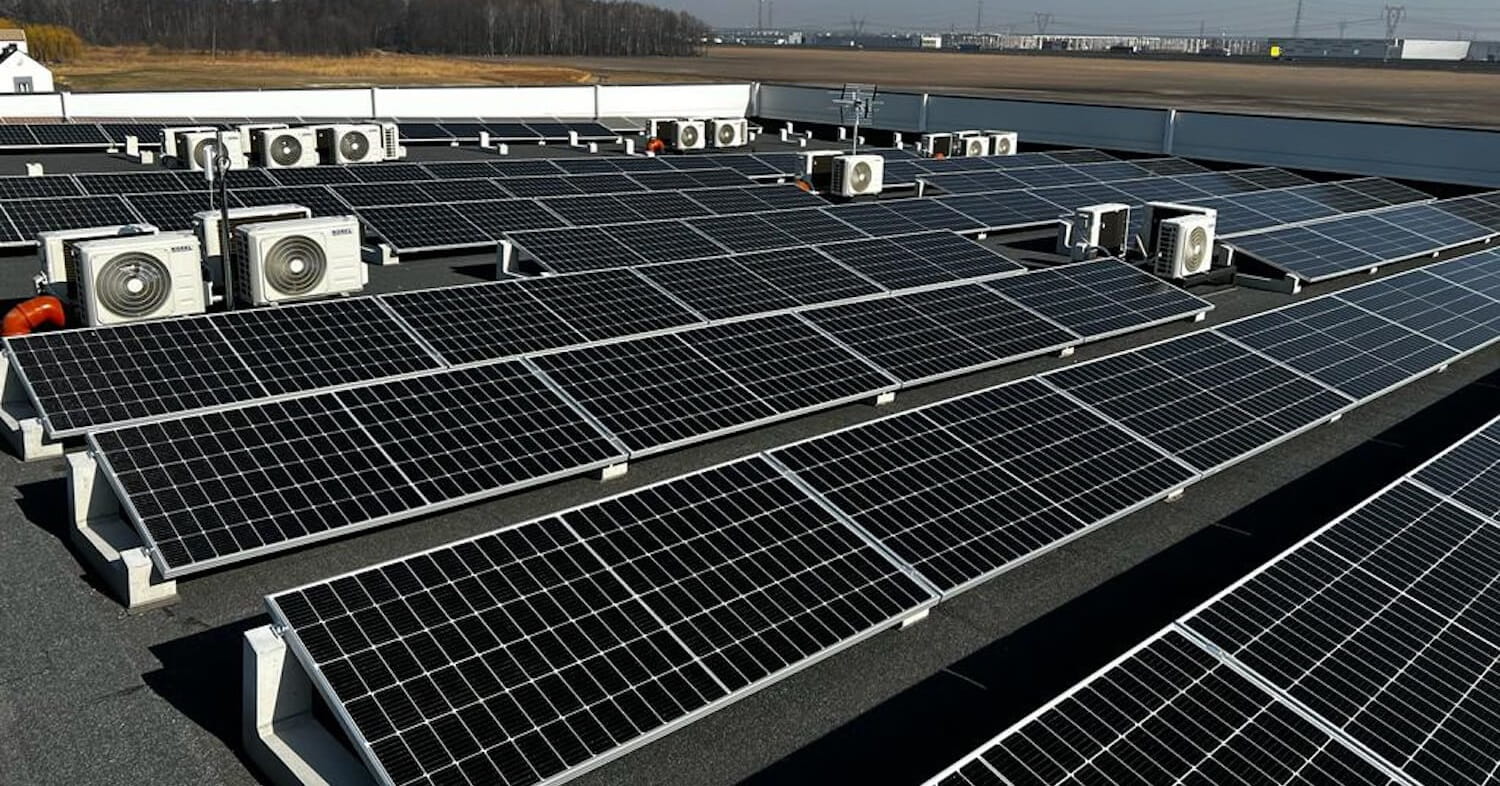

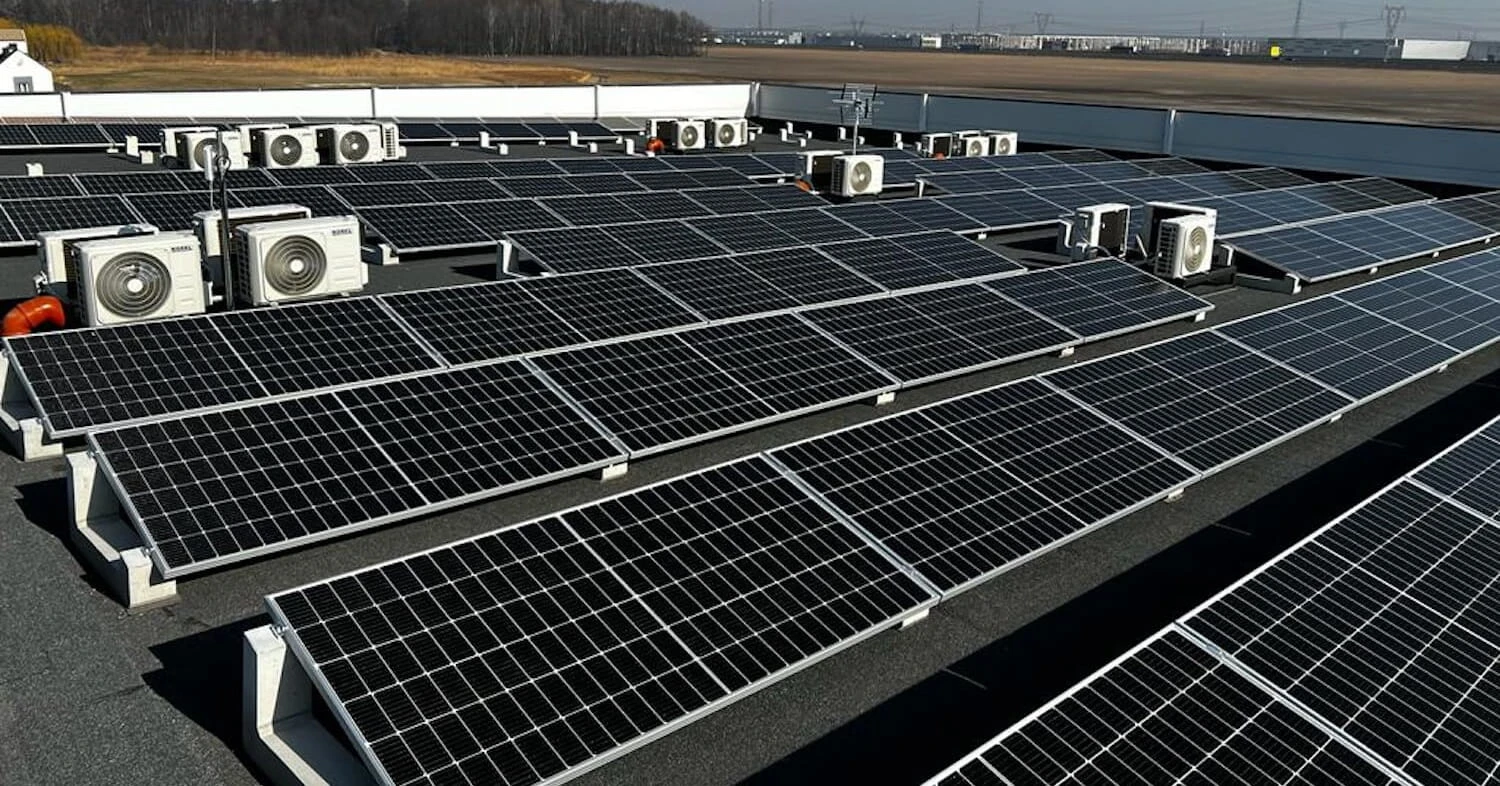

The GPV-600-01 ballast system is particularly recommended for commercial and industrial buildings with flat roofs, where drilling is undesirable or impossible due to the type of covering. The design based on strict construction standards guarantees a safe and reliable installation for many years.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Files to download
Reviews
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
Related products
-
Price €37.73Price €30.68without VAT
