S500 Roof Hook for Pitched Roofs 500x30x4mm M10 Stainless Steel
product unavailable
add to wish list
Description

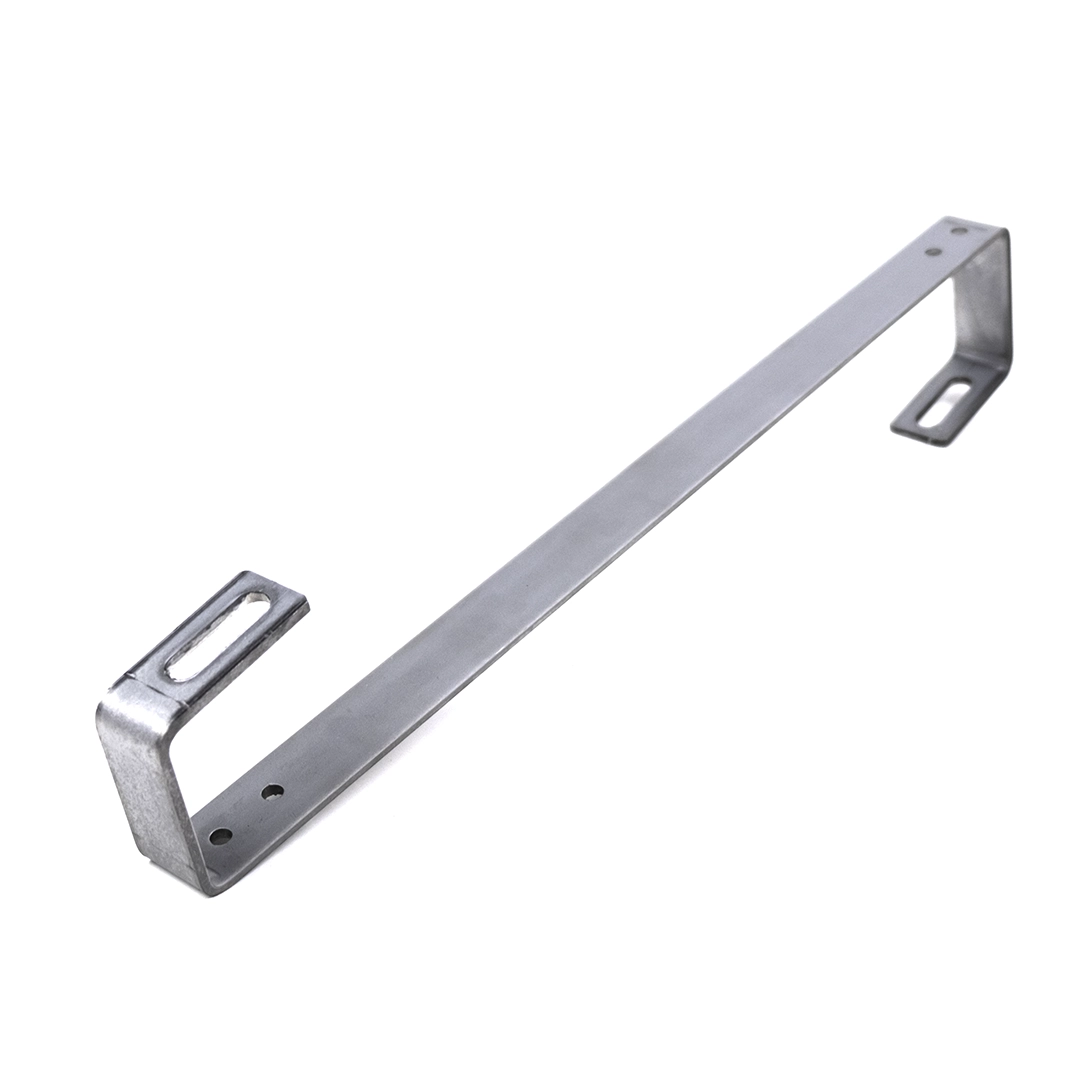

S500 Roof Hook for Pitched Roofs
S Roof Hook for pitched roofs, stainless steel 1.4016, dimensions 500x30x4mm with M10 hole for mounting rail in photovoltaic systems.
The S Hook is designed for mounting photovoltaic panels on roofs covered with ceramic or concrete tiles with a maximum thickness of 60 mm. The bracket enables the installation of mounting rails with dimensions of 40×40 mm to a batten with a maximum thickness of 50 mm.
Made from stainless steel, guaranteeing protection against adverse weather conditions. The upper part of the element features an M7 hole for an M6 screw, which allows the bracket to be screwed to the batten and increases the rigidity of the structure. The elongated hole in the post allows for adjustment of the mounting rail positioning.

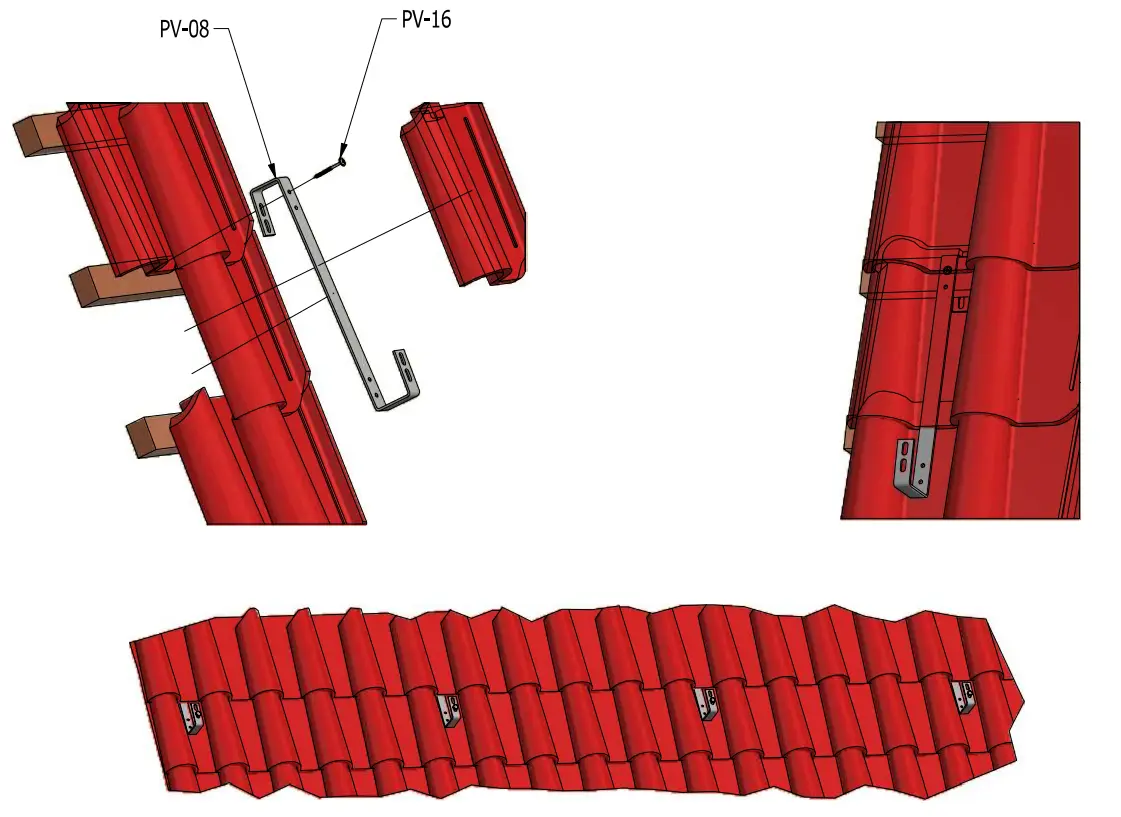

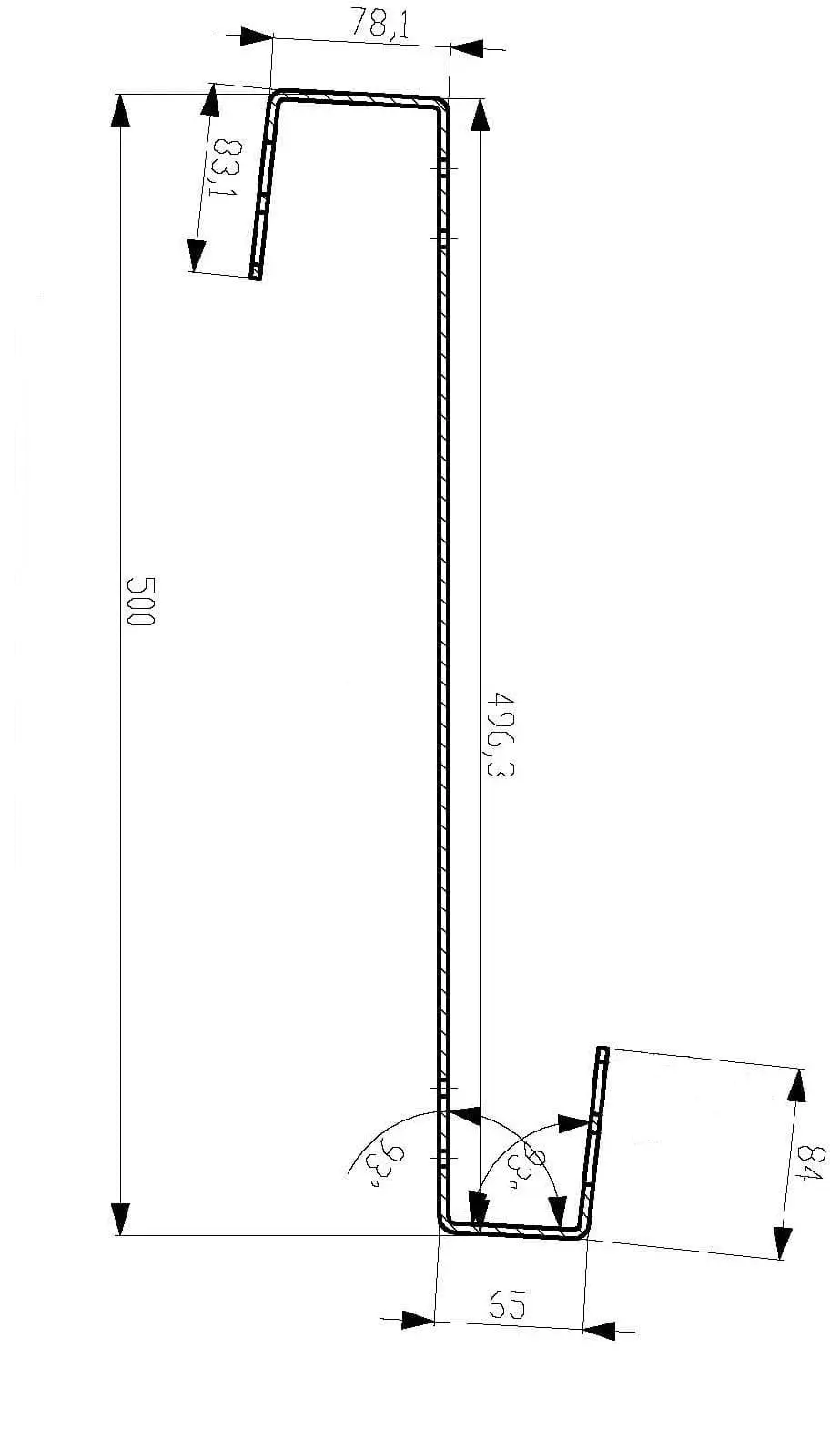

- The installation method and exact dimensions of the hook are shown in the graphics above.
- The H17 steel from which the hooks are made is characterised by high resistance to adverse environmental conditions (stainless steel).
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Type | S roof hook |
| Adjustment | No |
| Steel Grade | H17 |
