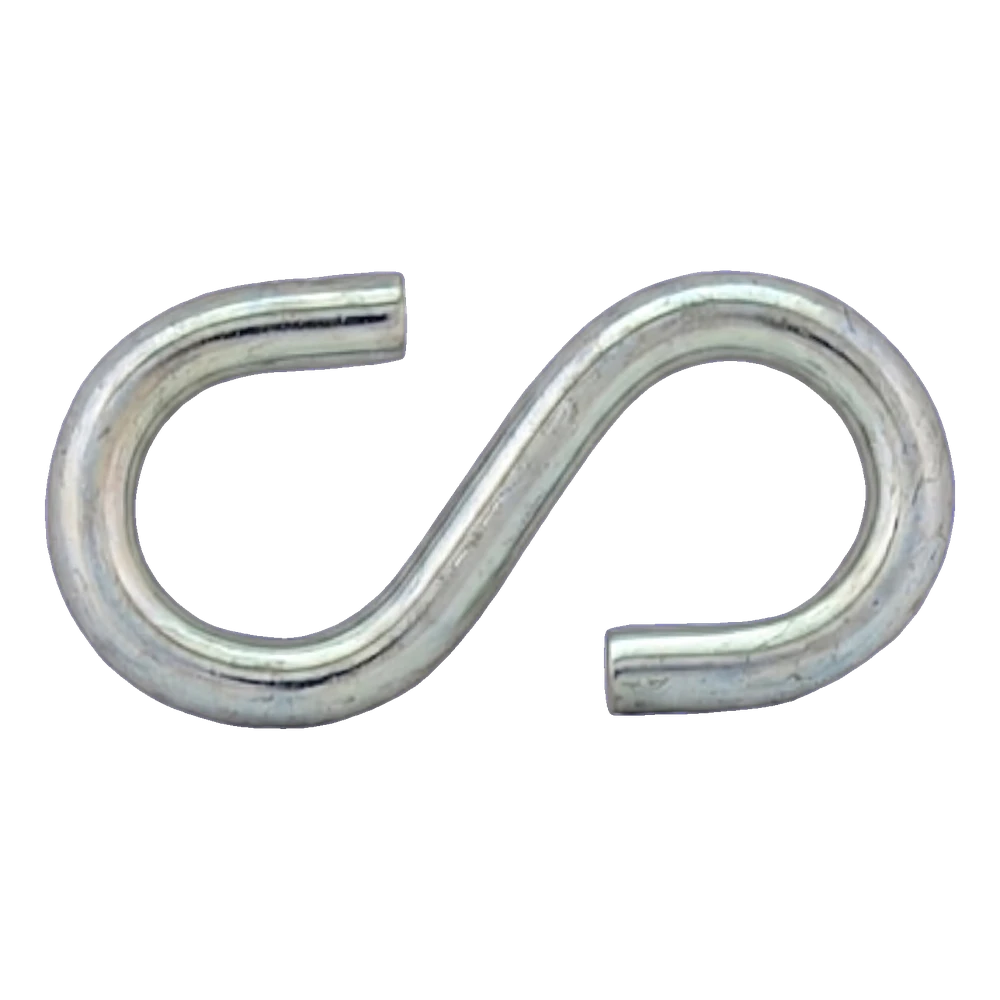

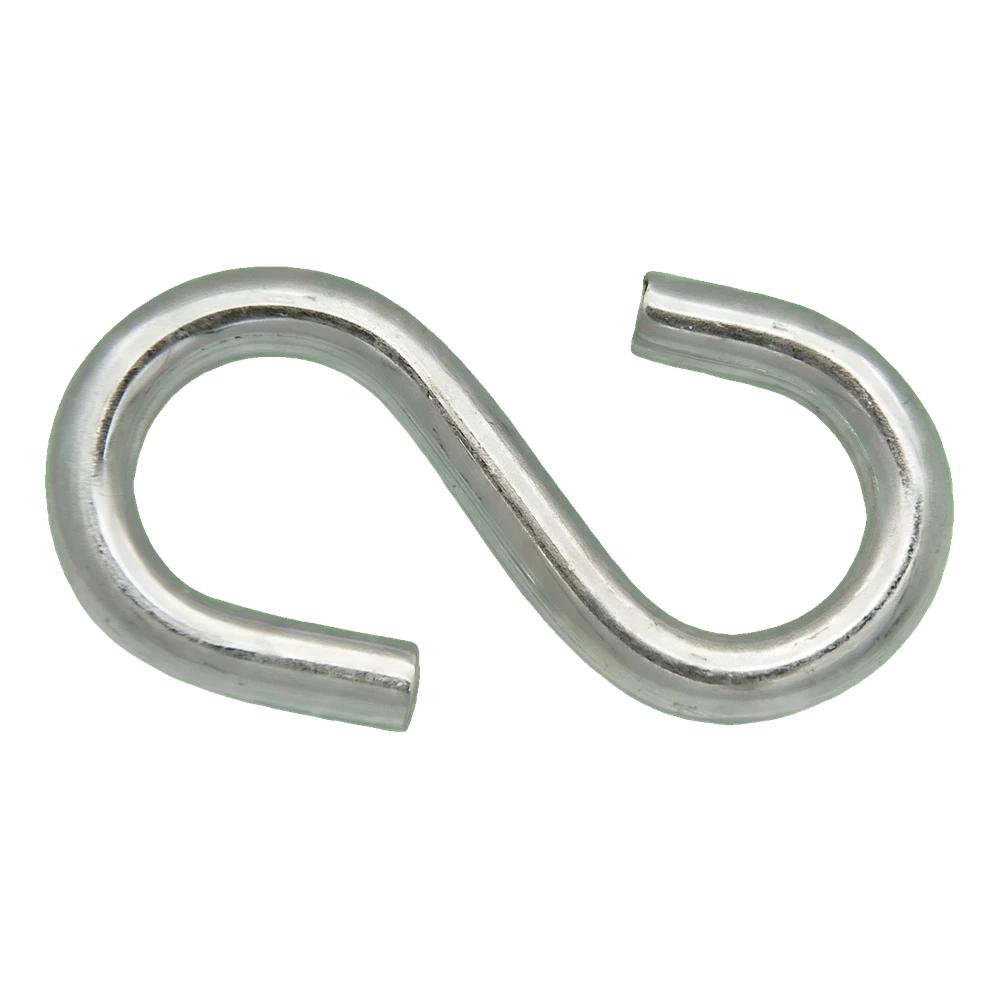

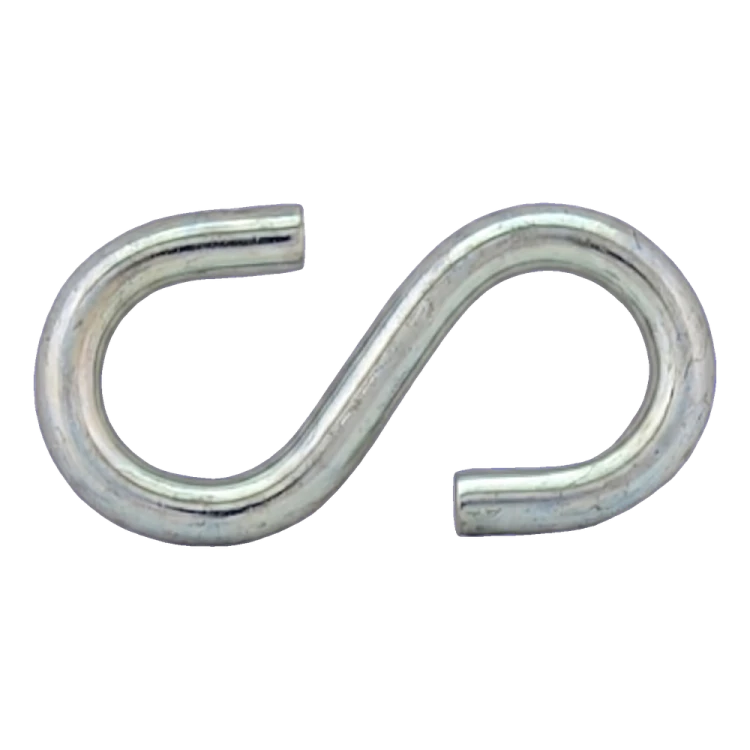

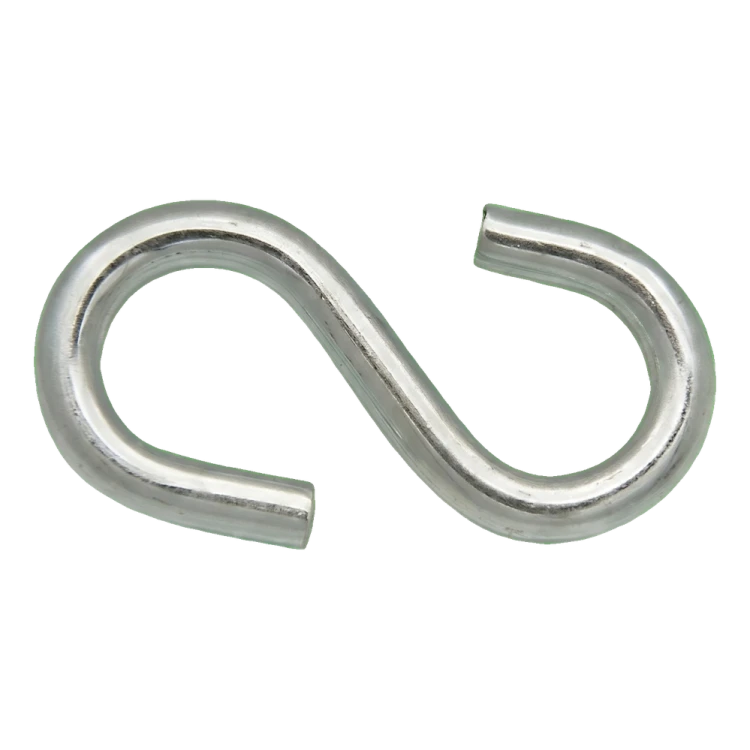

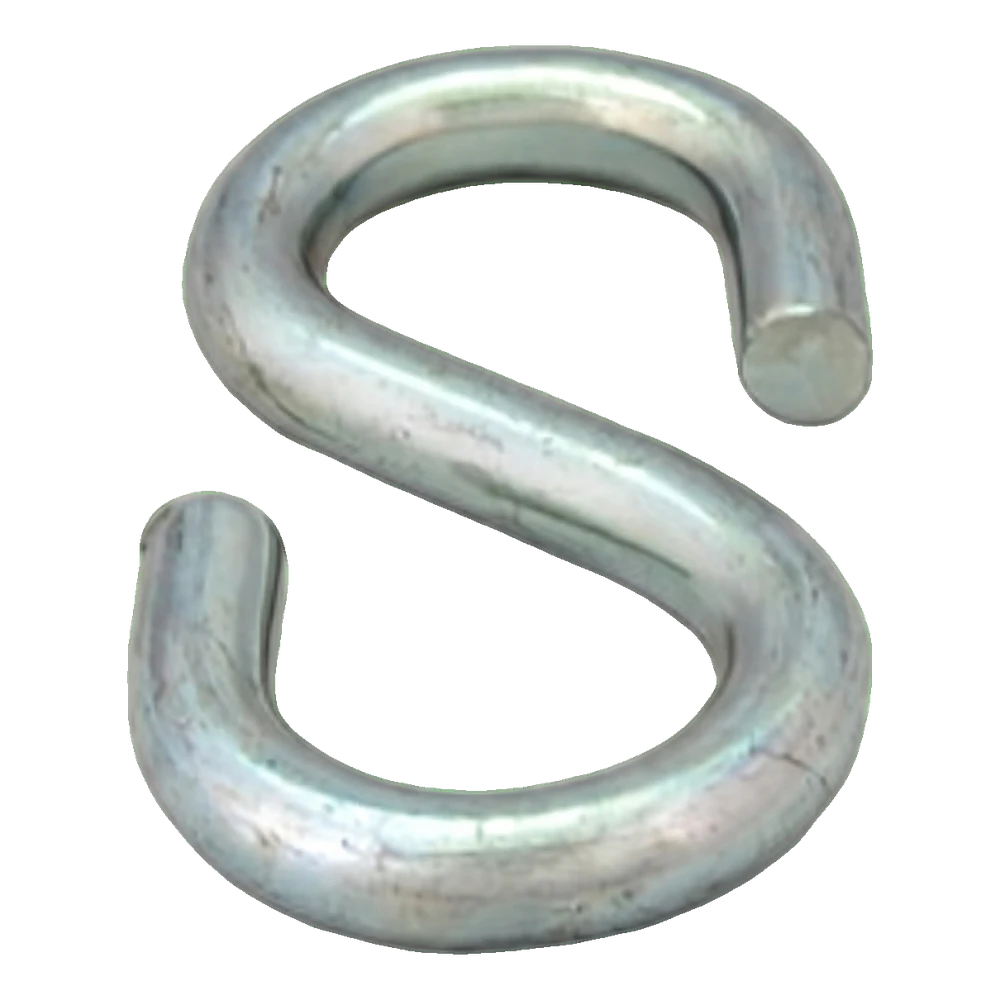

S-shaped chain connecting link, galvanised 3 mm – rated load 10 kg
Leave feedback on the product

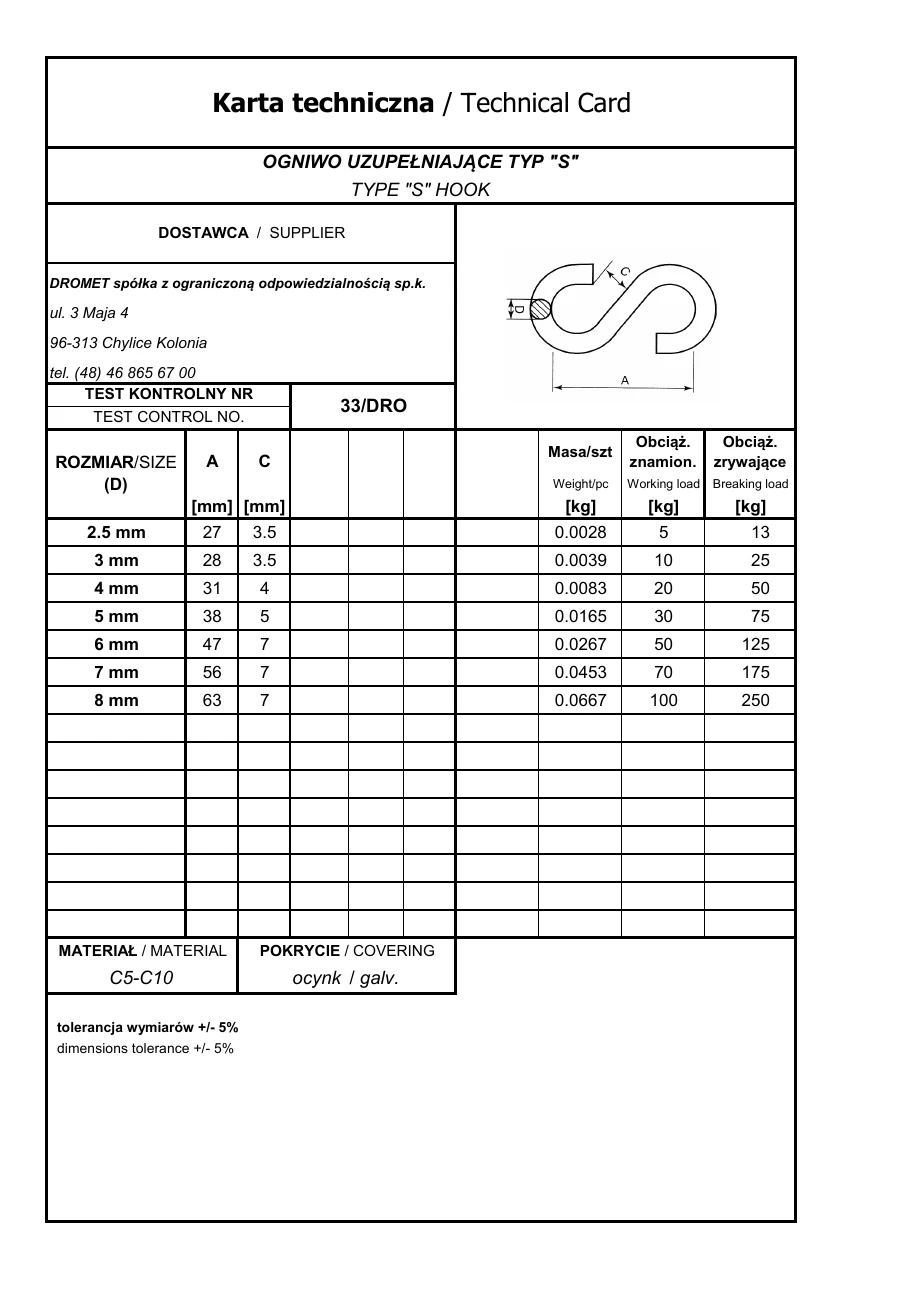

S-shaped chain connecting link, galvanised, made of C5–C10 steel. Wire diameter 3 mm, length 28 mm, width 3.5 mm (tolerance ±5%). Rated load 10 kg, breaking load 25 kg. Weight 0.0039 kg. For connecting 3 mm chains.
Product code: 002-552
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type S-hook link
- Diameter 3
- Max. load capacity [kg] 10
Description
S-shaped chain connecting link, galvanised 3 mm – rated load 10 kg
The 3 mm "S" S-shaped chain connecting link is a compact connecting element designed for quickly joining lengths of chain. The link is made of C5–C10 steel with a galvanised coating, which provides effective protection against corrosion in typical operating conditions. Thanks to its simple S-shaped design, the chain is hooked onto both ends of the link, which is then closed with pliers – installation requires no additional tools or accessories. The link is ideal wherever a reliable chain connection is needed that is also easy to make on site. The product is sold as a single unit (1 piece), so you can order exactly as many items as a given job requires.
Advantages of the S-shaped chain connecting link
- Quick installation – all you need is a pair of pliers to close the link ends around the chain links
- The galvanised coating protects against corrosion and extends the service life of the connection
- Minimal dead weight does not put additional load on the chain
- Tight dimensional tolerance ensures consistent fit with chains of 3 mm diameter
- Versatile use in light-duty installations – fencing, auxiliary slings, safety fixtures
