Running trolley for aluminium profile 5-roller with plastic rollers
Leave feedback on the product
Running carriage for self-supporting gates with 5 nylon rollers ø60 mm, monobloc galvanised steel body, load capacity 600 kg, mounting base 180×150 mm, weight 4.5 kg.
Product code: 000-325
Product features
[PIM] wozki #111
- Rail Size 60x60x4
- Product Type Single trolley
- Roller Material Nylon
- Number of Rollers [szt.] 5
- Trolley Construction Fixed
- Max. load capacity [kg] 600
- Running System Type Rolling system
Description

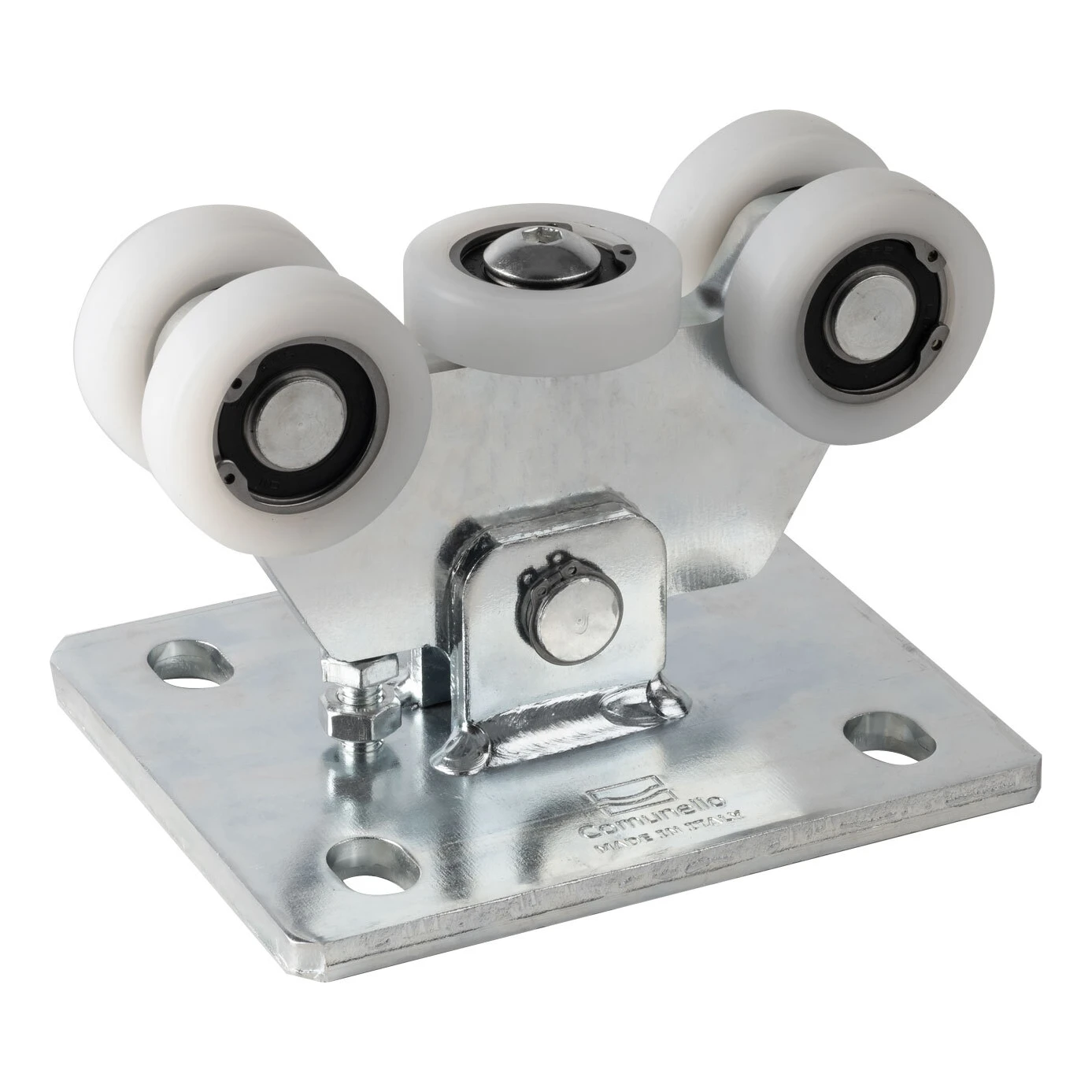

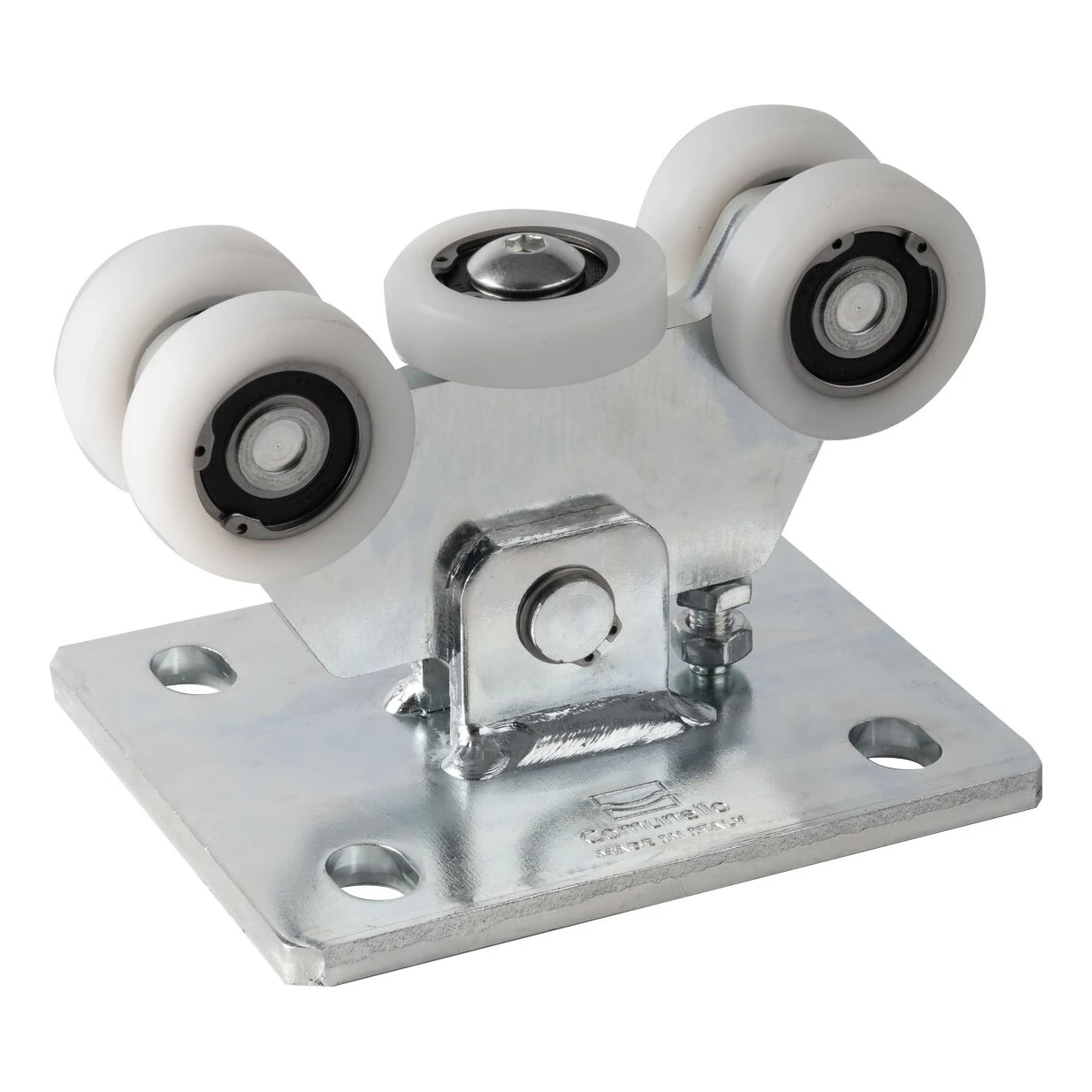

5-Roller Running Trolley for Cantilever Gates – Nylon Rollers, 600 kg
The 5-roller running trolley is a key component of cantilever (self-supporting) gate systems, responsible for the smooth and stable sliding of the gate leaf. Five rollers made from nylon, combined with a monobloc galvanised steel body, ensure quiet operation, minimal friction, and a high load capacity of up to 600 kg. This solution is suitable for both residential and industrial gate applications — wherever reliability and durability of the mechanism are paramount.
Monobloc Construction for Maximum Strength
The trolley body is manufactured using monobloc technology — cast from a single piece of steel — eliminating weak points at welds and maximising the rigidity of the entire structure. A zinc coating applied to the steel provides an effective anti-corrosion barrier, ensuring the trolley retains full performance even in demanding outdoor conditions — high humidity, rainfall, and temperature fluctuations. For installation teams, this means fewer warranty claims and a longer trouble-free service life for the end customer's gate.
Nylon Rollers — Quiet Operation and Low Wear
Five rollers with a diameter of ø60 mm, made from heavy-duty nylon, provide a significant reduction in noise compared to metal rollers. Nylon minimises friction, which reduces the load on the gate drive and lowers energy consumption. The rollers are mounted on ball bearings, which are wear components — they require periodic inspection and lubrication, but also allow easy replacement without the need to dismantle the entire trolley.

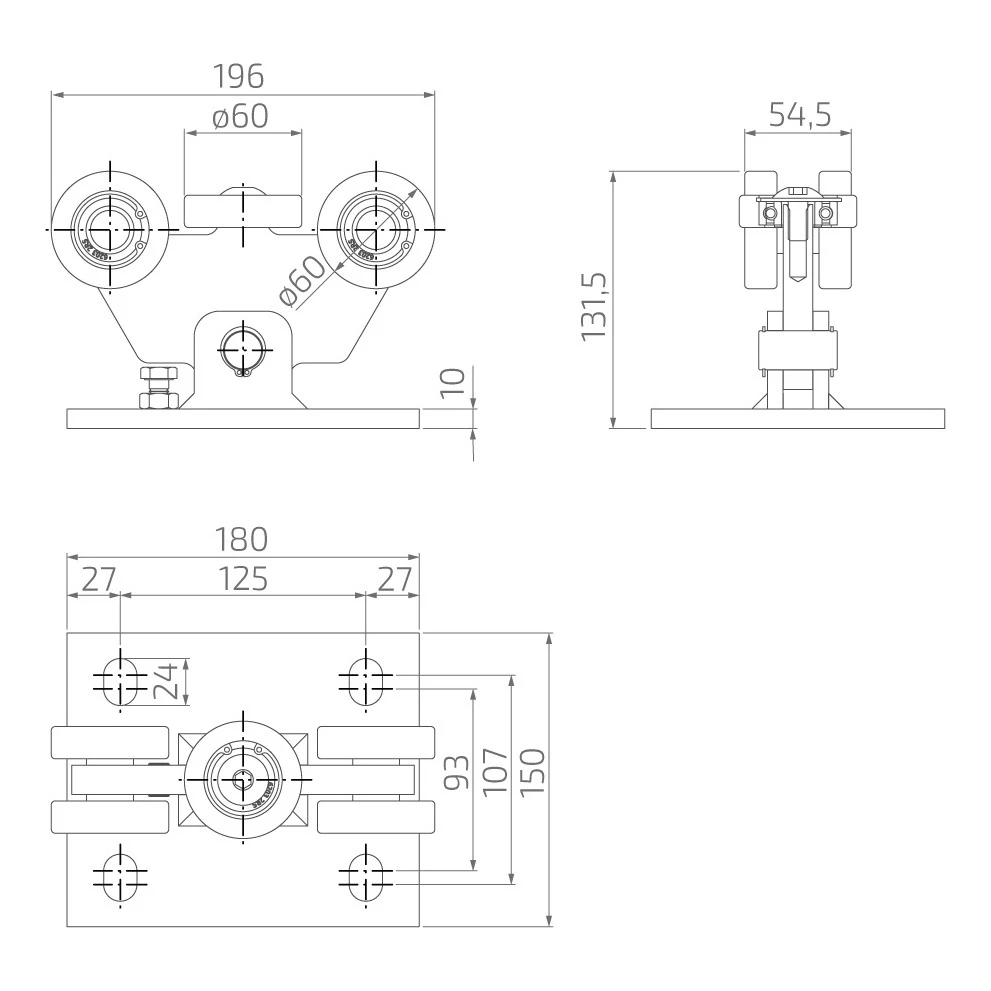

Dimensions and Technical Specifications
- Load capacity: 600 kg
- Number of rollers: 5 (nylon)
- Roller diameter: ø60 mm
- Overall height: 131.5 mm
- Overall length (between outermost rollers): 196 mm
- Width across outer roller edges: 54.5 mm
- Mounting base dimensions: 180 × 150 mm
- Base thickness: 10 mm
- Mounting hole spacing (longitudinal): 125 mm
- Mounting hole spacing (transverse): 107 mm
- Mounting holes: slotted (oblong) 24 mm in length
- Body material: galvanised steel
- Roller material: nylon
- Gate type: sliding cantilever (self-supporting)
- Weight: 4.5 kg
- EAN: 8028390963189
Wear Components and Maintenance
The components most susceptible to wear are the moving parts — the bearings and nylon wheels. To maintain optimum system performance, periodic visual inspection and bearing lubrication are recommended. Regular maintenance helps avoid costly repairs and ensures many years of trouble-free gate operation. The slotted (oblong) mounting holes in the base allow precise adjustment of the trolley position during installation, speeding up the fitting process and making it easier to achieve the ideal alignment of the running rail.
