Running trolley 70 for sliding gate 2 steel rollers and 1 plastic - narrow base
Leave feedback on the product
Sliding gate trolley for 70×70 mm rails with 2 steel rollers and 1 plastic roller on ball bearings. Galvanised body, weight 1.88 kg, slotted hole 20×12.5 mm.
Product code: 000-323
Product features
[PIM] wozki #111
- Rail Size 70x70x4
- Product Type Single trolley
- Roller Material Steel
- Number of Rollers [szt.] 3
- Trolley Construction Fixed
- Running System Type Suspended system
Description

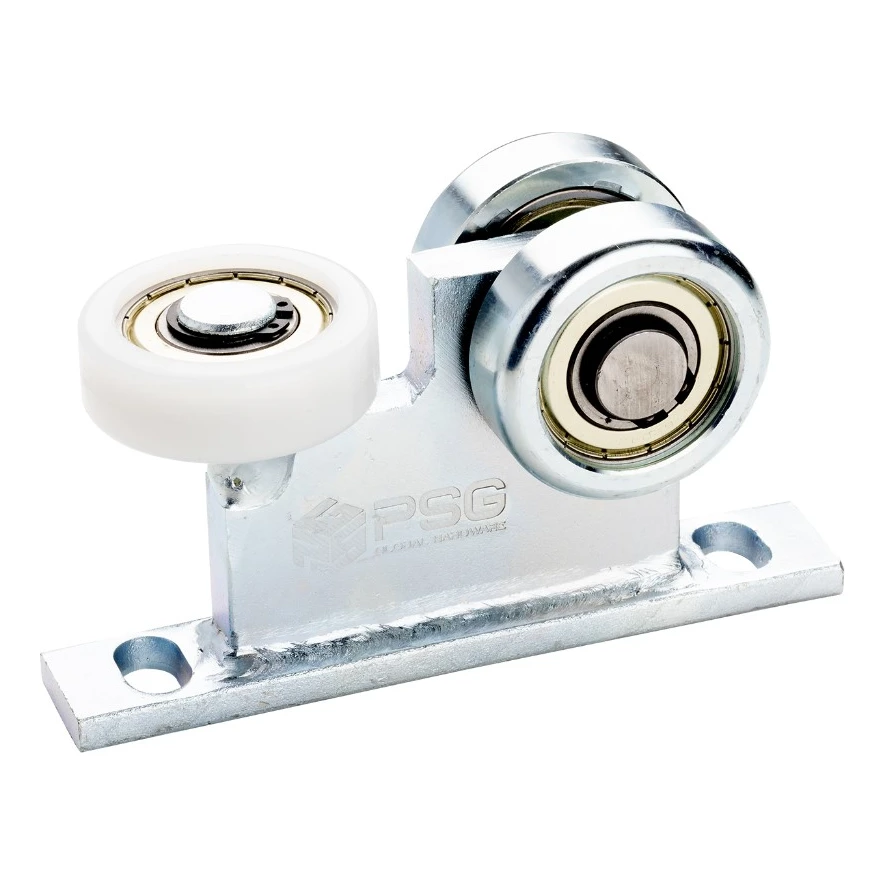

Sliding Trolley 70 for Suspended Gate – 2 Steel Rollers + 1 Plastic Roller
The Sliding Trolley 70 is a robust and precision-engineered component for sliding gate systems, designed to work with tracks in a 70×70 mm configuration. Fitted with two steel rollers and one plastic roller, it ensures smooth, quiet movement of the suspended gate — with minimal friction and resistance. The narrow mounting base makes installation straightforward even in confined spaces.
Construction and Materials
The trolley body is made from steel with a zinc coating, providing effective protection against corrosion. This makes the trolley suitable for use both indoors and outdoors — in conditions exposed to moisture and variable weather. The rollers are mounted on ball bearings, ensuring long-lasting, trouble-free operation and minimal rolling resistance.
The combination of two steel rollers (load-bearing) with one plastic roller (guiding) minimises noise during operation and reduces friction, enhancing user comfort. This solution is particularly well suited to commercial premises and industrial units where quiet operation is essential.

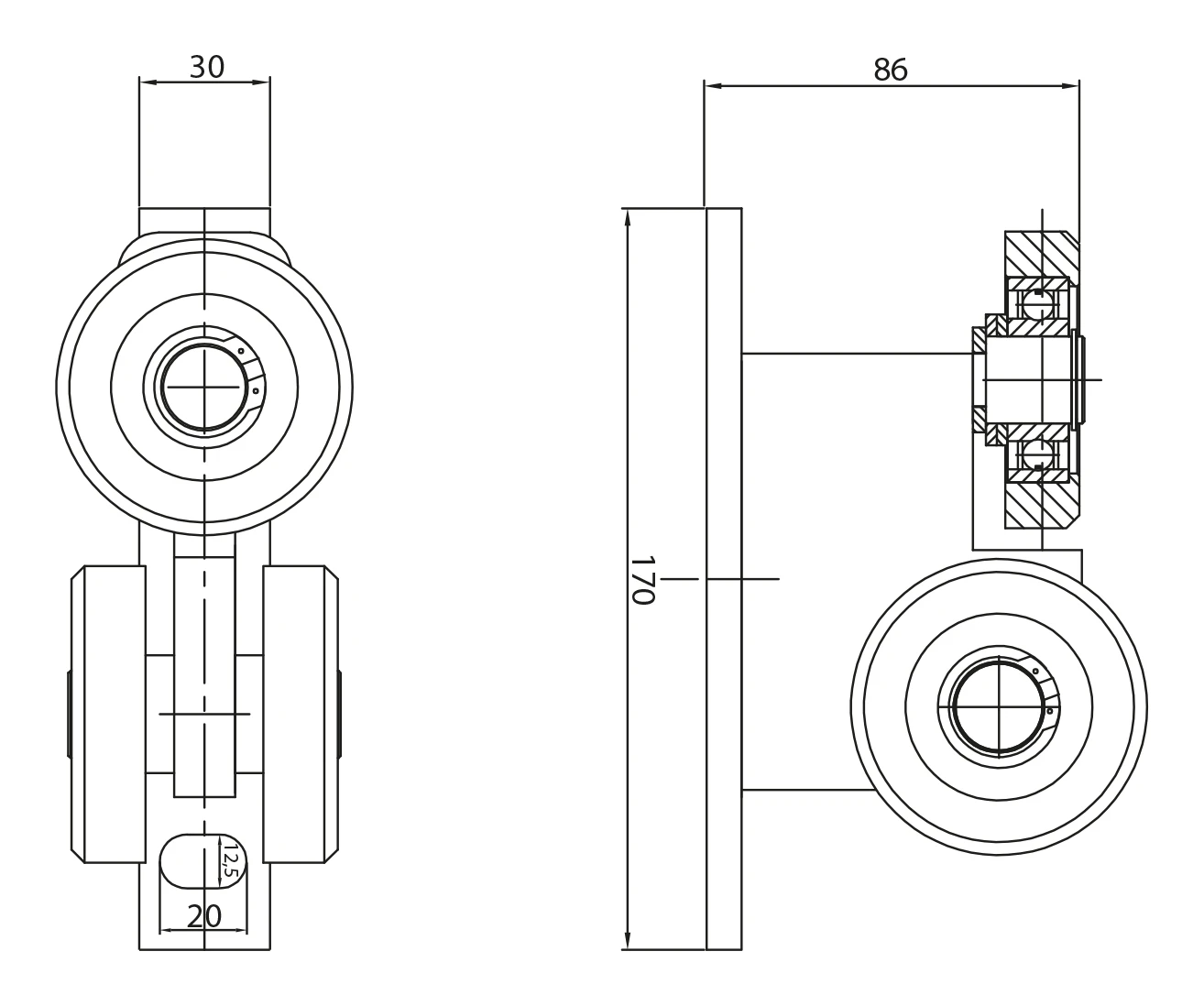

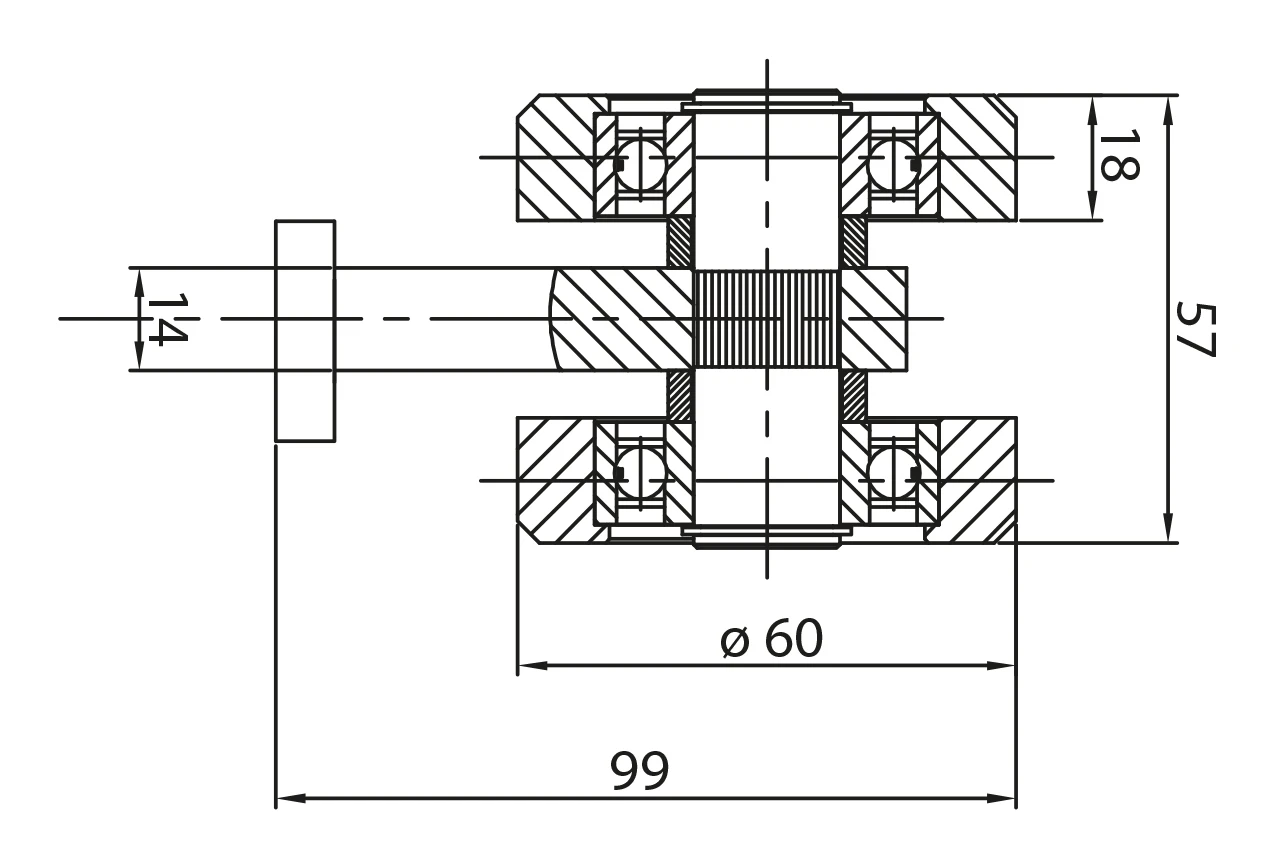

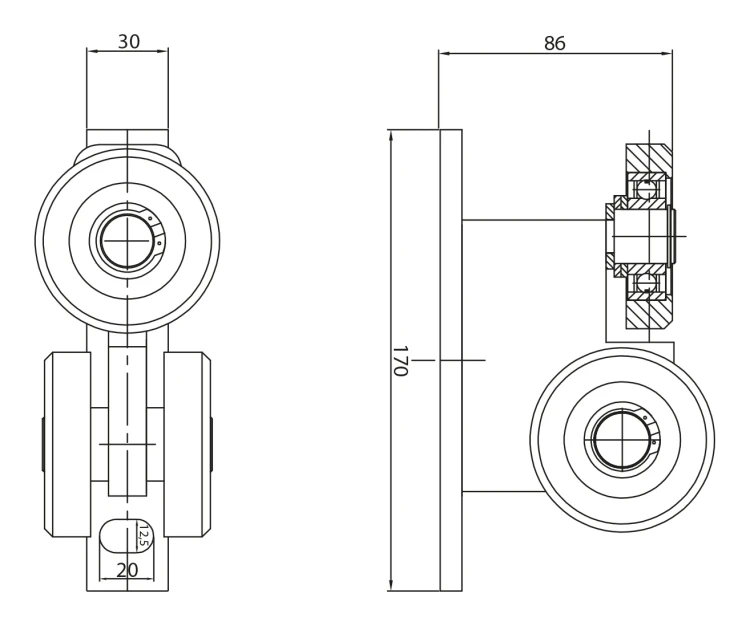

Dimensions and Technical Specifications
- Track system: 70×70 mm
- Mounting plate height (L): 170 mm
- Projection from plate to outermost point of upper roller: 86 mm
- Overall height (H): 99 mm
- Upper roller bracket width: 30 mm
- Slotted hole in base: 20 × 12.5 mm
- Lower roller diameter (load-bearing): ø 60 mm
- Combined width of two lower rollers: 57 mm
- Width of single lower roller: 18 mm
- Mounting plate thickness: 14 mm
- Weight: 1.88 kg
- Rollers: 2 steel + 1 plastic
- Bearings: ball bearings
- Corrosion protection: zinc plating
- EAN: 5901289670036
Benefits for the Installer
- Narrow mounting base with slotted holes allows precise alignment and secure fixing
- Zinc-plated surface eliminates the need for additional corrosion protection — ready to install straight away
- Quiet operation thanks to the combination of steel rollers and a plastic roller — fewer complaints from end users
- Ball bearings provide low rolling resistance and a long service life with minimal maintenance
- Versatile application — indoors and outdoors, in industrial units, warehouses and agricultural buildings
