Round masking rosette for Ø 48.3 mm pipe – AISI 304 stainless steel, satin finish
0
Description

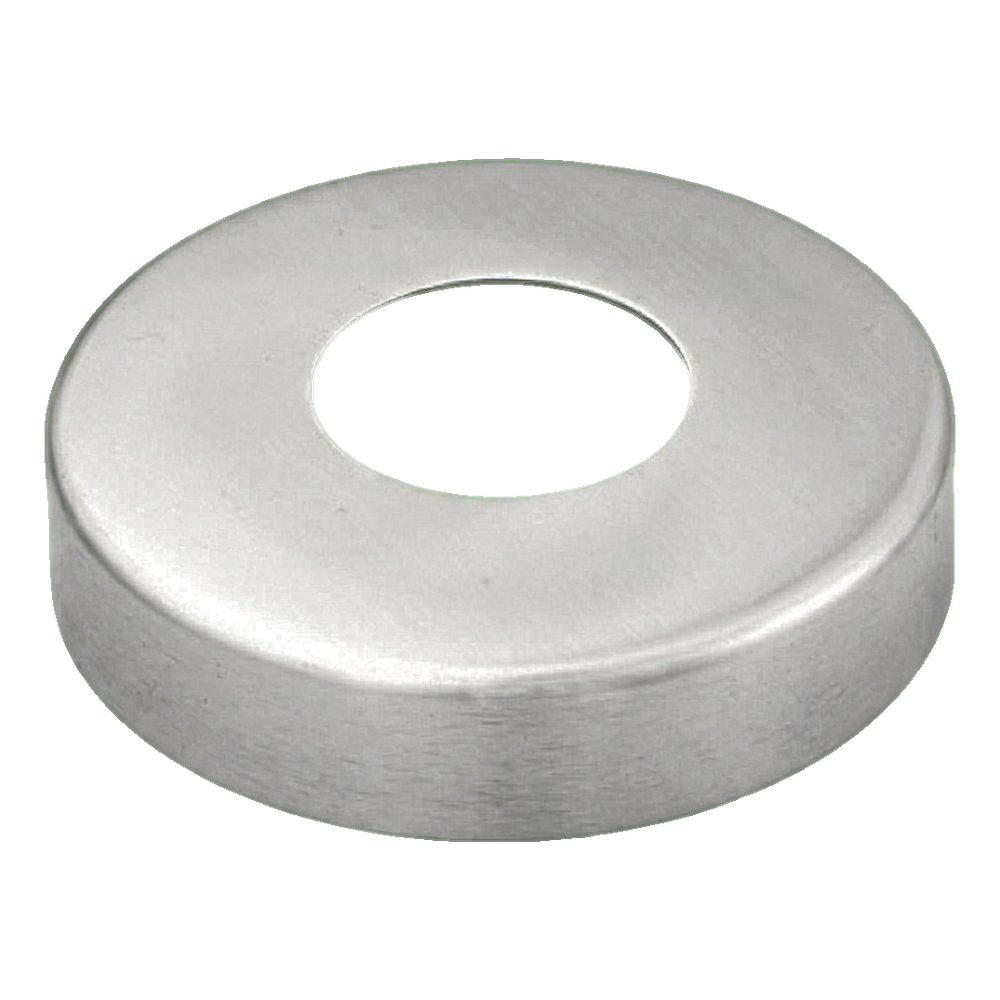

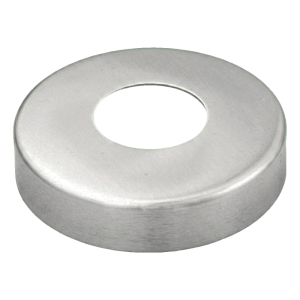

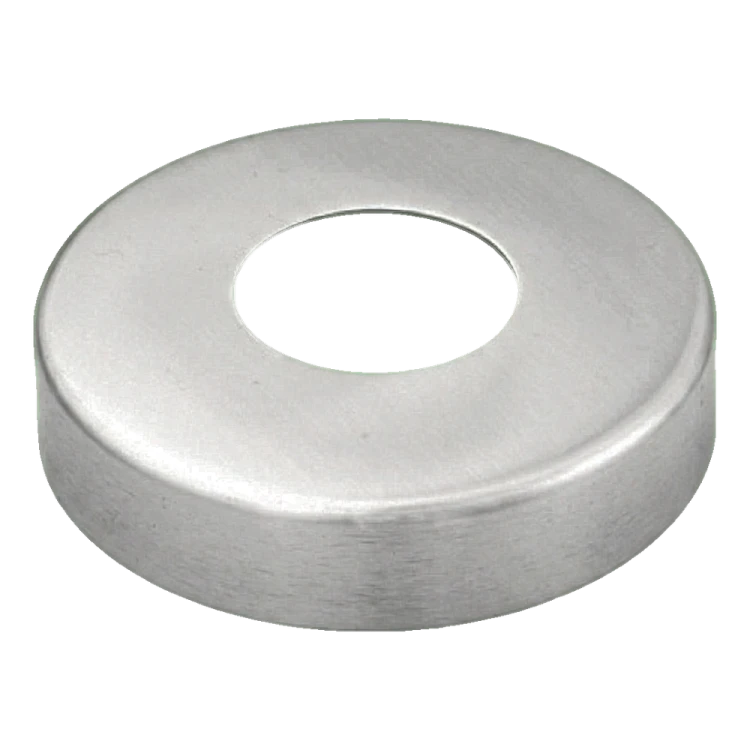

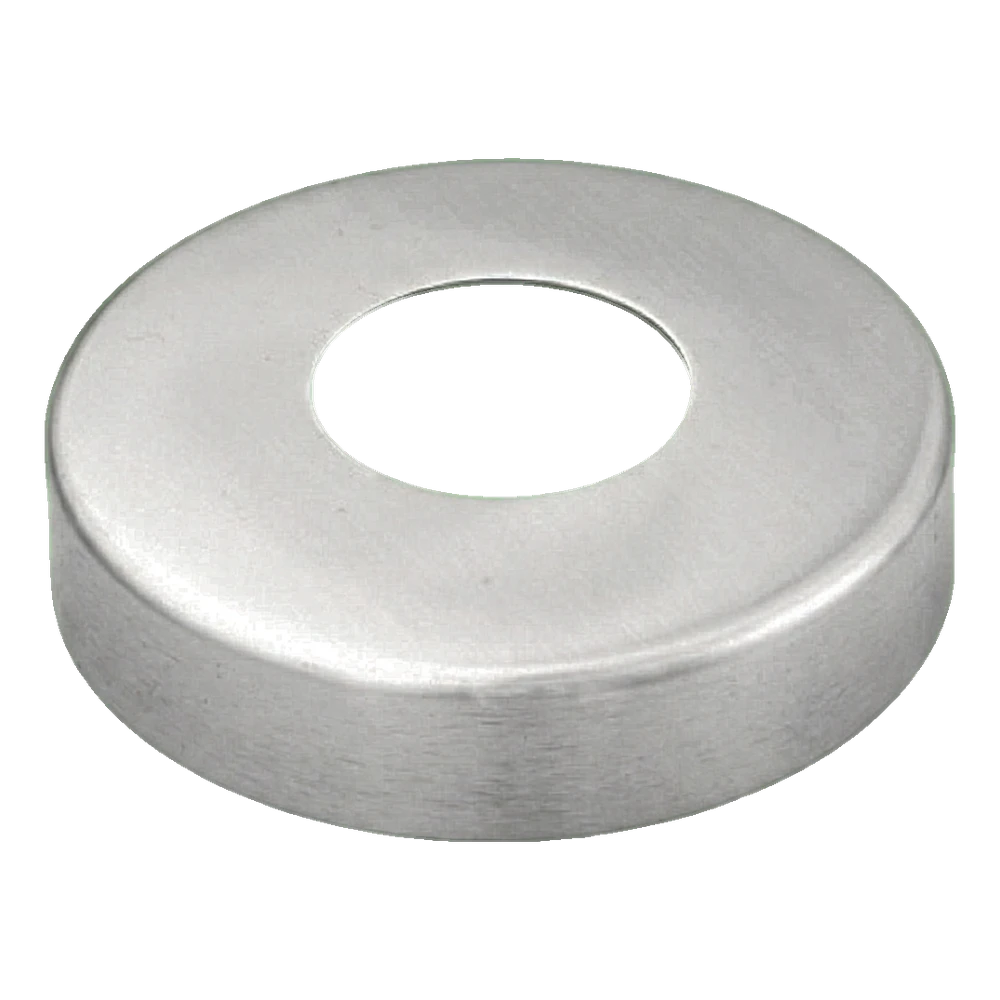

Round masking rosette for Ø 48.3 mm pipe – AISI 304 stainless steel, satin finish
Round masking rosette Ø 125 mm designed for pipe with diameter 48.3 mm — an aesthetic finishing element that covers mounting holes in stainless steel balustrades. Thanks to precise fitting to the 48.3 mm pipe system, it ensures a professional, clean appearance of every balustrade construction.
The cover is made from AISI 304 stainless steel with satin (brushed) finish, which guarantees high corrosion resistance and visual consistency with other balustrade elements. Wall thickness of 1.5 mm ensures adequate rigidity and durability of the element, whilst providing ease of installation — the rosette is placed directly onto the pipe and pressed against the mounting surface.

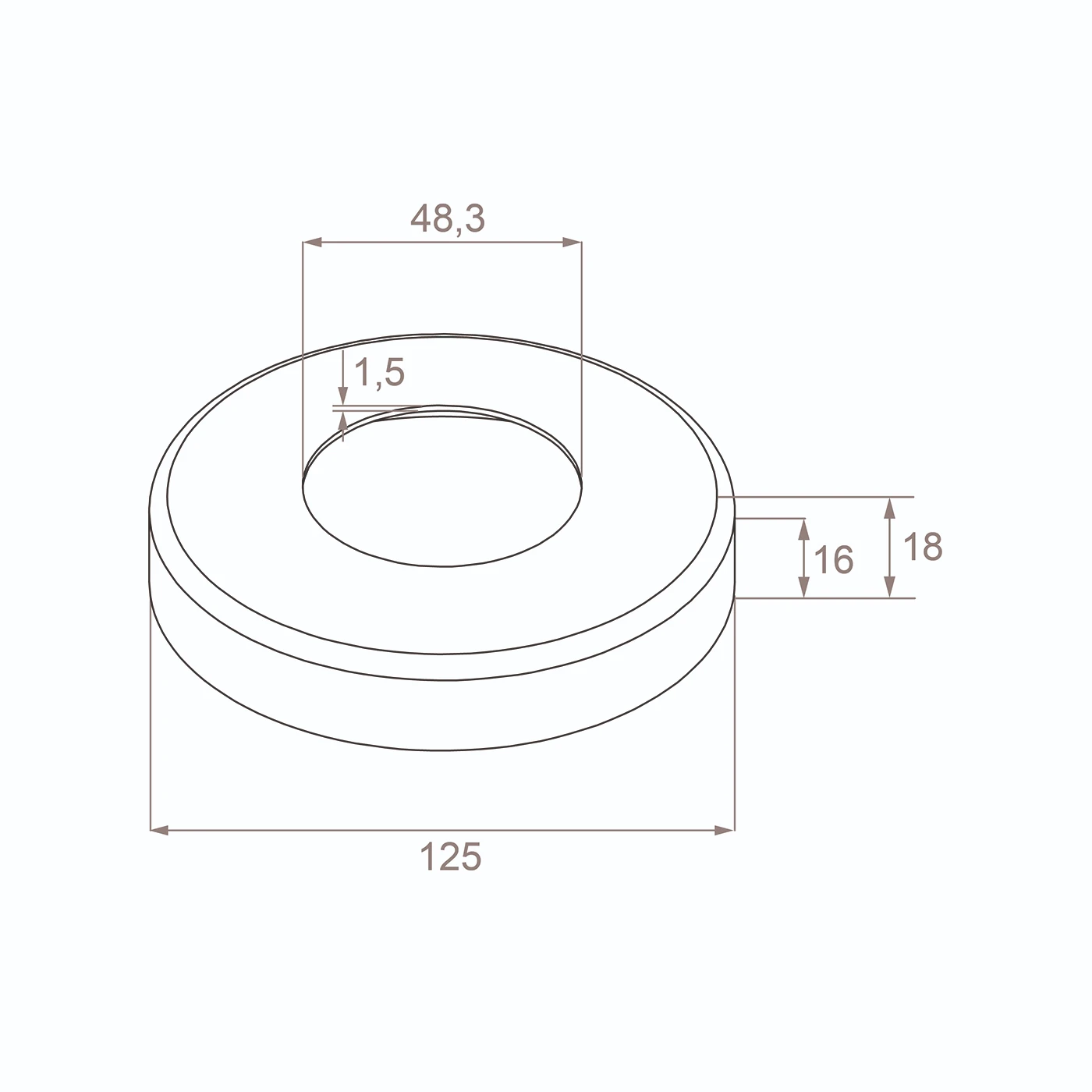

Dimensions and technical data
- External diameter: 125 mm
- Hole diameter (for pipe): 48.3 mm
- Total height: 18 mm
- Side edge height: 16 mm
- Wall thickness: 1.5 mm
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Shape: round
- Pipe system: Ø 48.3 mm
- Weight: 0.13 kg
- EAN: 5901289673945
Application
The rosette is designed for masking mounting holes in stainless steel balustrades — both inside buildings and outdoors. It performs ideally at pipe penetrations through ceilings, floors and walls. Installation is quick and requires no additional tools — simply slide the cover onto the pipe and press against the base surface. This reduces project completion time, whilst the final visual effect is professional and aesthetic.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 48.3 mm |
