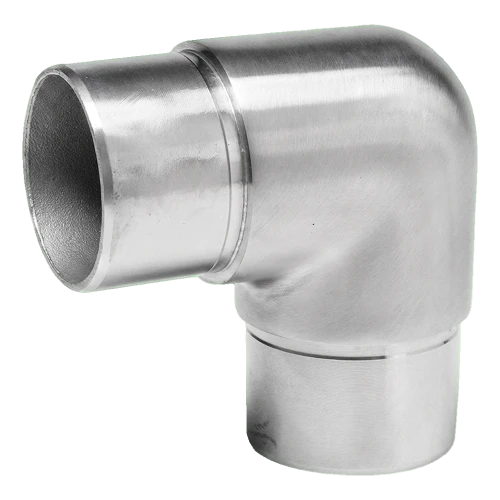

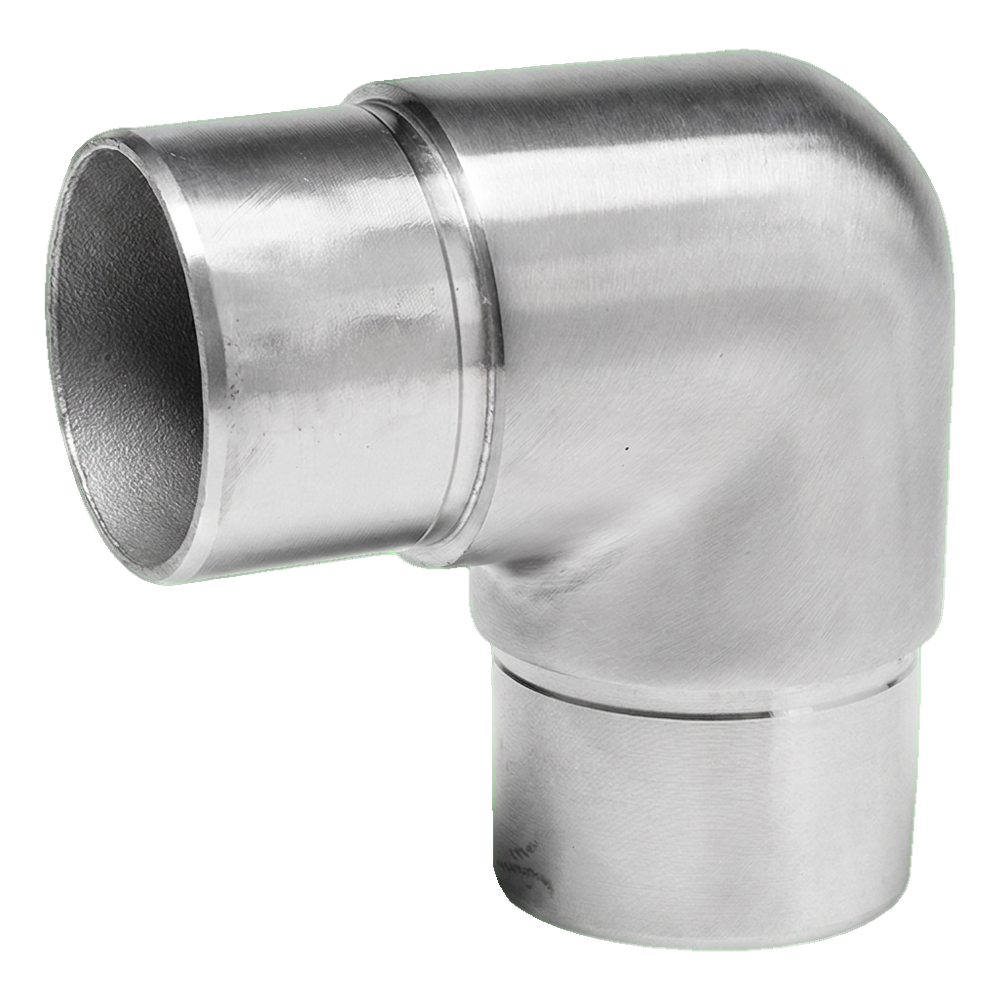

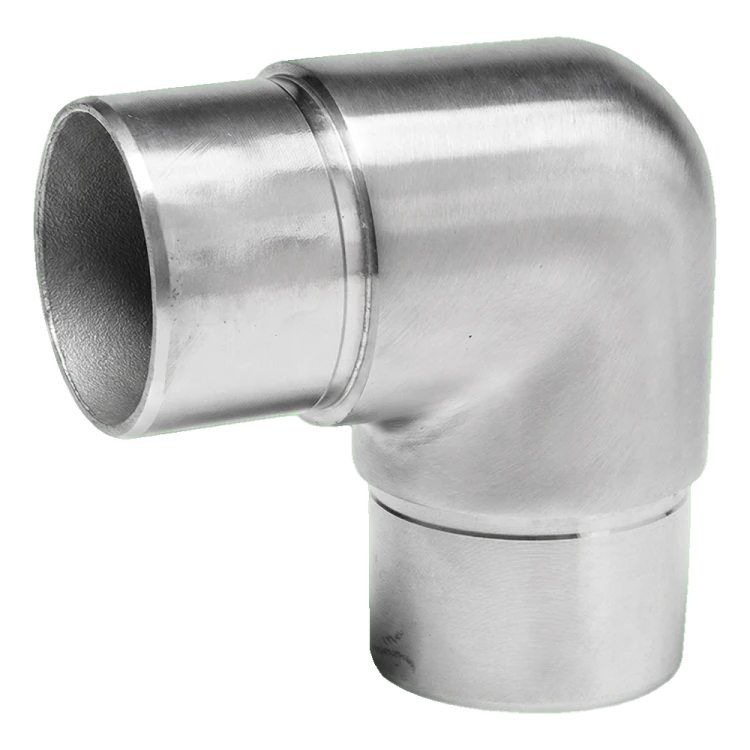

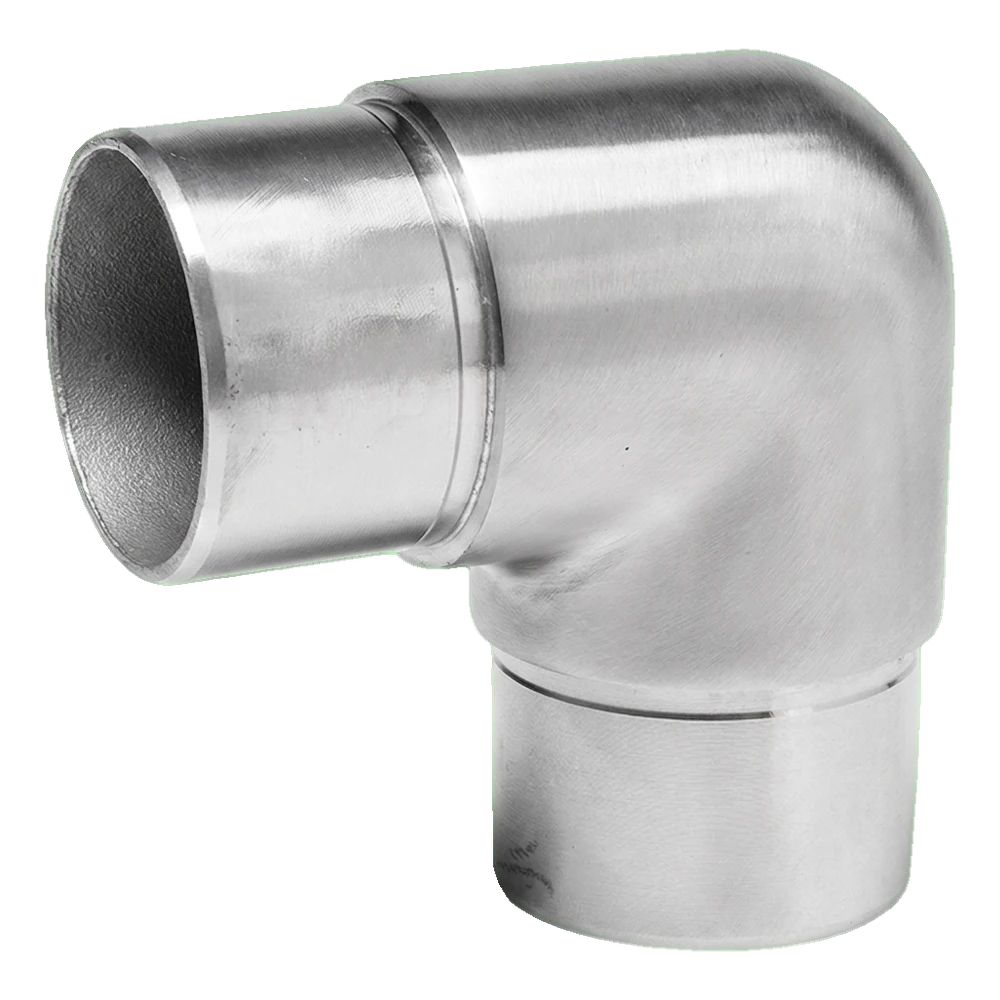

Round balustrade elbow 90° glued for 42.4mm tube – stainless steel AISI 304 satin
Description
Round balustrade elbow 90° glued for 42.4mm tube – stainless steel AISI 304 satin
Round glued elbow 90° is a precision balustrade connector designed for tubes with diameter 42.4mm and wall thickness 2mm. Thanks to its round bend shape, the element gives the balustrade an elegant, rounded profile — ideal wherever aesthetic finishing of corners and direction changes in handrails is required.
The elbow is installed using the gluing method with anaerobic adhesive, which bonds upon contact with metal and hardens after cutting off the oxygen supply. This type of connection ensures a durable, invisible joint without the need for welding — which significantly speeds up balustrade installation on site and eliminates the need for weld grinding.

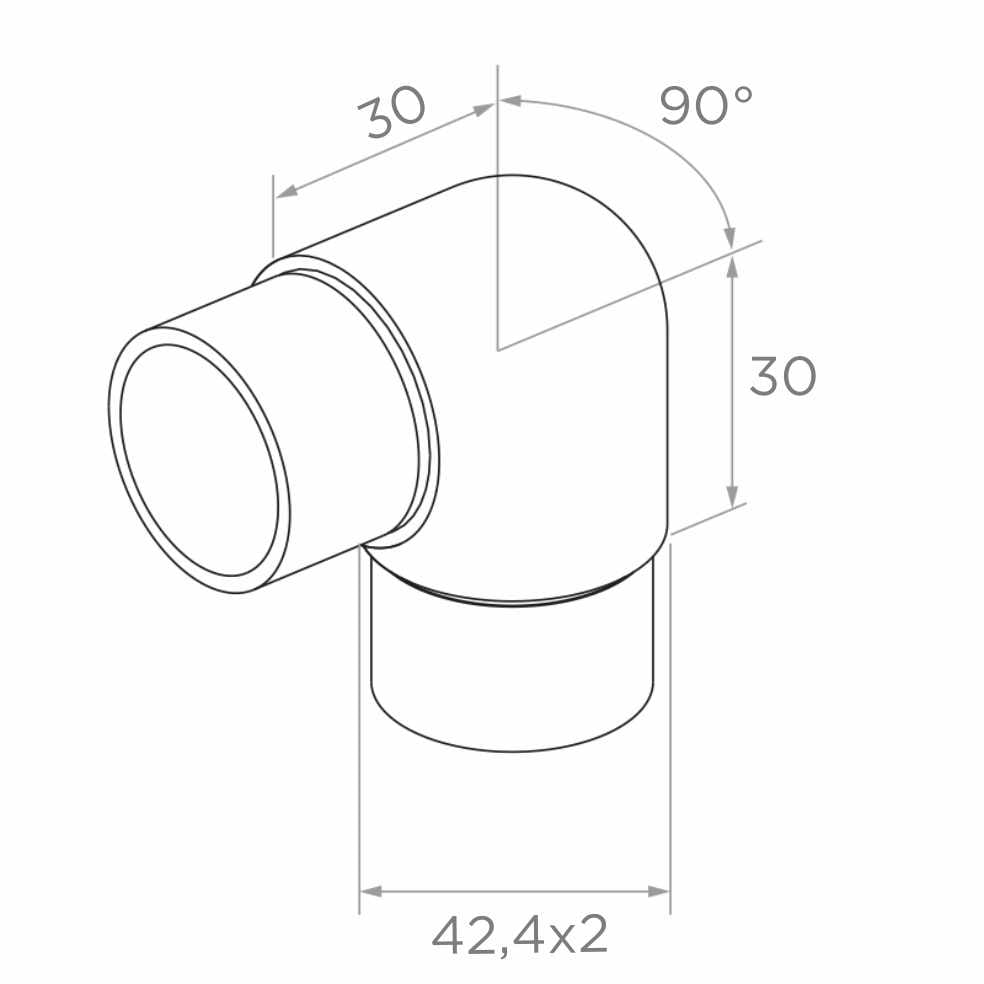

Dimensions and technical data
- Bend angle: 90°
- Tube diameter: 42.4mm
- Tube wall thickness: 2mm
- Axial distance (horizontal): 30mm
- Axial distance (vertical): 30mm
- Elbow shape: round (rounded)
- Material: AISI 304 stainless steel
- Surface finish: satin
- Installation method: gluing (anaerobic adhesive)
- Weight: 0.225kg
- EAN: 5901289673099
Application and compatibility
The connector is designed for balustrade systems based on Ø 42.4mm tube — one of the most popular standards in stainless steel balustrades. The elbow serves both structural (connecting handrail sections at right angles) and decorative (aesthetic finishing of corners) functions. It works well in both internal and external balustrades — AISI 304 steel provides high corrosion resistance under typical operating conditions.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
