Round aluminium tube Ø80×5 mm EN AW-6063 – length 2000 mm
0
Description

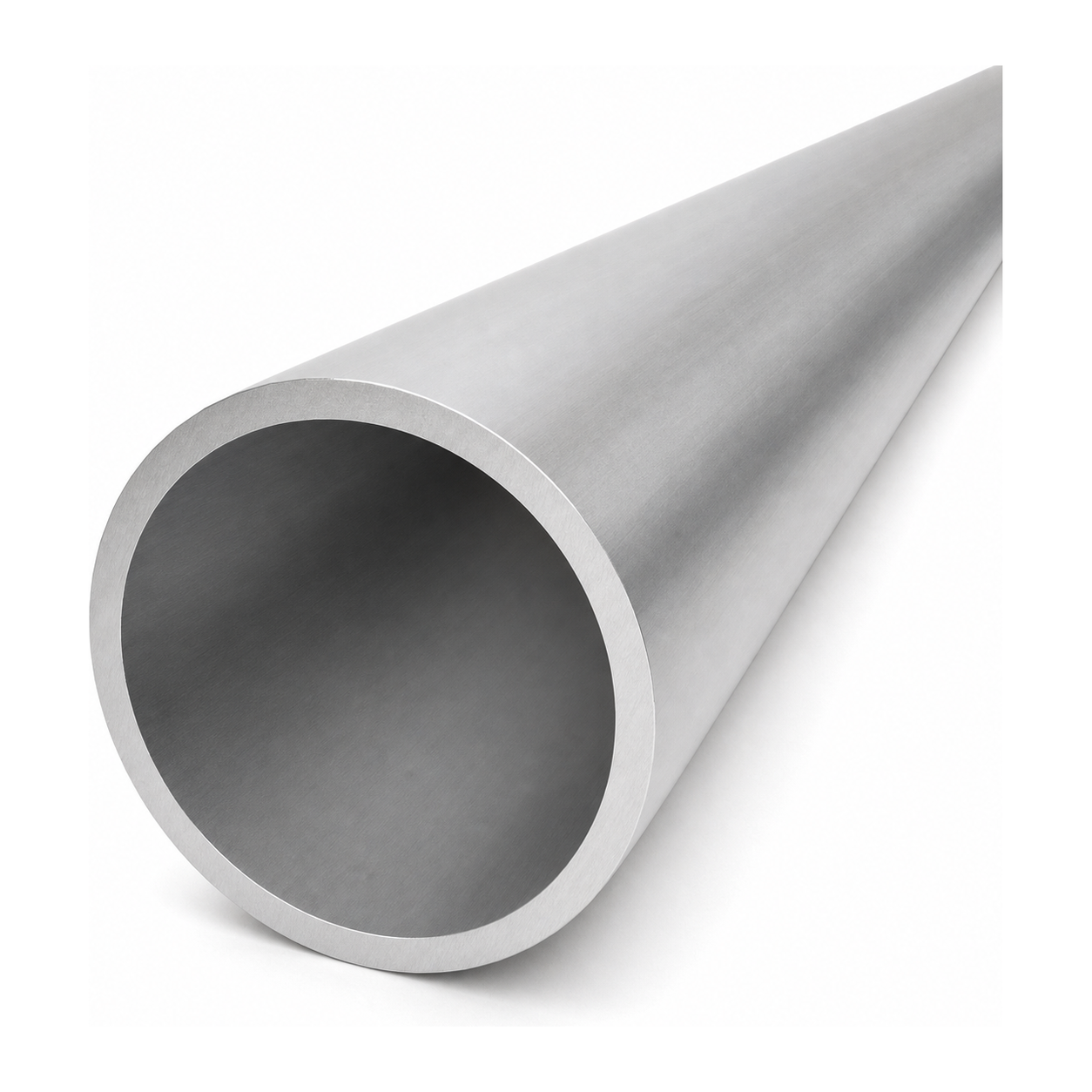

Round aluminium tube Ø80×5 mm EN AW-6063 – length 2000 mm
Round aluminium tube Ø80×5 mm is a durable closed profile with a circular cross-section, ideal for constructing aluminium structures, balustrades, frames, and load-bearing supports. Thanks to the use of the EN AW-6063 T6 alloy (AlMgSi0.5 / PA38), the tube combines low self-weight with high rigidity and natural corrosion resistance — with no need for additional surface protection. The raw finish allows for further processing: anodising, powder coating, or direct installation within a structure.
The profile is easy to cut, drill, bend, and join using standard workshop tools, resulting in a shorter lead time and lower labour costs on site. The 2000 mm length facilitates transport and storage, and at a weight of just 6.36 kg per length, the tube is convenient for a single person to carry.
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Furniture frames and supports
- Decorative and finishing elements
- Modelling and DIY projects
Technical specification
- Cross-section: closed round tube
- Outer diameter (D): 80 mm
- Wall thickness (T): 5 mm
- Length: 2000 mm
- Dimensions (W × H × L): 80 × 80 × 2000 mm
- Weight: 6.36 kg (3.18 kg/m)
- Material: aluminium EN AW-6063 T6 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
The tube is available in a range covering many diameter and wall thickness variants — enabling selection of the optimum profile to meet the strength and weight requirements of a specific project.
Technical data
| Material | Aluminium |
| Diameter | 80 |
| Wall Thickness [mm] | 5 |
| Length [mm] | 2000 |
