Round aluminium tube Ø60×10 mm – EN AW-6063 T6 profile, length 2000 mm
0
Description

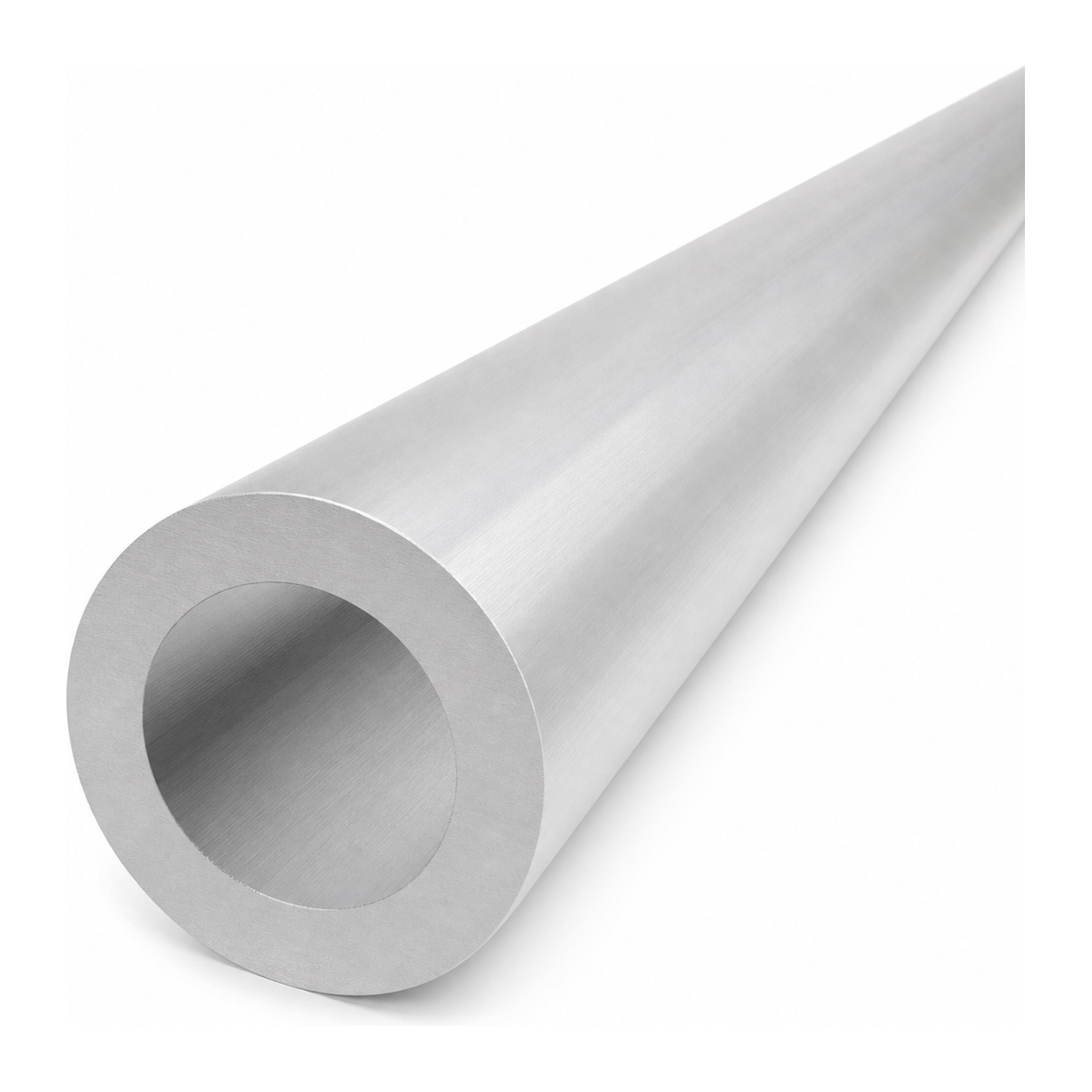

Round aluminium tube Ø60×10 mm – EN AW-6063 T6 profile, length 2000 mm
Round aluminium tube Ø60×10 mm is a durable closed profile with a circular cross-section, made from aluminium alloy EN AW-6063 T6 (PA38 / AlMgSi0.5). Thanks to its thick 10 mm wall, the tube provides high rigidity and load-bearing capacity whilst retaining the low specific weight typical of aluminium. The raw surface allows for further processing — anodising, powder coating or painting — depending on project requirements.
The profile is easy to cut, drill, bend and join, enabling fast and straightforward assembly both on site and in the workshop. The corrosion resistance of the 6063 alloy to atmospheric exposure eliminates the need for additional anti-corrosion protection in most outdoor applications.
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails and barriers
- Machine and equipment frames and supports
- Furniture and decorative elements
- Scale modelling and DIY projects
Technical specification
- Cross-section: closed round tube
- Outer diameter (D): 60 mm
- Wall thickness (T): 10 mm
- Length: 2000 mm
- Dimensions (W × H × L): 60 × 60 × 2000 mm
- Weight: 8.64 kg (4.32 kg/m × 2 m)
Material and surface
- Aluminium alloy: EN AW-6063 T6 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
The tube is available as part of a product range in many outer diameter and wall thickness variants, allowing the optimum profile to be selected for any specific structural design project.
Technical data
| Diameter | 60 |
| Material | Aluminium |
| Wall Thickness [mm] | 10 |
| Length [mm] | 2000 |
