Round aluminium tube Ø40×10 mm PA38 (EN AW-6063) L=2000 mm
Leave feedback on the product
Round aluminium tube EN AW-6063 T6 (PA38). Outer diameter 40 mm, wall thickness 10 mm, inner diameter 20 mm, length 2000 mm. Weight 5.10 kg (2.55 kg/m). Raw, non-anodised surface.
Product code: 001-801
Product features
[PIM] rury #146
- Material Aluminium
- Diameter 40
- Wall Thickness [mm] 10
- Length [mm] 2000
Description
Round aluminium tube Ø40×10 mm PA38 (EN AW-6063) L=2000 mm

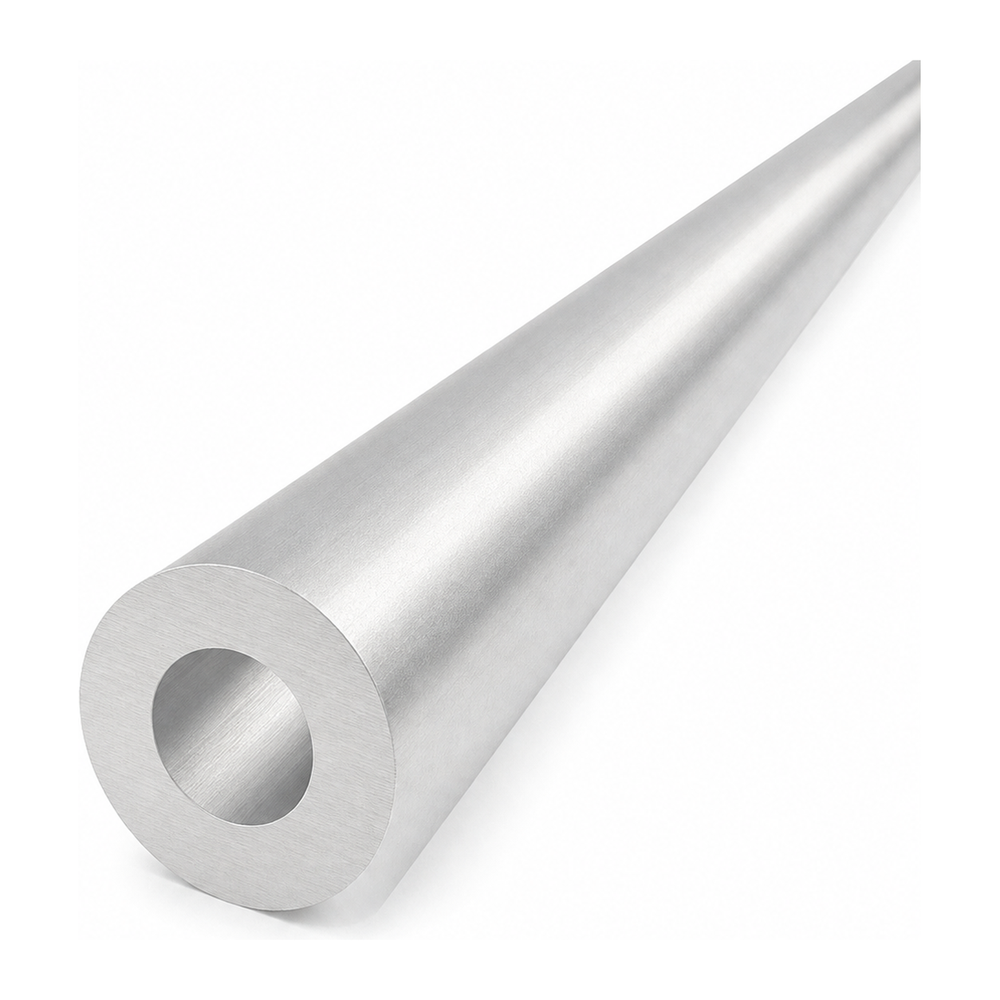

Round aluminium tube Ø40×10 mm is a robust closed profile with a circular cross-section, made from aluminium alloy PA38 (EN AW-6063 T6). The thick, 10 mm wall thickness provides high mechanical rigidity whilst maintaining a relatively low weight — the entire two-metre tube weighs just 5.10 kg. The raw, non-anodised surface allows complete freedom for further processing: cutting, drilling, bending, welding, or anodising in accordance with the requirements of a specific project.
Properties and advantages
- High rigidity — the thick 10 mm wall guarantees mechanical strength under bending and torsion
- Corrosion resistance — aluminium requires no additional anti-corrosion treatment under typical conditions
- Lightweight — linear weight of just 2.55 kg/m, significantly less than steel
- Ease of machining — EN AW-6063 T6 alloy is excellent for cutting, drilling, tapping, and bending
- Versatile dimension — Ø40 mm diameter is compatible with many standard fittings, clamps, and mounting systems
Technical specification

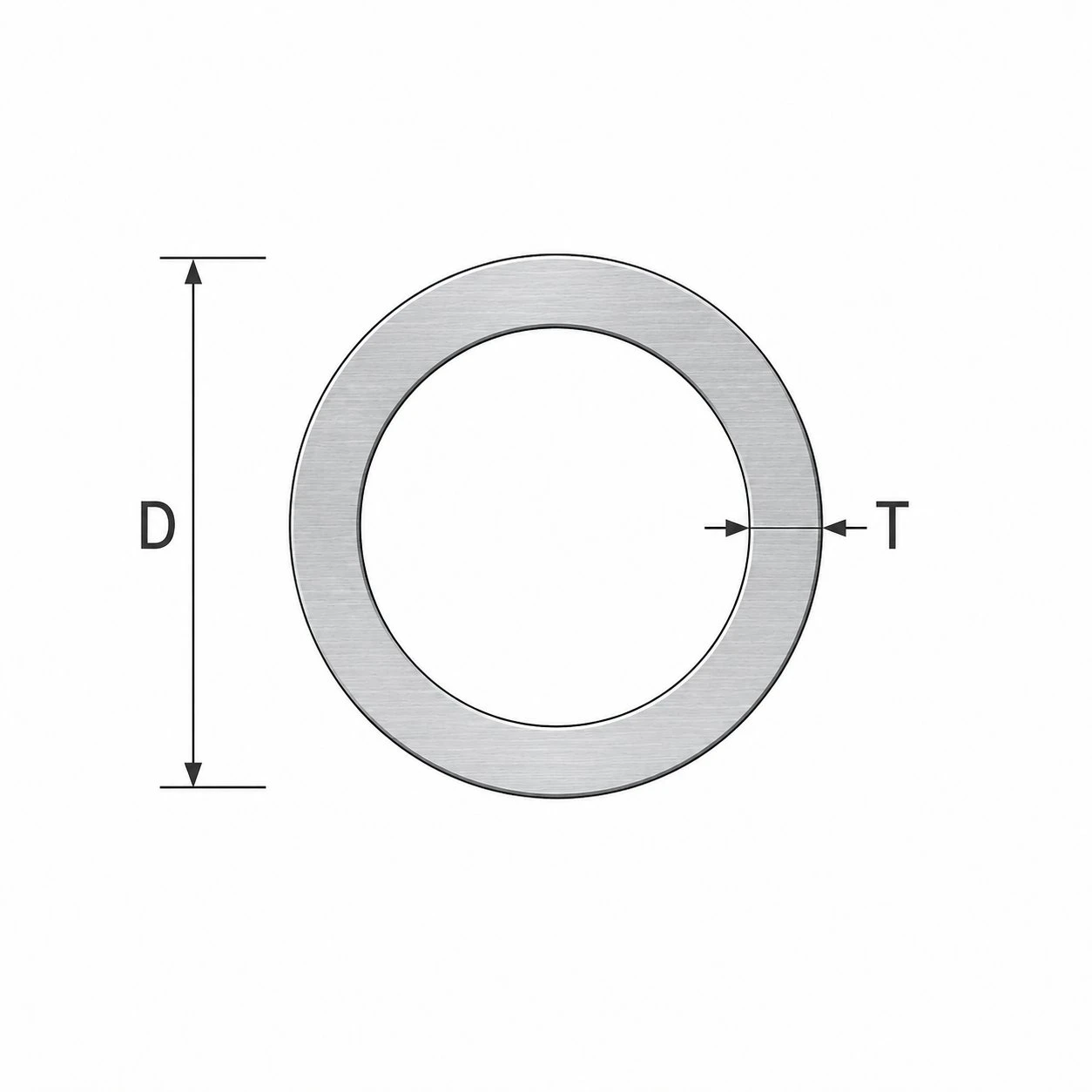

- Cross-section: closed round tube
- Outer diameter (D): 40 mm
- Wall thickness (T): 10 mm
- Inner diameter: 20 mm
- Length: 2000 mm
- Dimensions (W × H × L): 40 × 40 × 2000 mm
- Weight: 5.10 kg (2.55 kg/m)
- Material: aluminium PA38 (EN AW-6063 T6), AlMgSi0.5 alloy
- DIN designation: 3.3206
- Surface: raw (non-anodised)
Applications
The aluminium tube Ø40×10 mm is widely used in professional structures where good strength combined with low weight is required. Thanks to its thick wall, it is ideally suited as a load-bearing element in aluminium structures, frames and chassis, balustrades and handrails, as well as a component in furniture and decorative elements. The tube is also frequently used in model making and projects requiring precise mechanical machining. The profile is available in a range of diameter and wall thickness variants, making it easy to select the optimum cross-section for a specific project.
