Round aluminium tube Ø22×1.5 mm – EN AW-6063 profile length 2000 mm
0
Description

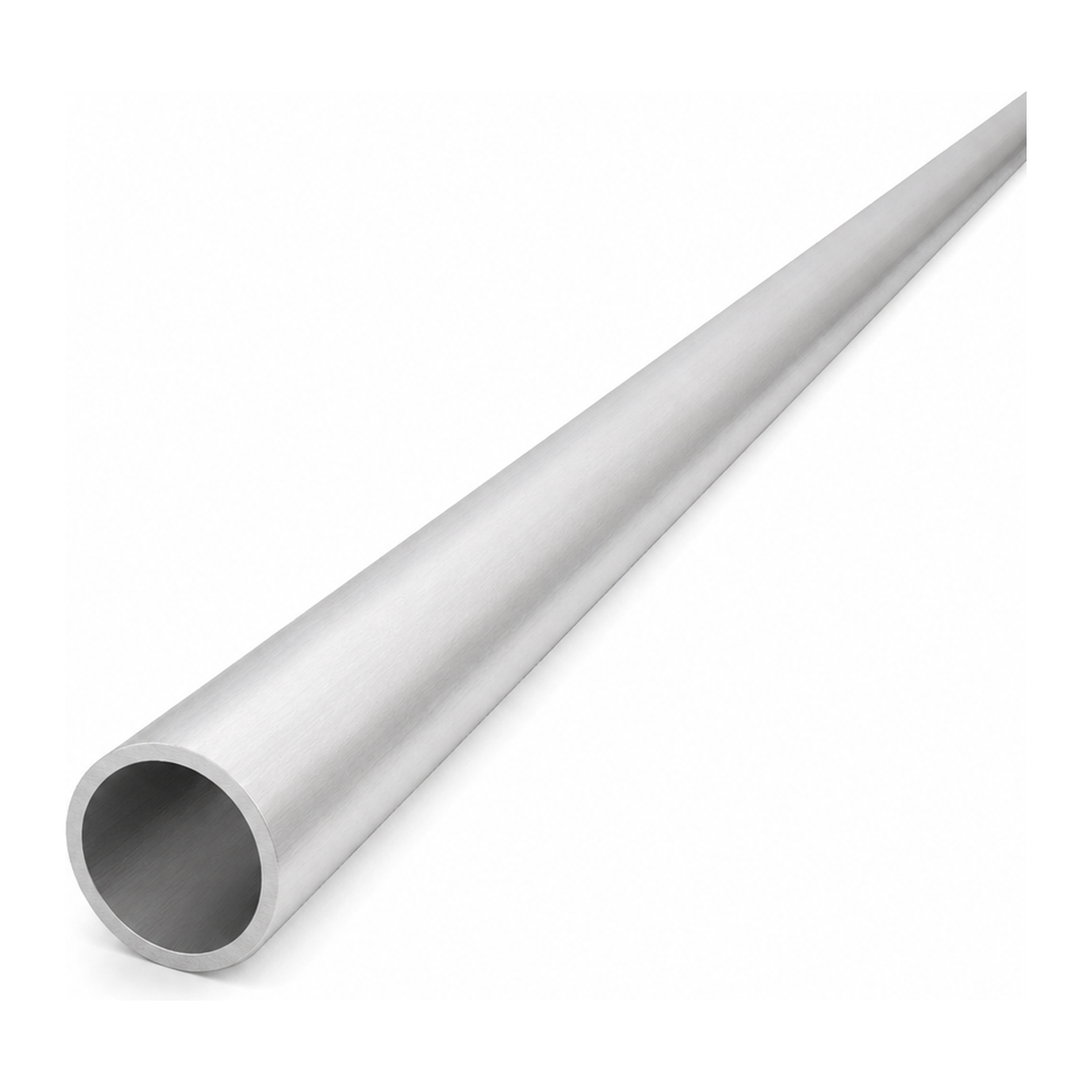

Round aluminium tube Ø22×1.5 mm – EN AW-6063 profile length 2000 mm
Round aluminium tube Ø22×1.5 mm is a versatile closed profile with a circular cross-section, made from aluminium alloy EN AW-6063 T6 (PA38, AlMgSi0.5). With a low weight of just 0.52 kg at a length of 2000 mm and high corrosion resistance, the tube is an excellent choice for aluminium structures, balustrades, frames and supports — wherever lightness, rigidity and durability are essential.
The raw, non-anodised surface allows for further processing — anodising, powder coating or leaving in its natural state. The profile is easy to cut, drill, bend and join, enabling rapid installation and flexibility on site.
Technical specification
- Cross-section: closed round tube
- Outer diameter (D): 22 mm
- Wall thickness (T): 1.5 mm
- Length: 2000 mm
- Dimensions (W × H × L): 22 × 22 × 2000 mm
- Weight: 0.52 kg (0.26 kg/m)
- Material: aluminium EN AW-6063 T6 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and frames
- Balustrades and handrails
- Frames and load-bearing elements
- Furniture and decorative components
- Modelling and DIY projects
The tube is available in a product range with many diameter and wall thickness variants, allowing the optimum profile to be selected for any specific project.
Technical data
| Material | Aluminium |
| Diameter | 22 |
| Wall Thickness [mm] | 1.5 |
| Length [mm] | 2000 |
